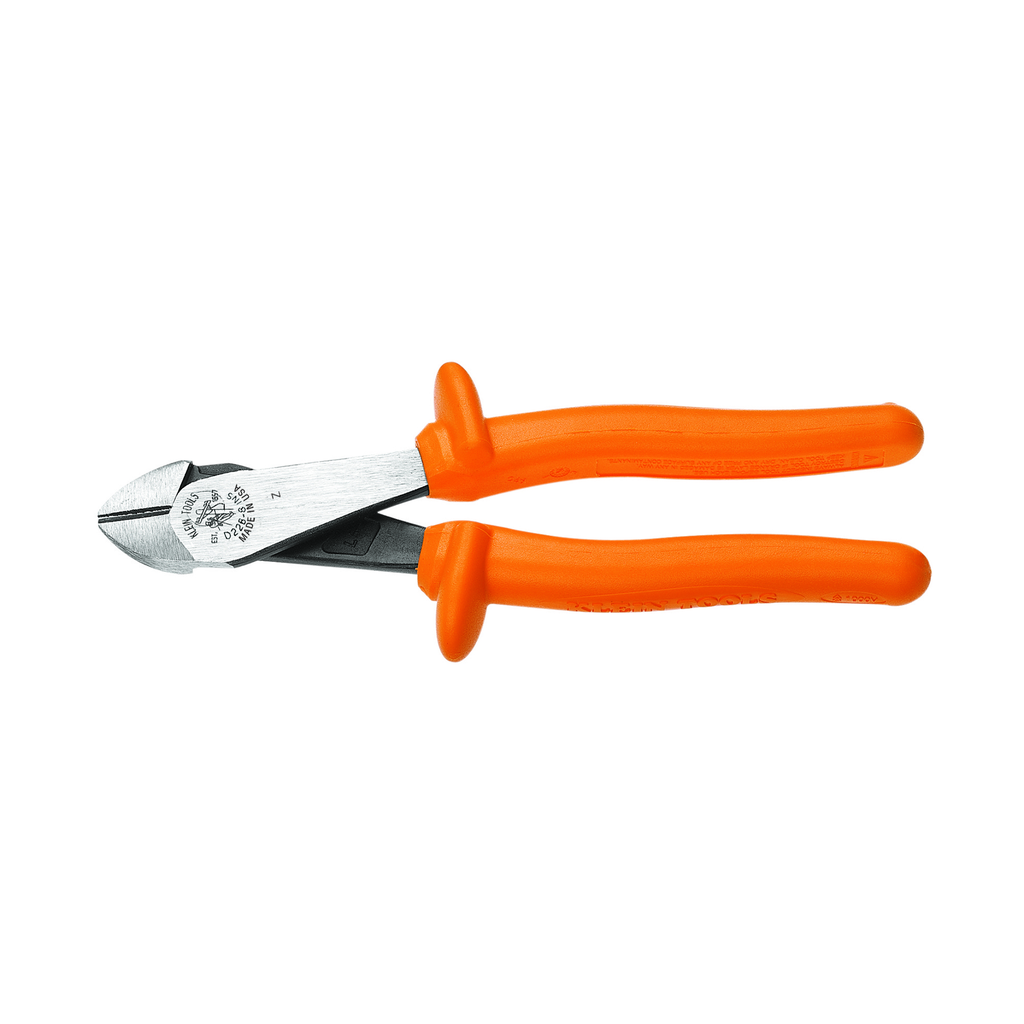

Diagonal Cutting Pliers, Insulated, Heavy-Duty, 8-Inch

These 8-Inch Klein Tools Insulated Heavy-Duty Diagonal-Cutting Pliers have durable molded insulation that is flame retardant, impact resistant and clearly marked with 1000-volt rating. The knives are heavy duty induction hardened steel that can cut ACSR, screws, nails, and most hardened wire. Their high-leverage design allows for them to have 36-percent greater cutting power than other similar plier designs.

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.

Features

• Heavy-duty, induction hardened cutting knives cut ACSR, screws, nails, and most hardened wire
• Made in USA
• Flame Retardant and Impact Resistant Handle
• Clearly marked with the official 1000-volt rating symbol
• Pliers grips made of durable molded insulation meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Forged steel for maximum durability
• High-leverage design for 36-percent greater cutting power than other plier designs

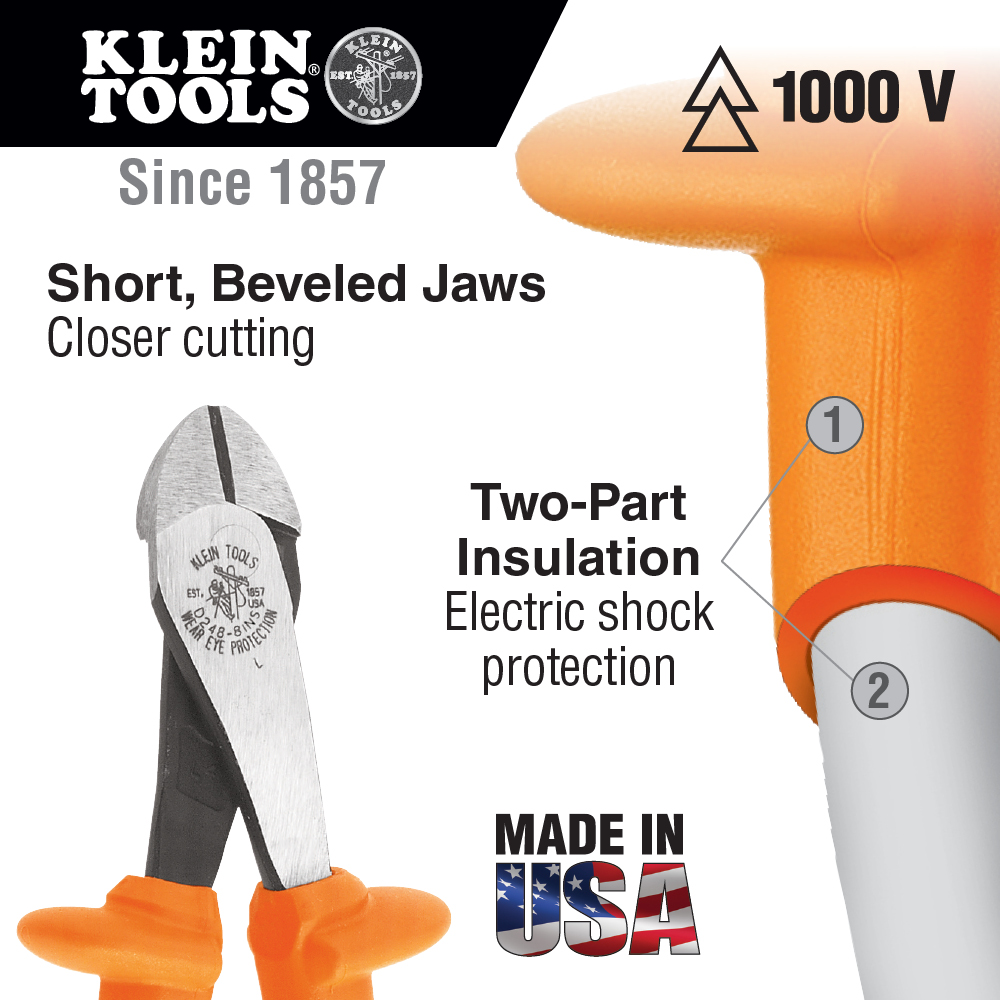

• Flame retardant, impact-resistant, bright orange outer coating with two layers of insulation provide protection against electric shock
• Hot-riveted joint for smooth action and no handle wobble

Specifications

• Handle Finish: 2-Layer Insulation
• Weight: 0.7000 lbs
• Jaw Thickness (cm): 1.2
• Weight (oz): 11.2
• Handle Color: Orange
• Depth: 8.2500 in
• Weight (g): 318
• Jaw Width (cm): 3.2
• Insulated: Yes
• Jaw Thickness (Inch): 0.49
• Handle Length (Inch): 4.73
• Overall Length (Inch): 7.98
• Jaw Length (cm): 2.1
• Type: Diagonal Cutting Pliers
• Cut Style: Diagonal-Cutting
• Standard: IEC 60900 and ASTM F1505
• Handle Length (cm): 12
• Nose Type: Tapered
• Material: Induction Hardened Steel
• Joint Type: Hot-Riveted
• Jaw Length (Inch): 0.83
• Overall Length (cm): 20.3
• Width: 1.1880 in
• Cutting Knives: Standard
• Application: ACSR, Screws, Nails and Most Hardened Wire
• Height: 0.4380 in
• Jaw Width (Inch): 1.25
