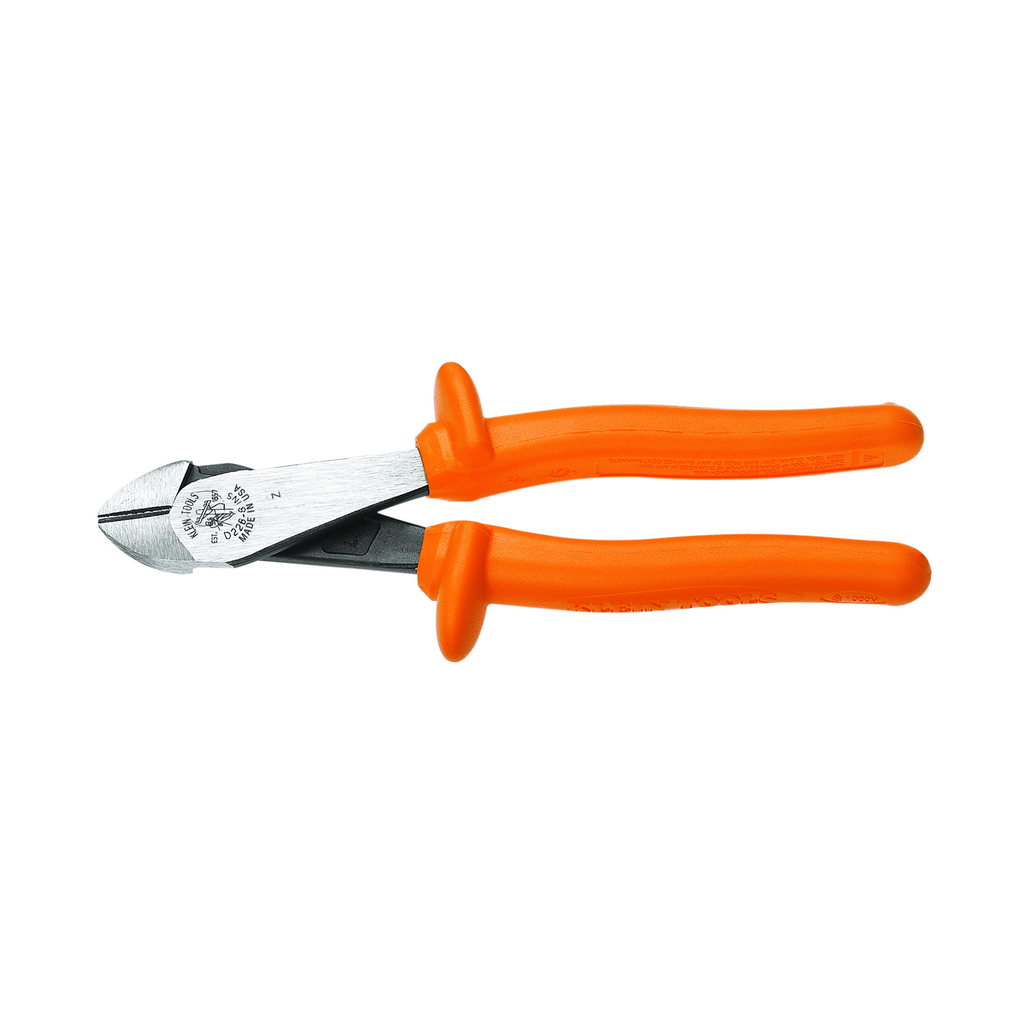

Diagonal Cutting Pliers, Insulated, Heavy-Duty, Angled Head, 8-Inch

These Insulated Heavy-Duty Diagonal-Cutting Pliers have durable molded insulation that is flame retardant, impact resistant and clearly marked with 1000-volt rating. The knives are heavy duty induction hardened steel that can cut ACSR, screws, nails, and most hardened wire. The high-leverage design paired with an angled head allows for increased leverage and the ability to work in confined areas.

Features

• Made in USA
• Clearly marked with the official 1000-volt rating symbol
• Hot-riveted joint for smooth action and no handle wobble
• Induction hardened, heavy-duty knives cut ACSR, screws, nails, and most hardened wire
• Flame retardant, impact-resistant, bright orange outer coating with two layers of insulation protect against electric shock
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Flame Retardant and Impact Resistant Handle
• Integral guards help prevent hand contact with conductive parts
• Forged steel for maximum durability
• Angled head for easier work in confined spaces
• Pliers with grips made of durable molded insulation meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
• High-leverage design for 36-Percent greater cutting power than other plier designs

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.

Specifications

• Application: ACSR, Screws, Nails and Most Hardened Wire
• Jaw Width (cm): 3.2
• Jaw Thickness (Inch): 0.46
• Overall Length (Inch): 8.24
• Overall Length (cm): 20.9
• Jaw Length (Inch): 0.813
• Jaw Capacity (Inch): 1.15
• Handle Length (Inch): 4.9
• Nose Type: Angled
• Cut Style: Diagonal-Cutting
• Insulated: Yes
• Width: 1.1880 in
• Weight (g): 318
• Handle Length (cm): 12.4
• Type: Diagonal Cutting Pliers
• Depth: 8.2500 in
• Standard: IEC 60900 and ASTM F1505
• Jaw Capacity (cm): 2.9
• Material: Induction Hardened Steel
• Weight (oz): 11.2
• Joint Type: Hot-Riveted
• Handle Color: Orange
• Height: 0.4380 in
• Jaw Thickness (cm): 1.2
• Jaw Width (Inch): 1.25
• Weight: 0.7000 lbs
• Cutting Knives: Standard
• Handle Finish: 2-Layer Insulation
• Jaw Length (cm): 2.1
