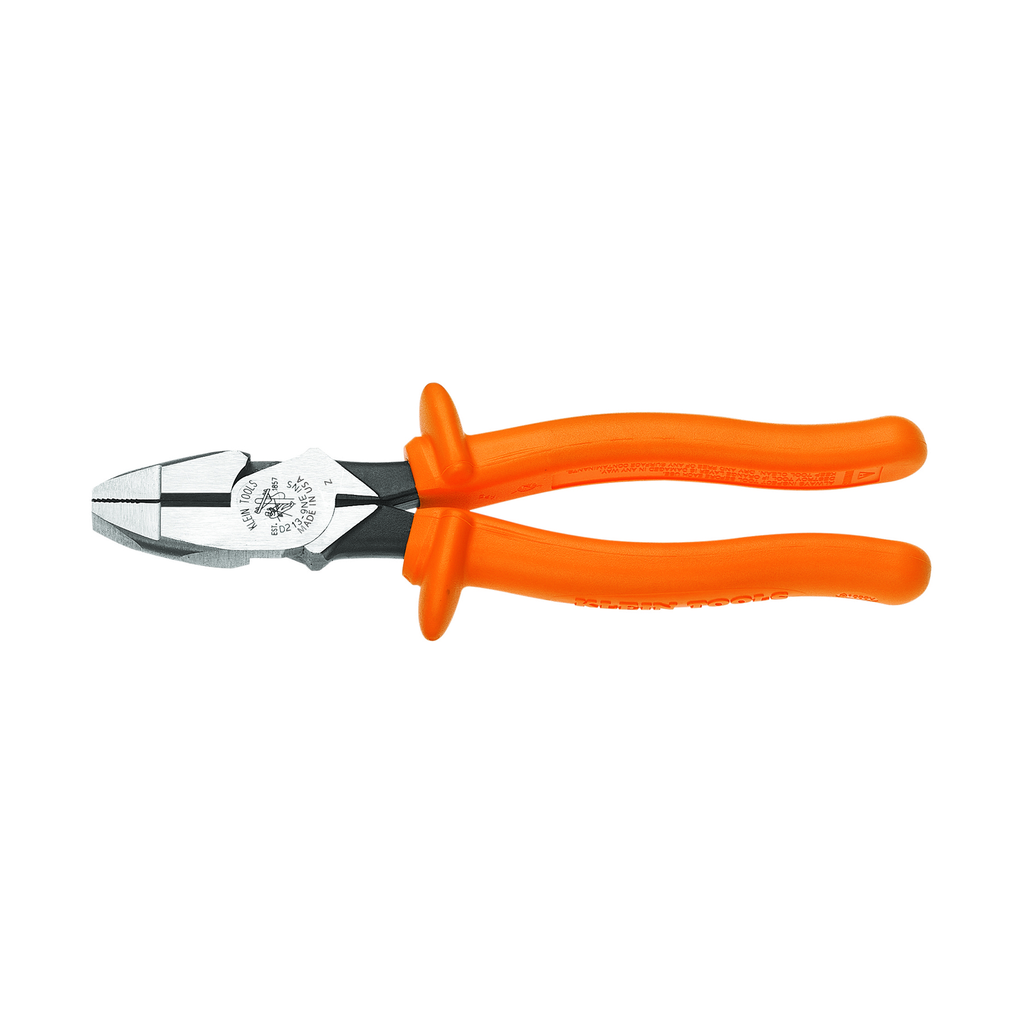

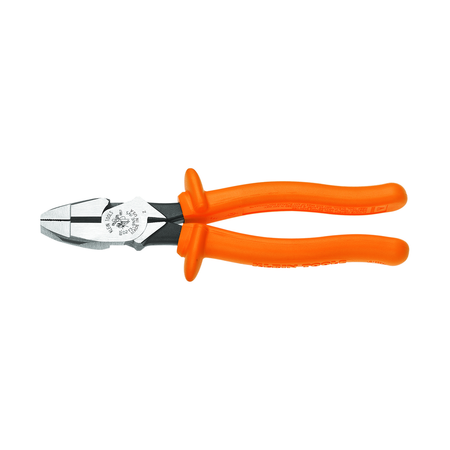

Insulated Lineman's Pliers, 9-Inch

These Klein Tools 9-Inch Insulated Side-Cutting Pliers have jaws knurled with a cross-hatch pattern for excellent gripping. They are made of steel alloy for strength and performance. They also feature flame and impact retardant coating, as well as insulation to protect up to 1000 Volts.

Features

• Cuts ACSR, screws, nails, and most hardened wire
• Pliers are individually tested to meet or exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
• High-leverage design provides 46-Percent greater cutting and gripping power than other plier designs
• Made in USA

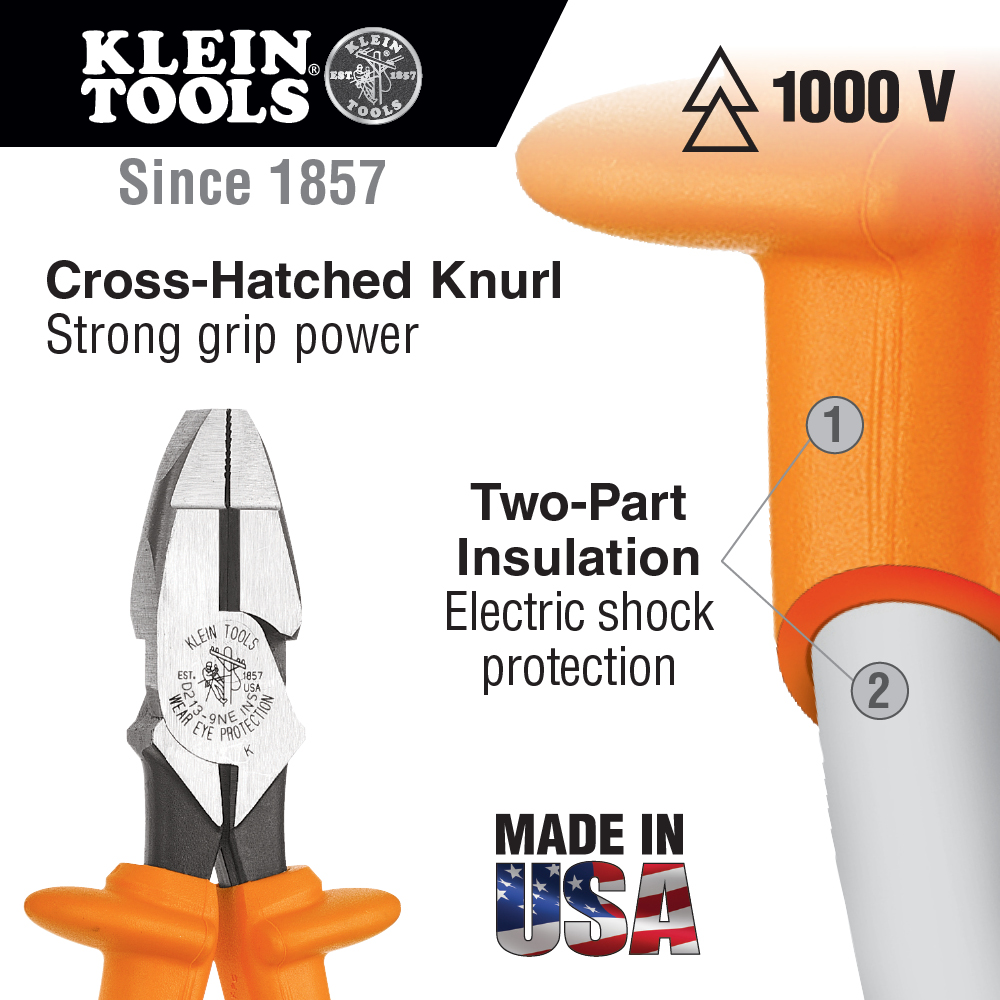

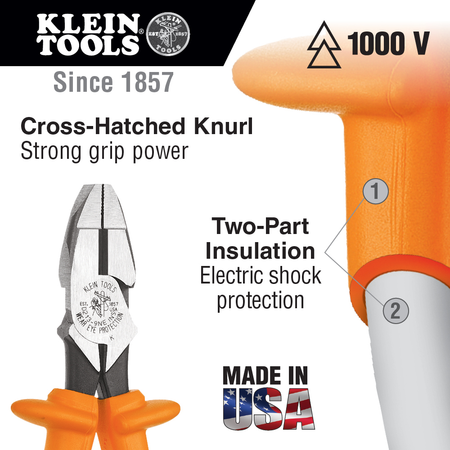

• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool and a flame retardant, impact-resistant, bright orange outer coating
• Two layers of insulation provide protection against electric shock while the integral guards help prevent hand contact with conductive parts
• Integral Guards Help Prevent Hand Contact With Conductive Parts

Warnings

• Wear approved eye protection. Always inspect your tools before use.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.

Specifications

• Insulated: Yes
• Material: Induction Hardened Steel
• Cut Style: Side-Cutting
• Jaw Width (cm): 3.2
• Handle Color: Orange
• Handle Finish: 2-Layer Insulation
• Jaw Length (cm): 4
• Jaw Thickness (Inch): 0.6
• Handle Length (Inch): 5.73
• Depth: 9.6250 in
• Knife Length (Inch): 0.781
• Overall Length (Inch): 9.68
• Weight (oz): 20.8
• Jaw Length (Inch): 1.594
• Overall Length (cm): 24.6
• Nose Type: New England
• Jaw Thickness (cm): 1.5
• Weight (g): 590
• Standards: IEC 60900 and ASTM F1505
• Jaw Capacity (cm): 3.6
• Handle Length (cm): 14.6
• Height: 0.6250 in
• Weight: 1.2500 lbs
• Joint Type: Hot-Riveted
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Jaw Capacity (Inch): 1.43
• Type: Side Cutting Pliers
• Knife Length (cm): 2
• Jaw Width (Inch): 1.25
• Width: 4.6250 in
