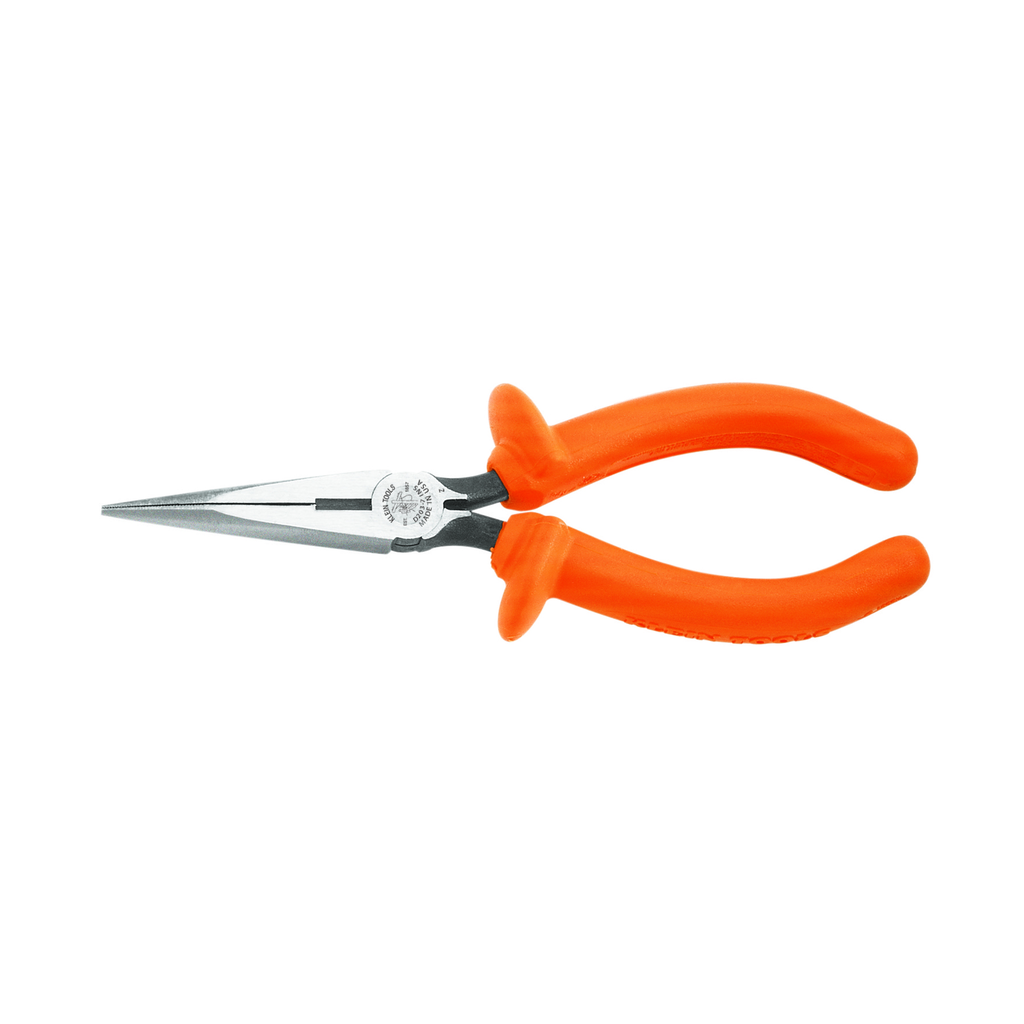

Long Nose Pliers, Insulated, 6-Inch

Klein Tools Insulated Long Nose Side-Cutting pliers are 1000V rated for safety on the job. The long nose is designed for grabbing and looping wire. Dual layer, orange-over-white insulation provides a warning sign that insulation may be compromised. The molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2012 standards for insulated tools. Cutting knives are induction hardened for long life.

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.

Features

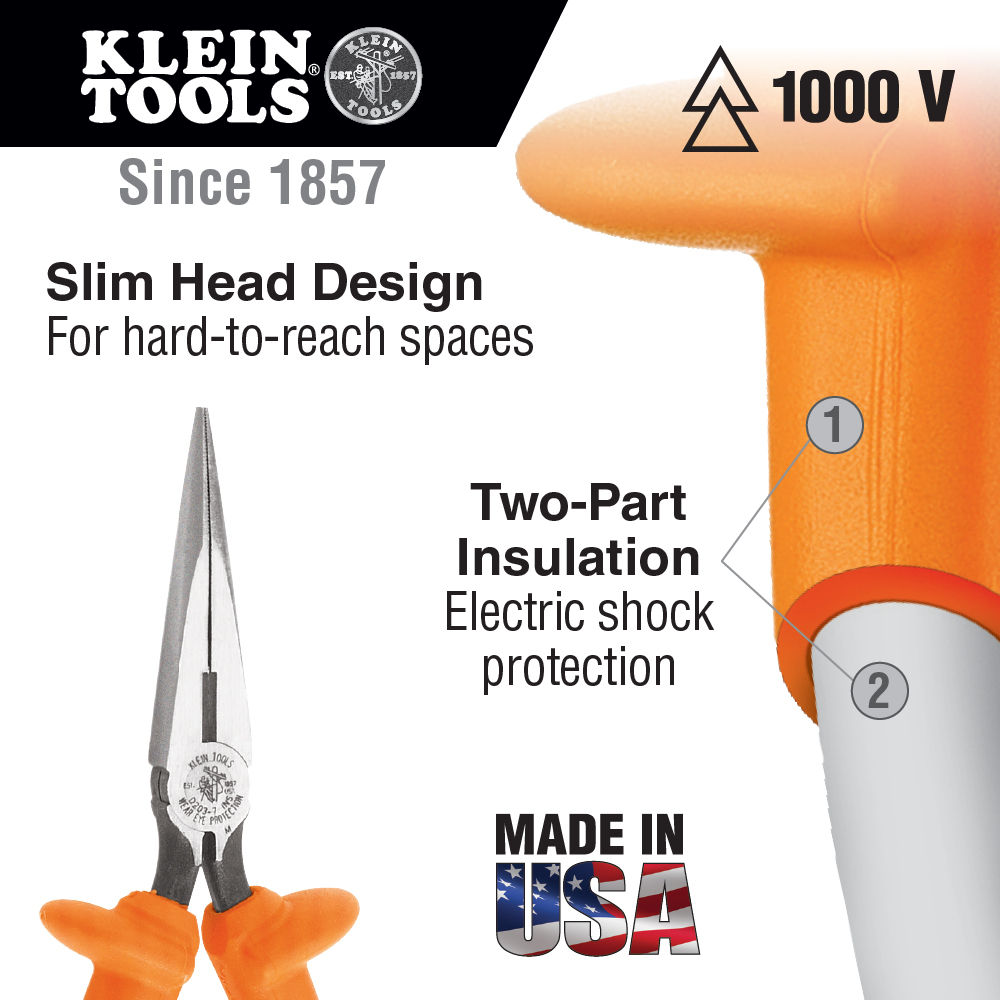

• Slim head design for working in confined areas
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Flame retardant, impact-resistant, bright orange outer coating with two layers of insulation provide protection against electric shock
• Knurled jaws for sure wrapping and looping
• Forged in the USA with custom, US-made tool steel for maximum durability
• Integral guards help prevent hand contact with conductive parts
• Side-cutting knives at the hinge
• Curved handles provide greater tool control
• Induction hardened cutting knives for long life
• Hot-riveted joint ensures smooth action and no handle wobble
• Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Flame Retardant and Impact Resistant Handle

Specifications

• Cutting Knives: Standard
• Height: 0.3750 in
• Knife Length (cm): 1.5
• Jaw Width (cm): 1.7
• Point Diameter (Inch): 0.094
• Jaw Length (cm): 5
• Overall Length (Inch): 6.9
• Handle Length (cm): 10.1
• Handle Length (Inch): 3.97
• Weight (oz): 4.8
• Overall Length (cm): 17.5
• Handle Finish: 2-Layer Insulation
• Weight (g): 136
• Jaw Width (Inch): 0.688
• Joint Type: Hot-Riveted
• Jaw Length (Inch): 1.969
• Knife Length (Inch): 0.572
• Depth: 6.8750 in
• Jaw Capacity (Inch): 1.72
• Point Diameter (cm): 0.2
• Cut Style: Side-Cutting
• Material: Induction Hardened Steel
• Application: For Work Near Energized Sources
• Width: 4.8800 in
• Jaw Thickness (cm): 1
• Type: Long Nose Side Cutting Pliers
• Jaw Capacity (cm): 4.4
• Insulated: Yes
• Weight: 0.3000 lbs
• Jaw Thickness (Inch): 0.375
• Standard: IEC 60900 and ASTM F1505
• Handle Color: Orange
