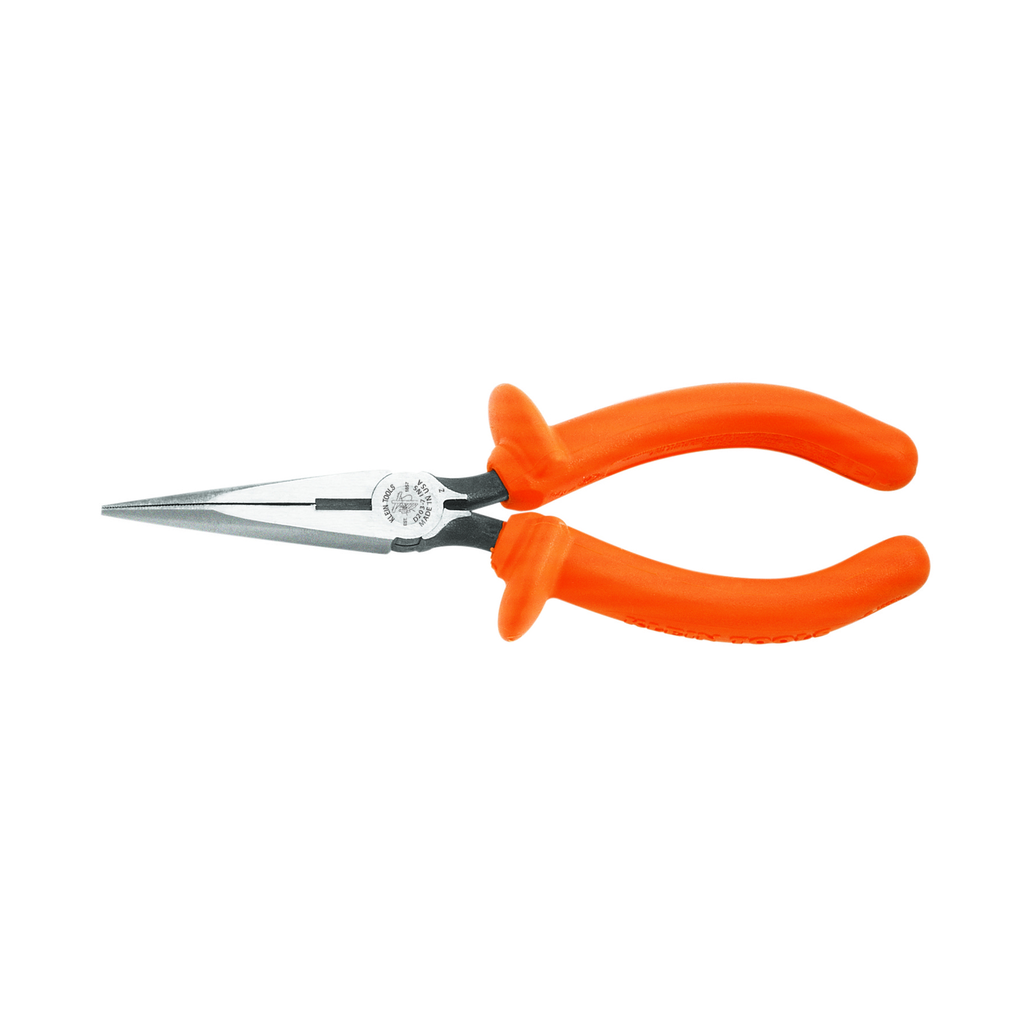

Pliers, Long Nose Side-Cutters, Insulated, 7-Inch

Klein Tools Insulated Long Nose Side-Cutting pliers are 1000V rated for safety on the job. The long nose is designed for grabbing and looping wire. Dual layer, orange-over-white insulation provides a warning sign that insulation may be compromised. The molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2012 standards for insulated tools. Cutting knives are induction hardened for long life.

Warnings

• Wear approved eye protection.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Features

• Curved handles provide greater tool control
• Needle Nose Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool

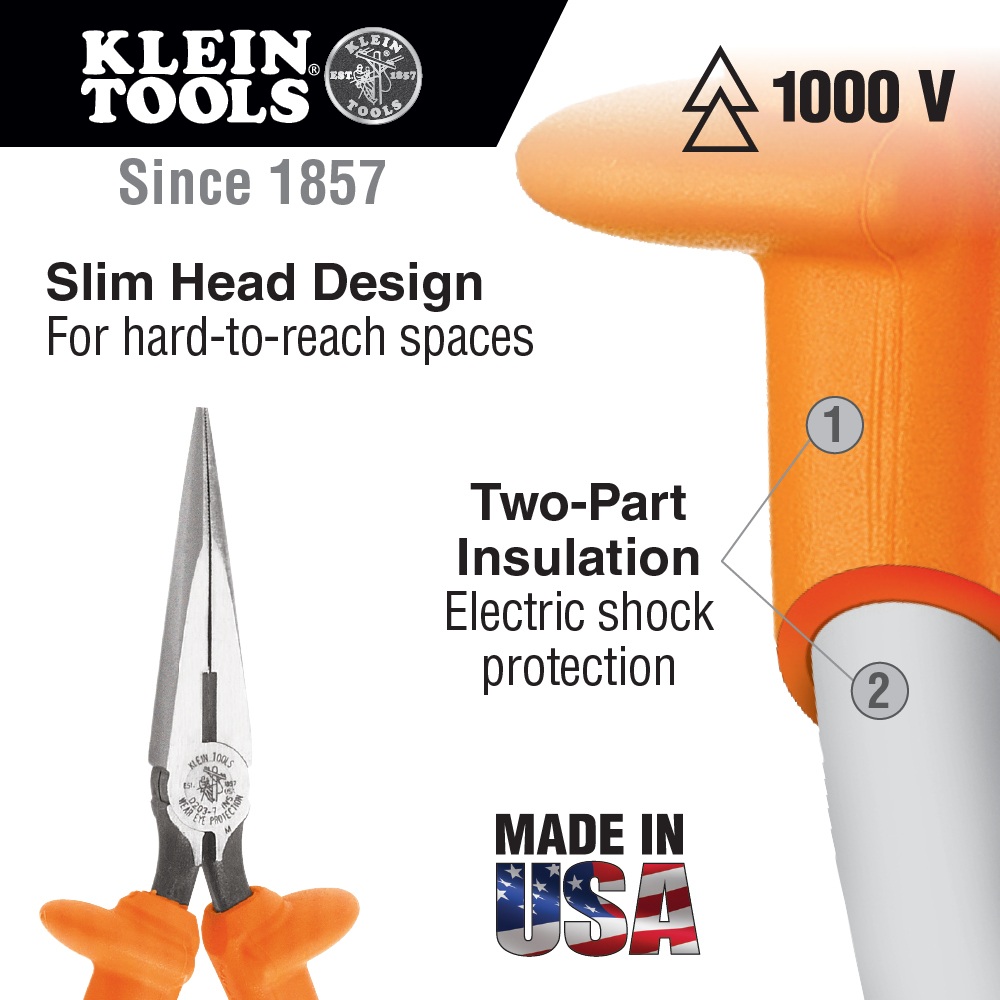

• Two layers of insulation provide protection against electric shock
• Forged in the USA with custom, US-made tool steel for maximum durability
• Flame Retardant and Impact Resistant Handle
• A flame retardant, impact-resistant, bright orange outer coating
• Integral guards help prevent hand contact with conductive parts

Specifications

• Knife Length (Inch): 0.572
• Jaw Length (cm): 6.2
• Weight: 0.3000 lbs
• Jaw Thickness (cm): 1
• Jaw Width (Inch): 0.688
• Handle Length (cm): 9.8
• Cutting Knives: Standard
• Overall Length (cm): 18.7
• Point Diameter (Inch): 0.094
• Knife Length (cm): 1.5
• Overall Length (Inch): 7.37
• Depth: 7.3750 in
• Width: 1.0000 in
• Weight (oz): 4.8
• Jaw Thickness (Inch): 0.375
• Cut Style: Side-Cutting
• Application: For Work Near Energized Sources
• Insulated: Yes
• Material: Induction Hardened Steel
• Standard: IEC 60900 and ASTM F1505
• Handle Finish: 2-Layer Insulation
• Handle Color: Orange
• Weight (g): 136
• Jaw Width (cm): 1.7
• Jaw Length (Inch): 2.43
• Type: Long Nose Side Cutting Pliers
• Joint Type: Hot-Riveted
• Handle Length (Inch): 3.87
• Point Diameter (cm): 0.2
• Height: 0.3750 in
