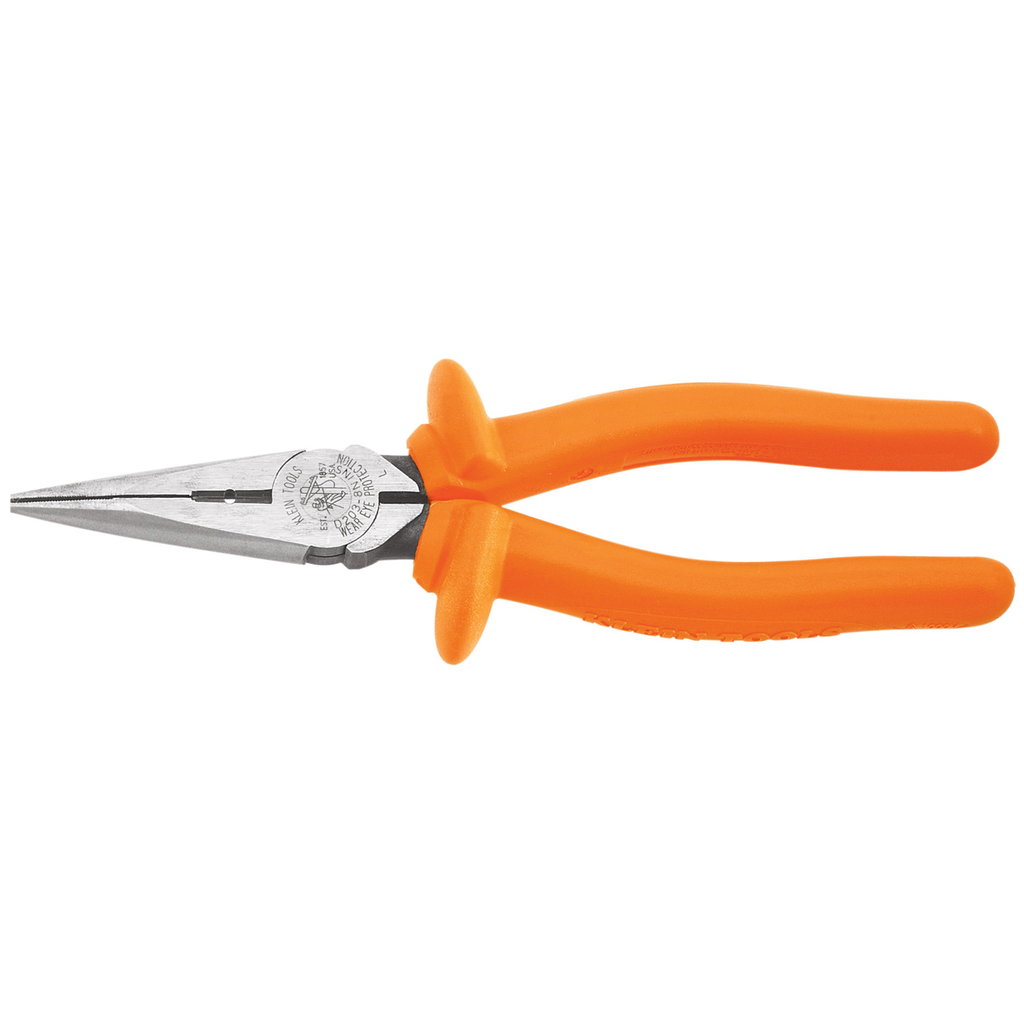

Long Nose Pliers, Insulated, 8-Inch

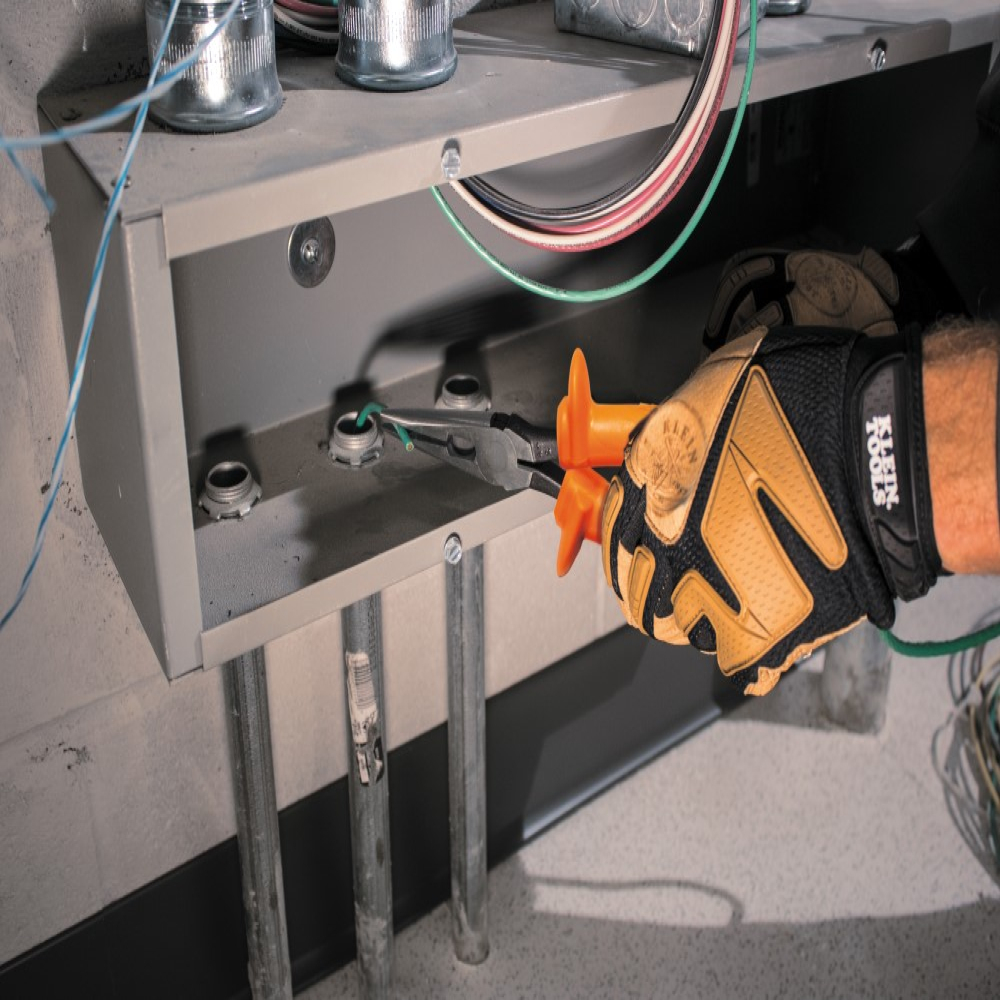

Klein Tools Insulated Long Nose Side-Cutting pliers are 1000V rated for safety on the job. The long nose is designed to grab and loop wire. Dual layer, orange-over-white insulation provides a warning sign that insulation may be compromised. The molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2012 standards for insulated tools. Cutting knives are induction hardened for long life.

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Features

• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Two layers of insulation provide protection against electric shock
• Heavier design for easier, more comfortable cutting
• Integral guards help prevent hand contact with conductive parts
• Long nose easily grabs and twists wire
• Extended handles provide added reach and leverage
• A flame retardant, impact-resistant, bright orange outer coating
• Forged in the USA with custom, US-made tool steel for maximum durability
• Needle Nose Pliers are individually tested Insulation that exceeds the IEC 60900 and ASTM F1505 standards, and clearly marked with the official 1000-volt rating symbol
• Flame Retardant and Impact Resistant Handle

Specifications

• Overall Length (cm): 22.6
• Point Diameter (Inch): 0.125
• Width: 4.7500 in
• Depth: 8.8750 in
• Weight (g): 318
• Handle Finish: 2-Layer Insulation
• Handle Length (cm): 12.2
• Insulated: Yes
• Weight: 0.7000 lbs
• Overall Length (Inch): 8.91
• Handle Color: Orange
• Weight (oz): 11.2
• Jaw Width (Inch): 1.02
• Type: Long Nose Side Cutting Pliers
• Standard: IEC 60900 and ASTM F1505
• Point Diameter (cm): 0.3
• Jaw Length (Inch): 2.32
• Jaw Thickness (cm): 1.3
• Jaw Thickness (Inch): 0.5
• Joint Type: Hot-Riveted
• Cut Style: Side-Cutting
• Jaw Width (cm): 2.6
• Material: Induction Hardened Steel
• Application: For Work Near Energized Sources
• Cutting Knives: Standard
• Height: 0.5000 in
• Jaw Length (cm): 5.9
• Knife Length (Inch): 0.693
• Knife Length (cm): 1.8
• Handle Length (Inch): 4.79
