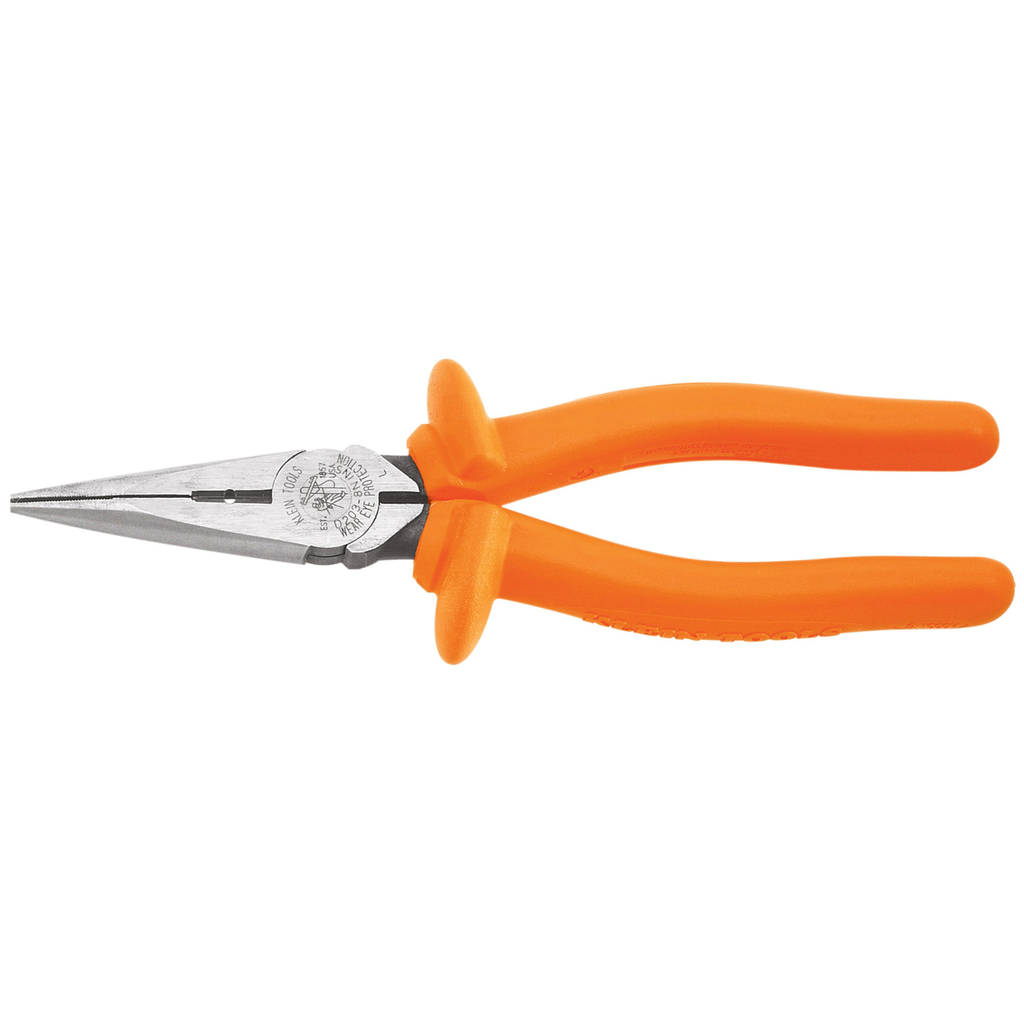

Insulated Long Nose Pliers, Side-Cutting/Stripping

These Klein Tools long nose side-cutting/stripping pliers are made of forged steel for maximum durability. They have a heavier design and extended handles to improve leverage and power. And they have two layer bright orange insulation that is both flame retardant and provide electric protection for up to 1000 V.

Features

• Extended handles provide added reach and leverage
• Heavier design for easier, more comfortable cutting
• Durable molded insulation meets or exceeds ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
• Flame retardant, impact-resistant, bright orange outer coating and clearly marked with the official 1000-volt rating symbol
• Hot-riveted joint for smooth action and no handle wobble
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Features a stripping hole for 12 AWG solid insulated wire and side-cutting knives at the hinge
• Integral guards help prevent hand contact with conductive parts

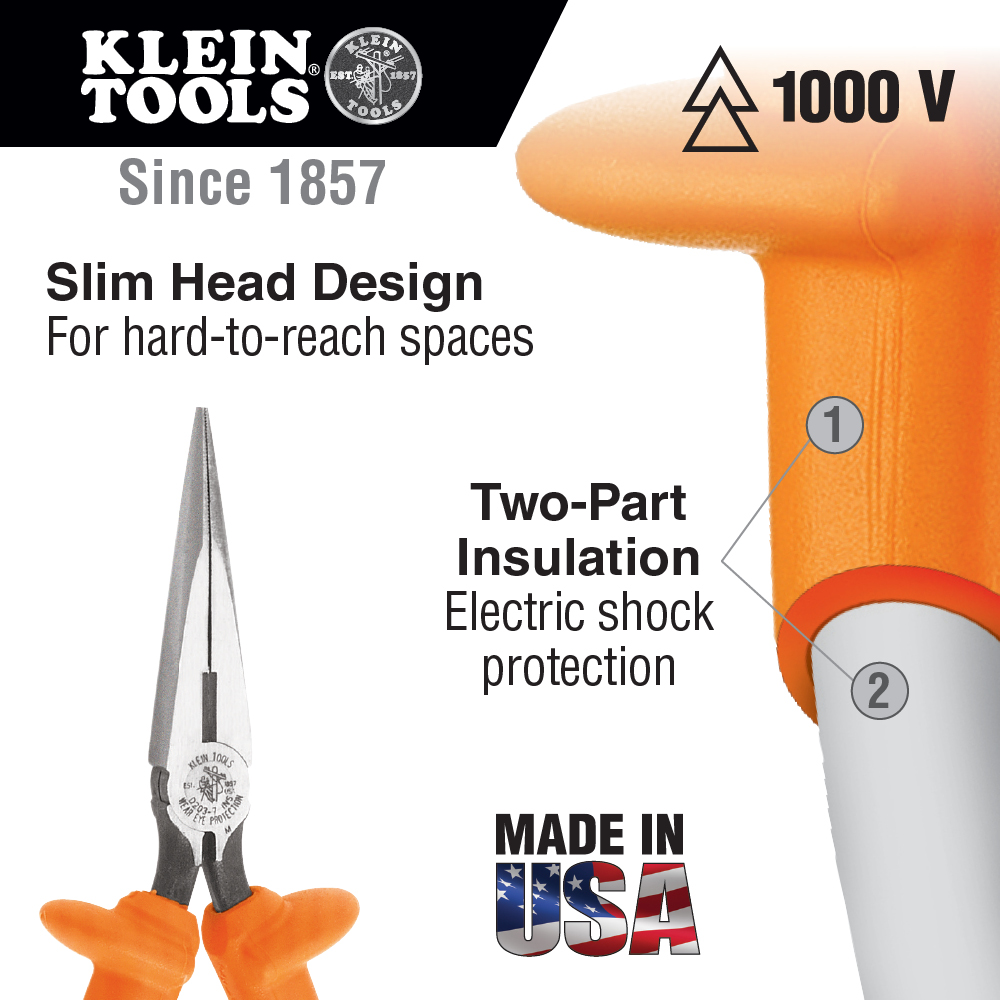

• Pliers have two layers of insulation to provide protection against electric shock
• Flame Retardant and Impact Resistant Handle
• Forged in the USA with custom, US-made tool steel for maximum durability

Warnings

• Wear approved eye protection.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Point Diameter (Inch): 0.125
• Height: 0.5000 in
• Handle Length (Inch): 4.79
• Handle Color: Orange
• Insulated: Yes
• Jaw Capacity (Inch): 2.36
• Point Diameter (cm): 0.3
• Jaw Capacity (cm): 6
• Jaw Length (Inch): 2.32
• Cutting Knives: Standard
• Overall Length (Inch): 8.91
• Overall Length (cm): 22.6
• Depth: 8.8750 in
• Jaw Length (cm): 5.9
• Jaw Width (Inch): 1.02
• Jaw Thickness (cm): 1.3
• Knife Length (cm): 1.8
• Application: For Work Near Energized Sources
• Jaw Width (cm): 2.6
• Width: 4.7500 in
• Weight: 0.7000 lbs
• Weight (g): 318
• Material: Induction Hardened Steel
• Type: Long Nose
• Joint Type: Hot-Riveted
• Weight (oz): 11.2
• Knife Length (Inch): 0.693
• Standard: IEC 60900 and ASTM F1505
• Handle Finish: 2-Layer Insulation
• Cut Style: Side-Cutting and Skinning
• Jaw Thickness (Inch): 0.5
• Handle Length (cm): 12.2
