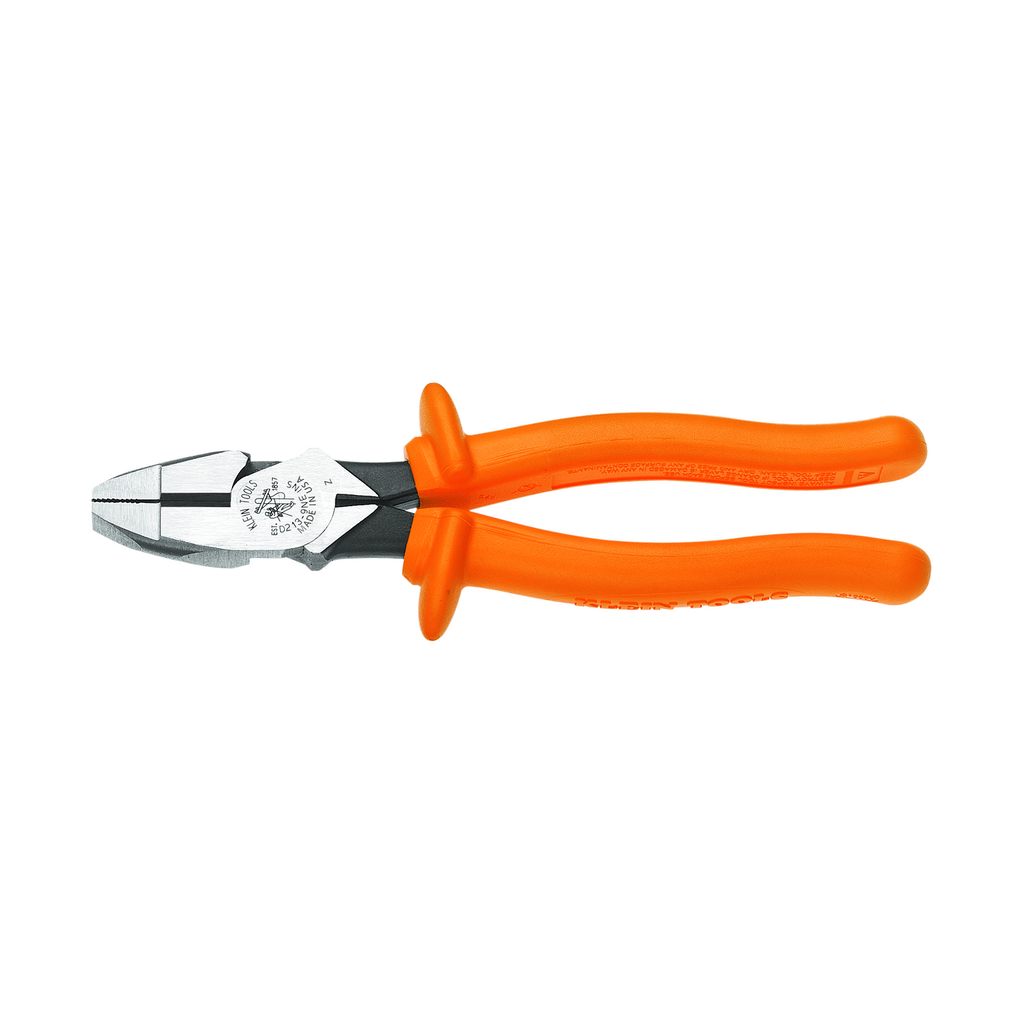

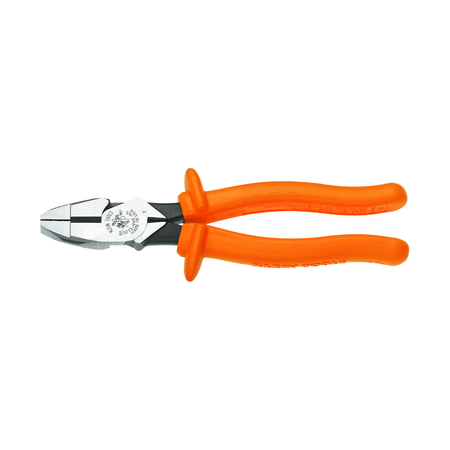

Side Cutting Pliers, New England Insulated, 9-Inch

These Klein Tools Side Cutting New England Insulated Pliers are insulated by two layers and pass both the IEC 60900 and ASTM F1505 standards. They are made of forged steel with induction-hardened knives for strength and durability. And they have high-leverage design which provides 46-percent more cutting and gripping power than other plier designs.

Features

• Pliers are individually tested to exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol
• Integral Guards Help Prevent Hand Contact With Conductive Parts
• Made in USA
• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
• Forged steel for maximum durability
• Hot-riveted joint for smooth action and no handle wobble

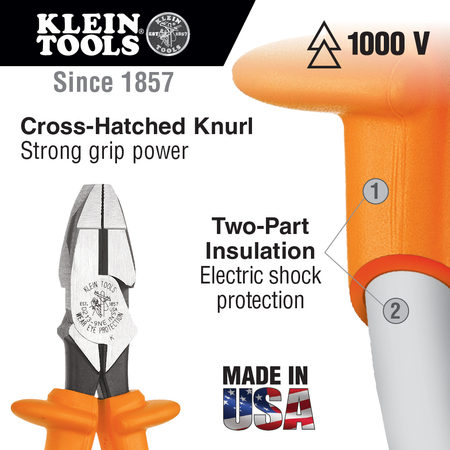

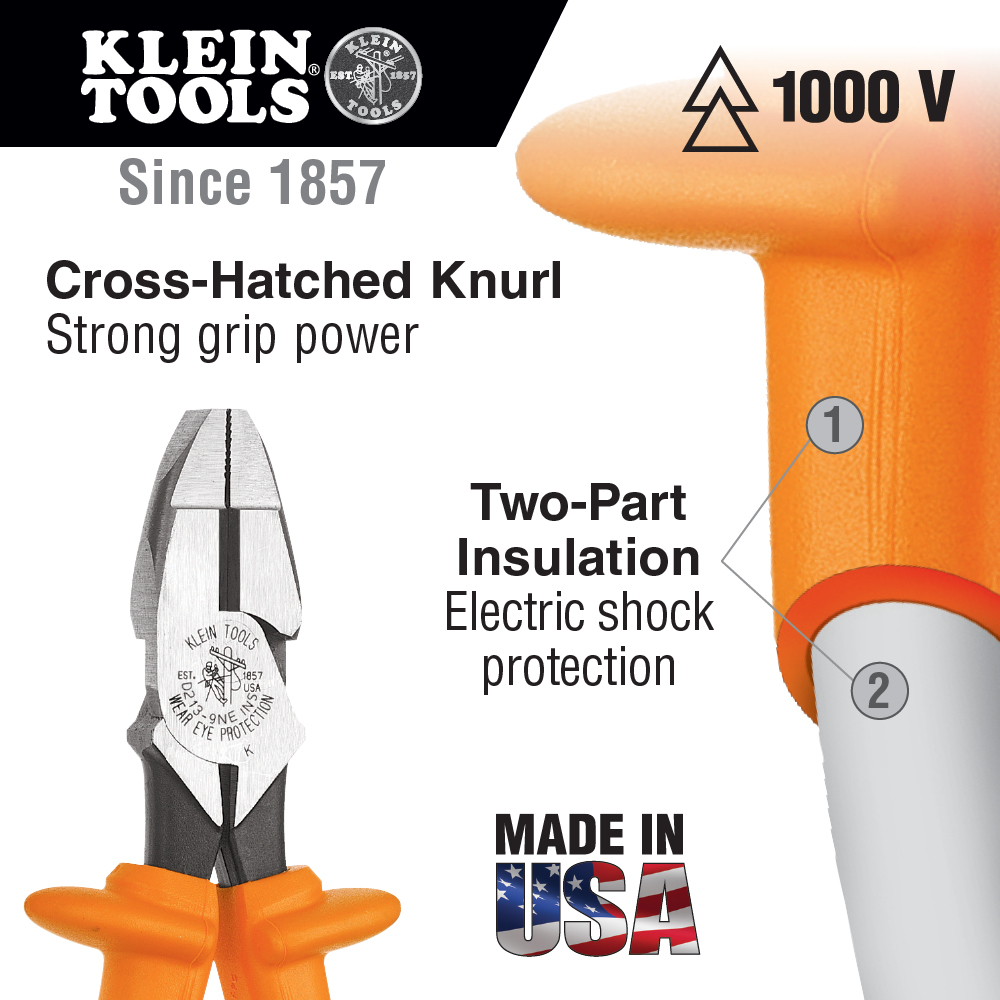

• Two layers of insulation provide protection against electric shock
• Flame retardant, impact-resistant, bright orange outer coating
• High-leverage design provides 46-percent greater cutting and gripping power than other plier designs
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Integral guards help prevent hand contact with conductive parts

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Wear approved eye protection.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.

Specifications

• Depth: 9.6250 in
• Knife Length (cm): 2
• Insulated: Yes
• Height: 0.6250 in
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Handle Length (cm): 14.6
• Overall Width (cm): 6.3
• Jaw Capacity (Inch): 1.375
• Jaw Thickness (Inch): 0.62
• Material: Induction Hardened Steel
• Weight (oz): 20
• Overall Length (cm): 24.6
• Type: Side Cutting Pliers
• Standards: IEC 60900 and ASTM F1505
• Jaw Length (cm): 4.9
• Cutting Knives: 1
• Cut Style: Side-Cutting
• Weight: 1.2500 lbs
• Nose Type: New England
• Joint Type: Hot-Riveted
• Overall Width (Inch): 2.49
• Handle Length (Inch): 5.73
• Overall Length (Inch): 9.68
• Handle Color: Orange
• Screw Shearing: No
• Width: 3.1000 in
• Jaw Width (Inch): 1.25
• Jaw Capacity (cm): 3.5
• Jaw Thickness (cm): 1.6
• Weight (g): 567
• Handle Finish: 2-Layer Insulation
• Jaw Length (Inch): 1.91
• Jaw Width (cm): 3.2
• Knife Length (Inch): 0.781
• Tether Capable: No
