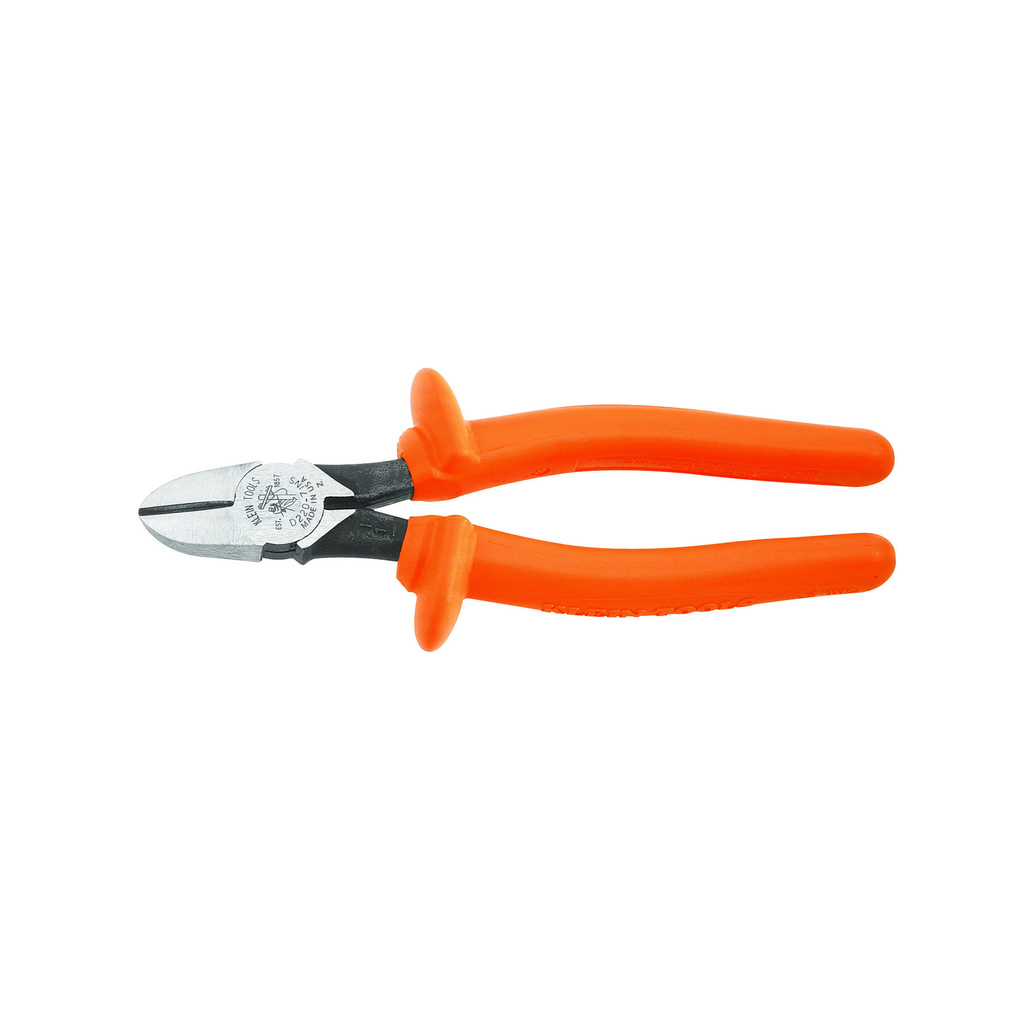

Diagonal Cutting Pliers, Insulated, 7-Inch

These Insulated Diagonal-Cutting pliers have dual layered grips that are flame retardant, impact resistant, and rated for 1000-volts. They feature a tapered nose design with induction hardened cutting knives for durability. They are made of forged steel and have a hot-riveted joint for smooth action and no handle wobble.

Features

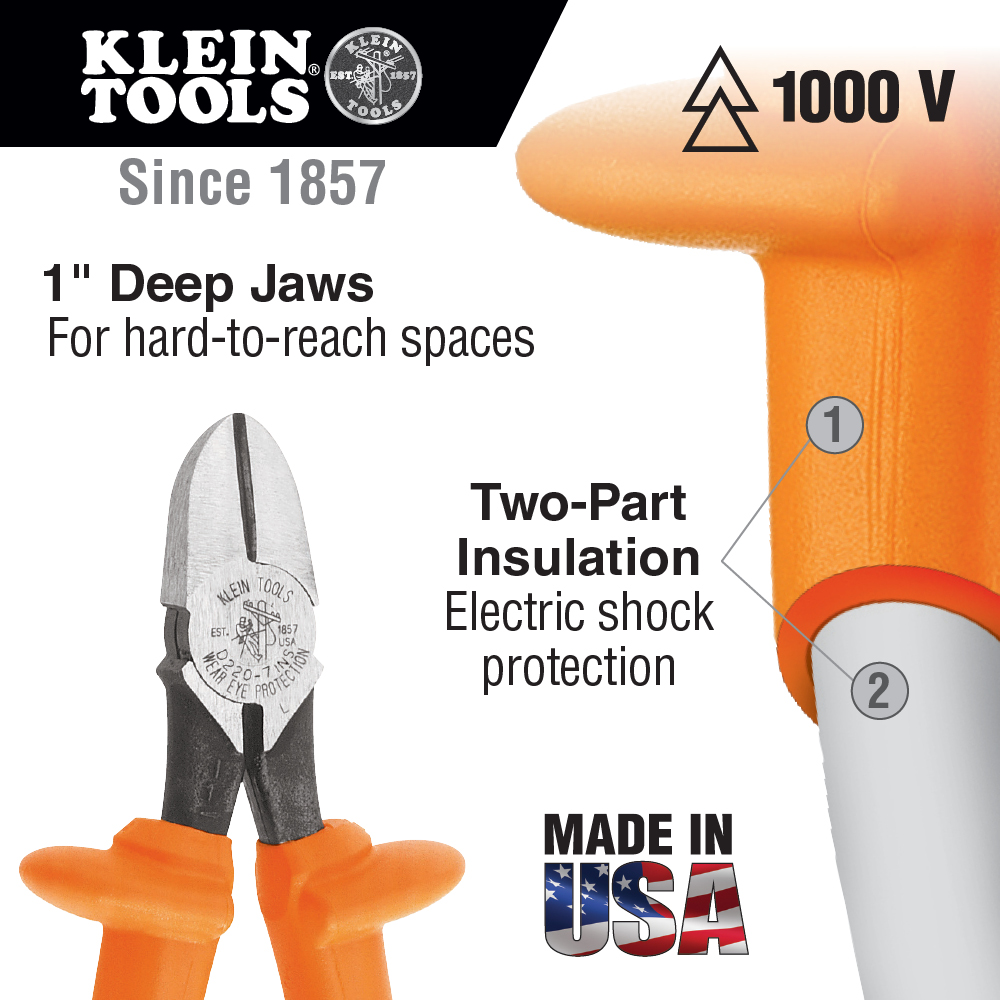

• One-Inch deep jaws easily reach into confined spaces
• Flame retardant, impact-resistant, bright orange outer coating
• Integral guards help prevent hand contact with conductive parts
• Forged in the USA with custom, US-made tool steel for maximum durability
• Flame Retardant and Impact Resistant Handle
• Tapered nose design and induction hardened cutting knives for long life
• Pliers with grips made of durable molded insulation meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
• Hot-riveted joint for smooth action and no handle wobble
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Clearly marked with the official 1000-volt rating symbol

Warnings

• Wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Jaw Thickness (cm): 1.3
• Jaw Capacity (cm): 2.8
• Width: 3.9000 in
• Handle Length (Inch): 4.34
• Cutting Knives: Standard
• Type: Diagonal Cutting Pliers
• Jaw Width (Inch): 0.969
• Jaw Length (cm): 2.5
• Handle Color: Orange
• Height: 0.5000 in
• Handle Finish: 2-Layer Insulation
• Standard: IEC 60900 and ASTM F1505
• Overall Length (cm): 19.5
• Jaw Thickness (Inch): 0.5
• Material: Induction Hardened Steel
• Weight (g): 318
• Jaw Capacity (Inch): 1.1
• Nose Type: Tapered
• Handle Length (cm): 11
• Overall Length (Inch): 7.67
• Insulated: Yes
• Jaw Width (cm): 2.5
• Depth: 7.8750 in
• Jaw Length (Inch): 1
• Weight: 0.7000 lbs
• Joint Type: Hot-Riveted
• Weight (oz): 11.2
• Cut Style: Diagonal-Cutting
