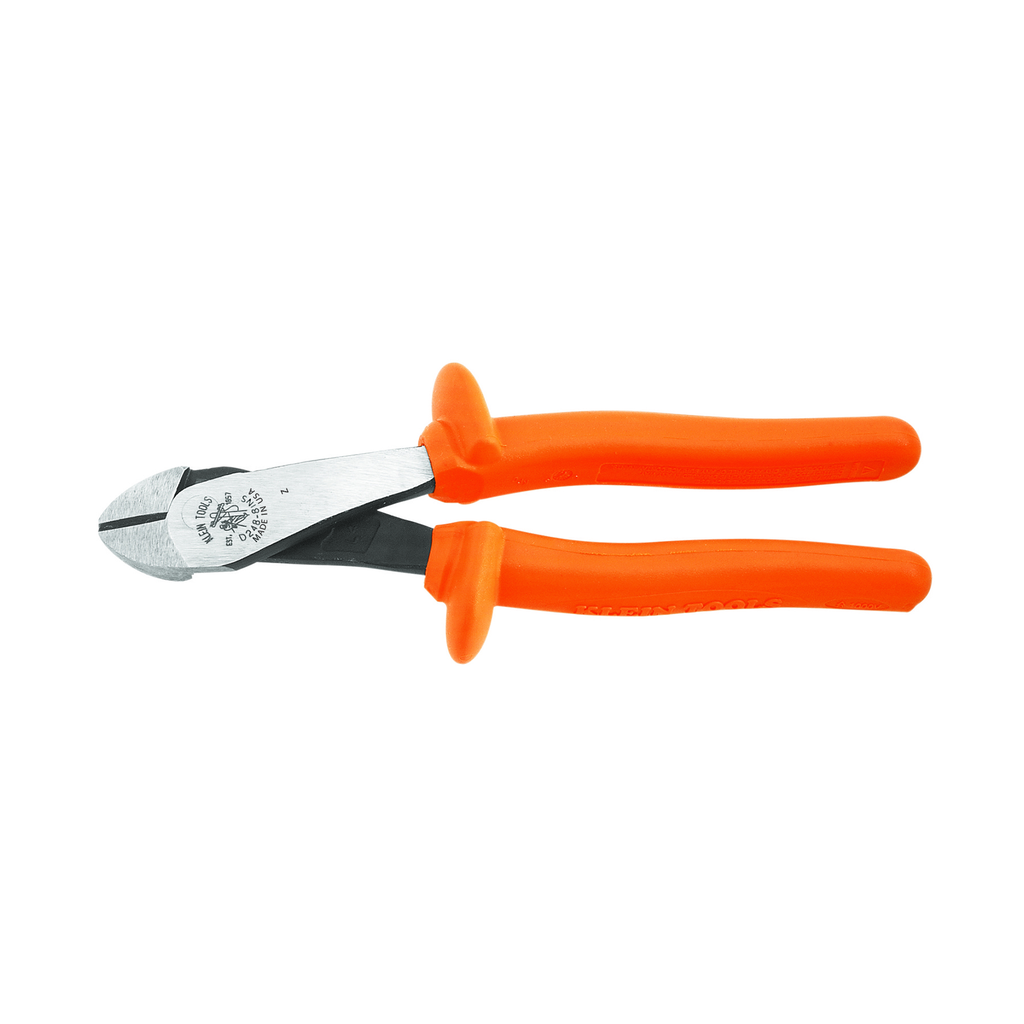

Diagonal Cutting Pliers, Insulated, High-Leverage, Angled Head, 8-Inch

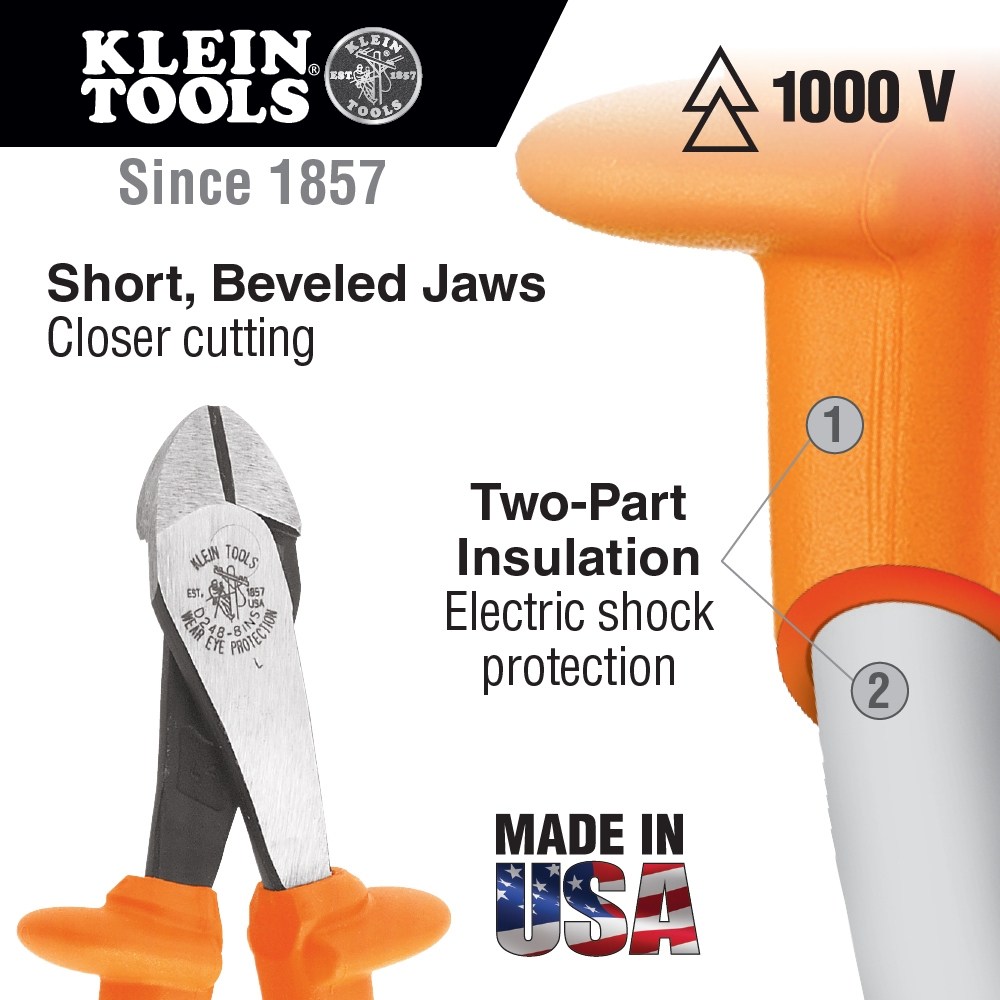

These Insulated Diagonal-Cutting pliers feature two layers of insulation to protect against electric shock. Clearly marked with the official 1000V symbol, these pliers meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools. The head is angled to get into confined spaces. The high-leverage design provides 36-percent greater cutting power than other plier designs.

Features

• Integral guards help prevent hand contact with conductive parts
• Made in USA
• Flame Retardant and Impact Resistant Handle
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Induction hardened cutting knives for long life
• Angled head for easier work in confined areas
• Pliers are clearly marked with the official 1000-volt rating symbol
• Forged steel for maximum durability
• High-leverage design for 36-percent greater cutting power than other plier designs
• Diagonal Cutters with flame retardant, impact-resistant, bright orange outer coating with two layers of insulation to protect against electric shock
• Durable molded insulation meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools
• Hot-riveted joint for smooth action and no handle wobble

Warnings

• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Weight (oz): 11.2
• Cutting Knives: Standard
• Jaw Width (Inch): 1.25
• Handle Length (Inch): 4.9
• Cut Style: Diagonal-Cutting
• Jaw Capacity (cm): 2.7
• Overall Length (Inch): 8.24
• Jaw Thickness (Inch): 0.46
• Depth: 8.2500 in
• Standard: IEC 60900 and ASTM F1505
• Material: Induction Hardened Steel
• Overall Length (cm): 20.9
• Width: 4.5000 in
• Nose Type: Angled
• Height: 0.4380 in
• Type: Diagonal Cutting Pliers
• Jaw Capacity (Inch): 1.07
• Insulated: Yes
• Handle Finish: 2-Layer Insulation
• Jaw Width (cm): 3.2
• Weight (g): 318
• Application: ACSR, Screws, Nails and Most Hardened Wire
• Handle Color: Orange
• Weight: 0.7000 lbs
• Handle Length (cm): 12.4
• Jaw Length (Inch): 0.813
• Joint Type: Hot-Riveted
• Jaw Length (cm): 2.1
• Jaw Thickness (cm): 1.2
