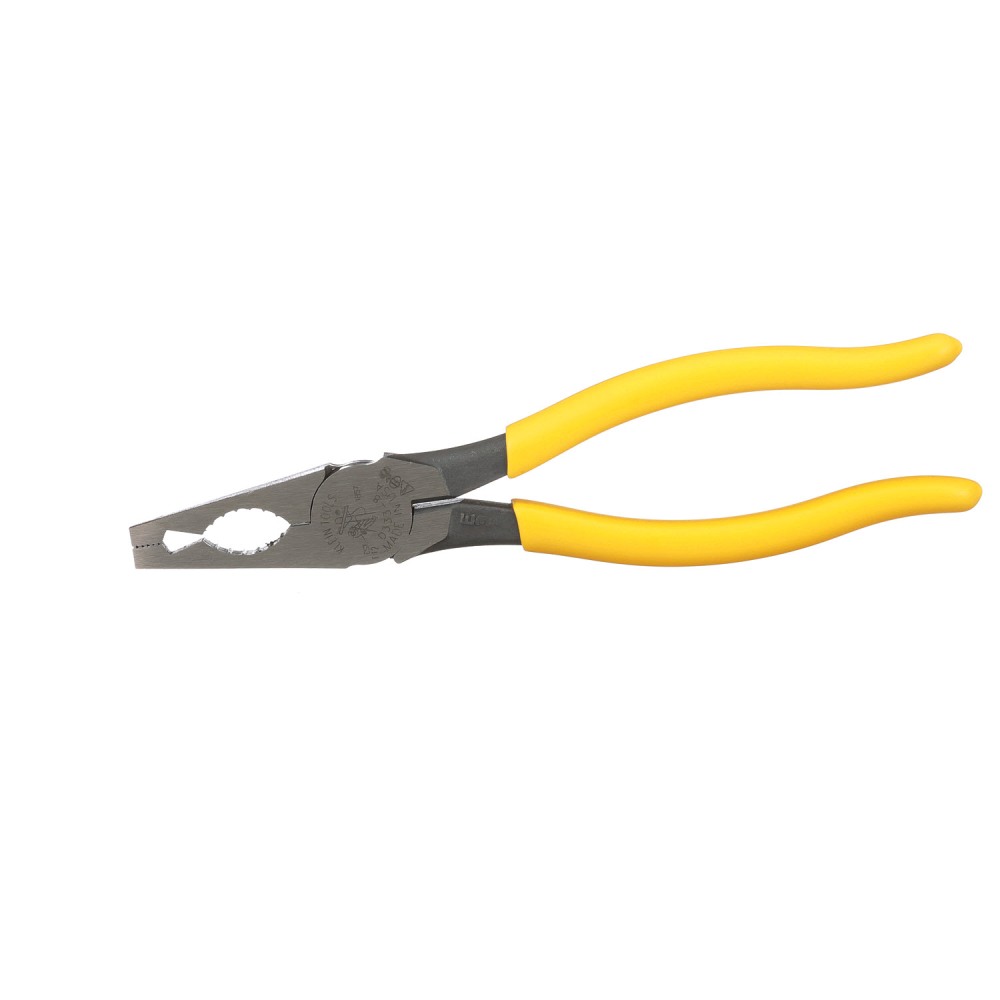

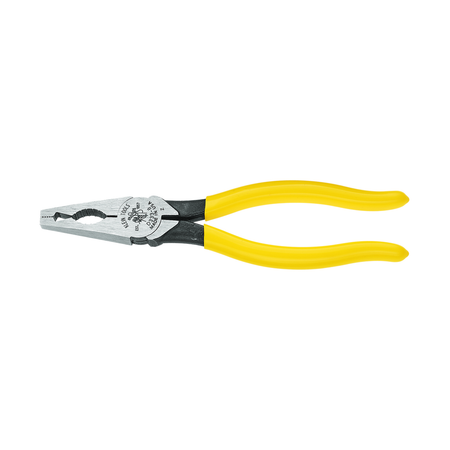

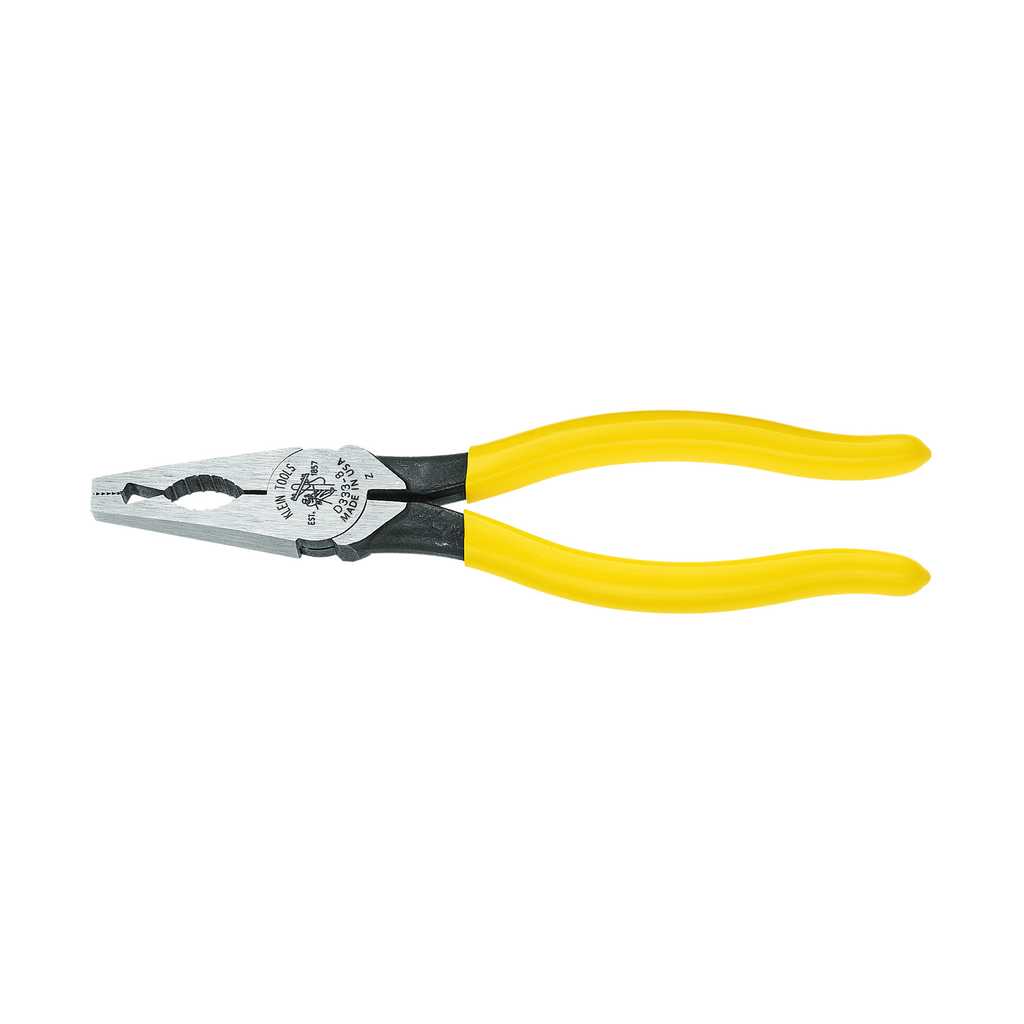

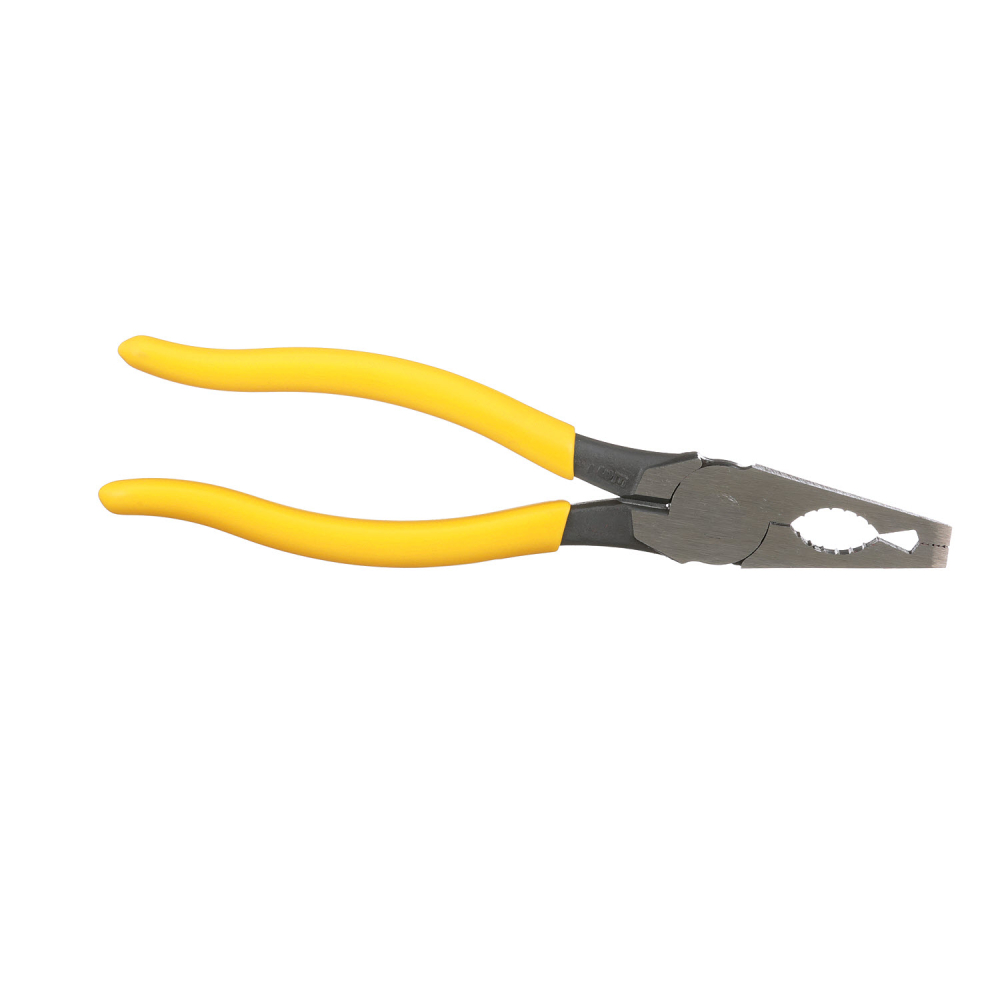

Conduit Locknut and Reaming Pliers

The Conduit Locknut and Reaming Pliers tighten up to 3/4-inch EMT and 1/2-inch rigid locknuts. The special jaw is designed for locknuts, conduit and caps. Serrated jaws deburr the outside while the nose reams and smooths the inside of conduit up to 3/4-inch EMT. The long-nose design makes it easier to reach into electrical boxes.

Features

• Pliers tighten 1/2-Inch (13 mm) and 3/4-Inch (19 mm) EMT or 1/2-Inch (13 mm) rigid locknuts
• Reams and deburrs both inside and outside of conduit
• Made in USA
• Pulls Flat Steel Fish Tape
• Machined nose fits snugly into locknut wings
• Knurled jaws at nose tip pull wire or fish tape
• Reams and smoothes both inside and outside of conduit
• Fits liquid tight fittings and caps
• Tightens 1/2-Inch (13 mm) and 3/4-Inch (19 mm) EMT or 1/2-Inch (13 mm) rigid locknuts
• Knurled jaws at nose tip pull wire or fish tape and machined nose fits snugly into locknut wings
• Forged in the USA with custom, US-made tool steel for maximum durability

Warnings

• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Point Diameter: .19" x .36" (0.48 cm x 0.91 cm)
• Weight: 0.5500 lbs
• Width: 1.7500 in
• Jaw Width: 0.938" (2.4 cm)
• Jaw Capacity: 1.38" (3.5 cm)
• Jaw Thickness: 0.5" (1.3 cm)
• Overall Length: 7.76" (19.7 cm)
• Handle Finish: Plastic-Dipped
• Depth: 7.7500 in
• Handle Length: 4.51" (11.5 cm)
• Country of Origin: United States
• Height: 0.5000 in
• Jaw Length: 1.625" (4.1 cm)
• Nominal Length: 8"
• Handle Color: Yellow
