Borescope for Android® Devices

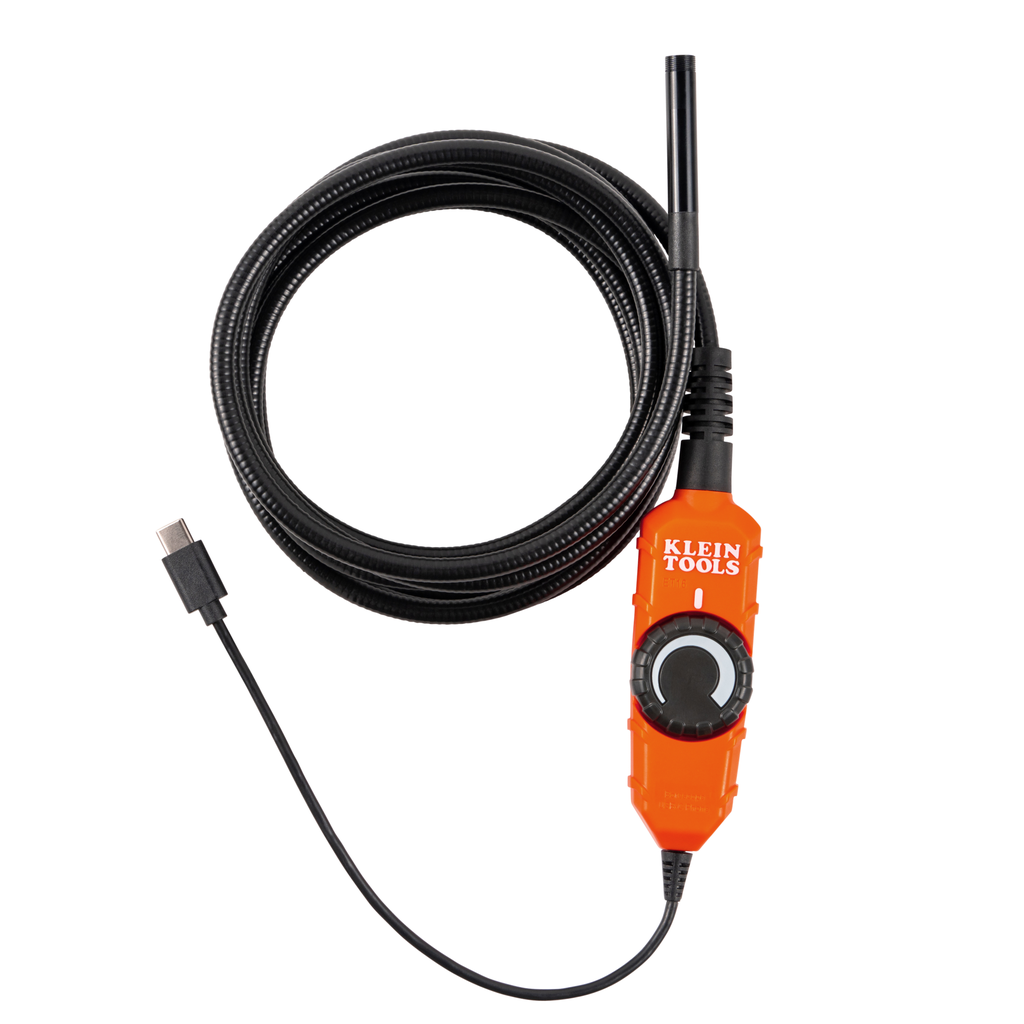

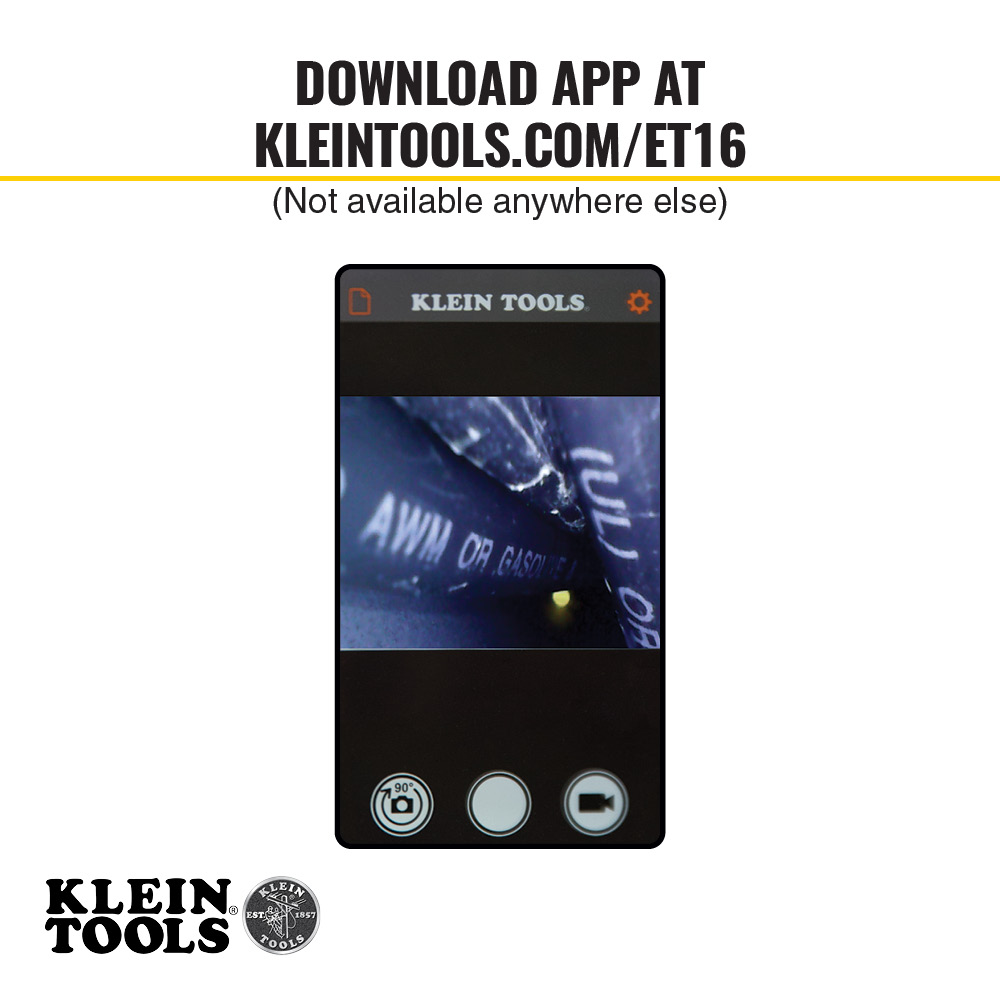

Klein Tools ET16 Borescope features a 8 mm camera surrounded by 6 LEDs attached to a 10-Foot (3 m) armored gooseneck cable. The digital camera has a USB Type-C connection for most Android® (OTG 4.0 or higher) smartphones and devices. The camera and video output is displayed on the Android® device using the free Klein Tools ET16 Borescope App, available for download on Google Play™ store. The ET16 does not require batteries; it is powered by device connection.

Features

• ET16 Borescope App is available on Google Play™ store

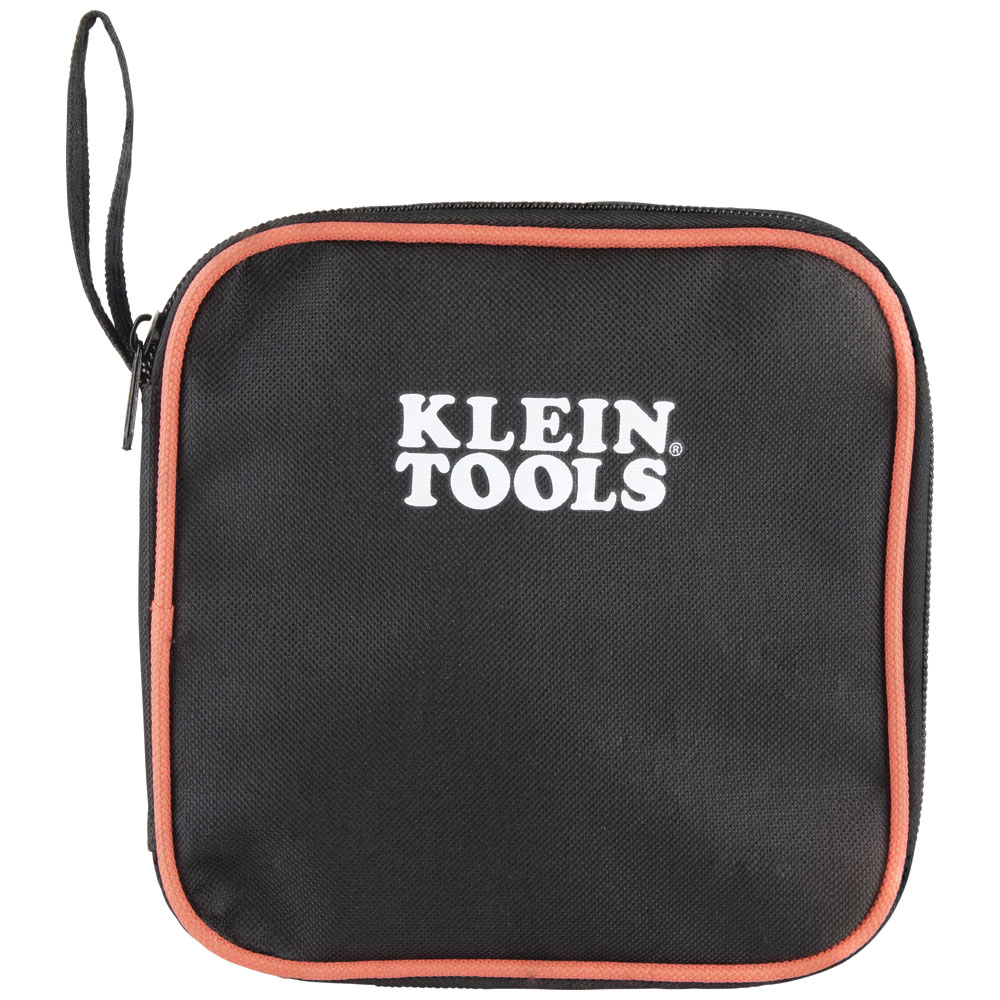

• Includes borescope, carrying case, micro-USB adapter, and instruction manual
• Armored 10-Foot (3 m) gooseneck cable for extended reach

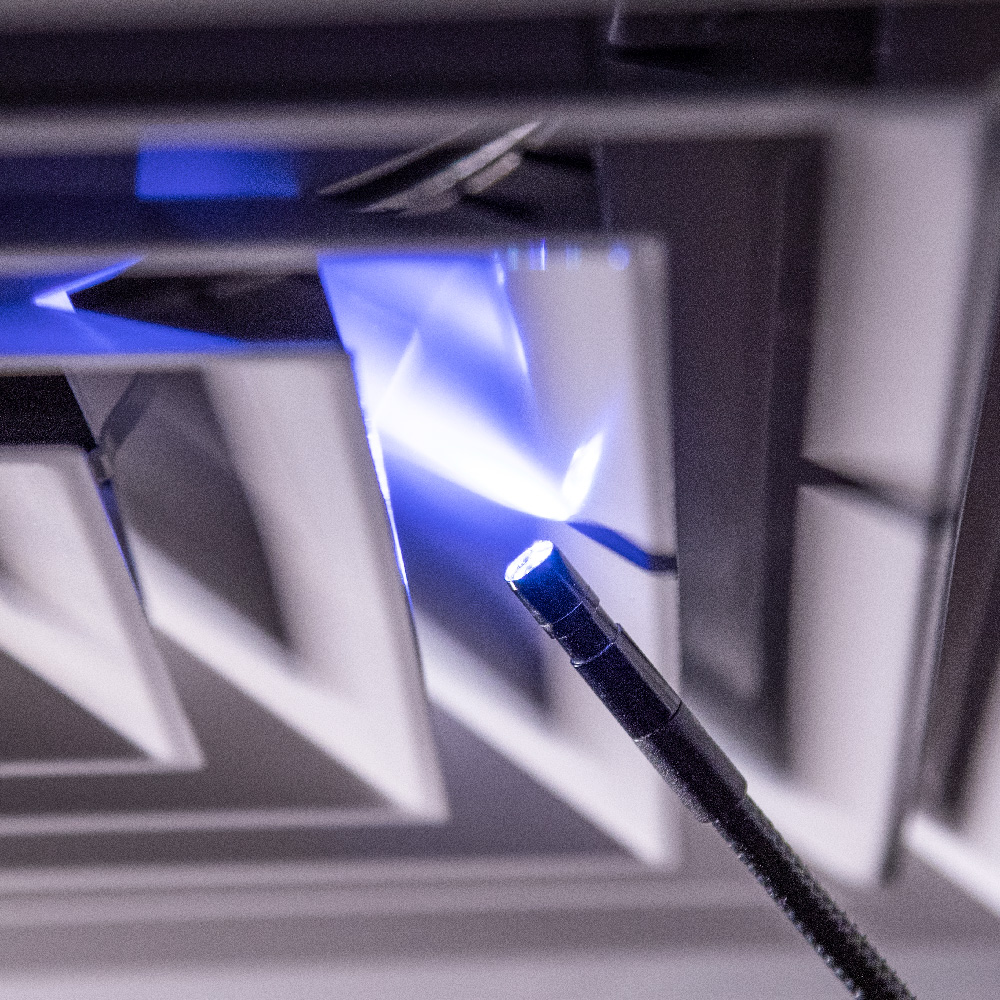

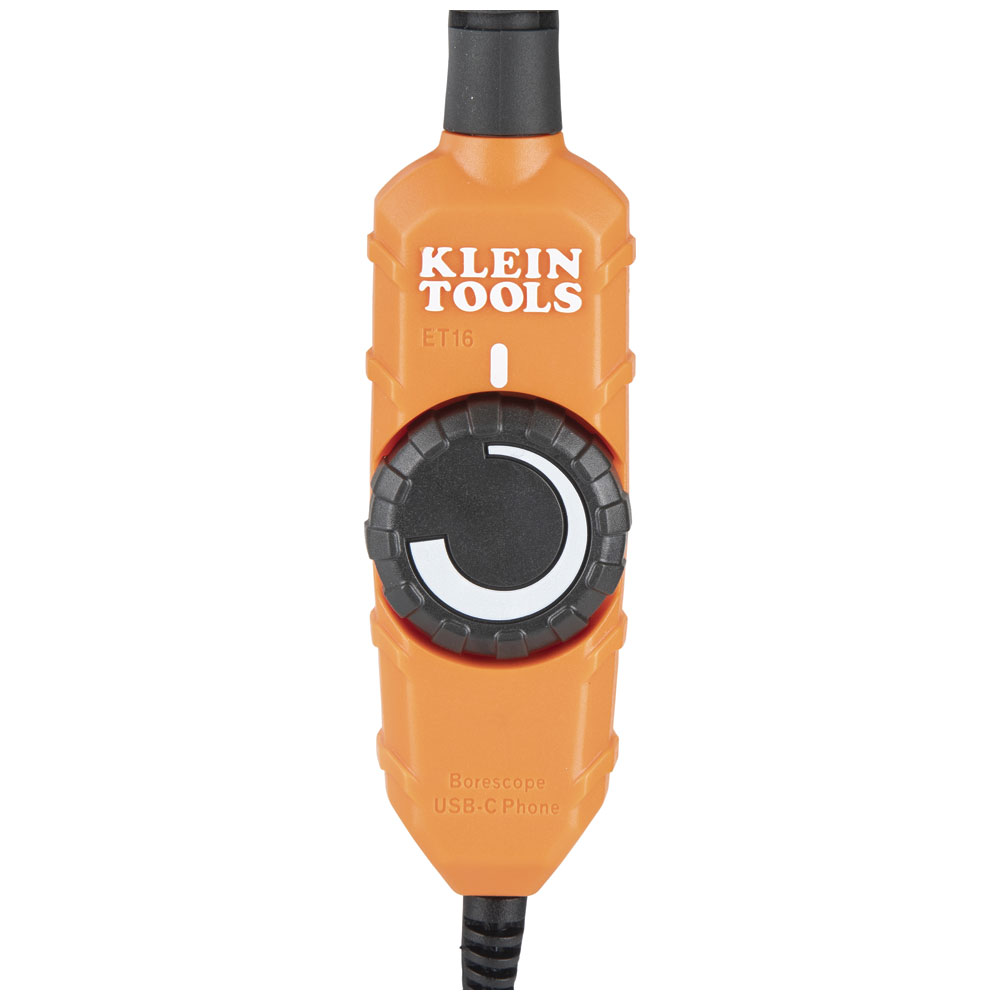

• Six white LEDs with adjustable brightness control for best pictures
• Capture and share images and video via text or email using the Klein Tools App available on Google Play™ store
• 10' (3 m) Armored Gooseneck and 6 LED Lights
• Direct USB Type-C connection
• Borescope connects to Android on-the-go (OTG) version 4.0 or higher devices; NOT for iPhones or iPads

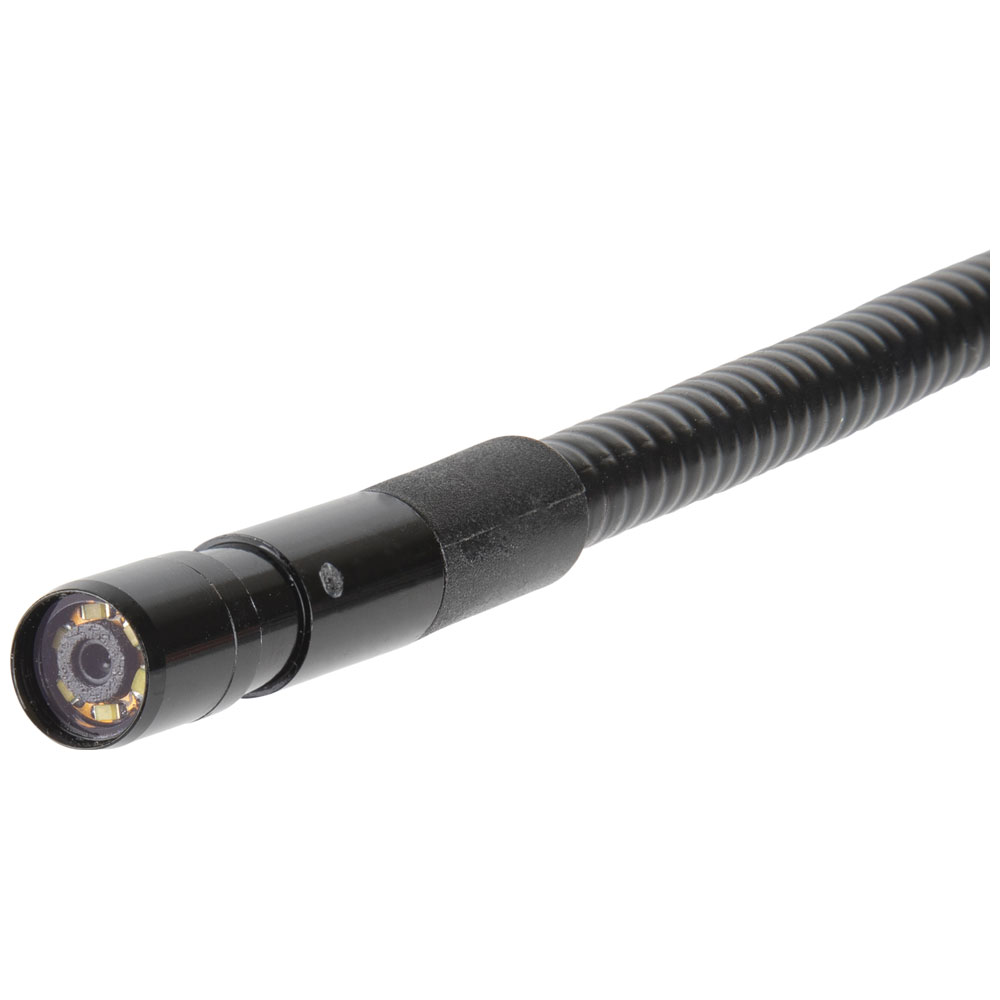

• Waterproof IP67 8 mm camera for high quality 640 x 480 pixel images
• No batteries; powered by device connection

Warnings

• Always wear approved eye protection.
• NOT for personal/medical use.
• See manual for complete set of warnings.
• Do NOT probe moving machinery.
• Do NOT use on energized circuits.

Specifications

• Digital Zoom: Yes
• Weight: 0.7800 lbs
• Overall Height (cm): 2.4
• Auto-Power Off: No
• Camera Resolution: 640 x 480p
• Screen Resolution: 640 x 480 Max
• IP Rating: IP67 (Camera Only)
• Overall Width (cm): 3.3
• Camera Head Diameter (cm): 0.9
• Application: Electrical, HVAC, Plumbing, Aircraft
• Depth: 129.7400 in
• Type: USB Type-C or Micro-USB for Android
• Weight (g): 354
• Display: Via Smartphone App available on Google Play™ store
• Camera Head Diameter (Inch): 0.35
• Overall Height (Inch): 0.95
• Height: 0.9400 in
• Material: ABS and Electrical Components
• Overall Length (Inch): 3.7
• Overall Width (Inch): 1.3
• Included: Borescope with 10' Gooseneck, USB Adapters, Carrying Case, and Instruction Manual
• Data Logging: No
• Weight (oz): 12.5
• Recording Capability: Still Image and Video
• Width: 1.3200 in
• Overall Length (cm): 9.4
