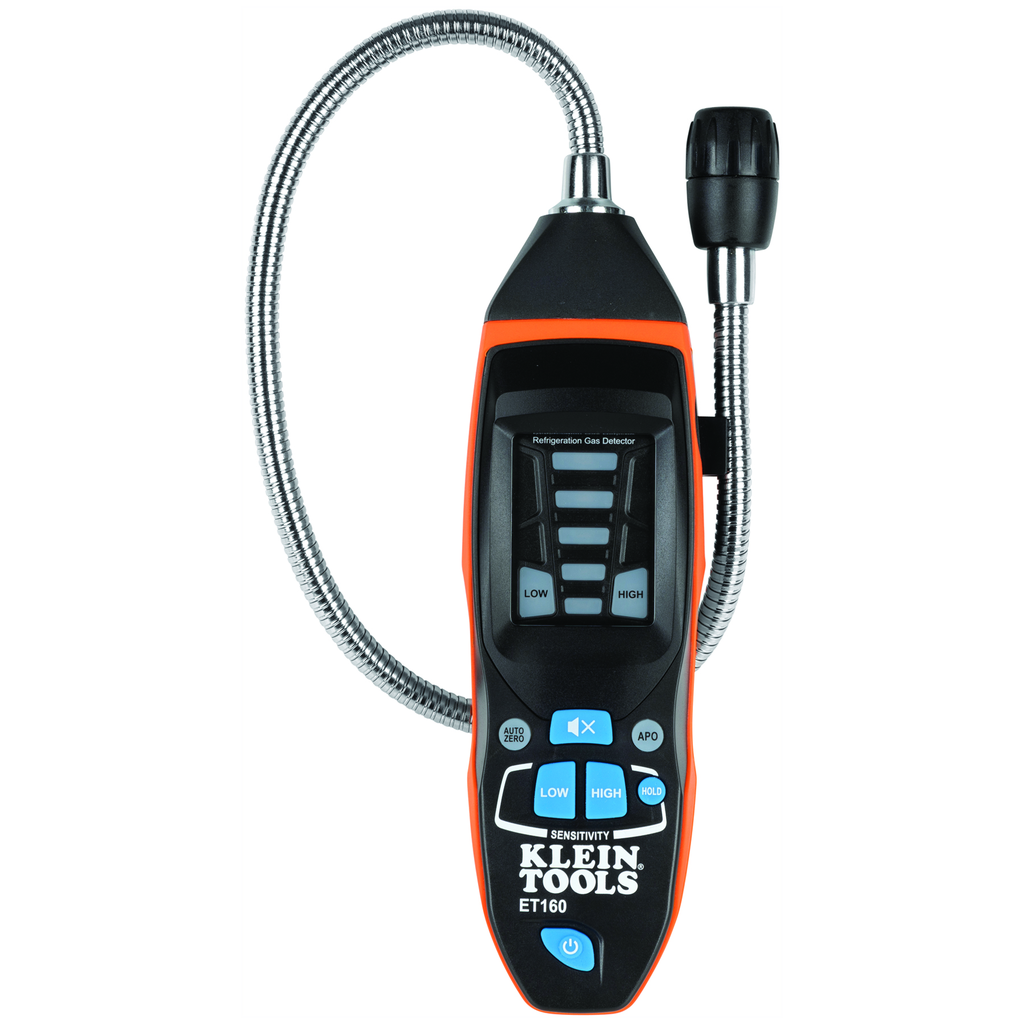

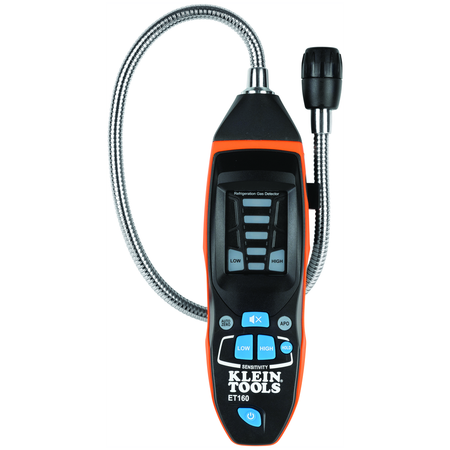

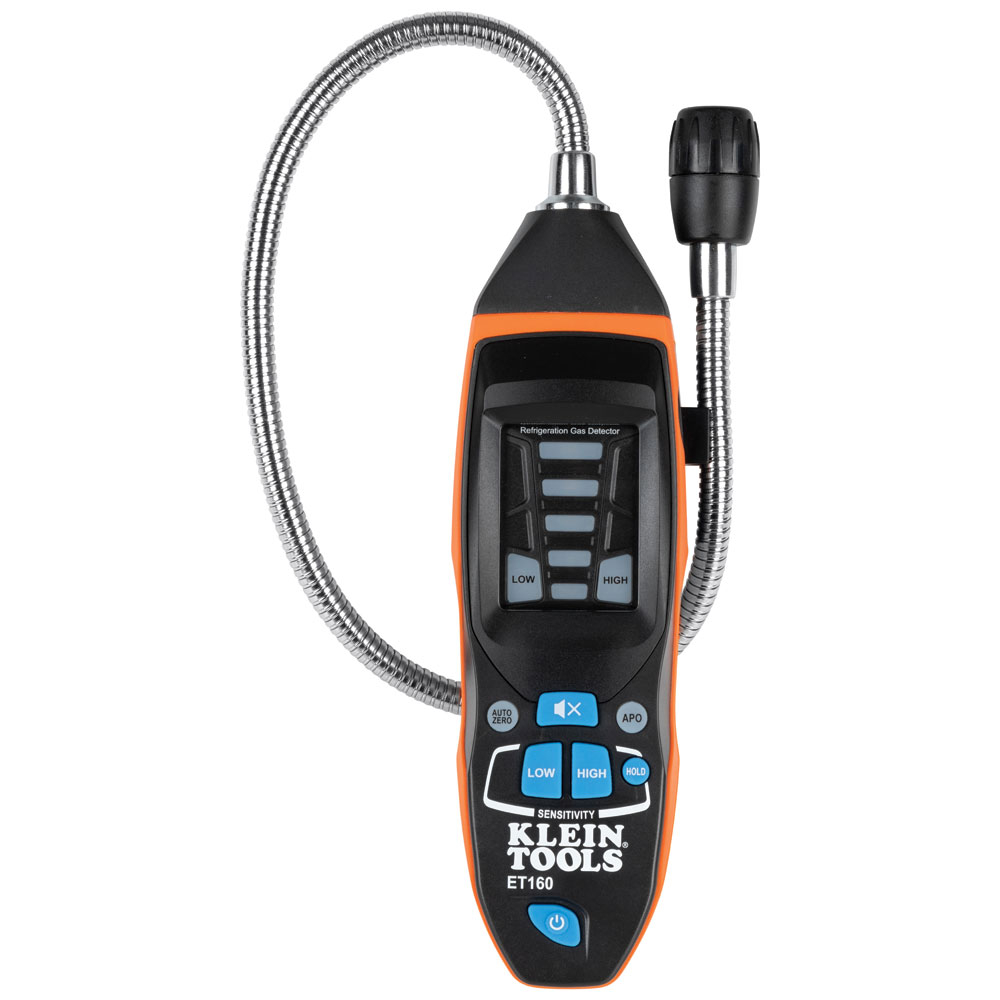

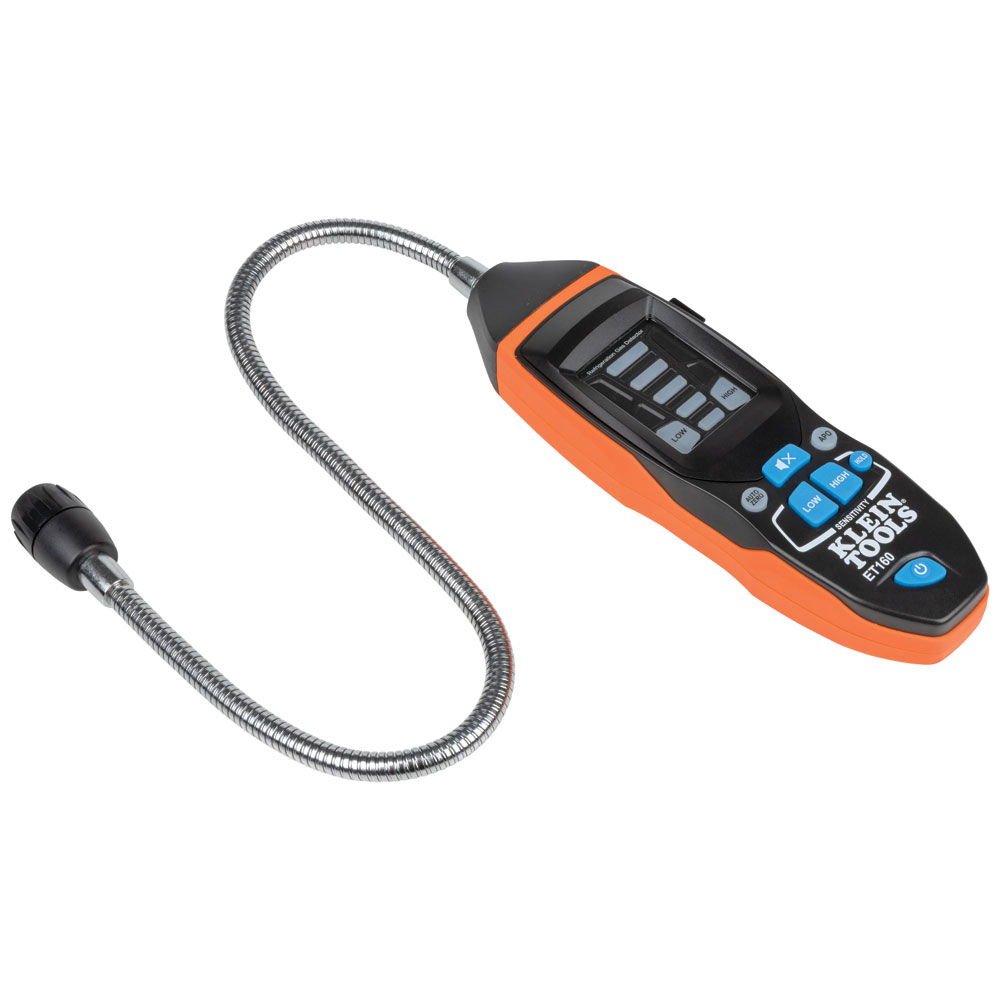

Refrigerant Gas Leak Detector

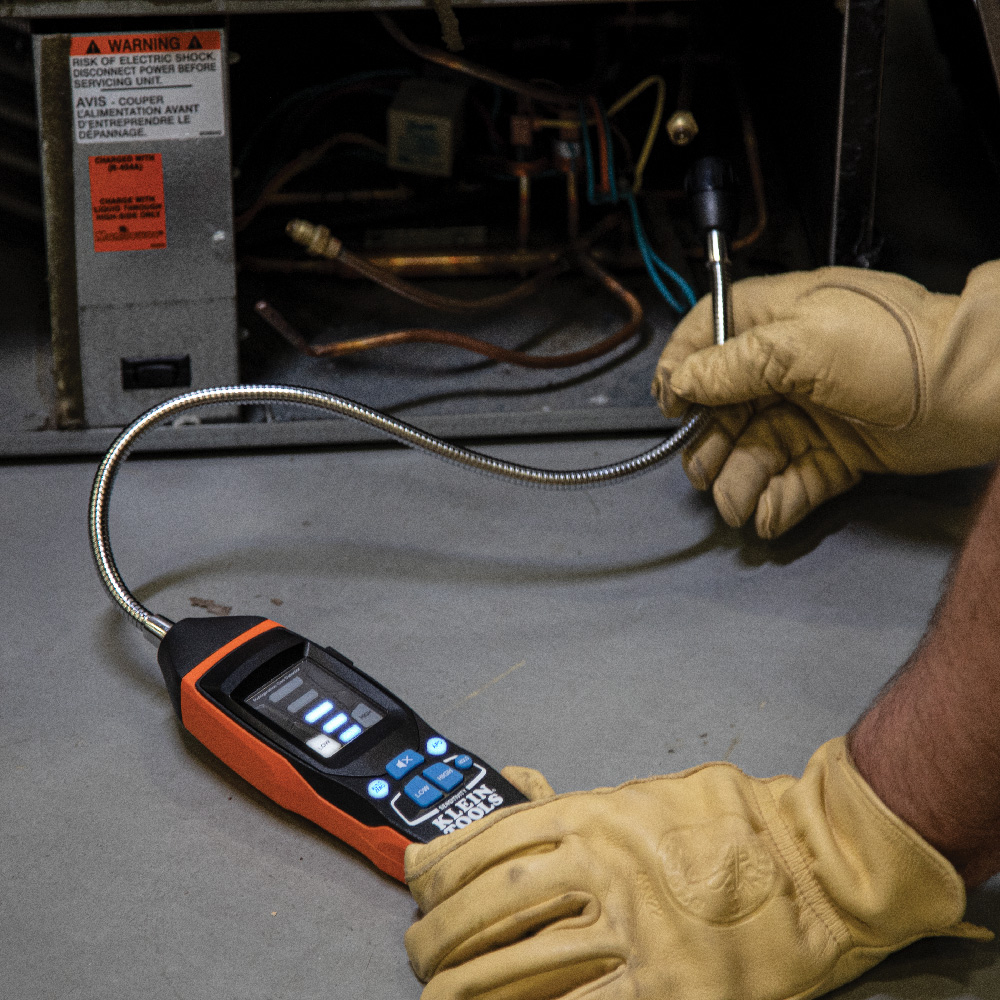

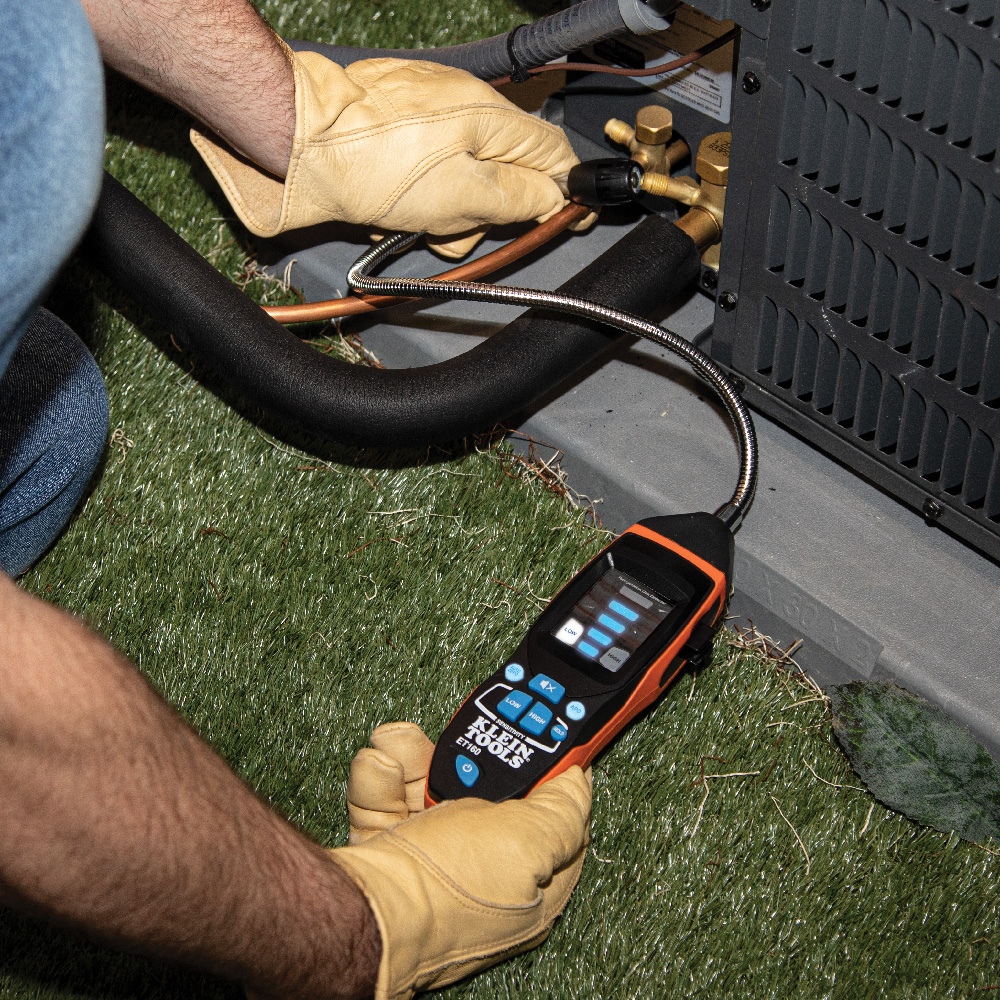

Klein Tools’ ET160 is an easy-to-use Refrigerant Gas Leak Detector that provides audible and visual alarms in the presence of CFCs, HFCs, HCFCs, and blends. Detect as low as 100 ppm of common refrigerant gases. Features automatic zero-point calibration, hold, mute, and low battery indicator.

Warnings

• Read, understand, and follow all instructions to ensure safe operation.
• The refrigerant gas leak detector is NOT intended as a personal protection device (PPE).
• The refrigerant gas leak detector is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements.
• Always turn on the gas detector in an area known to be free of gases.

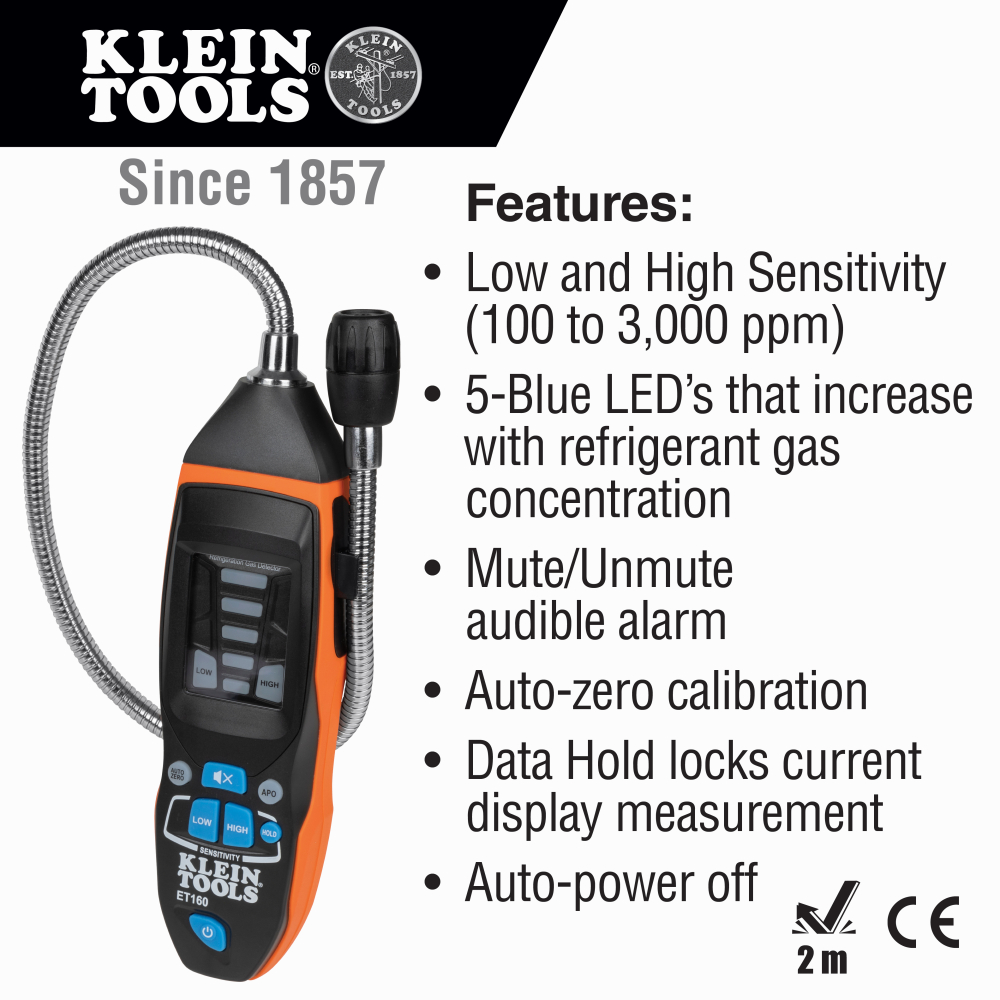

Features

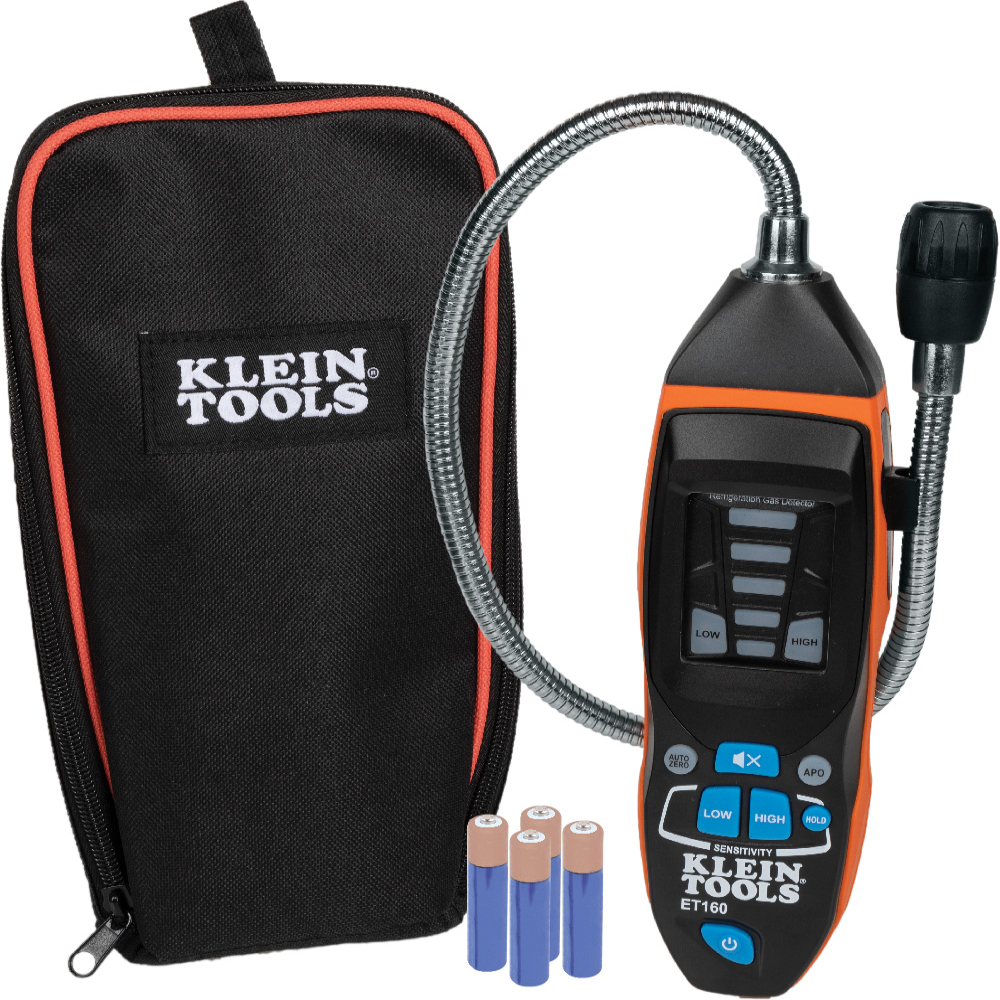

• Includes 4 x AAA batteries, storage pouch, and instructions

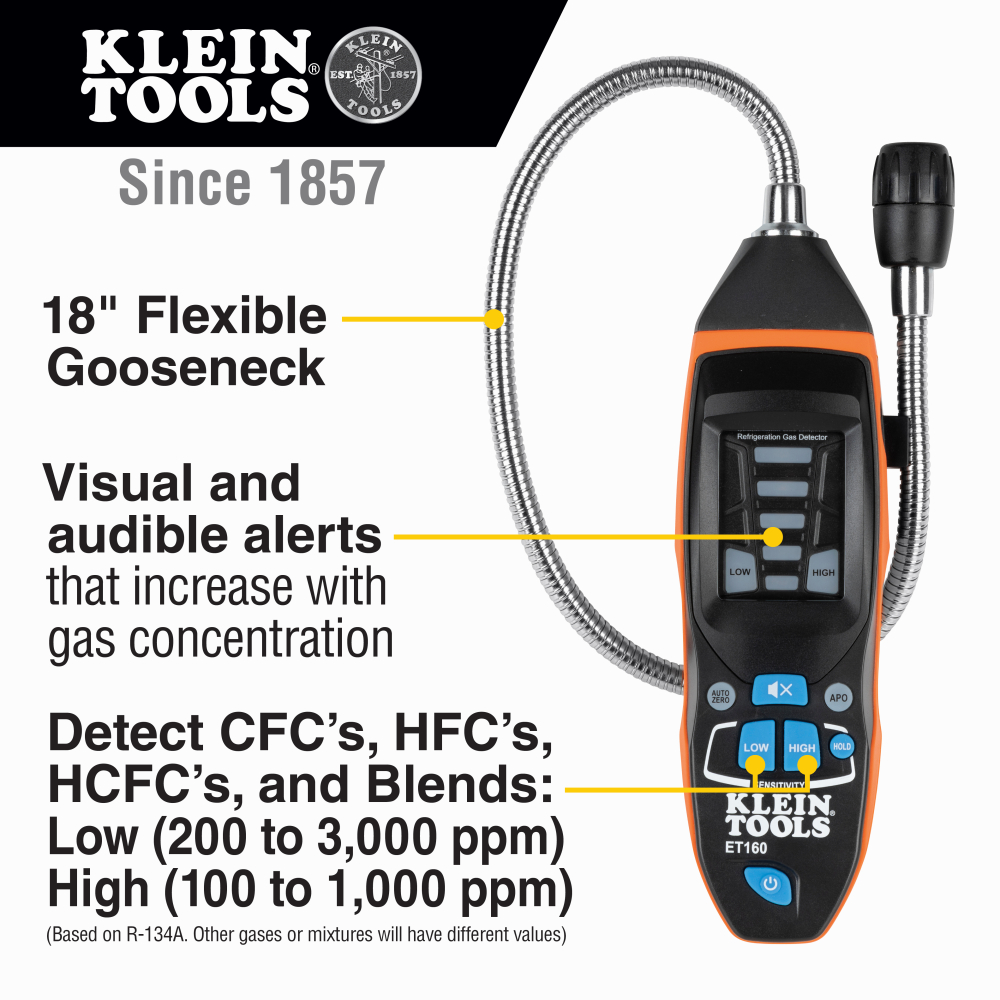

• Visual and audible alarms increase with refrigerant gas concentration

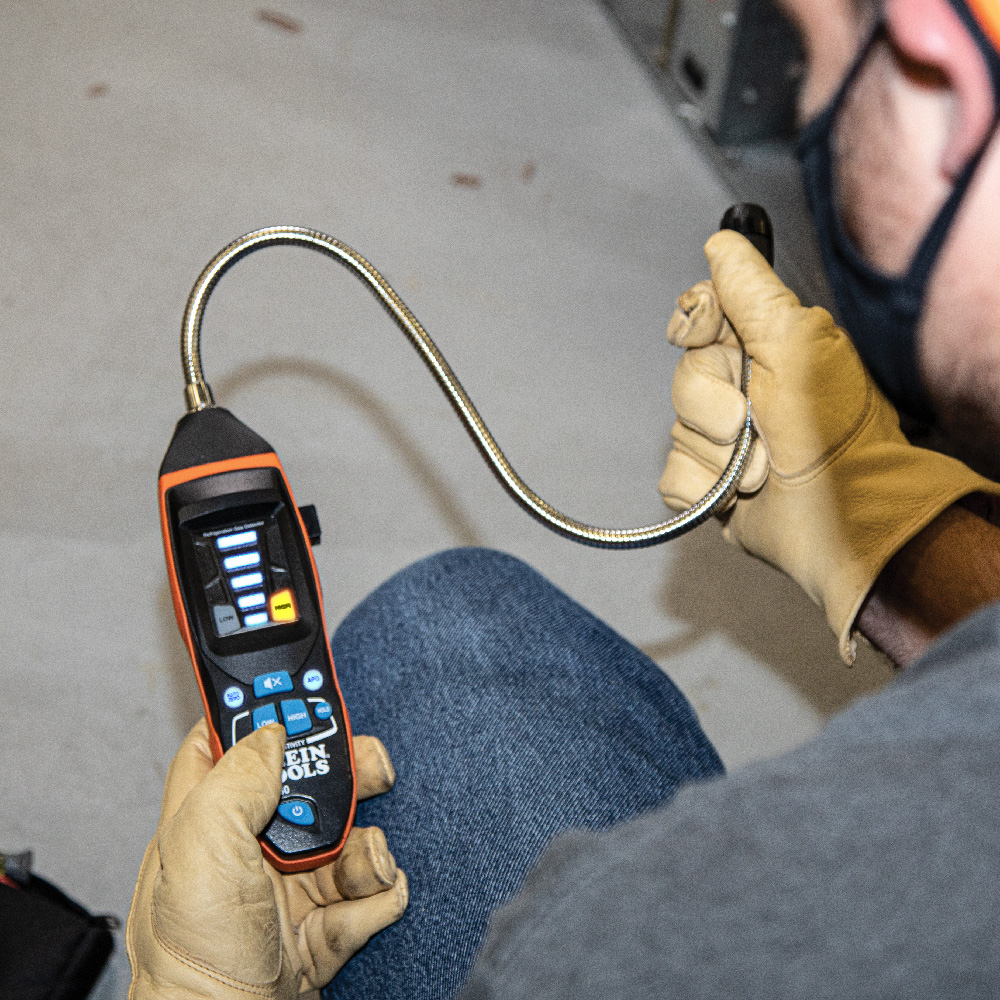

• 18-Inch gooseneck probe for easy access around equipment
• 6.6-Foot (2 m) drop protection
• Automatic zero-point calibration at power-up, hold, mute, and low battery functions
• Audible and Visual Alarms Increase with Gas Concentration; 18-Inch (45.7 cm) Gooseneck
• Conforms to EN14624:2020 testing
• High (100 to 1000 ppm) and low (200 to 3000 ppm) levels of sensitivity settings; based on R-134A
• Auto-power off after 10 minutes of inactivity to conserve battery
• Refrigerant gas leak detection of CFCs, HFCs, HCFCs, and blends from 100 ppm to 3000 ppm

Specifications

• Style Name: Refrigerant Gas
• Batteries: 4 x AAA
• Country of Origin: China
• Overall Length: Meter - 8.11" (20.6 cm); Gooseneck - 18" (45.7 cm)
• Display: LED Lights
• Type: CFCs, HFCs, HCFCs, and Blends Refrigerant Gas Leak Detector
• Depth: 28.3000 in
• Weight: 1.0000 lbs
• Material: Polycarbonate Housing, Electronic Components
• Application: Test for Refrigerant Gas Leaks
• Overall Width: 2.72" (6.9 cm)
• Height: 1.8300 in
• Overall Height: 1.75" (4.5 cm)
• Included: Refrigerant Gas Leak Detector; Batteries; Pouch; Instructions
• Width: 2.4700 in
