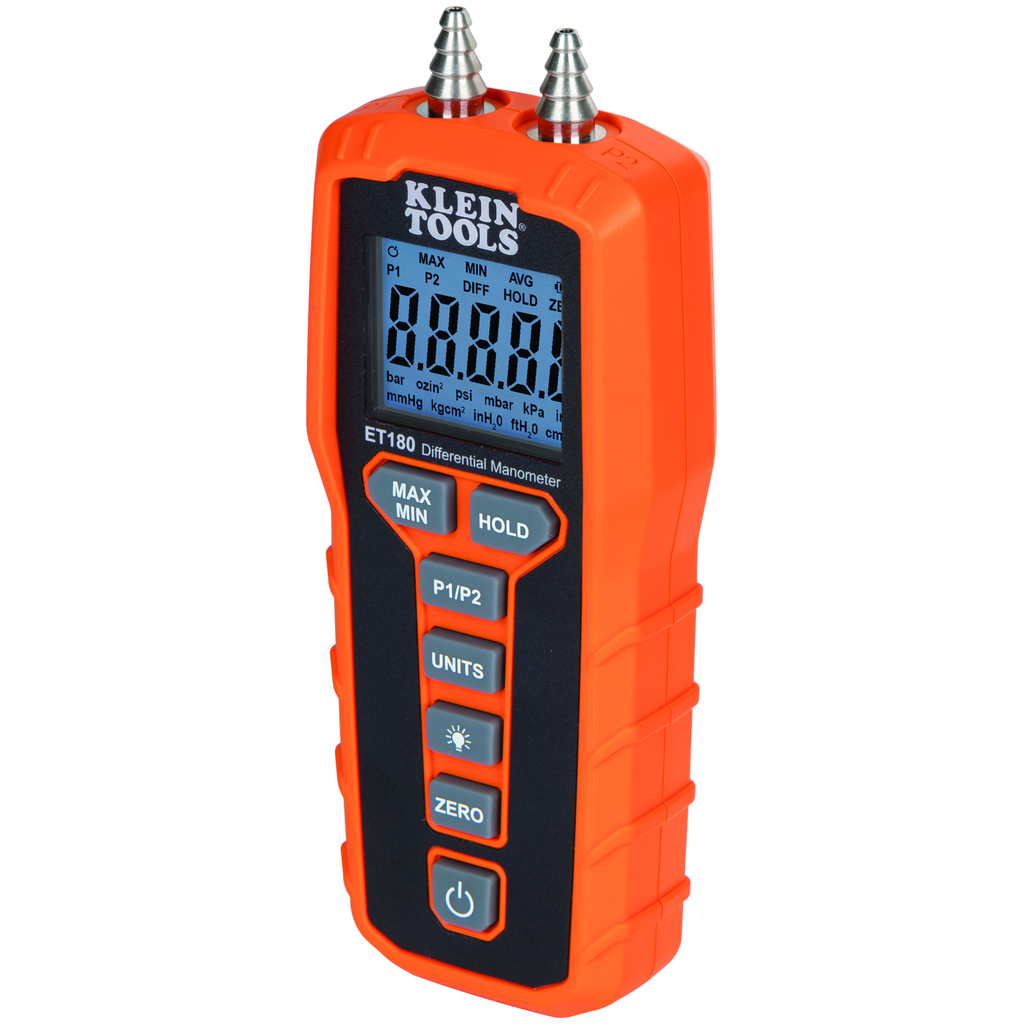

Digital Differential Manometer

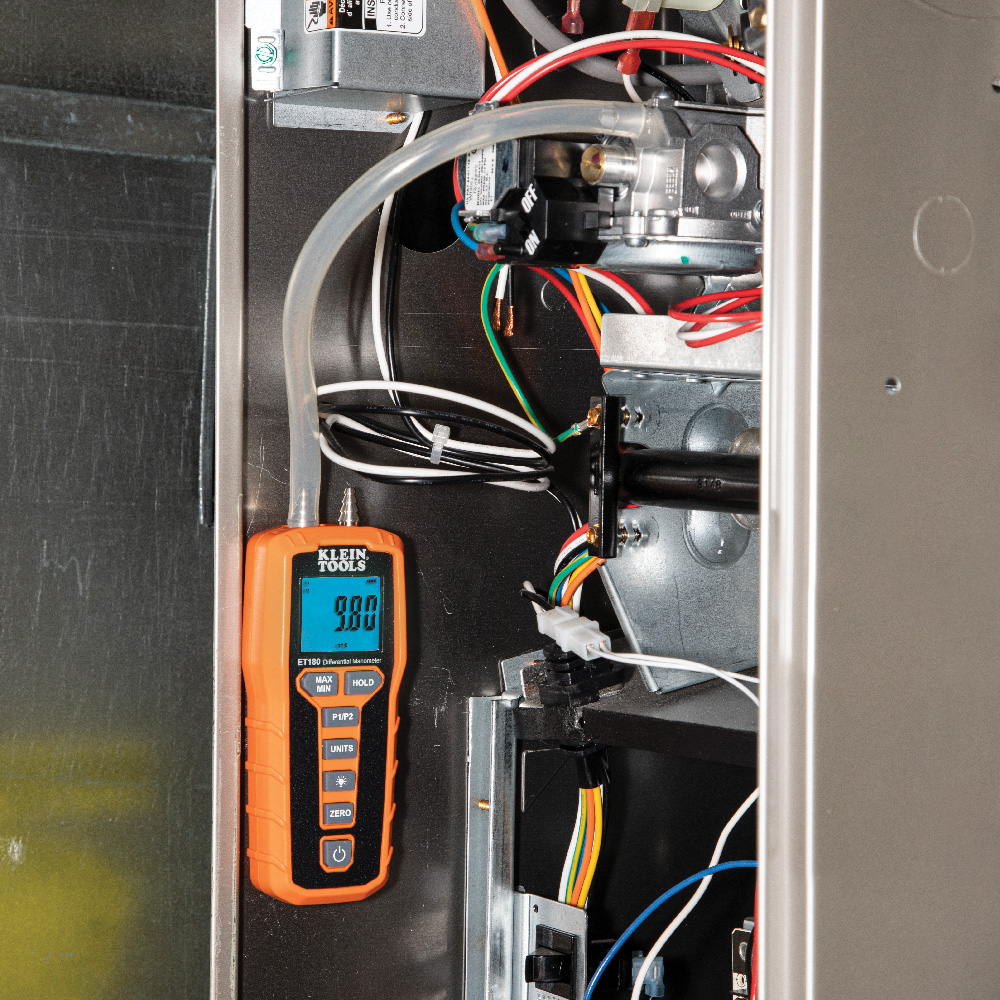

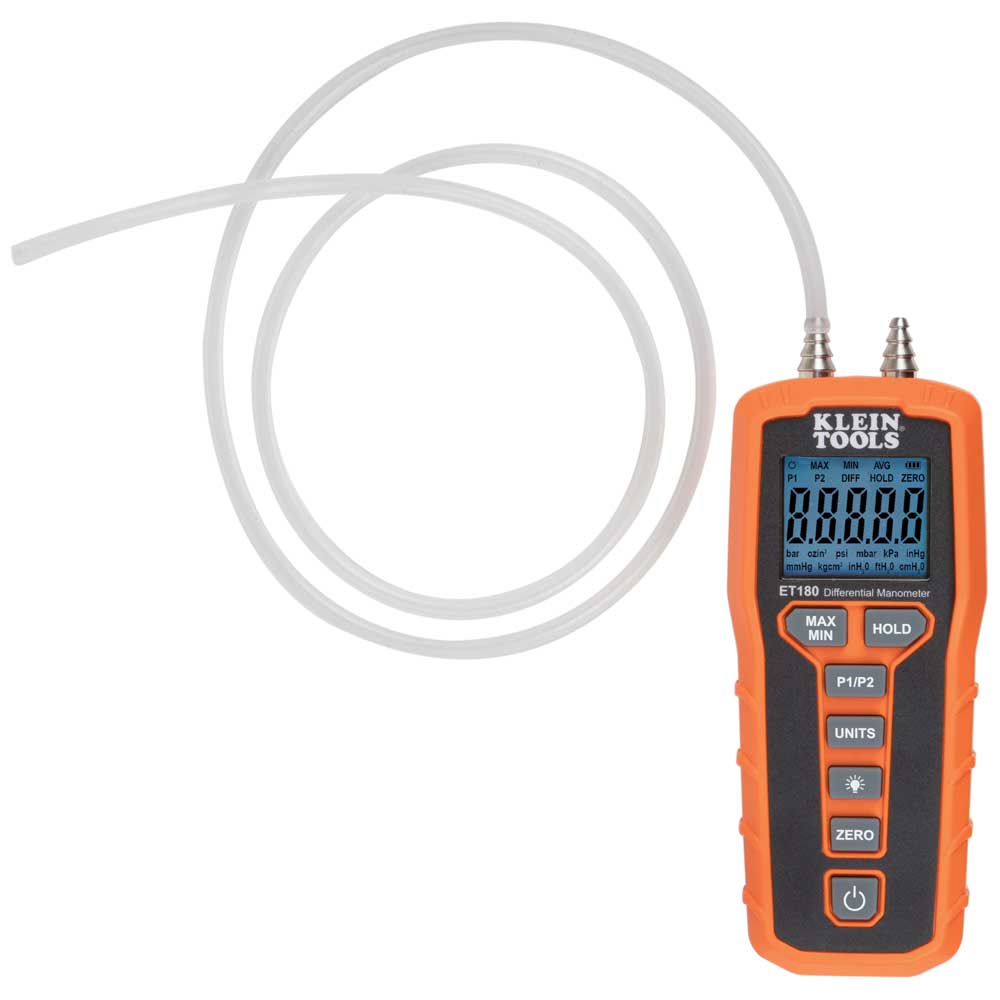

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.

Features

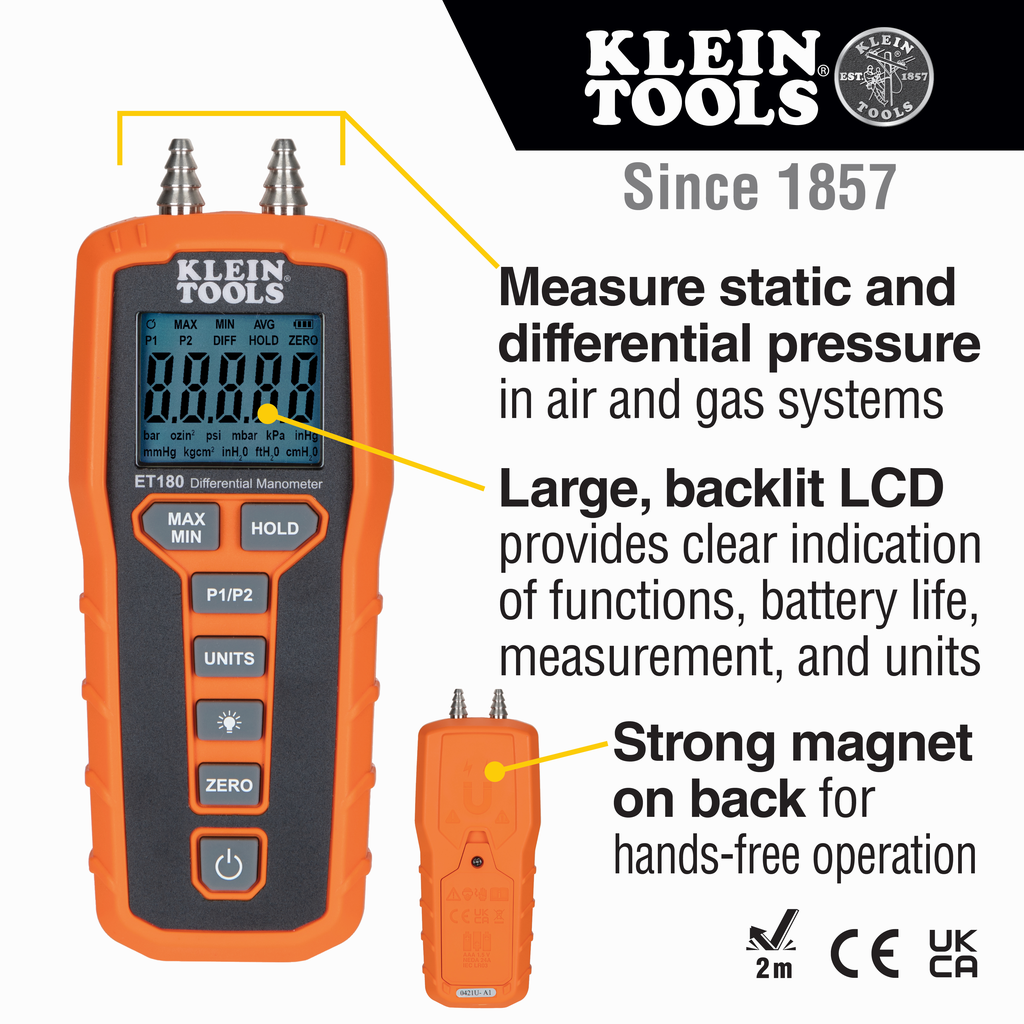

• Strong magnet on back for hands-free operation
• Large LCD is backlit for easy viewing in low light conditions
• Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
• Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent

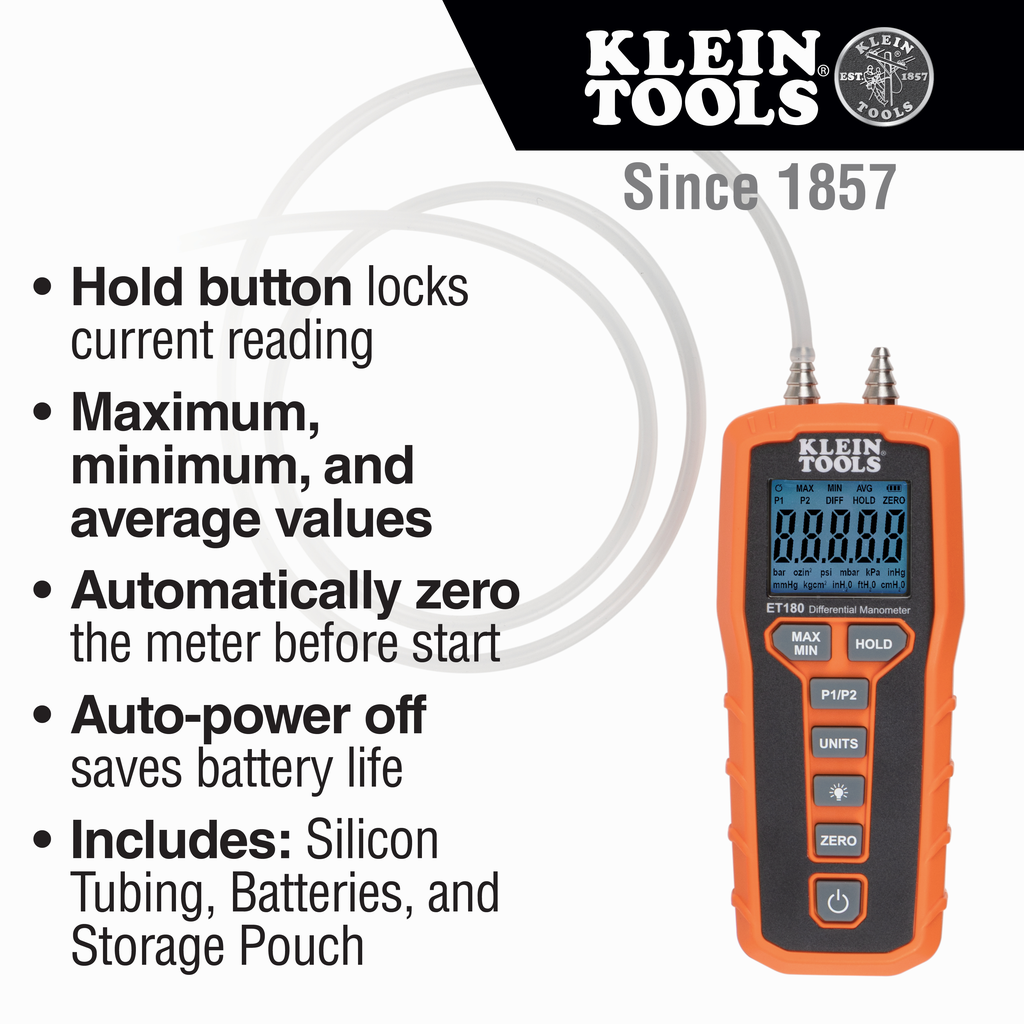

• Hold button locks current reading on the display
• Digital Manometer measures air and gas pressure for ports P1, P2, and differential
• Calculates minimum, maximum and average values
• Auto-power off feature conserves battery life

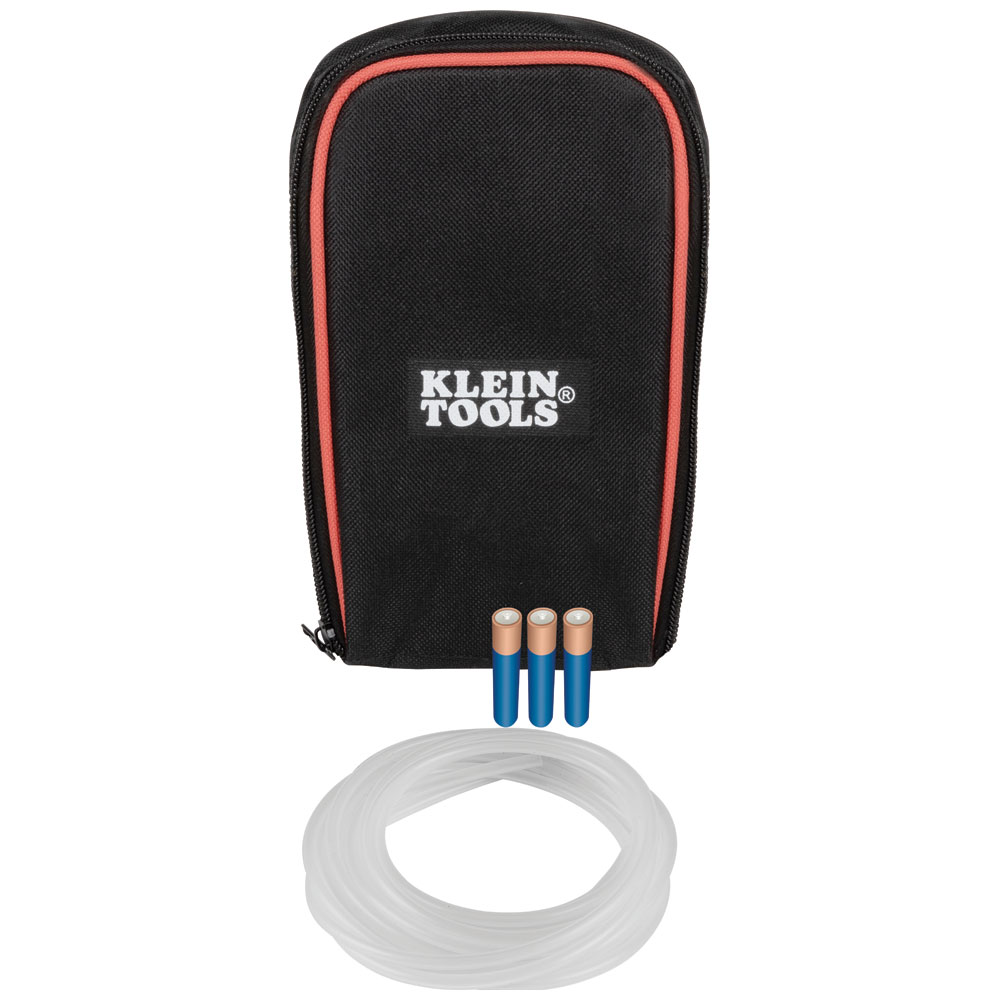

• Silicon tubing, 3 x AAA batteries, and storage pouch included
• Magnet on Back of Housing

Warnings

• The meter is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements.
• Always wear approved eye protection.
• Read, understand, and follow all instructions to ensure safe operation.

Specifications

• Modes: P1, P2, Differential
• Overall Width: 1.38 Inch (3.5 cm)

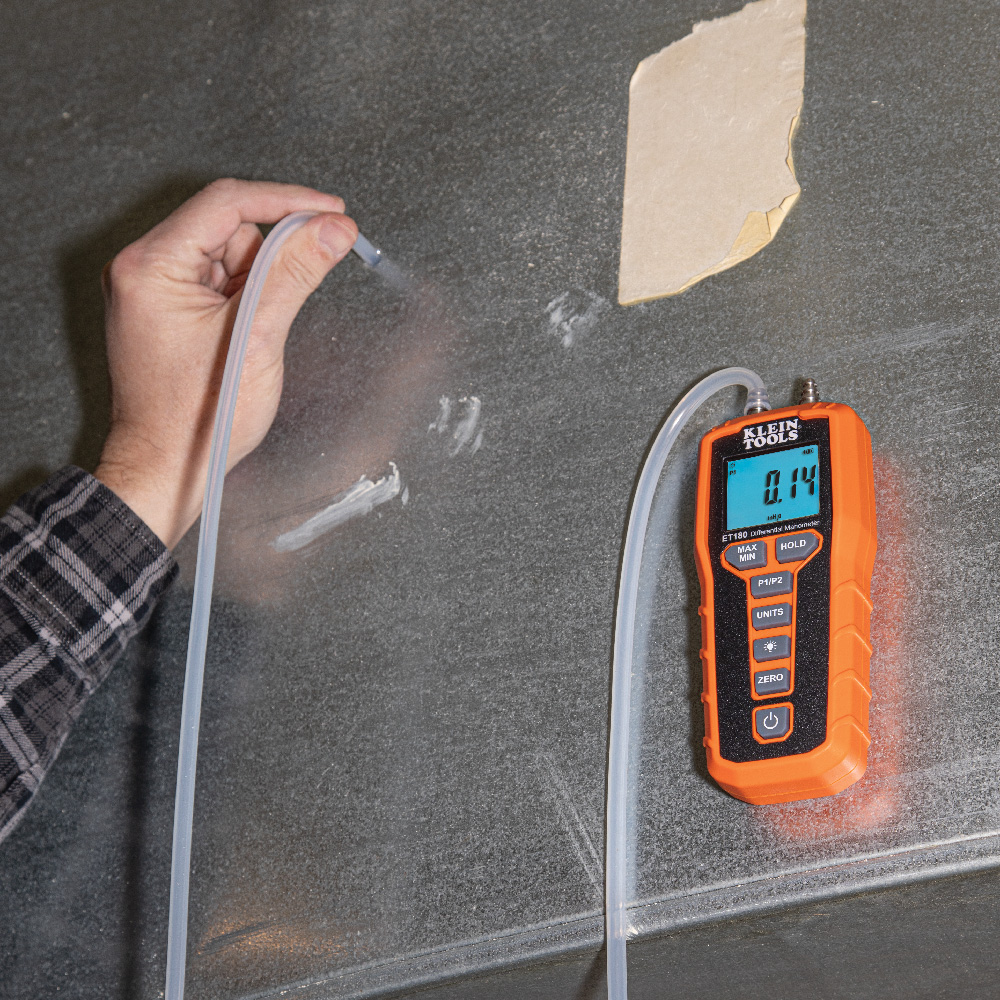

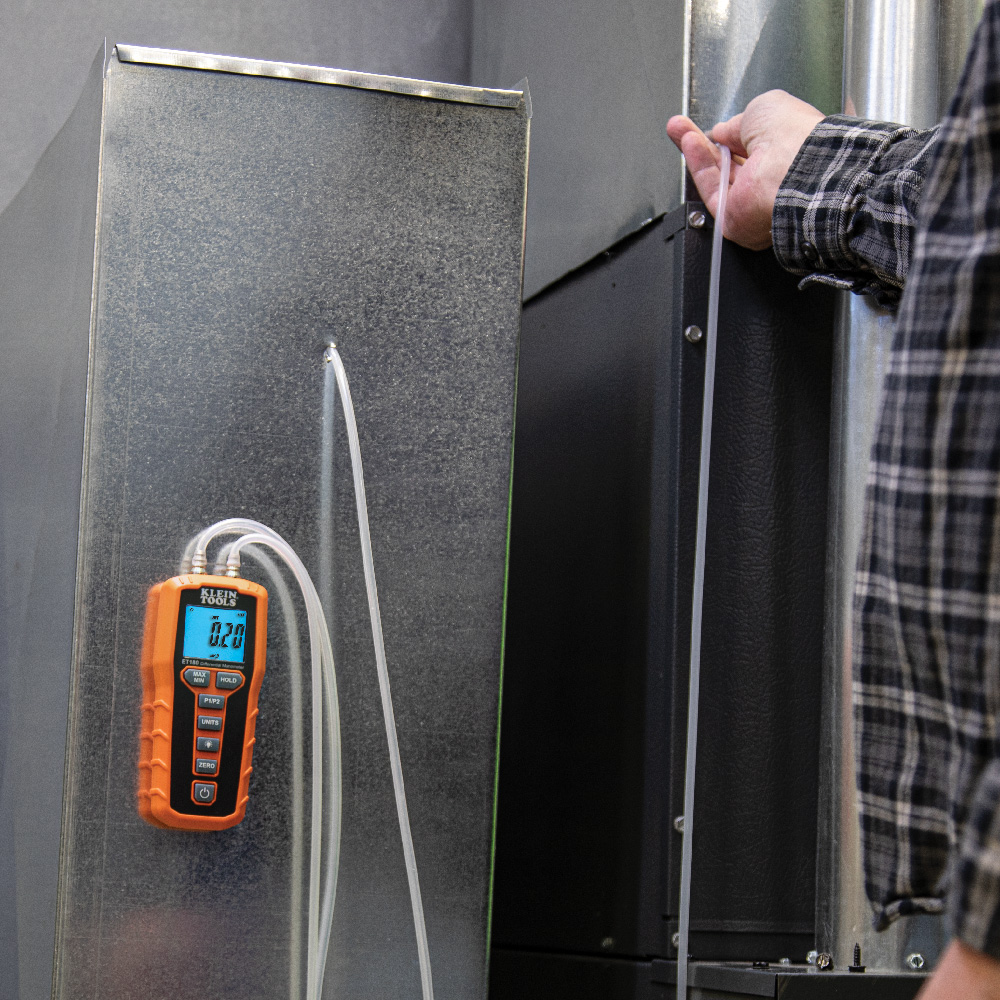

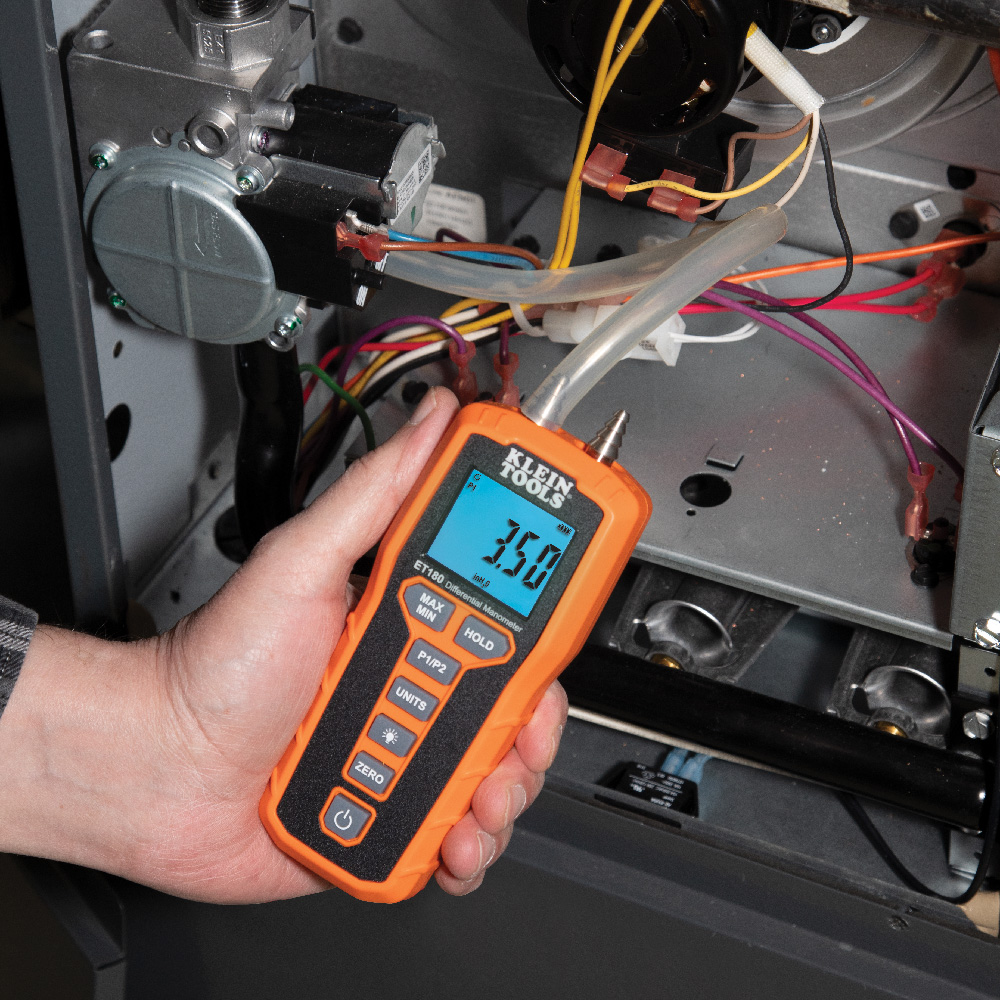

• Application: Measure Static and Differential Pressure
• Included: Manometer; 6.56' (2 m) x 1/8" (3 mm) Inside Diameter Silicon Tubing; 3 x AAA Batteries; Pouch; Instruction Manual
• Width: 2.4710 in

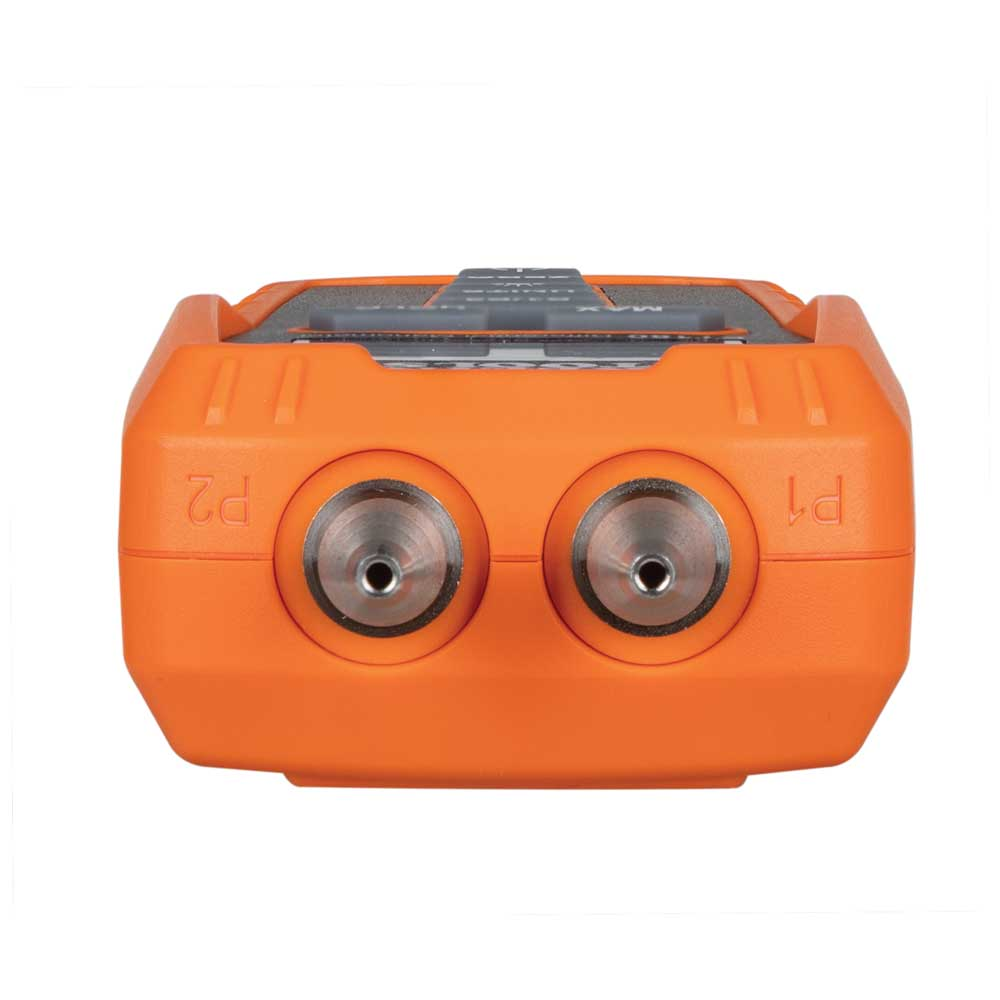

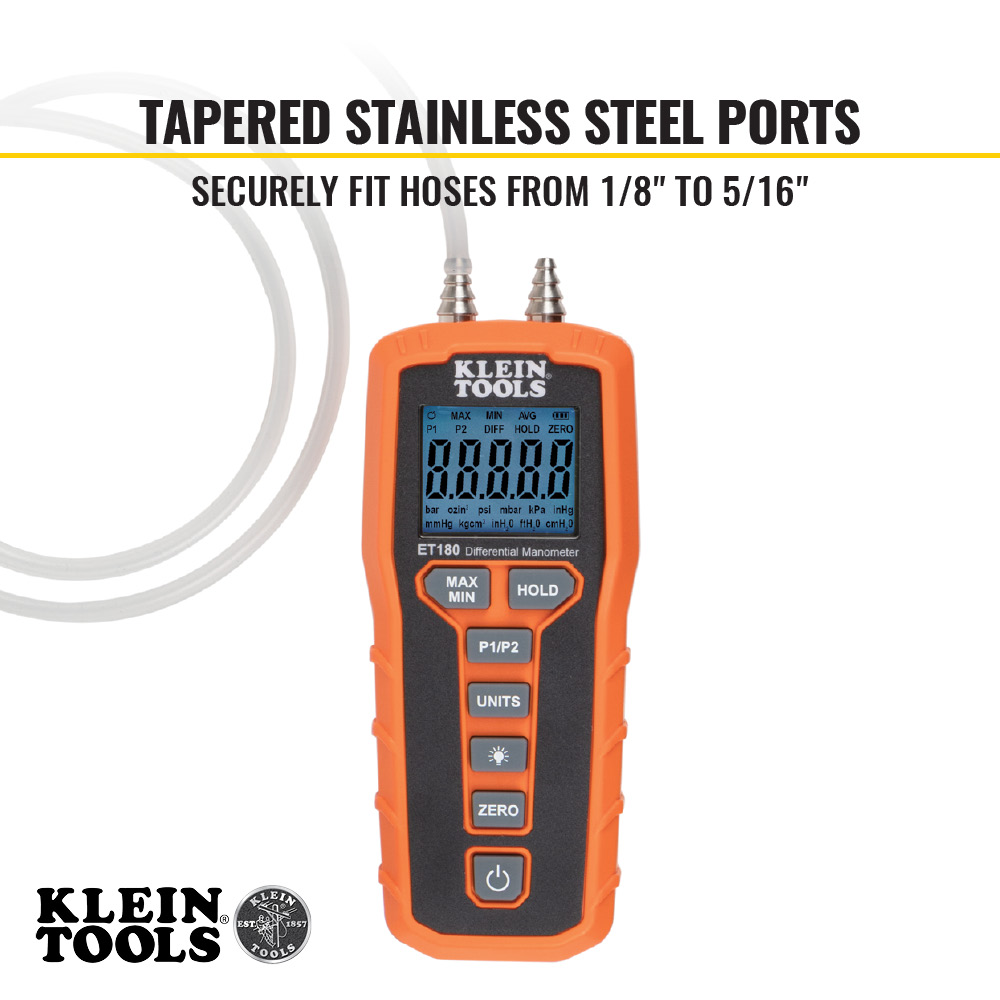

• Connector Type: Tapered Stainless Steel Ports from 1/8" to 5/15"
• Overall Length: 6.3 cm (2.47 Inch)
• Batteries: 3 x AAA
• Measurement Units: bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
• Minimum Pressure Reading: -60.0 wc
• Overall Height: 15.7 cm (6.19 Inch)
• Depth: 6.2400 in
• Height: 1.3780 in
• Number of Ports: 2
• Pressure Measurement Range: +/- 60 inH2O
• Type: Differential Pressure
• Standard: Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
• Maximum Pressure Reading: 60.0 wc
• Temperature Range: 32° to 122° F (0° to 50° C)
• Auto-Power Off: Yes
• Maximum Pressure: 2.16 PSI psi
• Weight: 0.3700 lbs
• Material: ABS, Stainless Steel
• Low Battery Indicator: Yes
• Accuracy: +/-1.5% Full Scale
• Display: Backlit LCD
