AC/DC Voltage/Continuity Tester

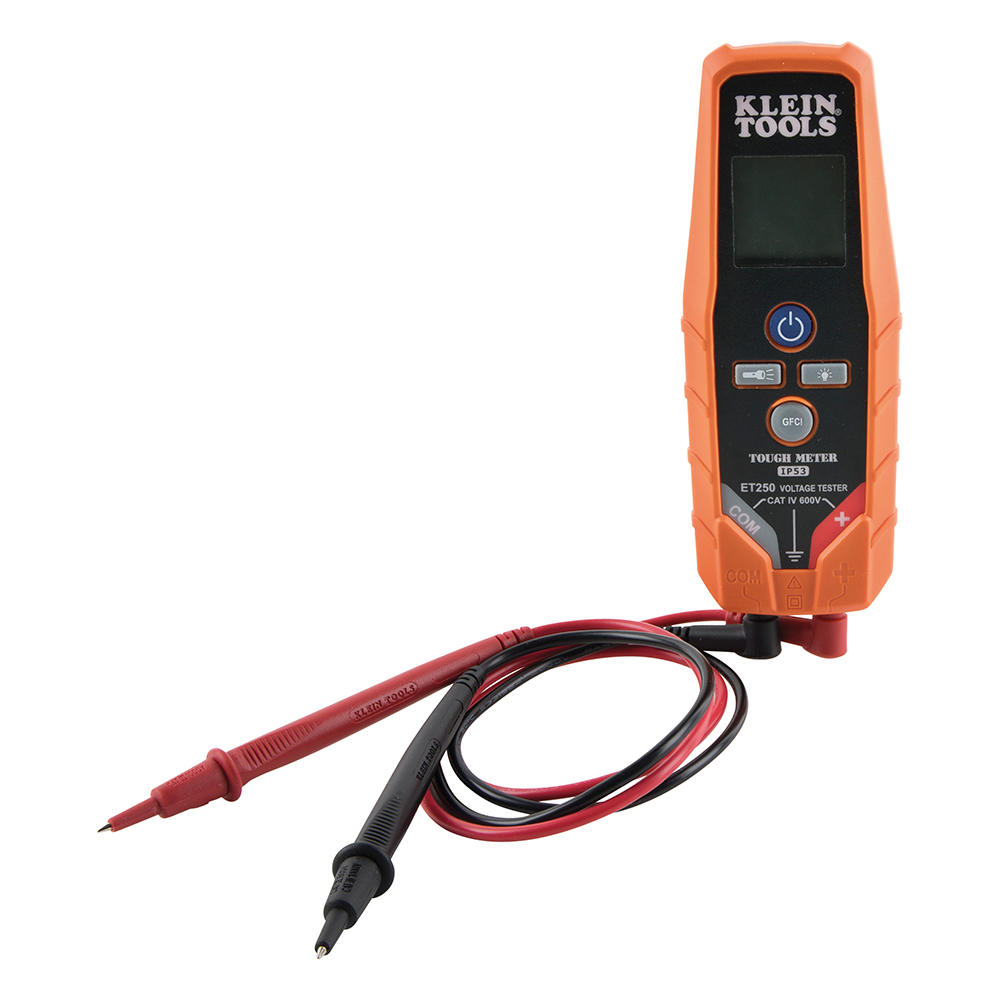

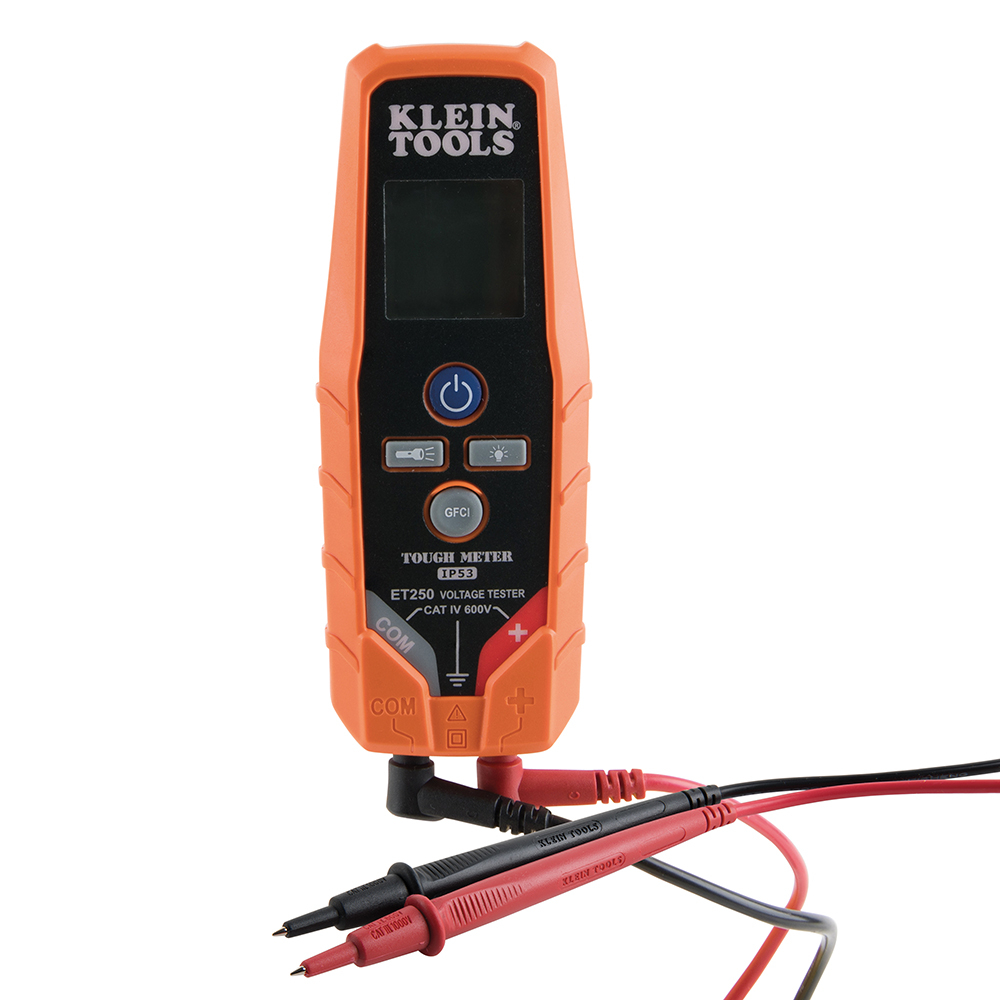

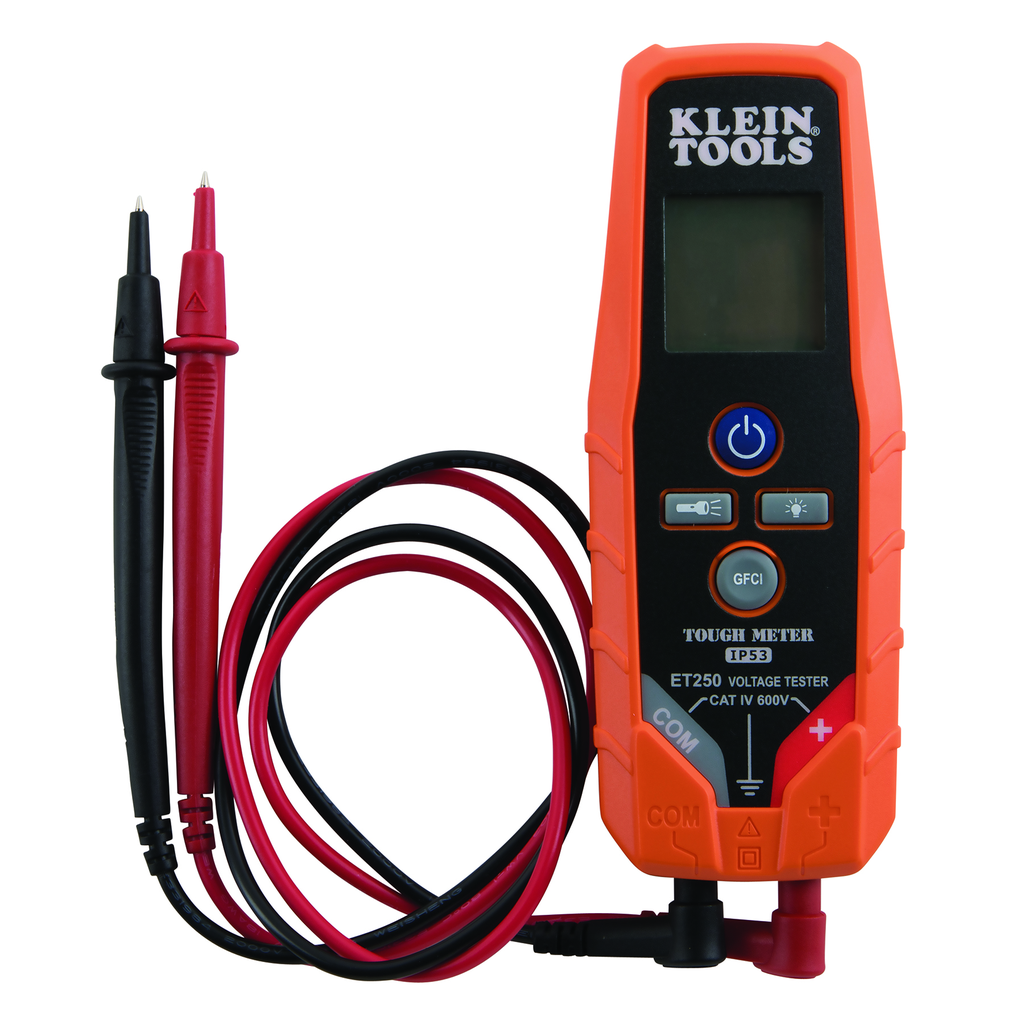

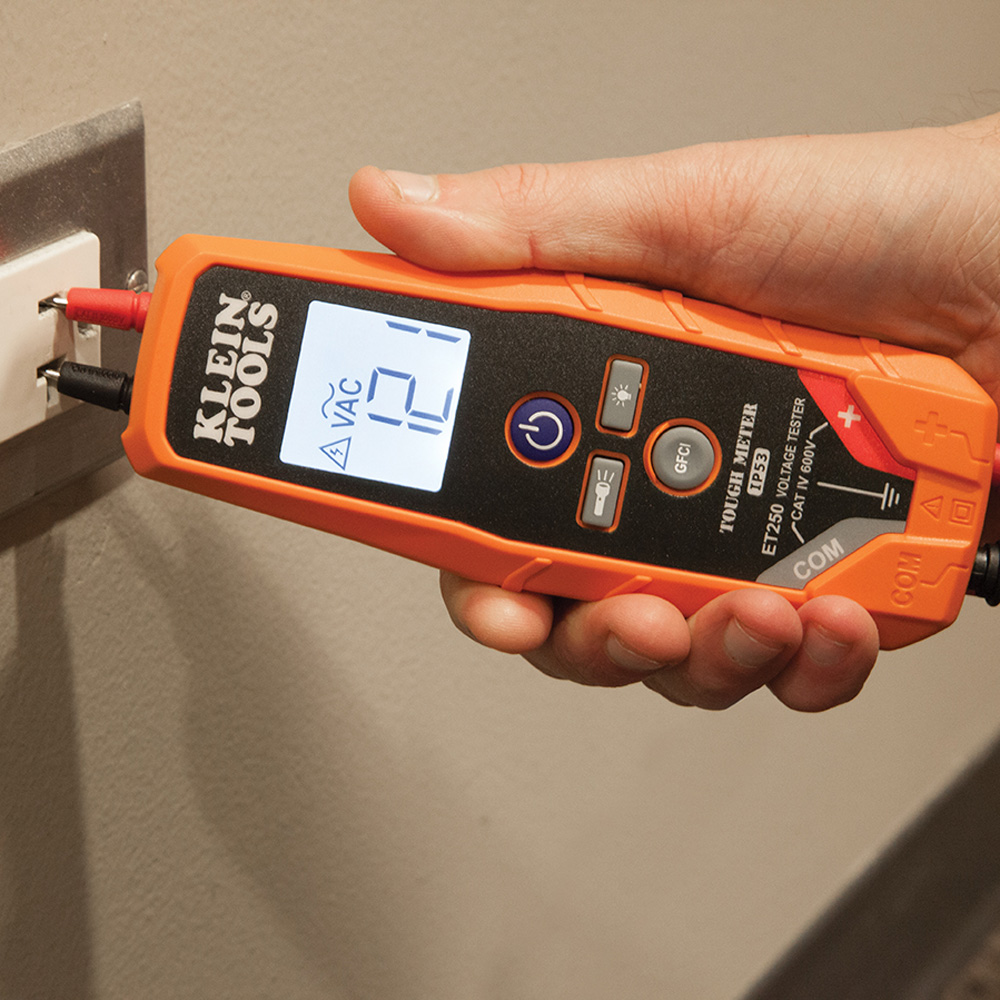

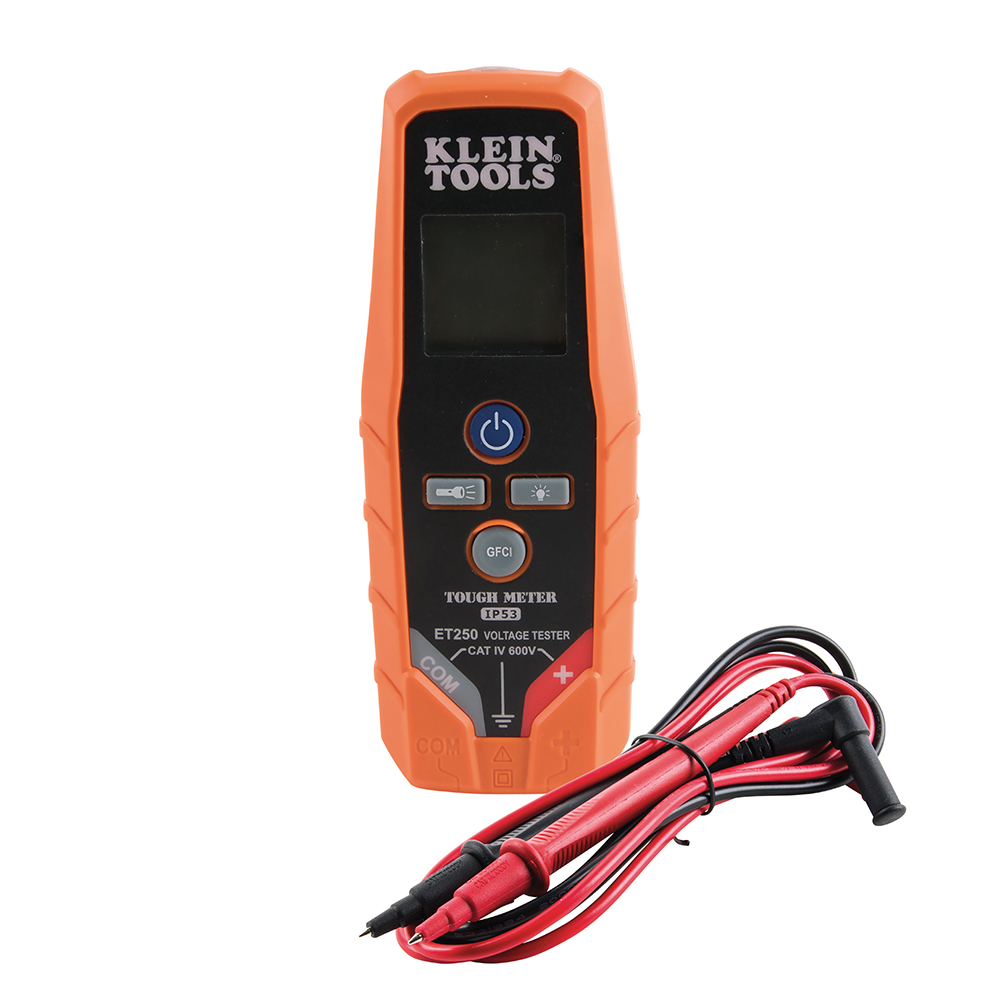

Klein Tools ET250 is a solid-state, digital voltage and continuity tester. It measures AC/DC voltages up to 600V and tests for continuity. Additionally, the ET250 tests GFCI protected circuits to verify that the GFCI device is functioning appropriately. The tester includes a backlight and integrated flashlight for working in reduced ambient lighting conditions.

Features

• Tests GFCI protected circuits
• Integrated flashlight
• IP53 dust and water resistant
• CAT IV 600V modern solid-state design for safety

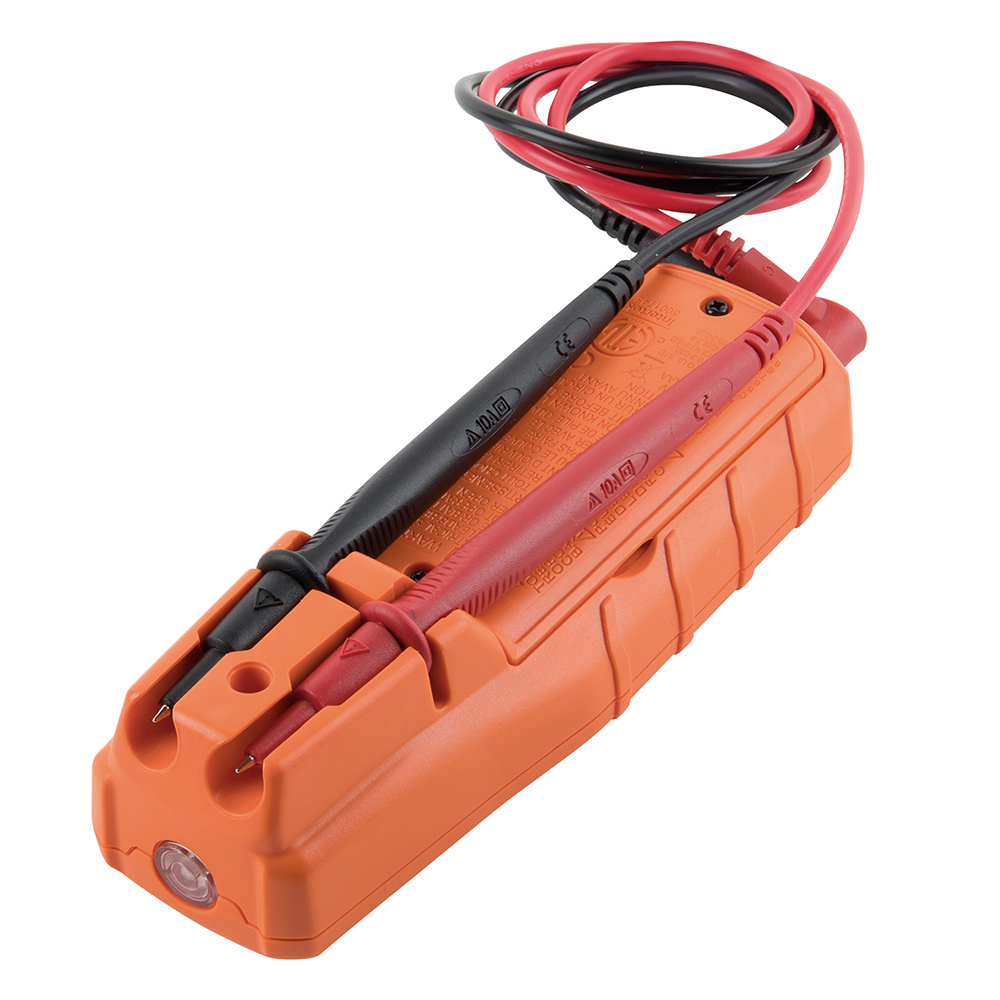

• Features built-in test lead holders on back of meter
• Backlit LCD display
• Uses standard replaceable multimeter test leads
• 9.8 ft. (3 m) drop protection
• Built-in Test Lead Holder and Integrated Flashlight
• Voltage tester automatically selects voltage or continuity; automatically powers on when any measurement is attempted

Warnings

• Never use the tester on a circuit with voltages that exceed the category based rating of this meter.
• Before each use, verify tester operation by measuring a known voltage.
• Do not use the tester or test leads if they appear to be damaged.

Specifications

• Standard: CAT IV 600V, CE
• Batteries: 3 x AAA
• Drop Protection: 9.8' (3 m)
• Display: Digital LCD
• Frequency: 45 to 400 Hz
• Voltage: 2 to 600V AC/DC
• Weight: 0.3100 lbs
• Application: Measure Voltage and Continuity and Ensure GFCI Devices are Functioning Properly
• Overall Height (Inch): 1.64
• Height: 6.0500 in
• Depth: 2.3300 in
• Overall Width (Inch): 2.31
• Integral Lead Storage: Yes
• Overall Length (Inch): 6.06
• Overall Height (cm): 4.2
• Included: Tester; Test Leads; Batteries
• Overall Length (cm): 15.4
• Control Type: Digital
• Accuracy: +/- (2% + 2V)
• Width: 1.6400 in
• Ingress Protection: IP53 (except test lead jacks)
• Weight (oz): 6
• Overall Width (cm): 5.9
• Type: Digital Voltage and Continuity Tester
• Material: Thermoplastic; Electronics
• Tests Continuity: Yes
• Pollution Degree: 2
• Weight (g): 170

Downloads

Instructions
