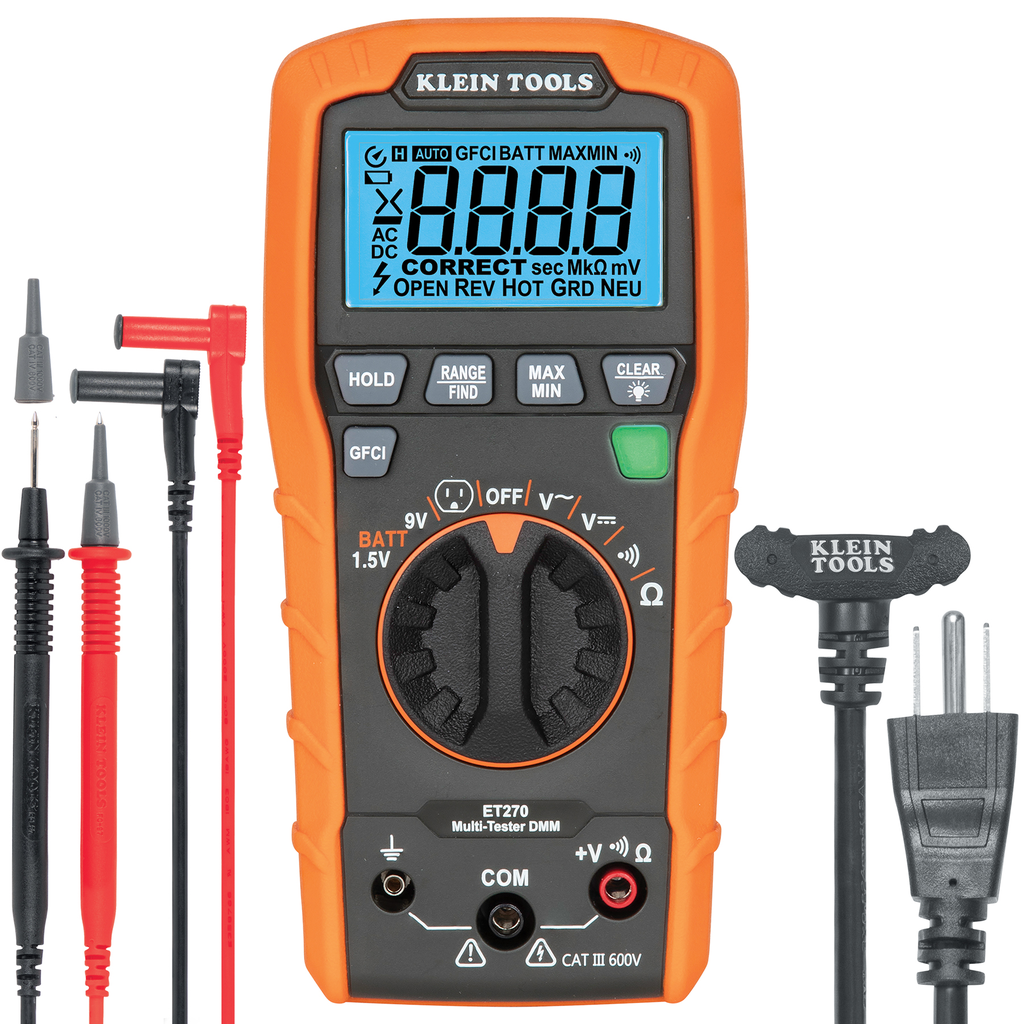

Auto-Ranging Digital Multi-Tester with Standard/GFCI Receptacle Tester

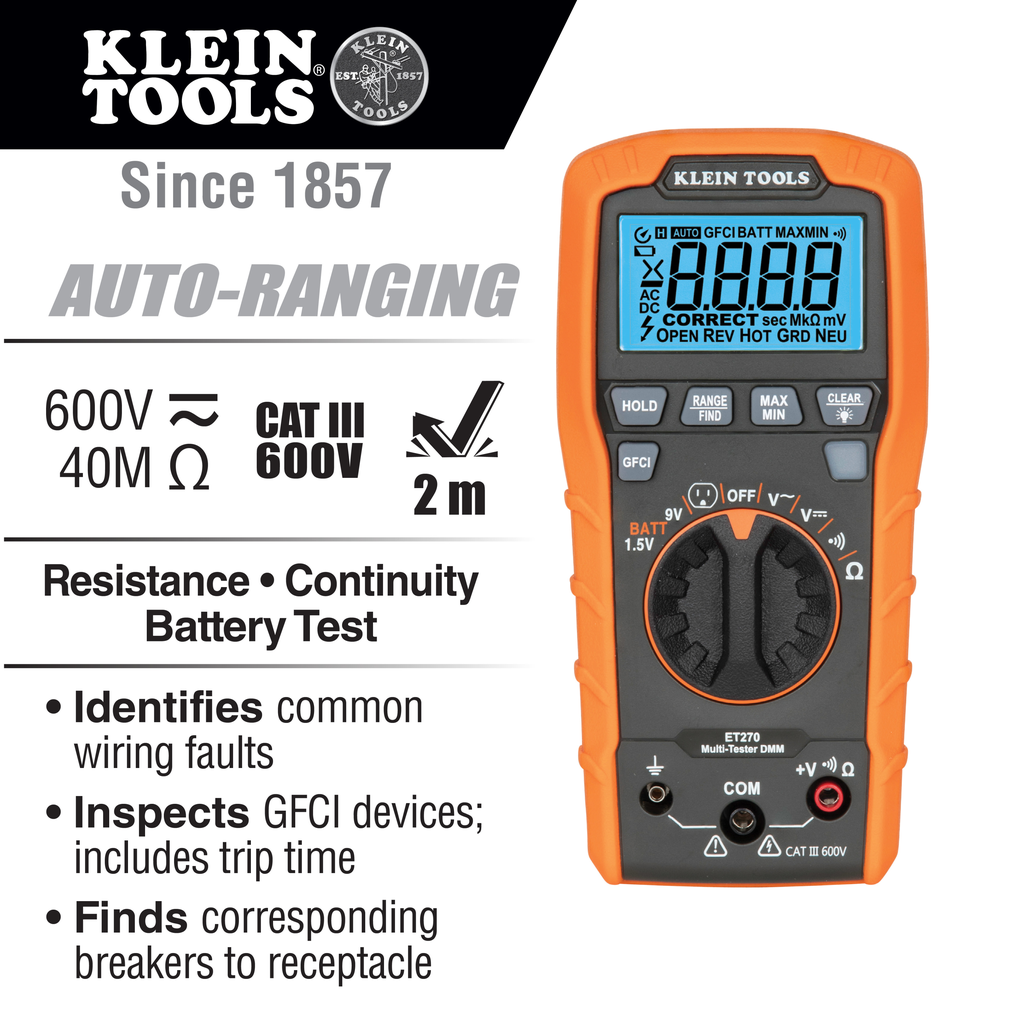

Klein Tools' ET270 is an auto-ranging digital multi-tester that measures AC/DC voltage, resistance, continuity, and performs a battery test. It also tests wiring conditions in standard 120VAC and GFCI electrical receptacles and inspects North American GFCI devices. Comes with Right-Angle Test Leads, Receptacle Test Cord, Instructions, and all required batteries.

Features

• Built to withstand a 6.6-Foot (2 m) drop, this meter is designed to be durable and reliable even in demanding working environments

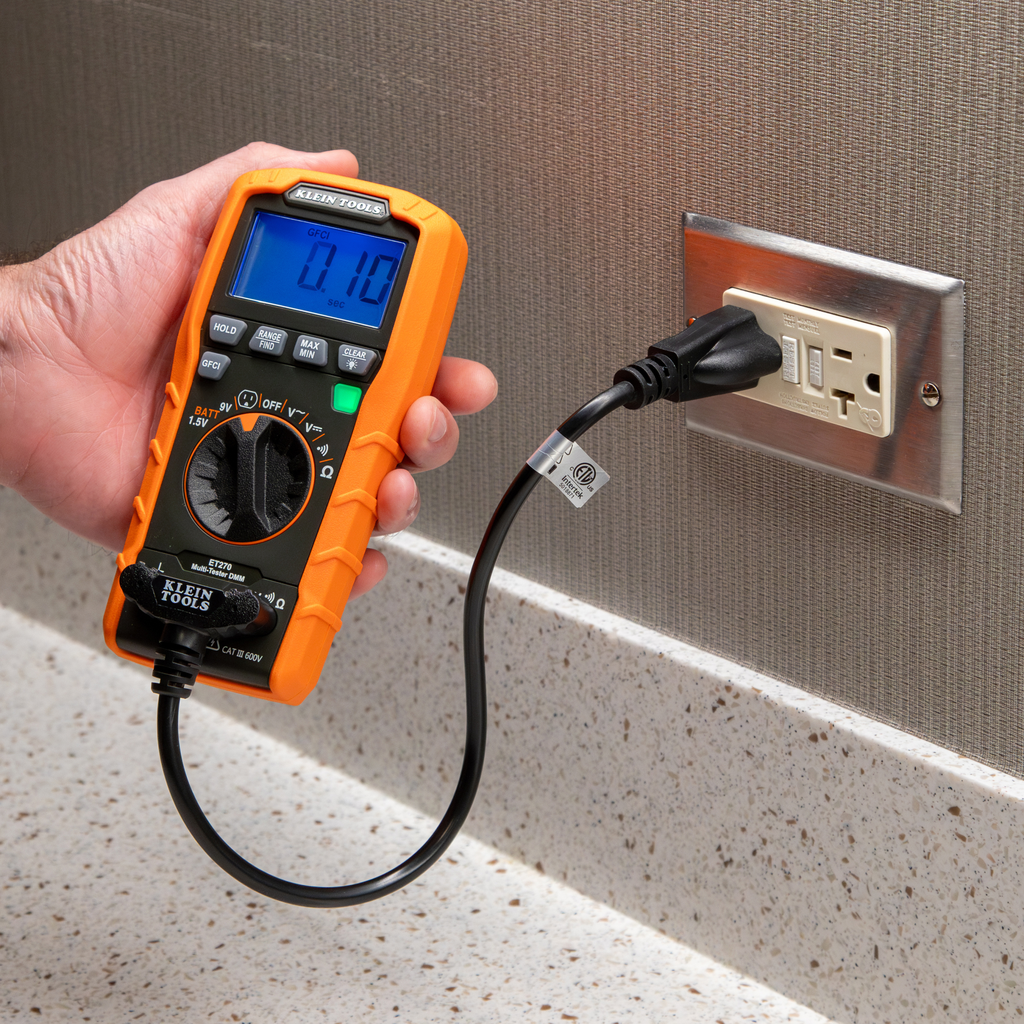

• Inspects GFCI devices, including time to trip the device
• Features include backlit display, data hold, default to auto-range with option for manual-range; max/min
• Detects and identifies common wiring faults in standard and GFCI electrical outlets
• Digital multimeter is auto-ranging and measures AC/DC voltage, resistance, audible continuity, and performs 9V and 1.5V battery tests

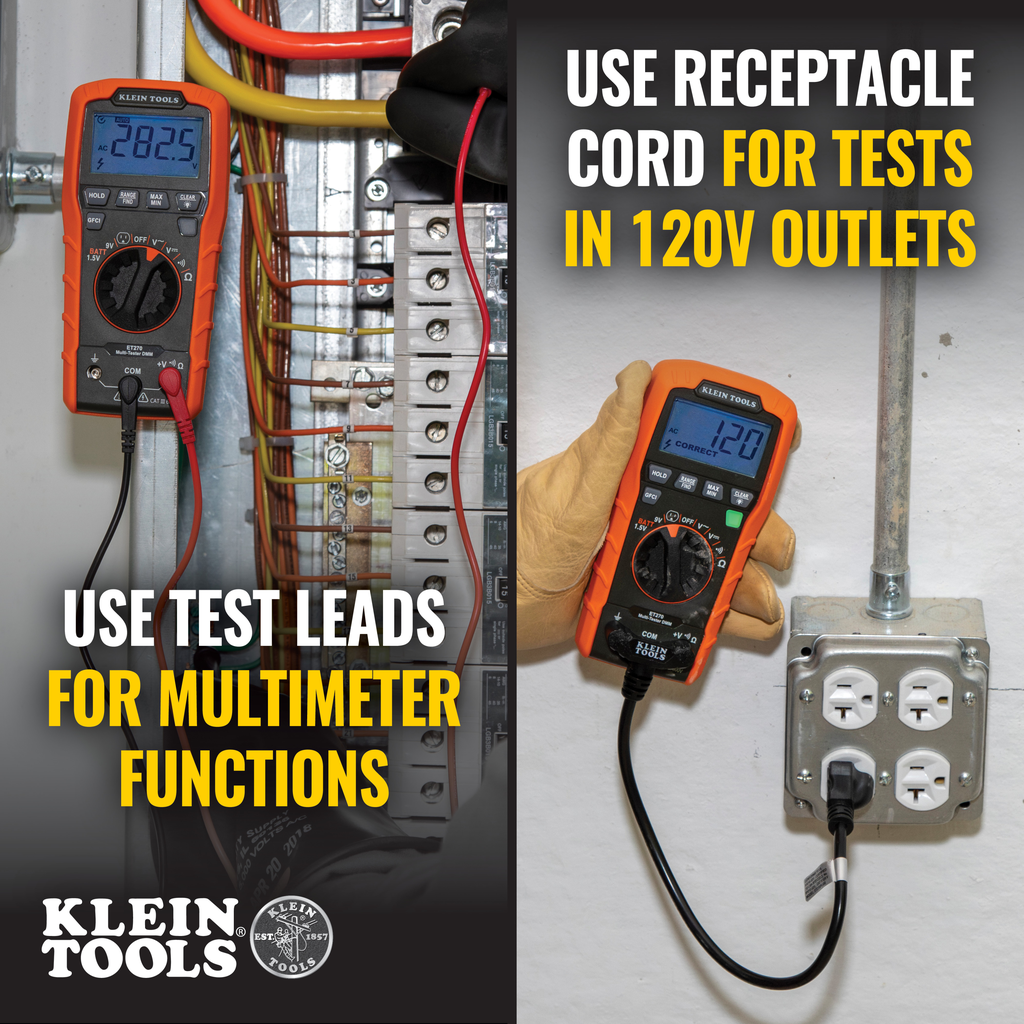

• Digital Multimeter comes with test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch

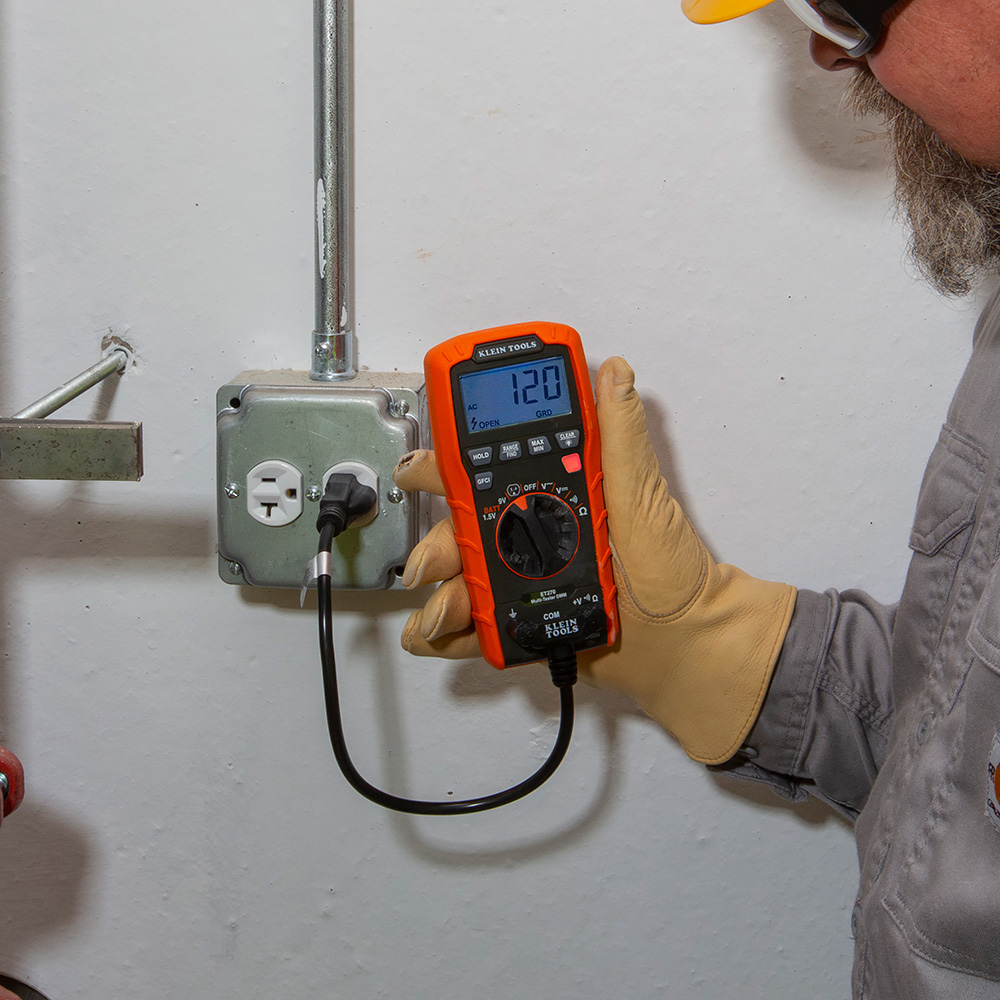

• Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
• Data Hold; Auto-Range with Option for Manual-Range; Min/Max Values; Backlight

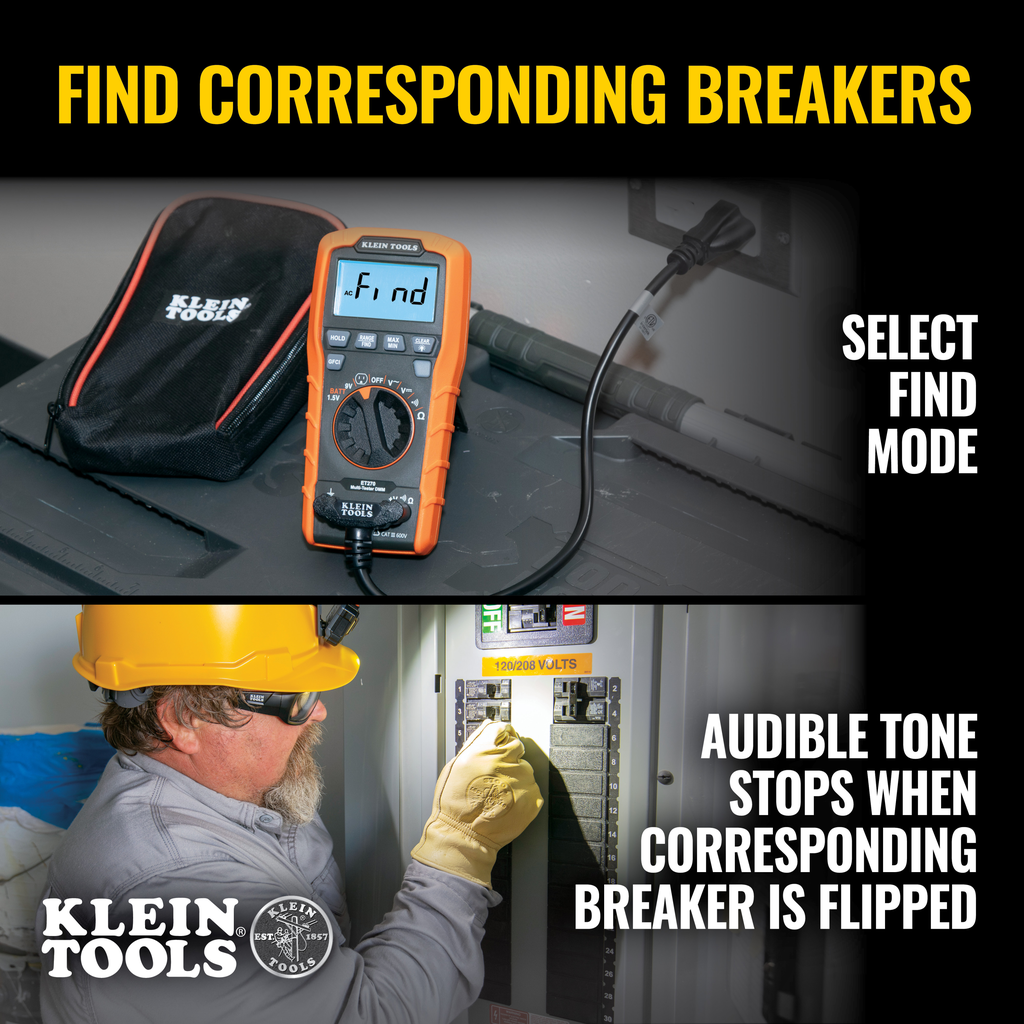

• FIND mode indicates which breaker corresponds to a given receptacle

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Specifications

• Batteries: 2 x AAA
• Overall Width (Inch): 3.13
• Color: Orange/ Black
• Weight (g): 598
• Overall Height (cm): 4.7
• Accuracy: 65°F to 83°F (18°C to 28°C) - +/- (% of Reading + Number of Least Significant Digits)
• Application: Testing and Measuring Voltage; Detects and Identifies Common Wiring Problems in GFCI Receptacles
• Height: 1.8400 in
• Depth: 6.4100 in
• Ohms (Resistance): 40MΩ
• Standard: CAT III 600V, Class 2, Double insulation
• Overall Length (Inch): 6.41
• Overall Height (Inch): 1.84
• Display: 4000 Count LCD
• Weight: 0.5650 lbs
• Overall Width (cm): 8
• Material: ABS and Electrical Components
• Width: 3.1300 in

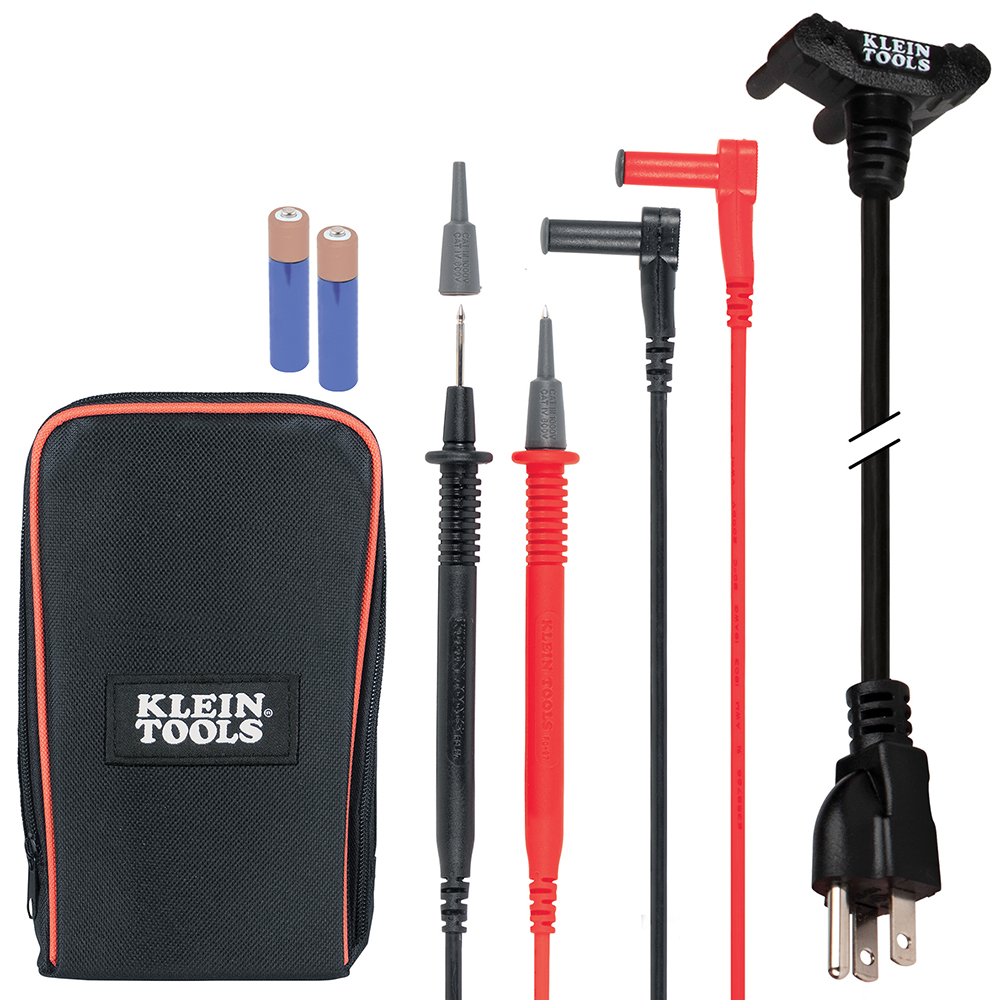

• Included: Digital Multimeter; Right-Angle Test Leads; Receptacle Test Cord; Batteries; User Manual; Storage Pouch
• Frequency: 50 to 60Hz
• Voltage: 600V AC/DC
• Overall Length (cm): 16.3
• Drop Protection: 6.6' (2 m)
• Functions: AC/DC Voltage; Resistance; Continuity; Battery Test; Finds Breaker to Corresponding Receptacle; Shows Amount of Time it Takes to Trip GFCI; Detects and Identifies Common Wiring Problems in GFCI Receptacles
• Type: Digital Multimeter and GFCI Receptacle Tester
• Weight (oz): 21.1
