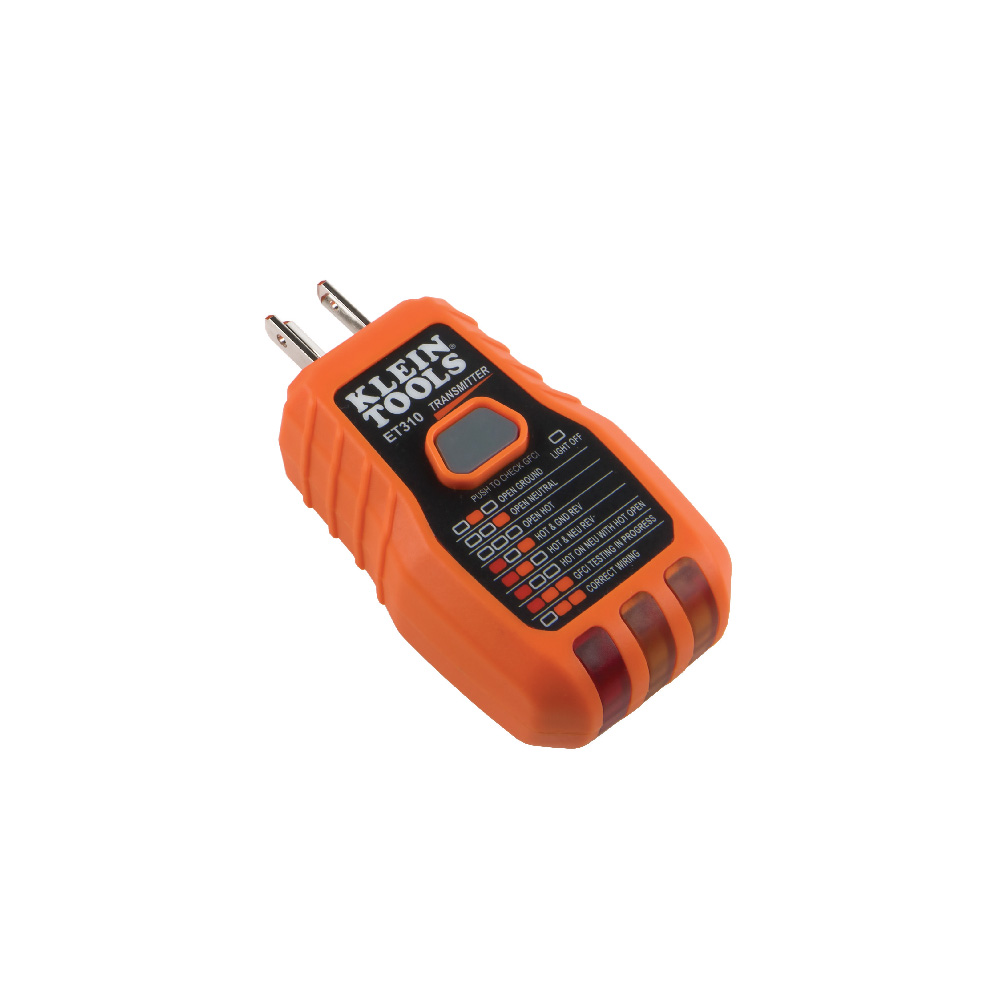

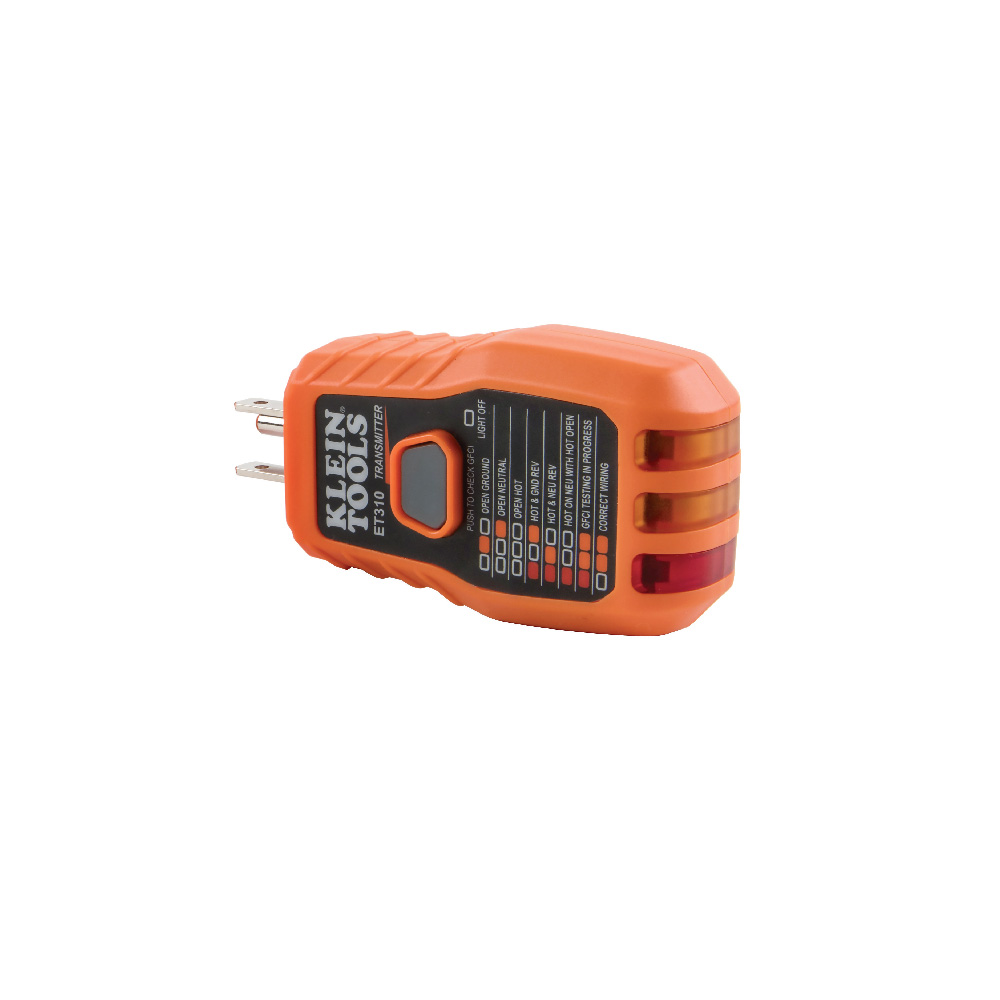

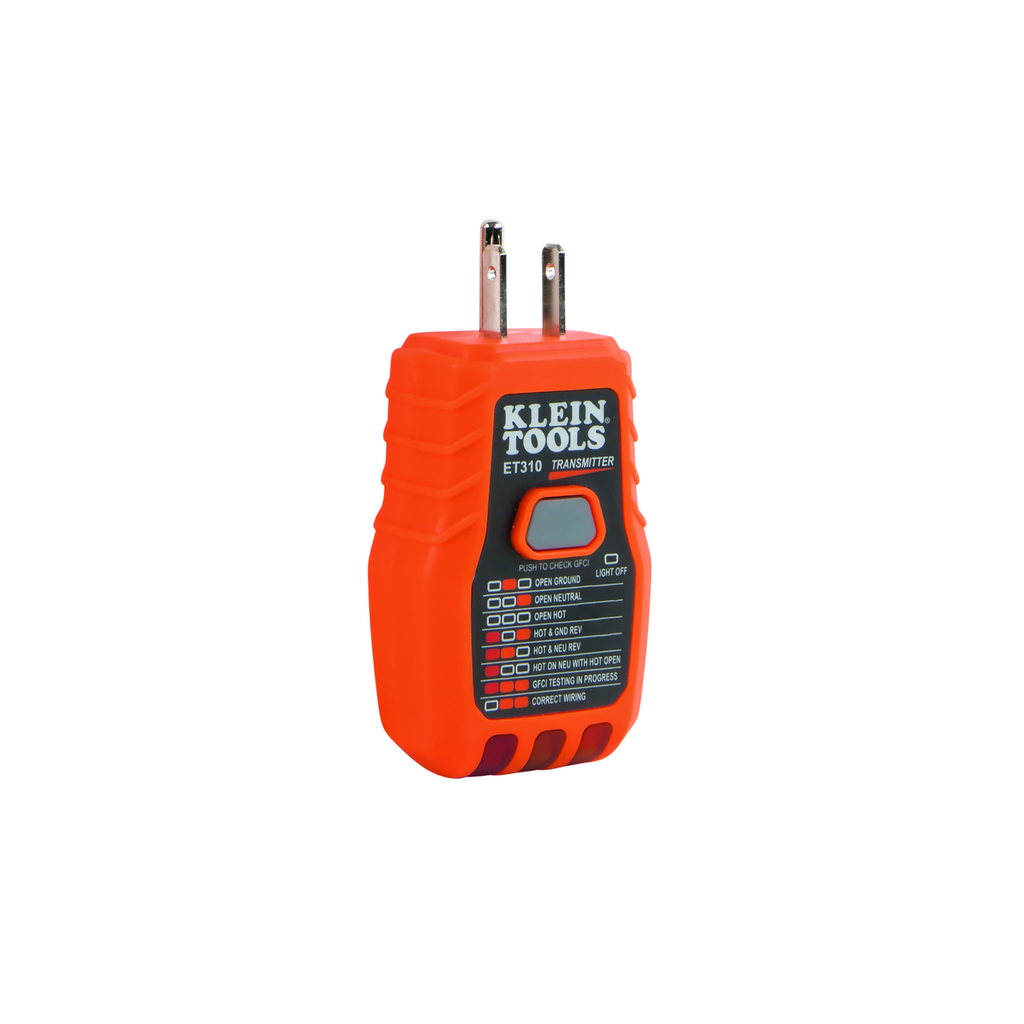

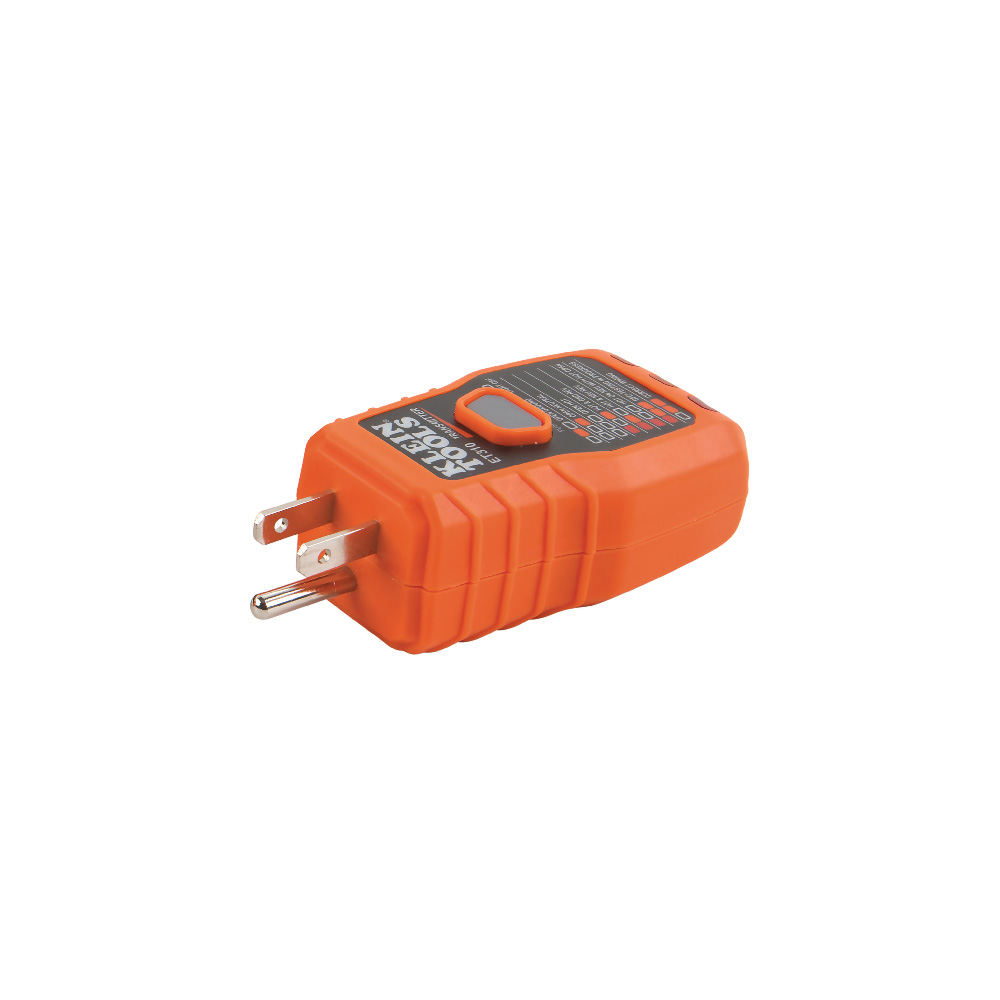

Replacement Transmitter for ET310

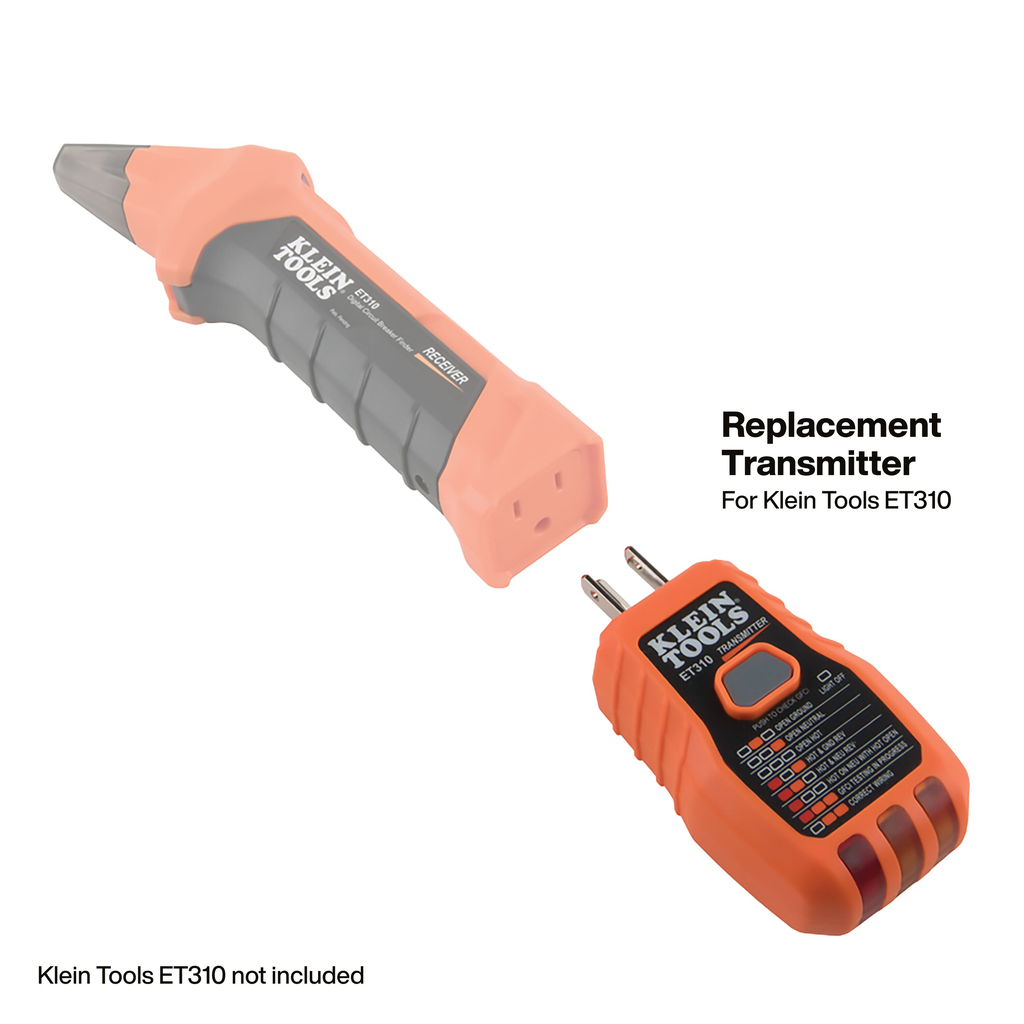

The Klein Tools ET310TRANS is a replacement Transmitter for the ET310 Circuit Breaker Finder. The ET310 consists of two parts; a Transmitter which is connected to the electrical outlet/circuit and the Receiver which is used to scan the breakers in the panel. The Transmitter features an integrated GFCI Outlet Tester to check for wiring faults.

Warnings

• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
• Tester is intended for indoor use only. The tester is designed for use with 120V AC electrical systems. DO NOT connect to higher voltage electrical supplies.
• Read, understand, and follow all warnings and instructions before operating testers.
• DO NOT use if the tester appears damaged in any way. Always consult a qualified electrician to resolve wiring problems.
• If using accessories to connect to bare wires ensure that the circuit is not energized before inspecting, applying, or removing the transmitter.

Features

• Built to withstand a 6.6-Foot (2 m) drop
• The Transmitter may be connected to other electrical fixtures using optional accessories which are sold separately (Cat. No. 69411)
• Transmitter incorporates a GFCI tester for tripping GFCI devices
• The ET310 consists of two parts: a Transmitter connected to the electrical outlet or fixture, and a Receiver used to scan the panel to locate the correct breaker
• The Transmitter also checks for common wiring faults in North American grounded electrical outlets
• Transmitter is a replacement part for the ET310 Circuit Breaker Finder with Integrated GFCI Outlet Tester
• CAT II 120V safety rating

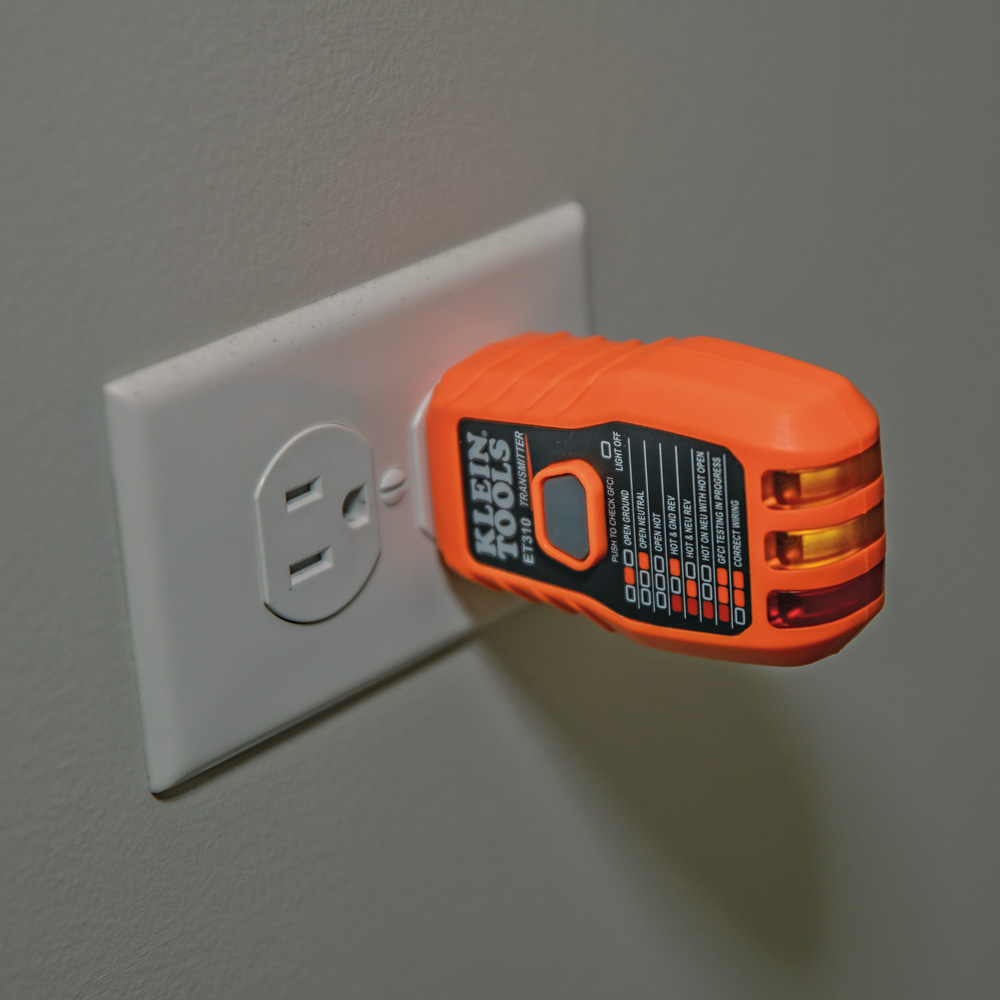

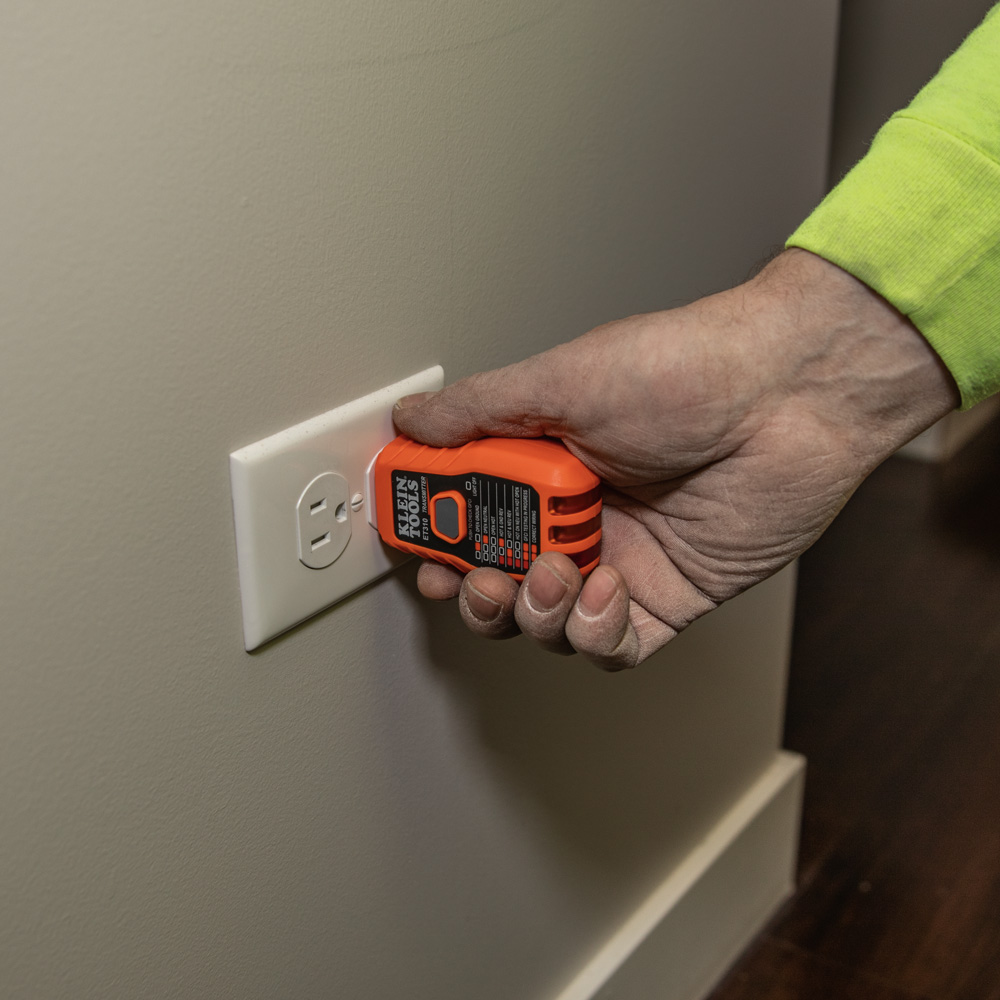

• Transmitter is powered by the circuit when connected to the electrical outlet or fixture; no batteries needed
• Integrated GFCI Outlet Tester; No Batteries Needed

Specifications

• Application: Transmitter to Locate Circuit Breakers, Detects and Identifies Common Wiring Problems in Std and GFCI Receptacles
• Included: Transmitter; Instructions
• Overall Height (Inch): 4
• Depth: 3.9900 in
• Standard: CAT II 120V Safety Rating
• Weight: 0.1460 lbs
• Weight (g): 67
• Overall Width (cm): 3.6
• Overall Height (cm): 10.2
• Material: ABS and Electrical Components
• Overall Length (Inch): 2
• Overall Width (Inch): 1.4
• Type: GFCI Receptacle Tester
• Height: 1.4100 in
• Weight (oz): 2.35
• Overall Length (cm): 5.1
• Width: 2.0100 in
