Digital AC/DC Voltage Tester 12 to 240V AC, 1.5 to 24V DC

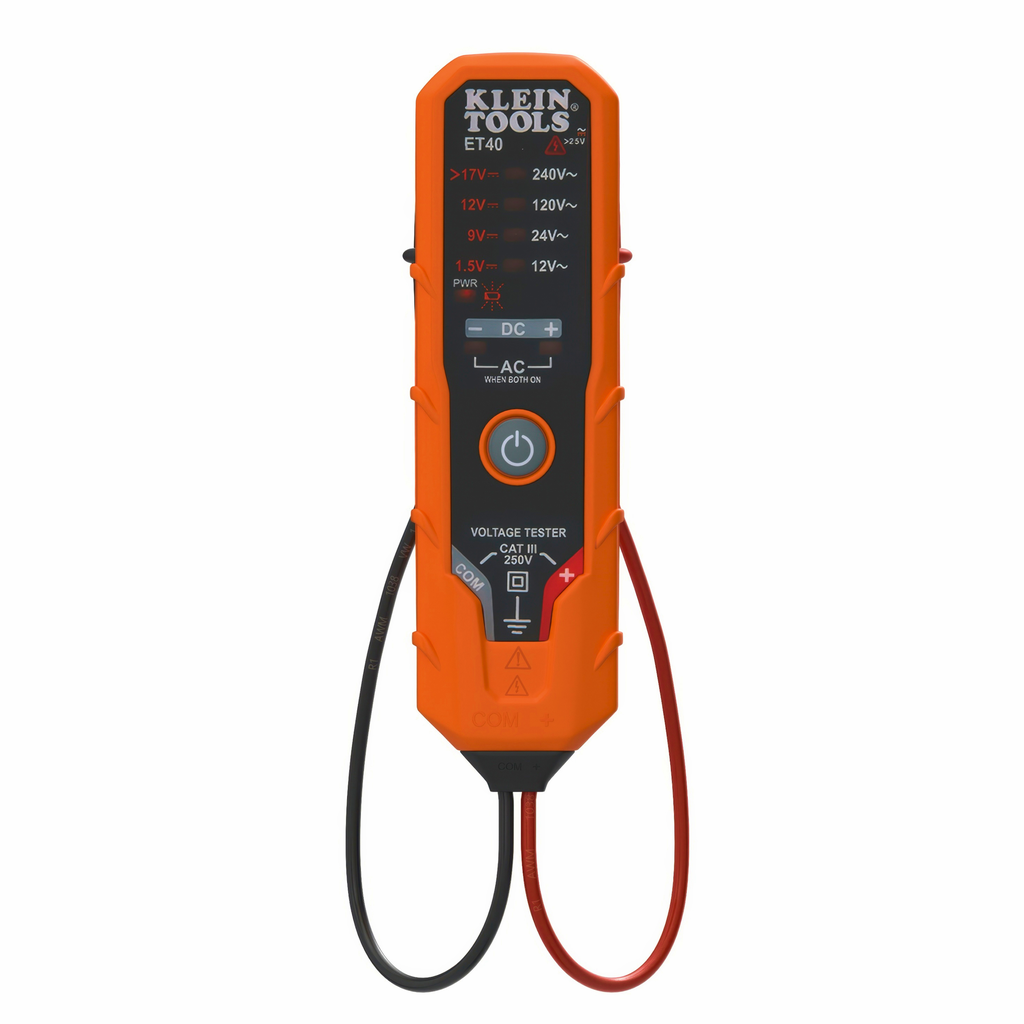

Klein Tools ET40 is an Electronic AC/DC Voltage Tester. It measures AC voltages from 12V to 240V and DC voltages as low as 1.5V up to 24V. Tester also indicates positive and negative DC polarity.

Features

• DC Polarity Indicators for DC Positive, DC Negative, and Both Illuminated for AC. Tests Low DC Voltage to 1.5V. Built in Test Lead Holders on Sides of Tester.

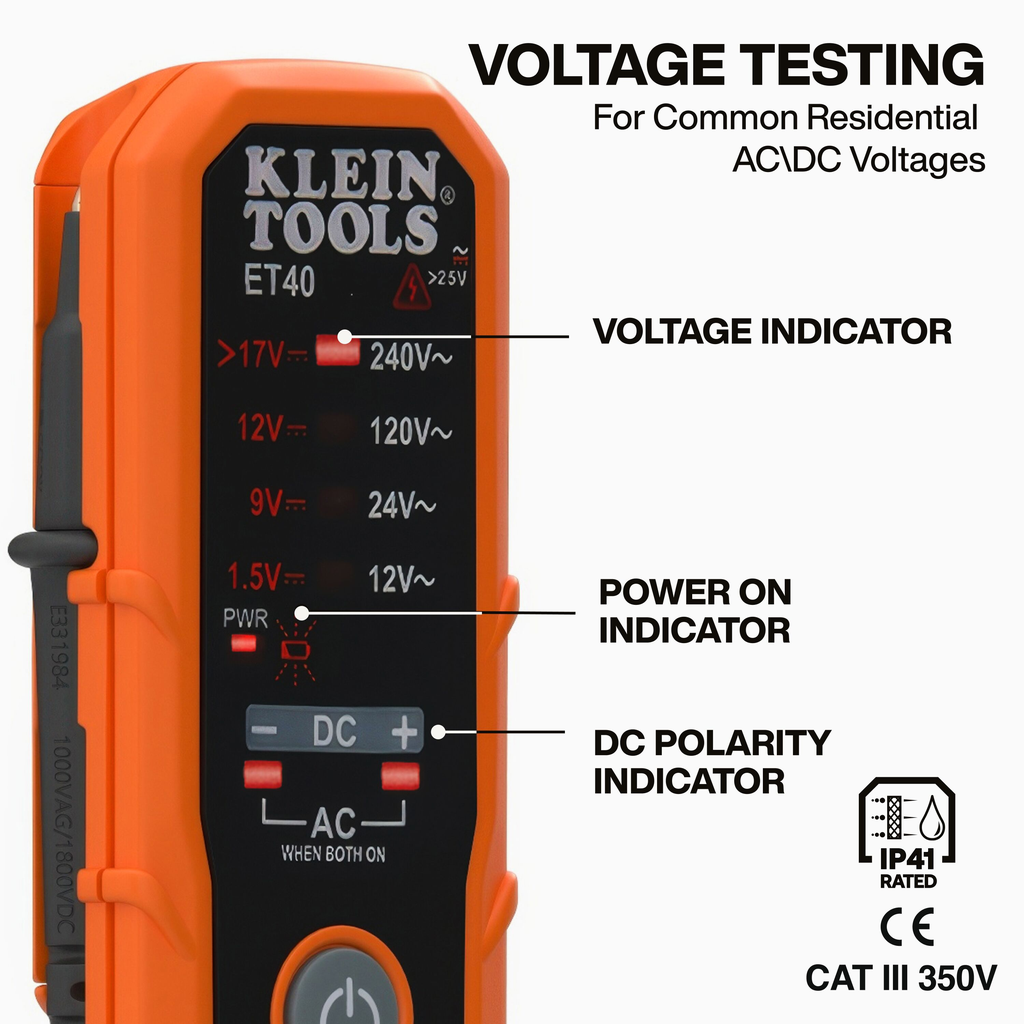

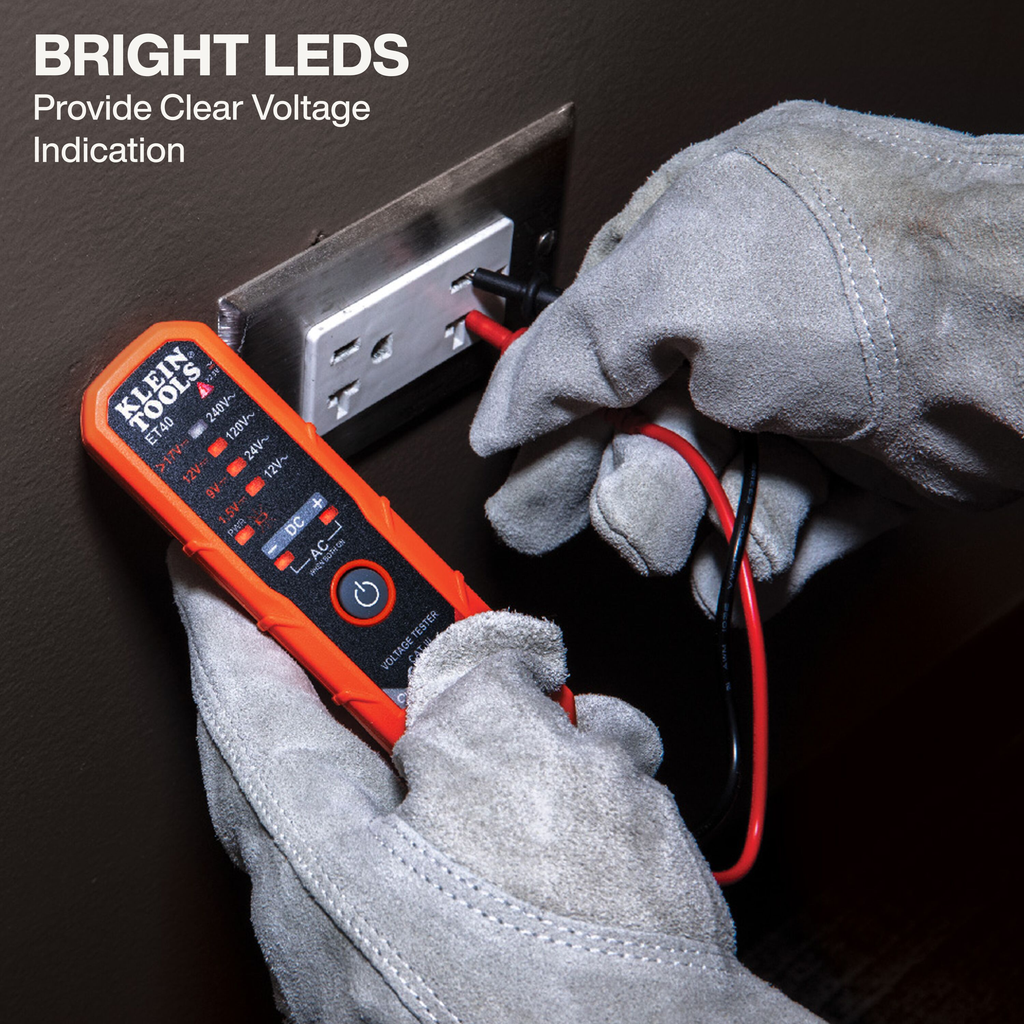

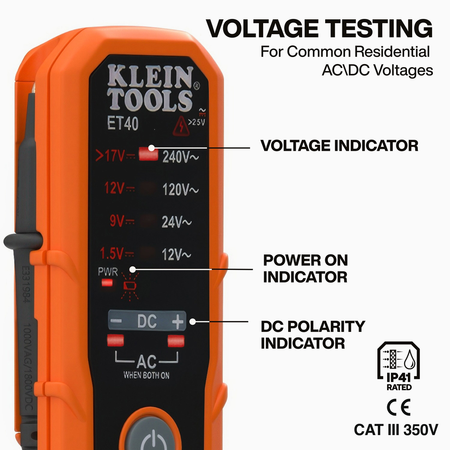

• Bright LEDs illuminate to indicate the type and level of voltage detected
• Identifies and distinguishes between AC or DC voltage
• Voltage Tester for AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
• Tests DC voltages from 1.5V to greater than 17 to 24V at four useful levels aligned with commonly used DC voltages
• Uses 2 x AAA batteries (included)
• Ingress protection IP41 dust and water resistant
• Built to withstand a 9.8-Foot (3 m) drop
• CAT III 250V, Class 2, Double insulation
• Powers off automatically after approximately 2 minutes of non-use to conserve battery life

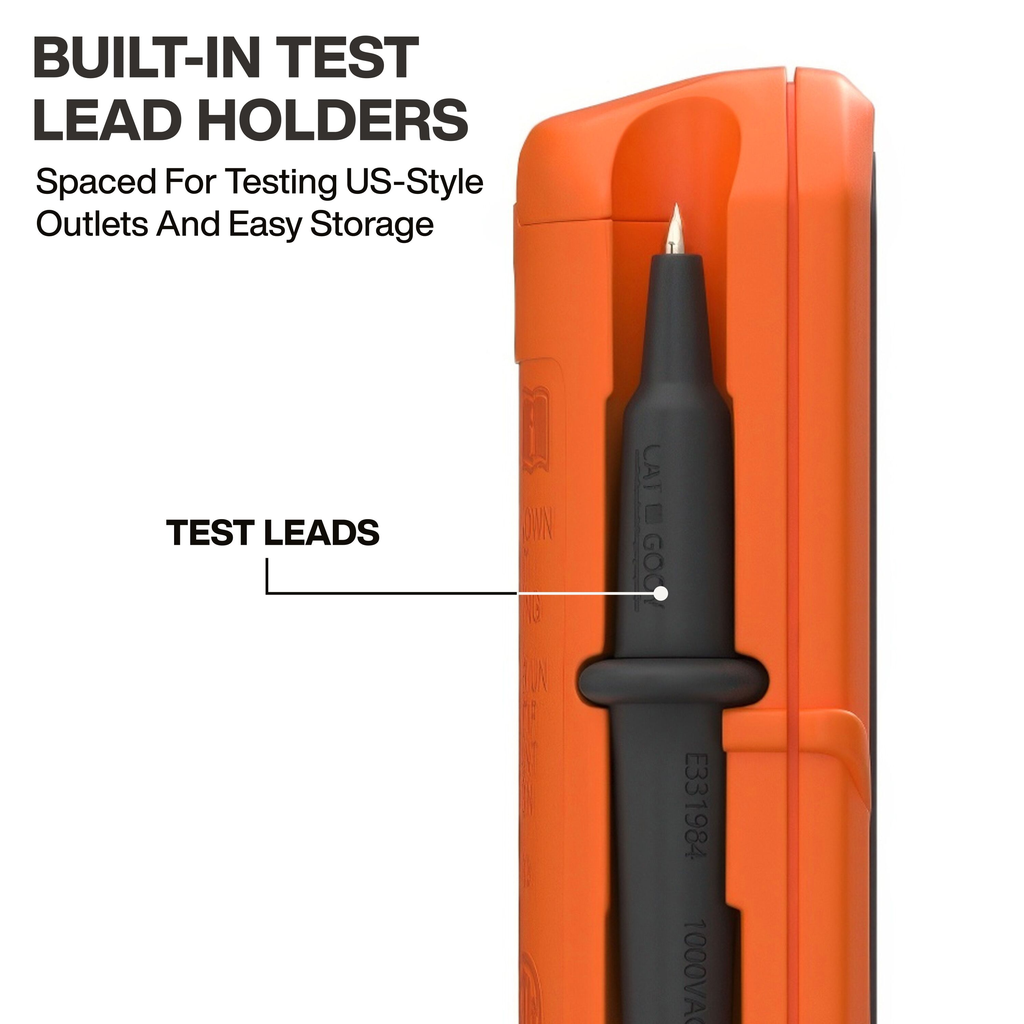

• Built-in test lead holders on sides of tester
• Low battery indicator with easily accessible battery compartment
• Indicates polarity when measuring DC voltages

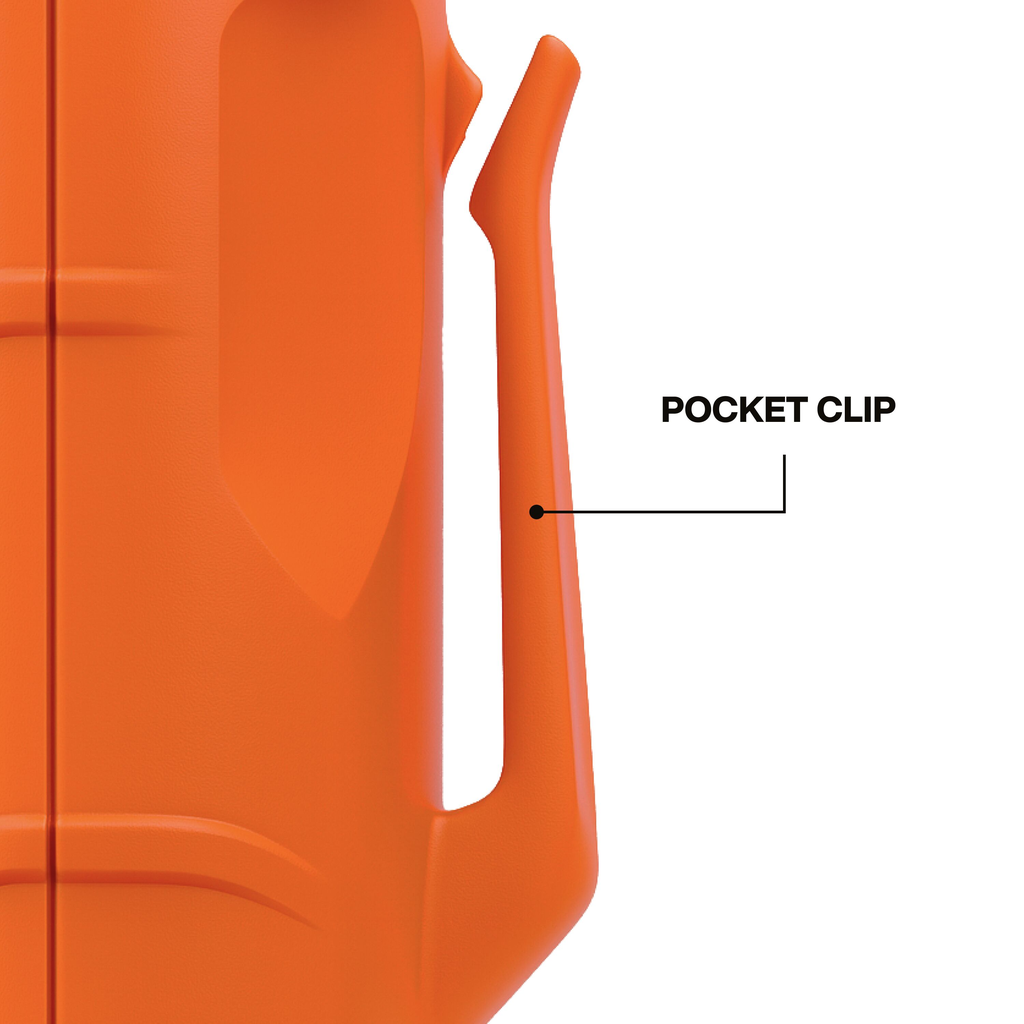

• Pocket clip secures tester to pocket for reliable everyday carrying

Warnings

• Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Before each use, verify tester operation by measuring a known voltage.

Specifications

• Weight (oz): 2.3
• Voltage: AC Level Indicators - 12V, 24V, 120V, 240V and DC Indicators -1.5V, 9V, 12V, >17-24V
• Overall Height (Inch): 1.52
• Ingress Protection: IP41
• Weight (g): 65
• Width: 1.5200 in
• Control Type: ON/Off Switch for Power ON/OFF
• Depth: 5.2400 in
• Weight: 0.2680 lbs
• Height: 1.1100 in
• Drop Protection: 9.8' (3 m)
• Display: Analog LED
• Accuracy: Approximately 70 to 100% of Indicated Voltage, Except for 2V DC (84 to 100%) and >17V DC (94 to 100% of 17V)
• Tests Continuity: No
• Standard: CATIII 250V, CE
• Pollution Degree: 2

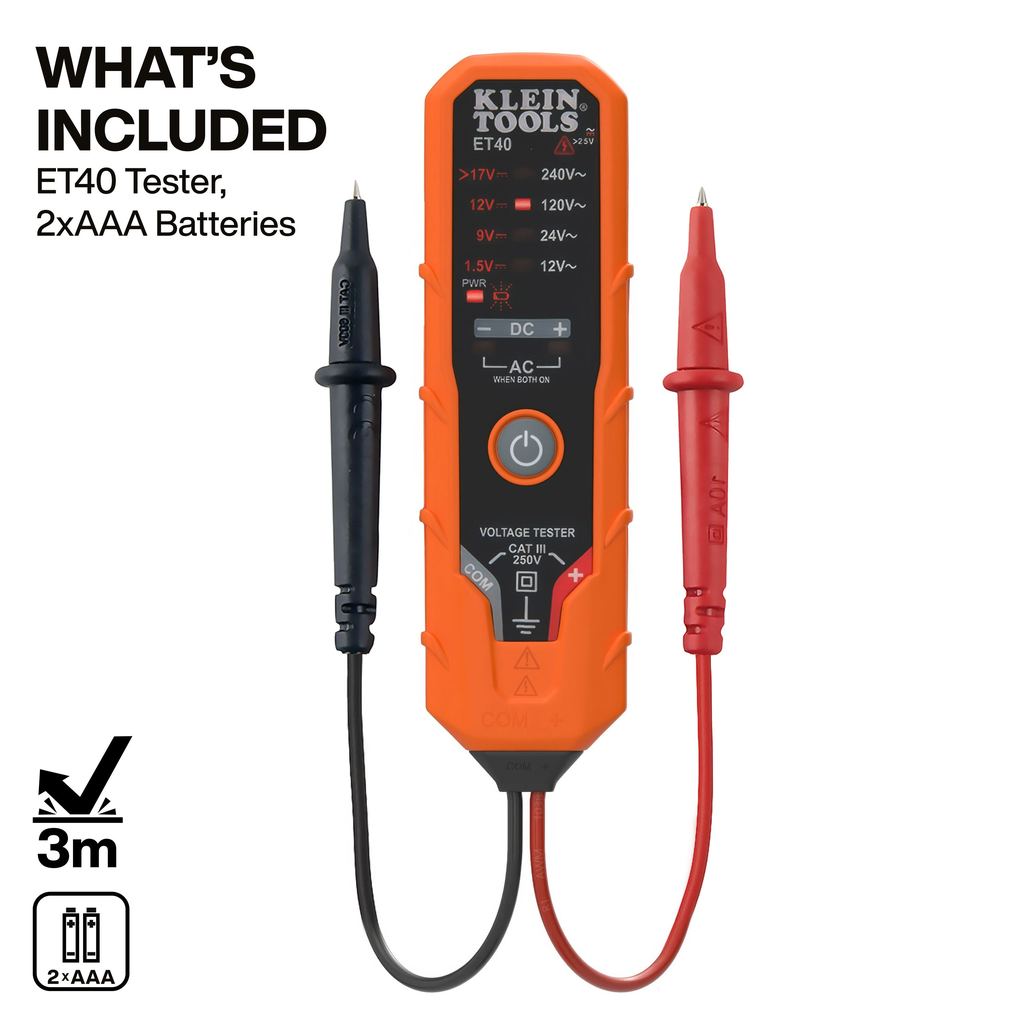

• Included: Tester, User Manual, Batteries
• Interchangeable Leads: No
• Frequency: 50/60 Hz
• Overall Height (cm): 3.9
• Application: Measures AC/DC voltage
• Batteries: 2 x AAA
• Overall Width (cm): 2.8
• Overall Length (cm): 13.3
• Overall Width (Inch): 1.11
• Integral Lead Storage: Yes
• Overall Length (Inch): 5.24
• Case Included: No
• Material: Plastic Housing, PCB with Electronic Components
