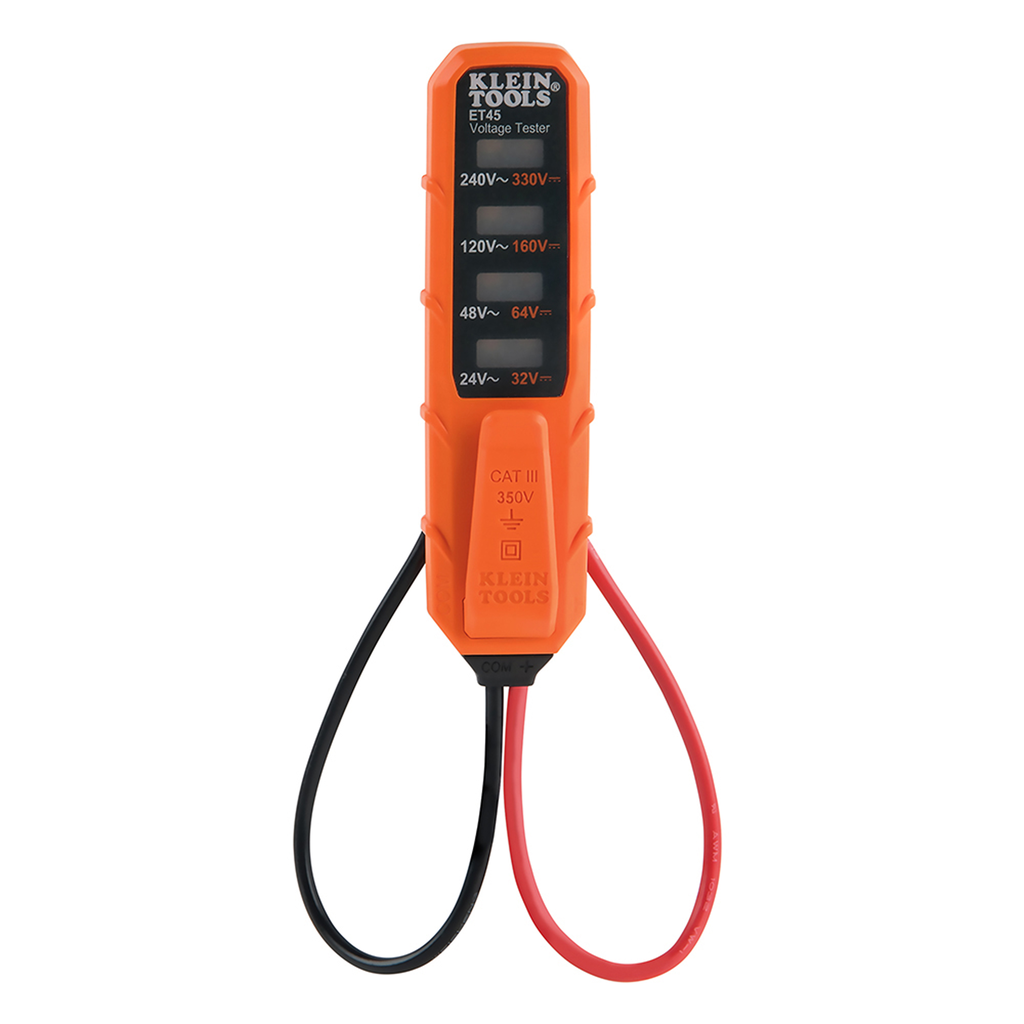

AC/DC Voltage Tester

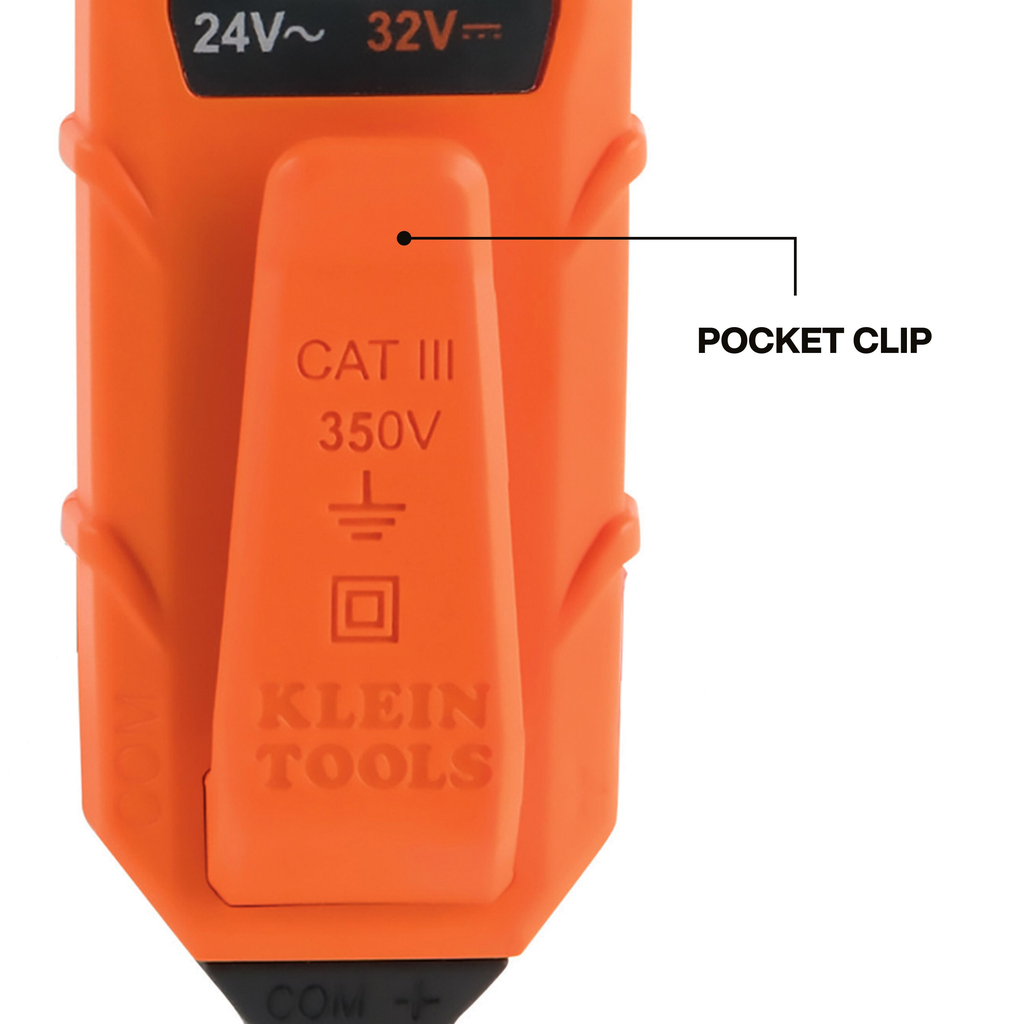

Klein Tools ET45 is an Electronic Voltage Tester. Designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying.

Warnings

• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Before each use, verify tester operation by measuring a known voltage.
• Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.

Features

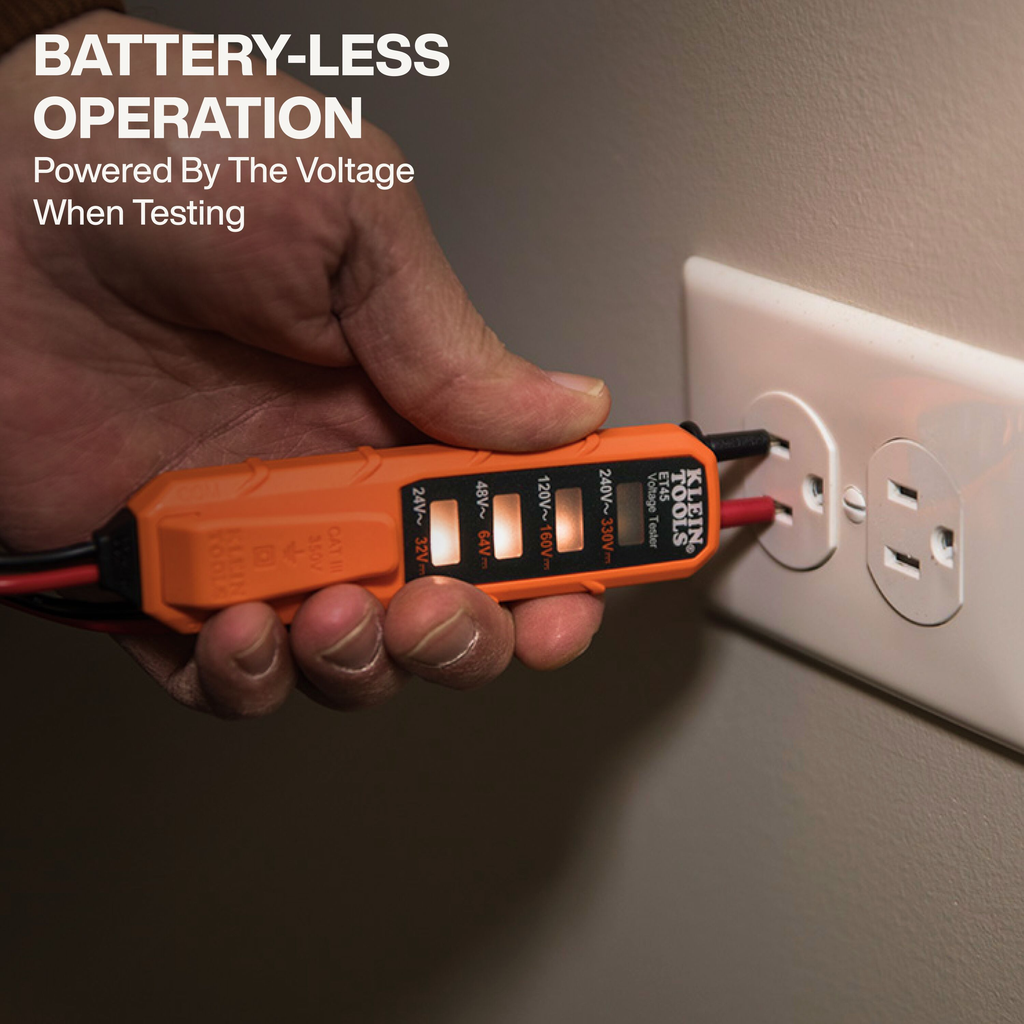

• Batteries not required; tester is powered by the applied voltage
• Ingress protection IP44 dust and water resistant
• Safety Rating: CATIII, Double insulation
• Built-in Test Lead Holders on Back of Tester Spaced Correctly to Hold Leads for Testing Tamper-Resistant US-style Outlets
• Tests AC voltages from 24V to 240V AC at four useful levels
• Test leads can be docked in the holder for convenient storage
• Built to withstand a 9.8-Foot (3m) drop

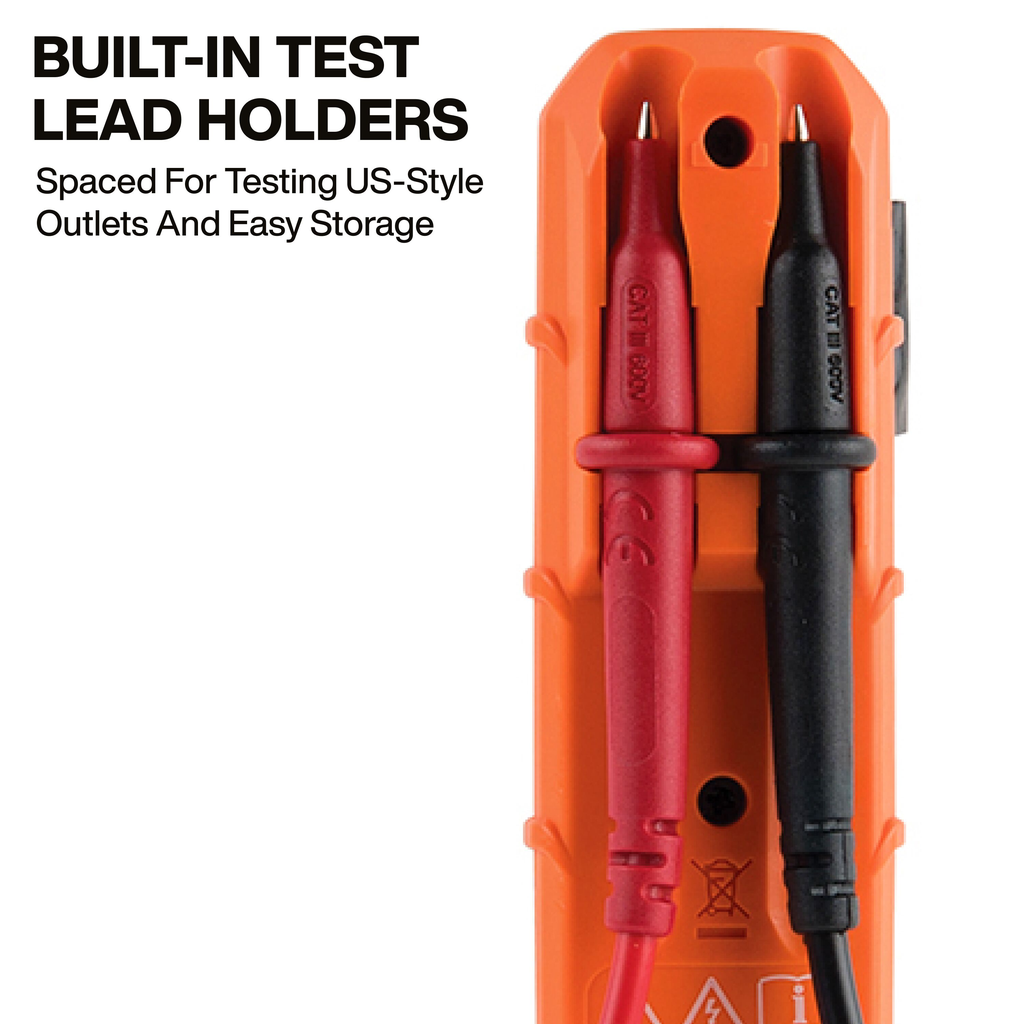

• Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
• Tests DC voltages from 32V to 330V at four levels

Specifications

• Weight (g): 51
• Material: Plastic Housing, PCB with Electronic Components
• Width: 1.1900 in
• Overall Height (cm): 3

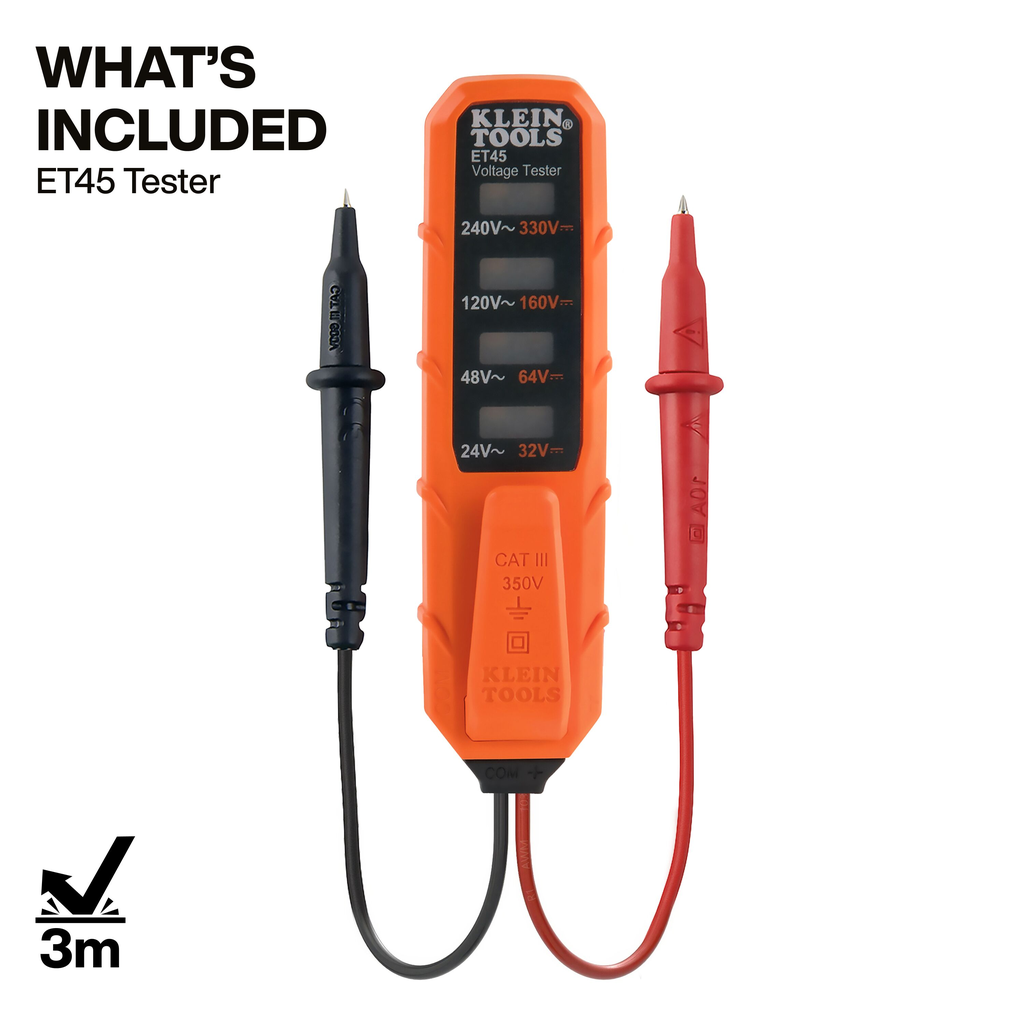

• Included: Tester
• Integral Lead Storage: Yes
• Overall Length (cm): 11.3

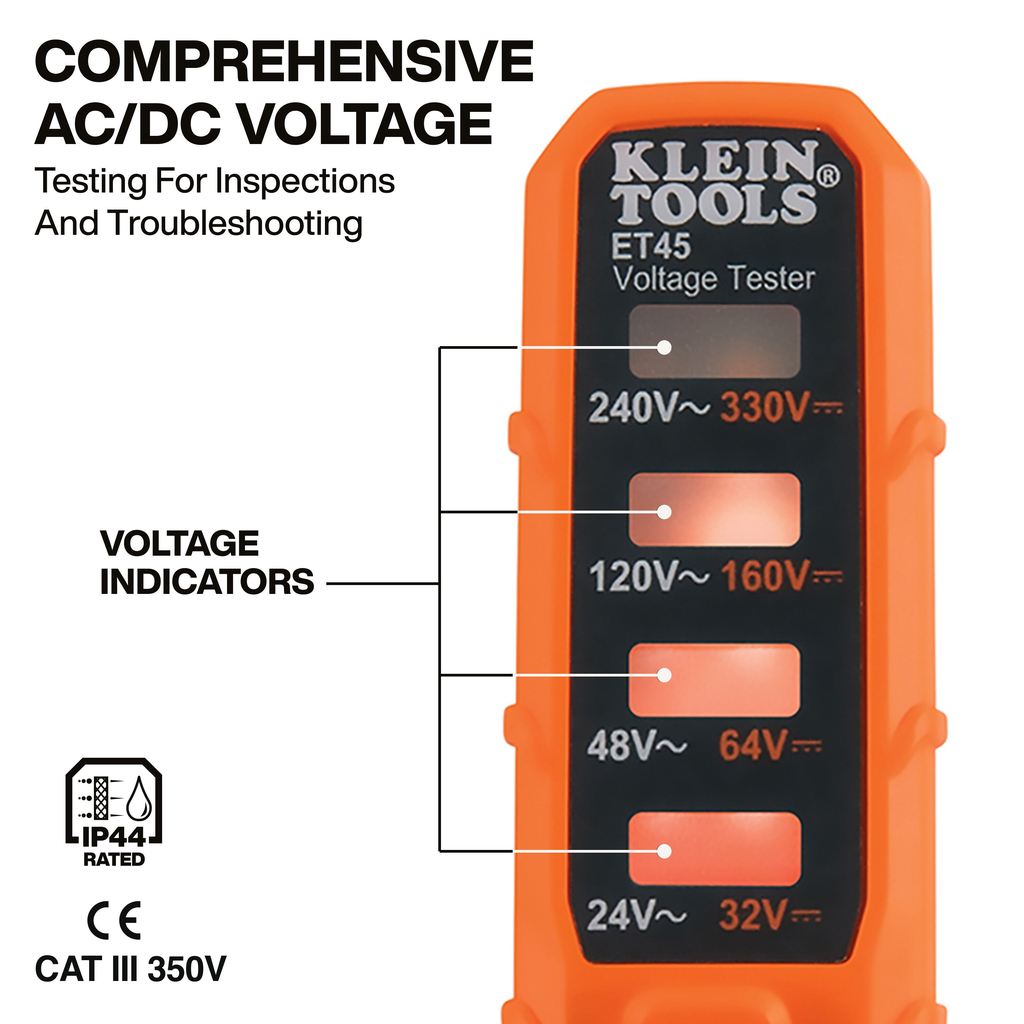

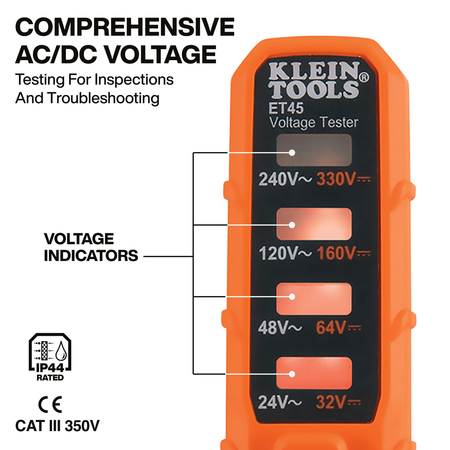

• Voltage: AC Level Indicators - 24V, 48V, 120V, 240V; DC Level Indicators - 32V, 64V, 160V, 330V
• Application: Measures AC/DC Voltage
• Drop Protection: 9.8' (3 m)
• Weight (oz): 1.8
• Weight: 0.1100 lbs
• Pollution Degree: 2
• Accuracy: Typically at >90% of the Indicated Range (Except for 24V AC / 32V DC, >95% of Range)
• Interchangeable Leads: No
• Overall Length (Inch): 4.45
• Frequency: 50/60 Hz
• Tests Continuity: No
• Ingress Protection: IP44
• Display: Analog LED
• Height: 1.0500 in
• Overall Width (cm): 2.7
• Depth: 4.4500 in
• Standard: CATIII 350V, CE
• Overall Width (Inch): 1.05
• Overall Height (Inch): 1.19
• Type: Electronic Products
