Advanced Electrical Circuit Breaker Finder and Wire Tracer Kit and Case

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver's sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.

Features

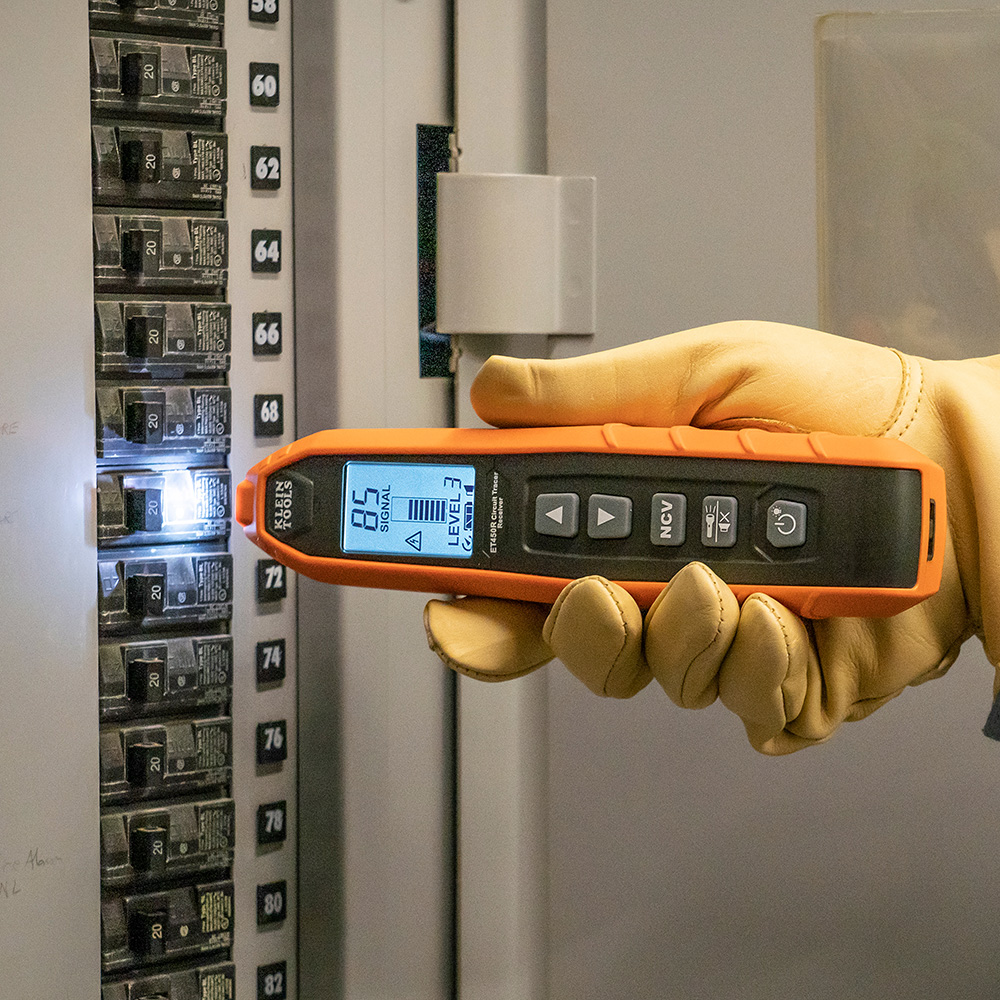

• Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized

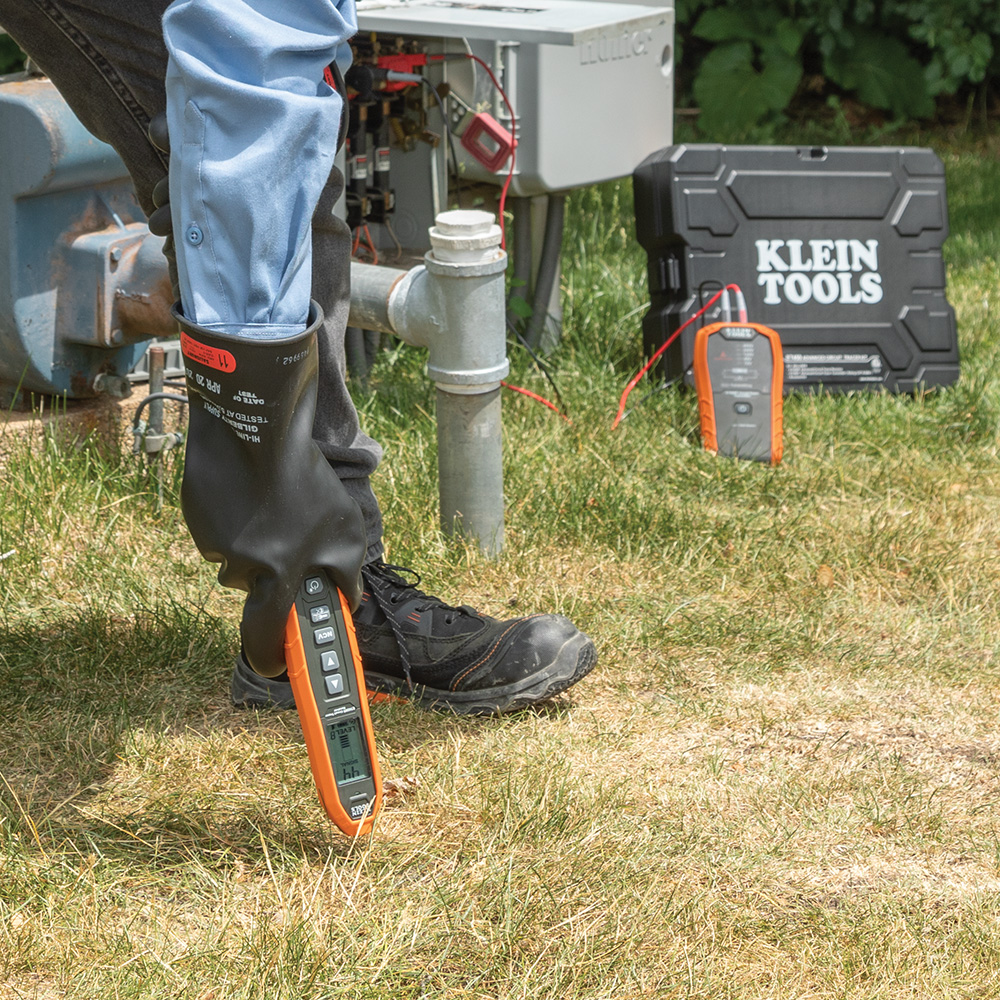

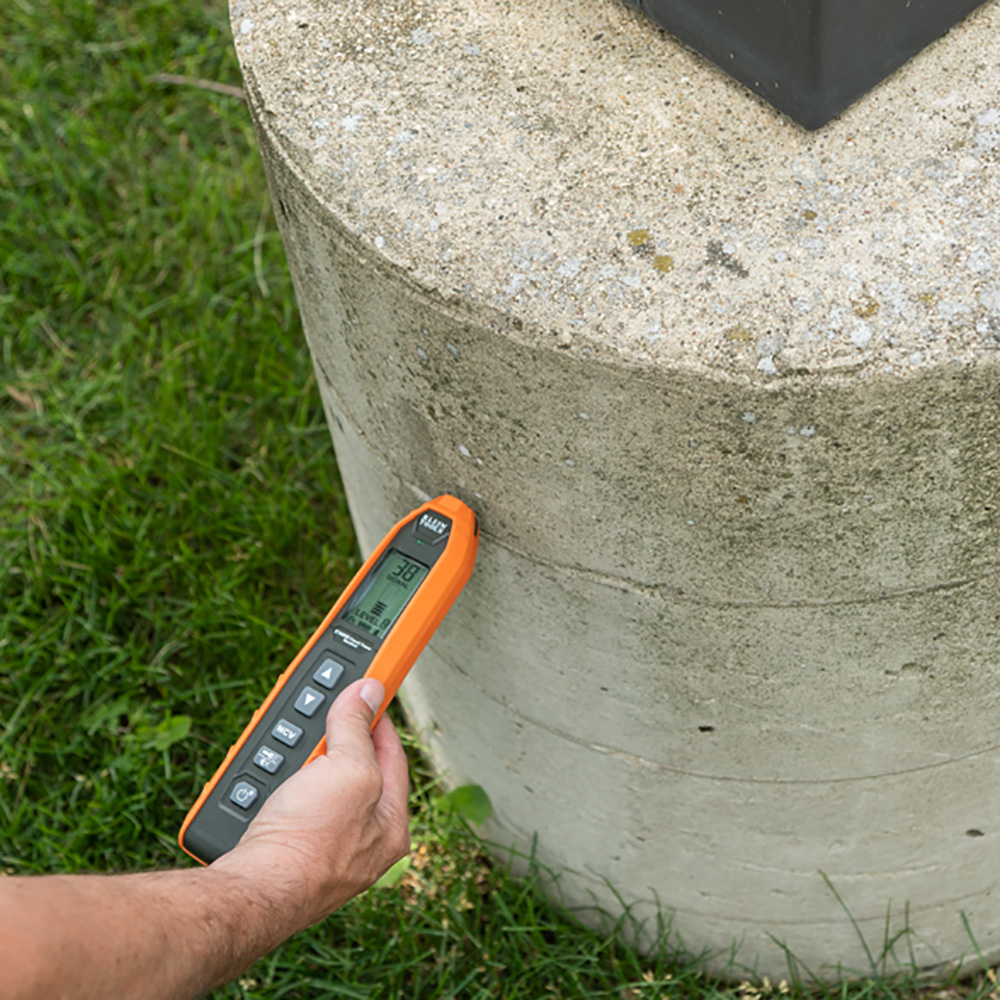

• Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
• Flashlight and NCV Function on Receiver; Accessories, and Hard Case

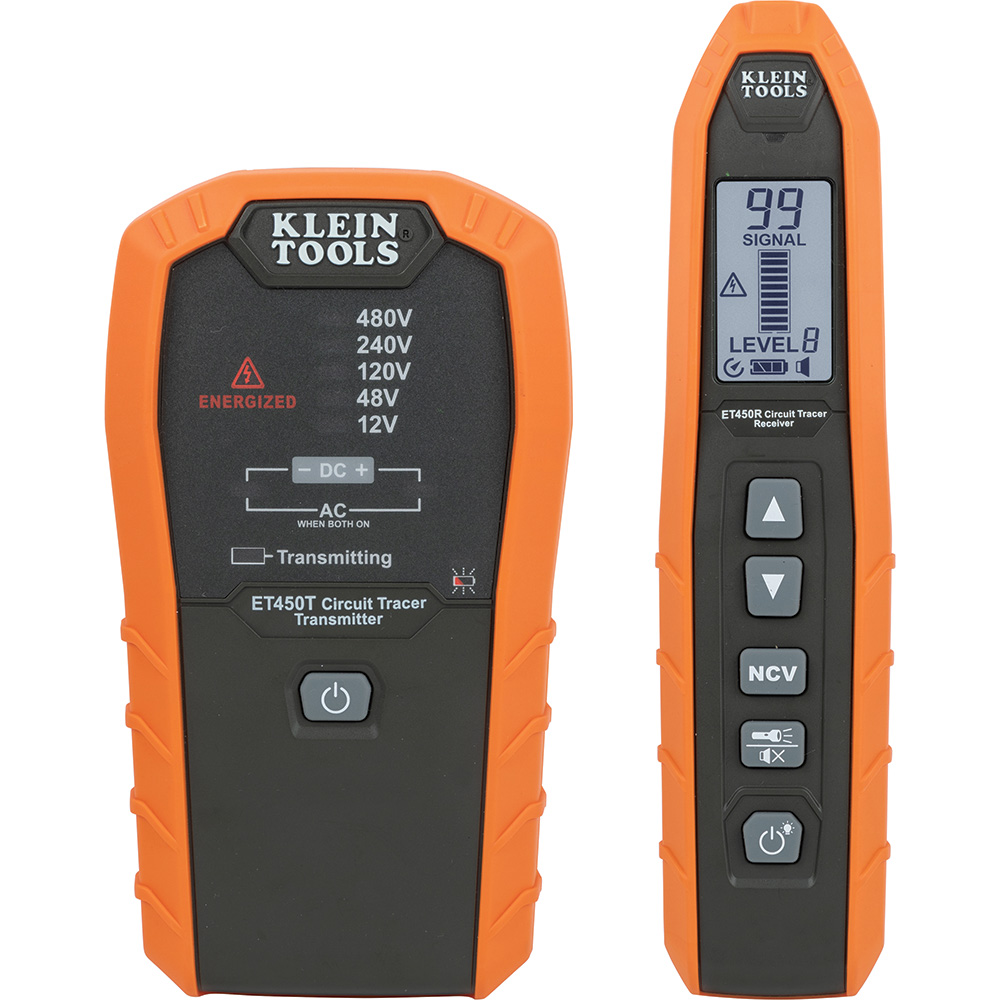

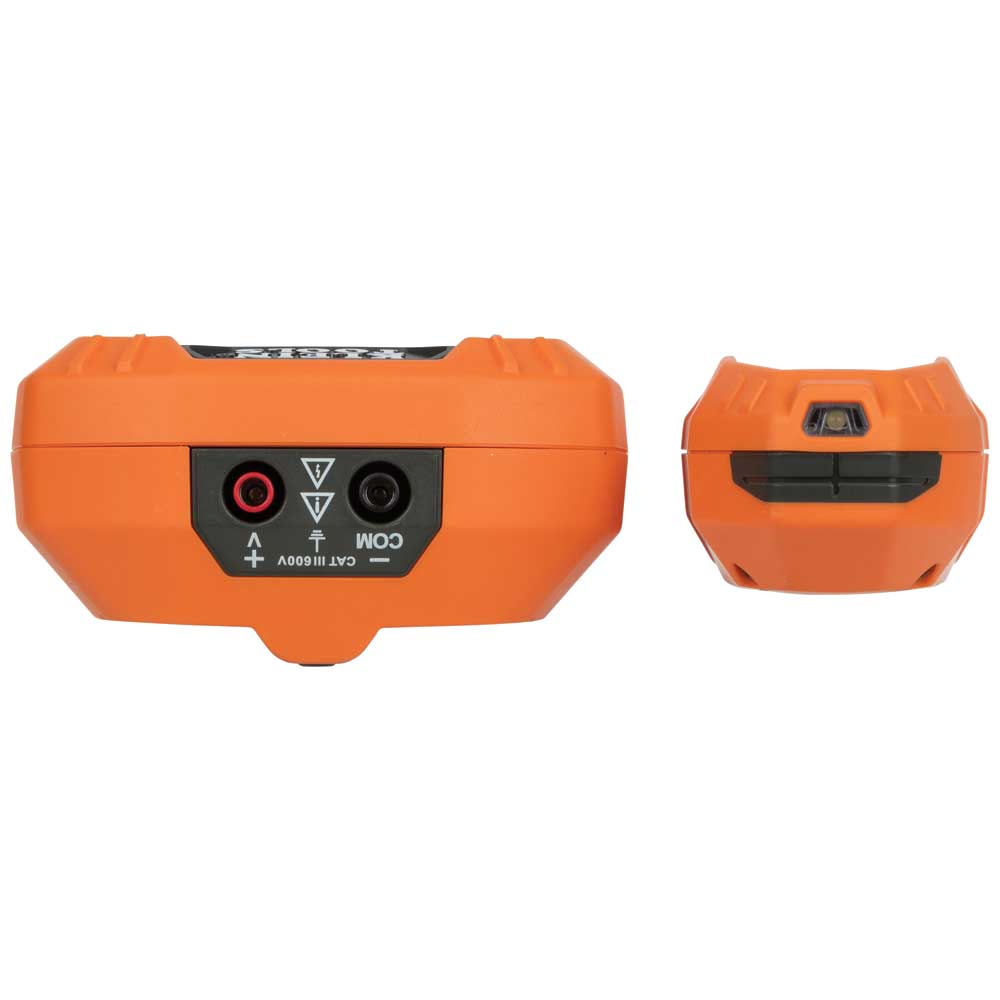

• Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V
• Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
• Audible beep and visual indicators on receiver denotes signal strength
• The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

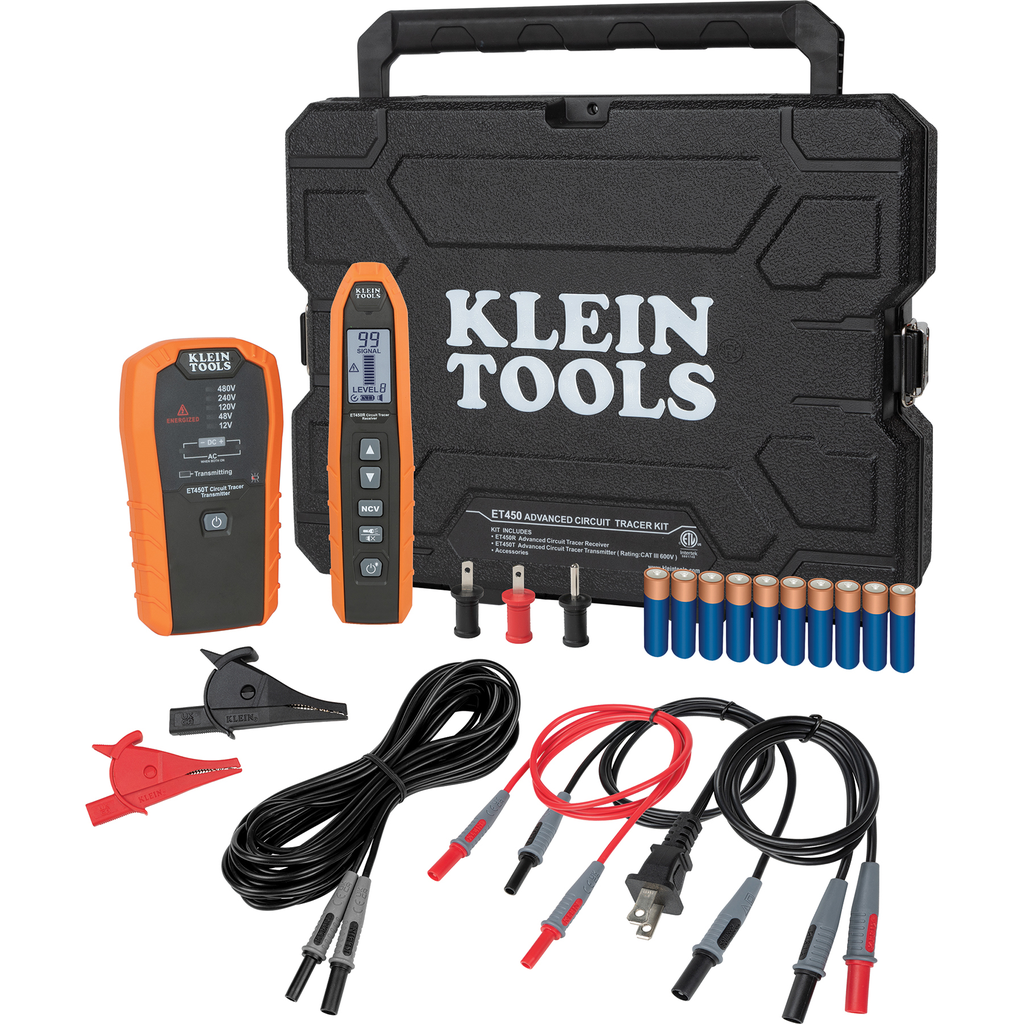

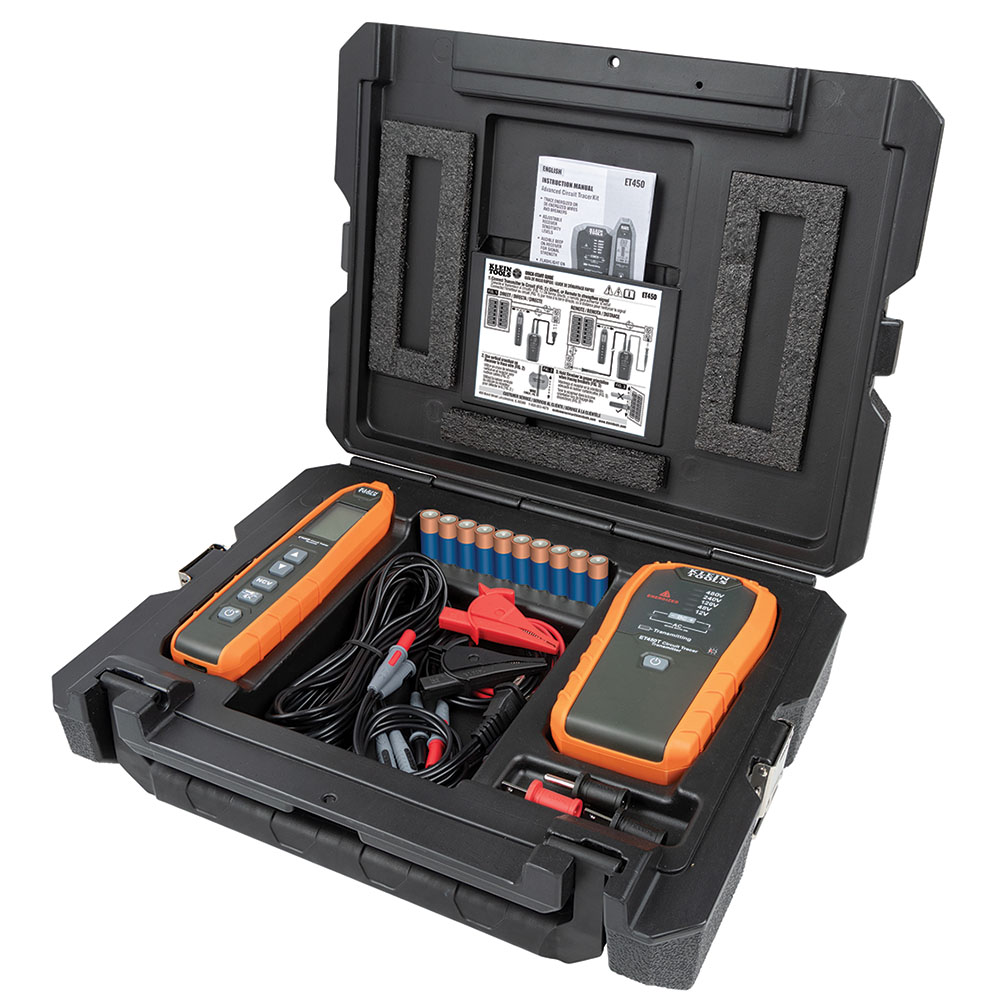

• Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case

Warnings

• Inspect the meter and test leads before use. DO NOT use if they appear damaged.
• Always consult a qualified electrician to resolve wiring problems. ALWAYS adhere to local and national safety codes.
• NEVER use the tester on a circuit with voltages that exceed the category-based rating of this tester.
• Turn off testers and disconnect test leads before attempting to replace batteries or fuses.
• Read, understand, and follow all warnings and instructions before operating testers.
• DO NOT use testers during electrical storms or in wet weather.
• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
• DO NOT use if the tester appears damaged in any way.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live connectors are exposed.

Specifications

• Tests Continuity: No
• Application: Trace Energized and Non-Energized Breakers, Fuses, and Wires
• Control Type: Transmitter and Receiver
• Case Included: Yes
• Overall Width (cm): 32.4
• Lead Length (m): 6.1
• Standard: CAT III 600V
• Display: Receiver - LCD with Backlight
• Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
• Overall Length (Inch): 16.12
• Weight: 6.2800 lbs
• Type: Circuit Tracer
• Overall Width (Inch): 12.75
• Drop Protection: 6' (2 m)
• Overall Height (cm): 10.2
• Frequency: Transmitter - AC 45Hz to 65Hz; Receiver - 33kHz
• Pollution Degree: 2
• Integral Lead Storage: No
• Overall Length (cm): 40.9
• Weight (oz): 100.5
• Lead Length (Feet): 20
• Depth: 16.1200 in
• Overall Height (Inch): 4
• Material: ABS and Electronic Components
• Height: 4.0000 in
• Batteries: Transmitter - 6 × 1.5V AA Alkaline; Receiver - 4 × 1.5V AA Alkaline
• Battery Life: Up to 24 hr
• Weight (g): 2849
• Ingress Protection: IP42
• Width: 12.7500 in
• Included: Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
• Interchangeable Leads: Yes
