AC/DC Voltage and GFCI Receptacle Outlet Test Kit

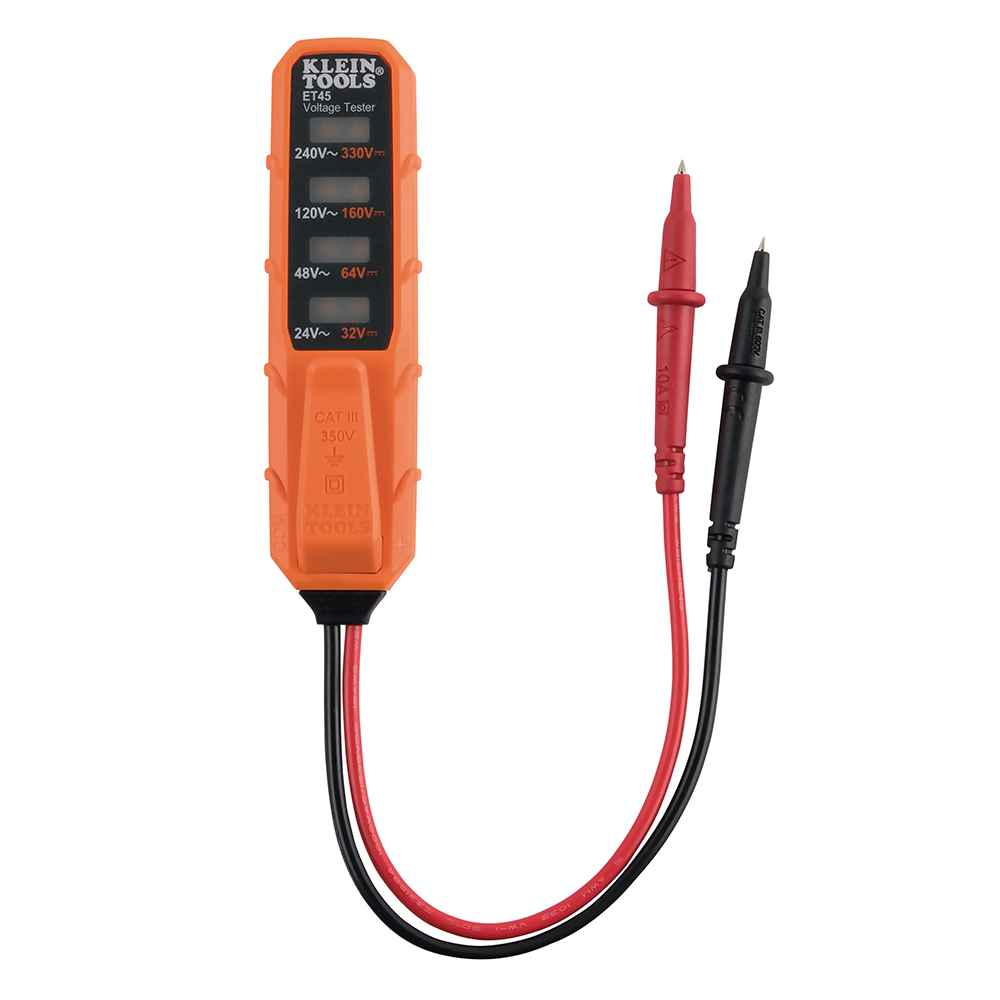

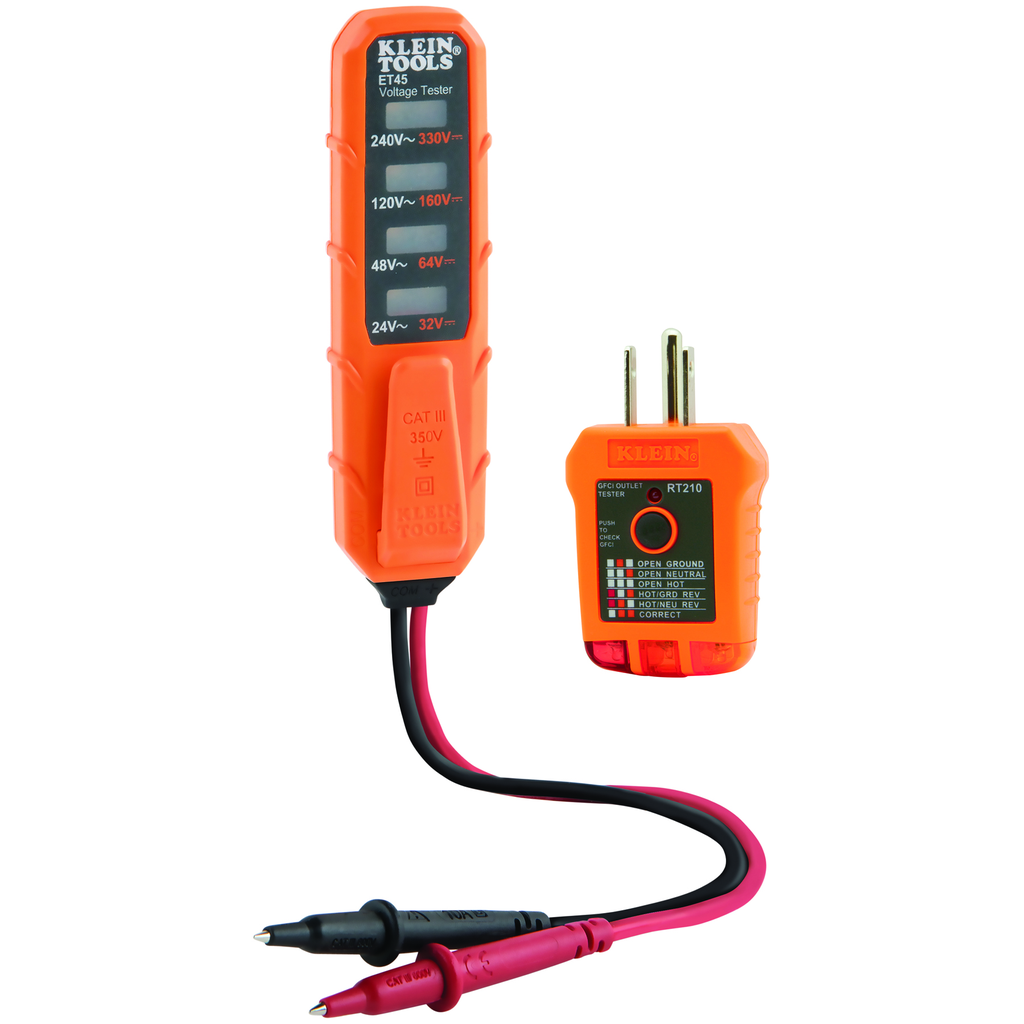

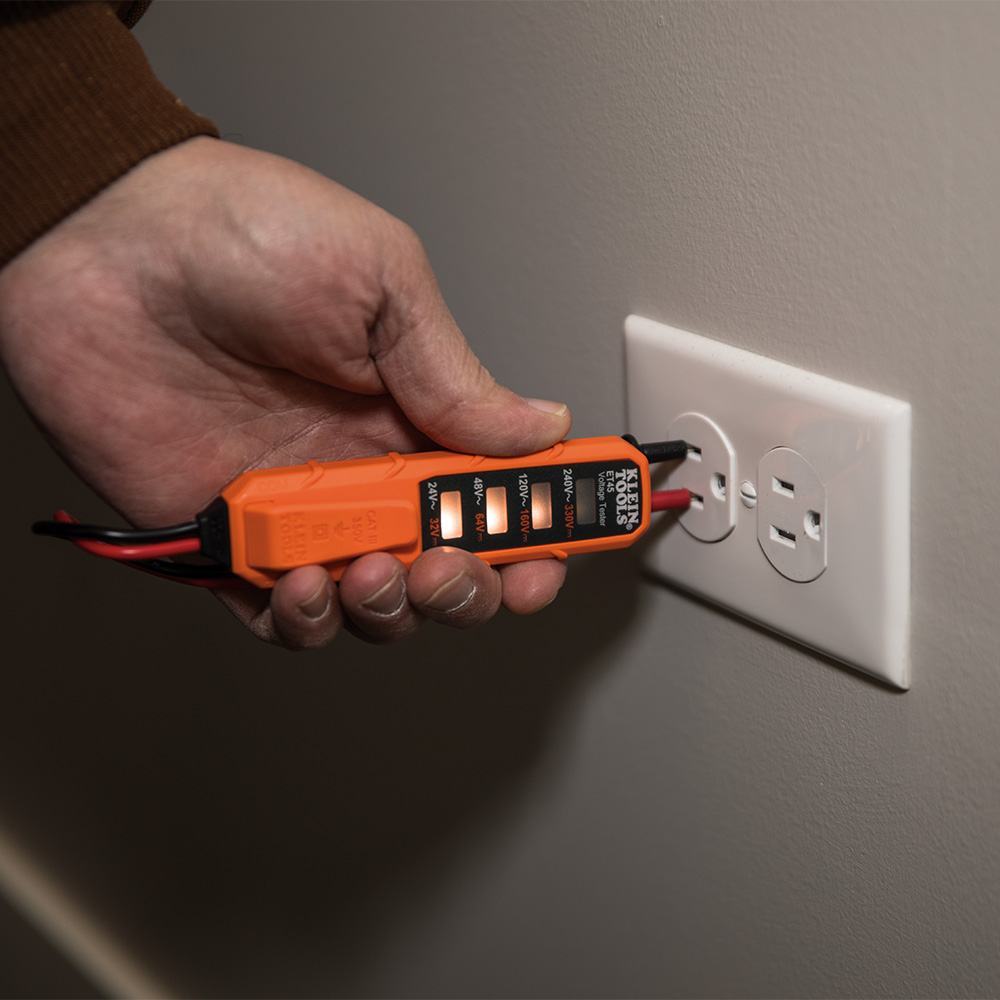

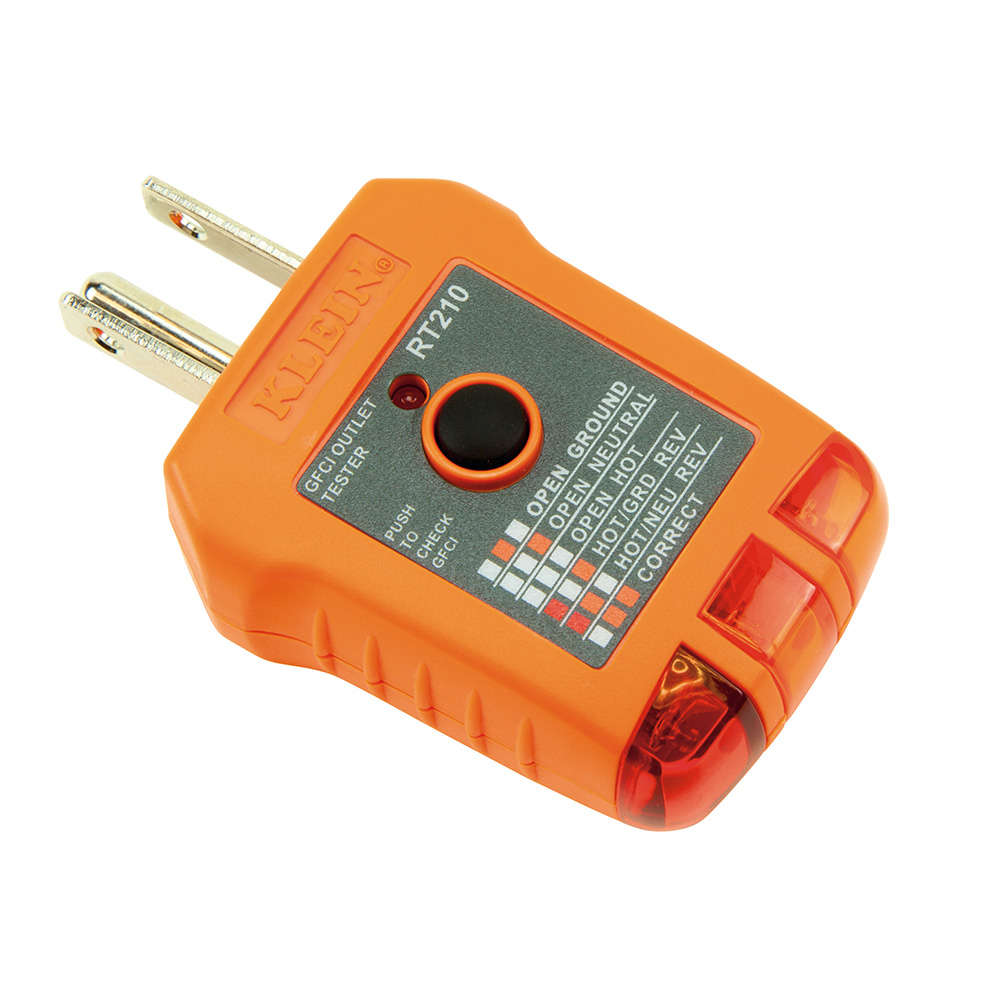

Klein Tools' Cat. No. ET45VP Kit includes an Electronic Voltage Tester, Cat. No. ET45 and a Receptacle Tester, Cat. No. RT210. The ET45 is designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying. The RT210 is designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot / ground reversed.

Features

• Batteries not required; voltage tester is powered by the applied voltage
• Voltage tester is rated CATIII 350V, Class 2, Double insulation and has IP44 ingress protection

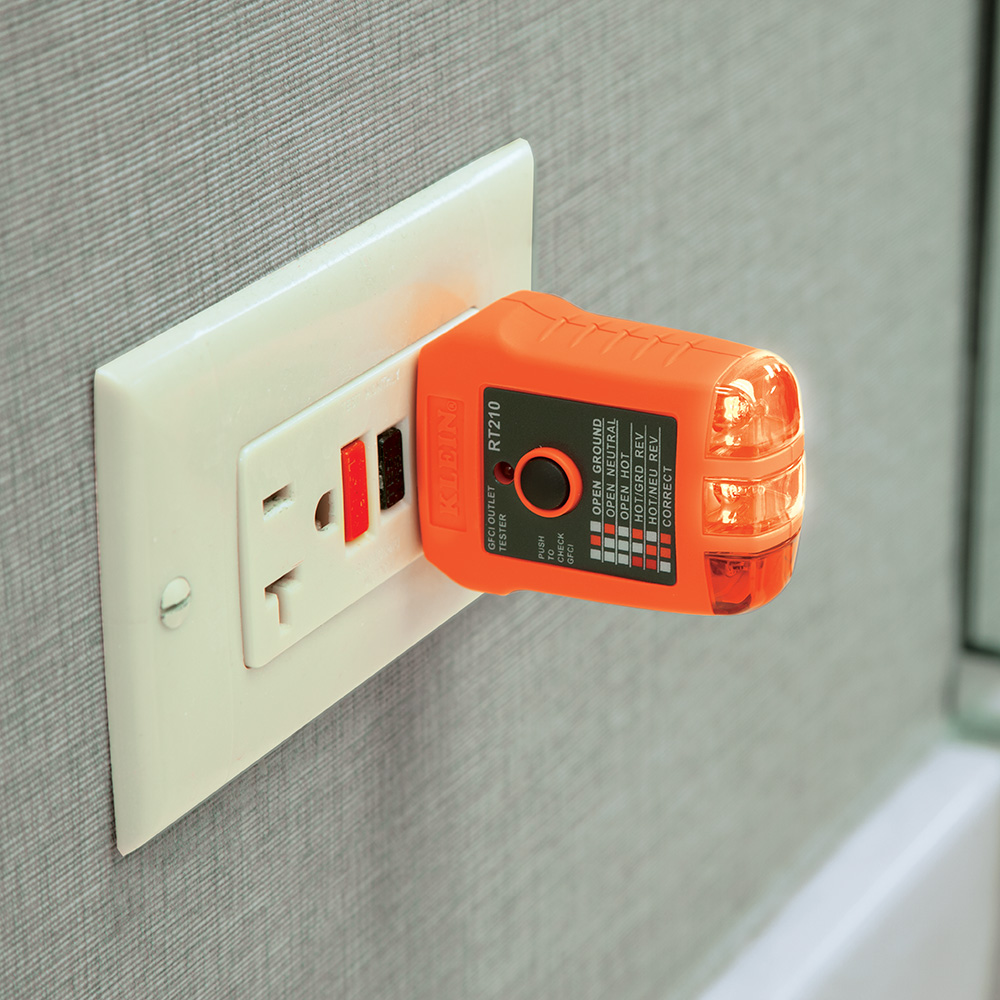

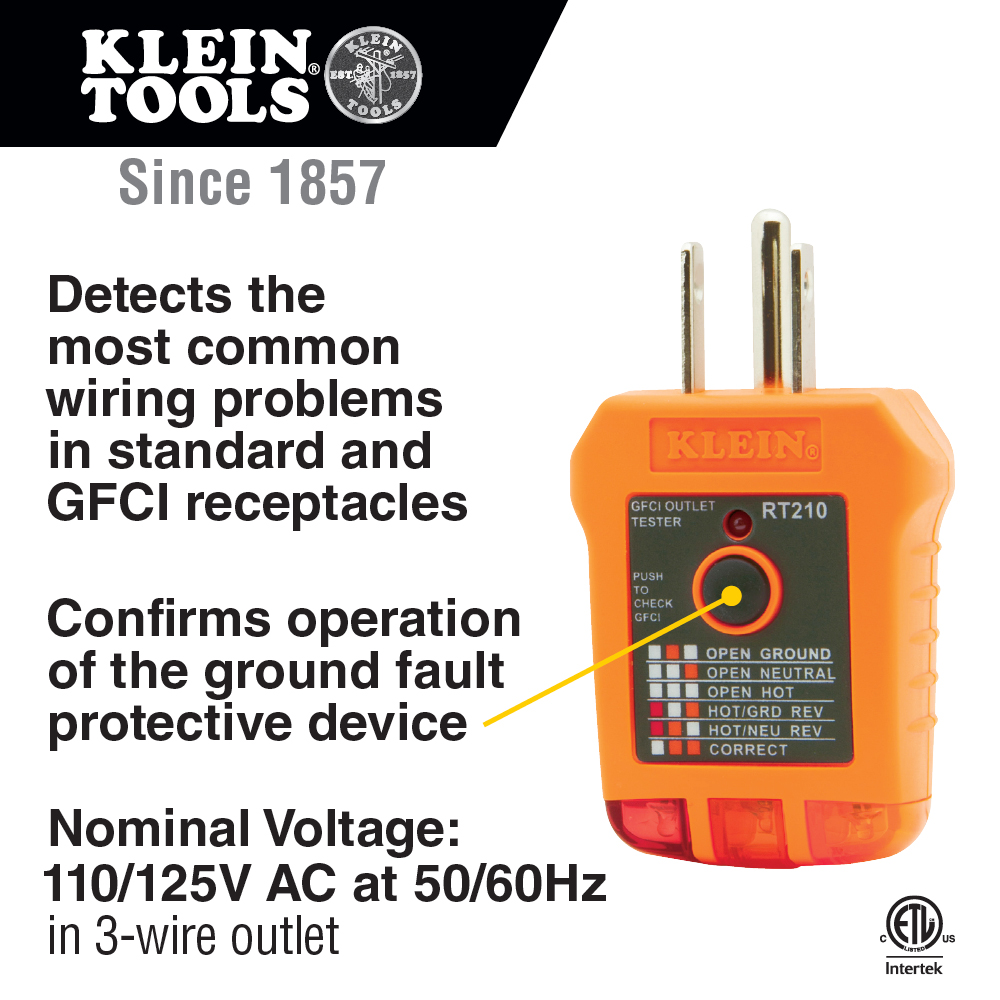

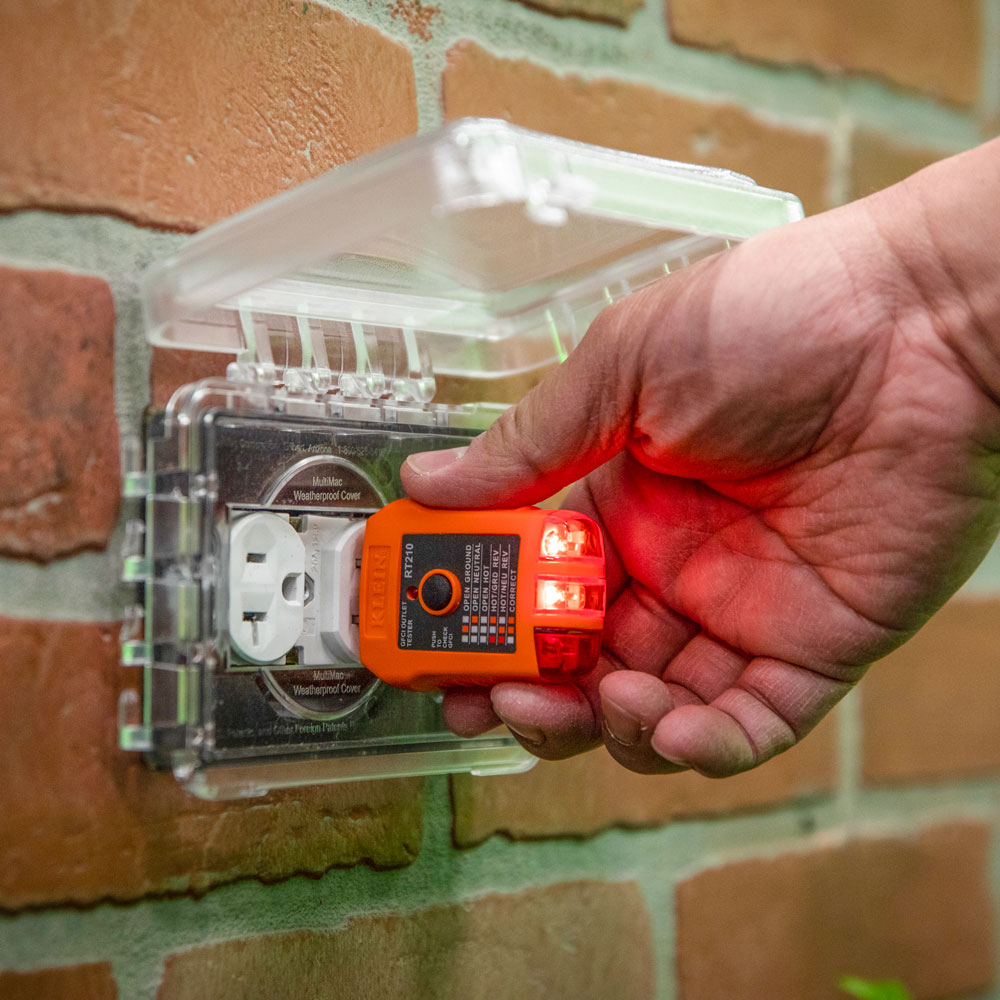

• Receptacle tester detects the most common wiring problems in standard and GFCI receptacles
• Tests DC voltages from 32 to 330V at four levels
• Electronic voltage tester is designed to test AC voltages from 24 to 240V AC at four useful levels
• Works on GFI outlets and confirms operation of the ground fault protective device

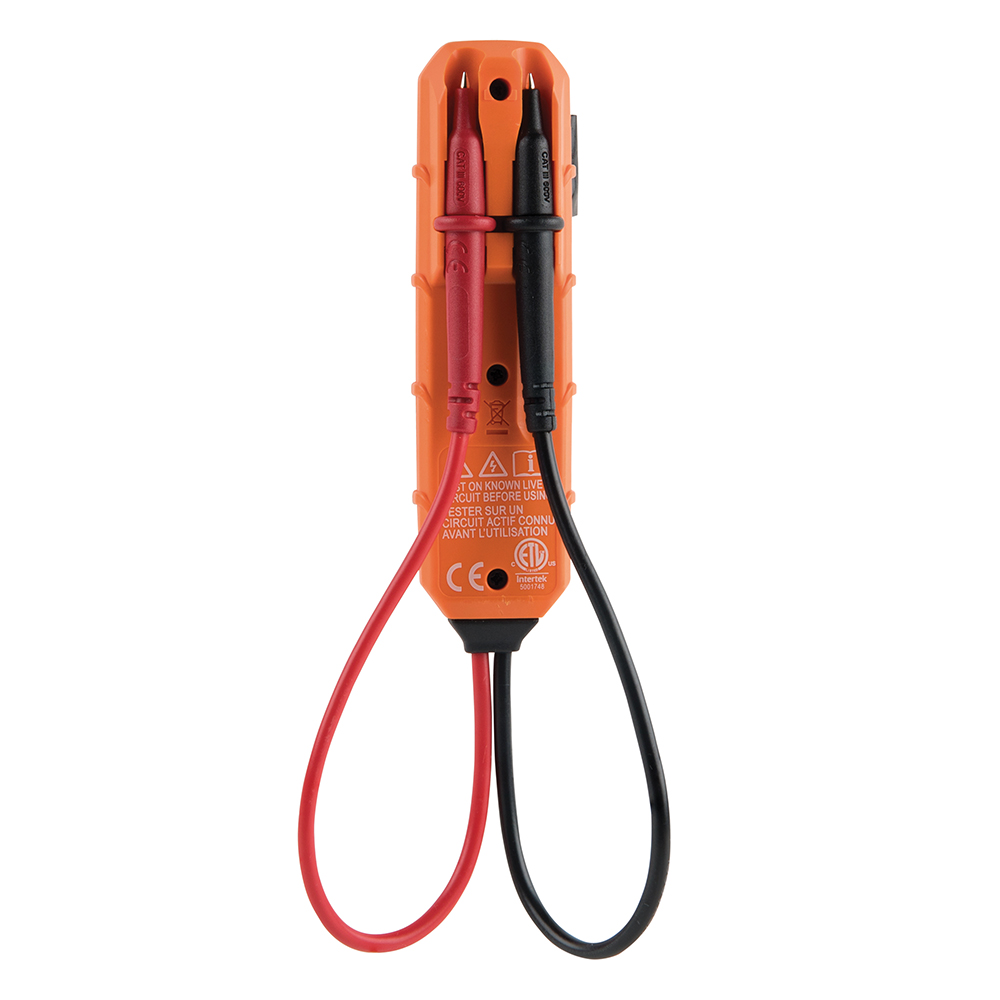

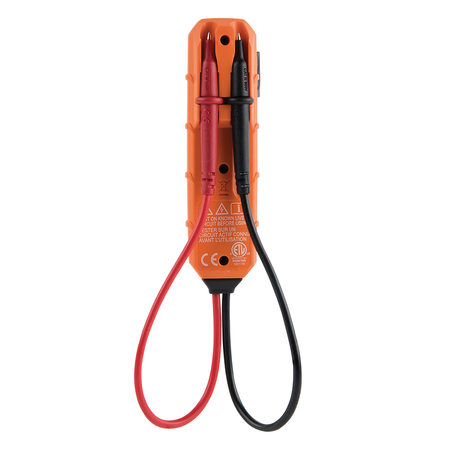

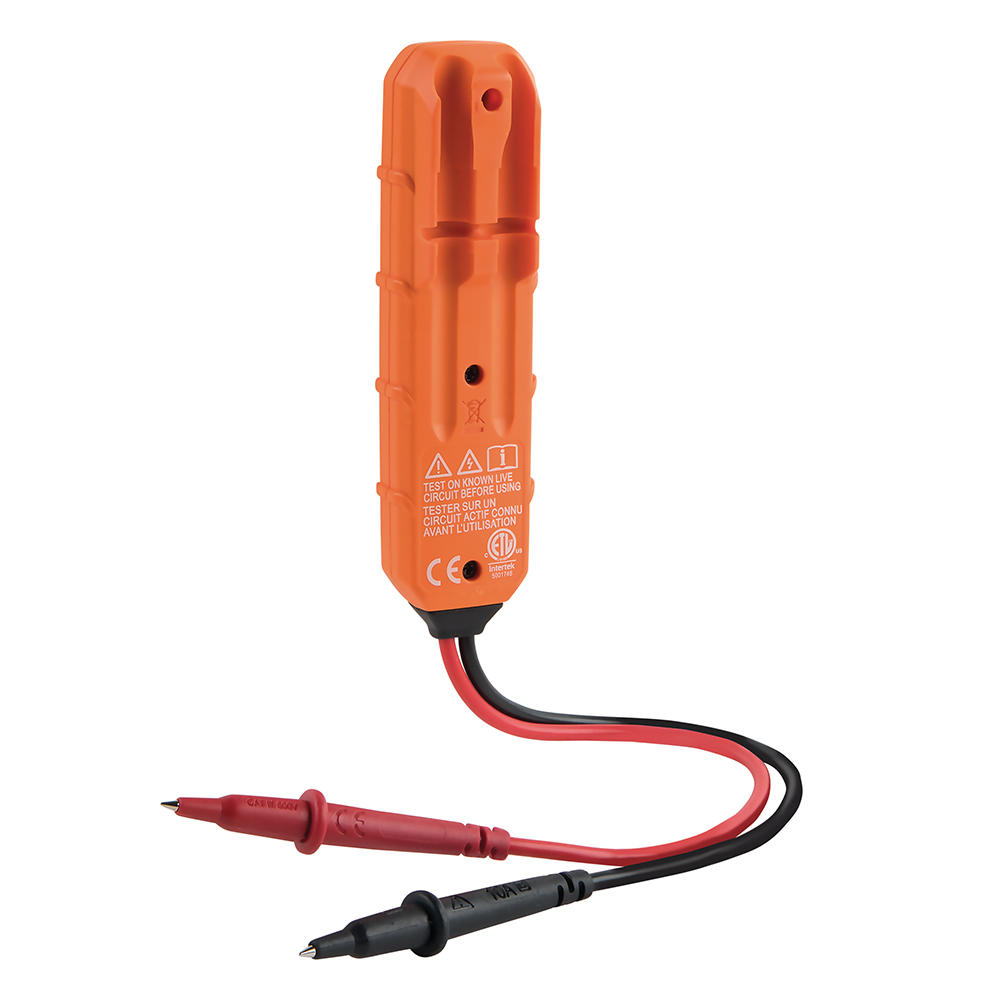

• Built-in test lead holder on back of voltage tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads

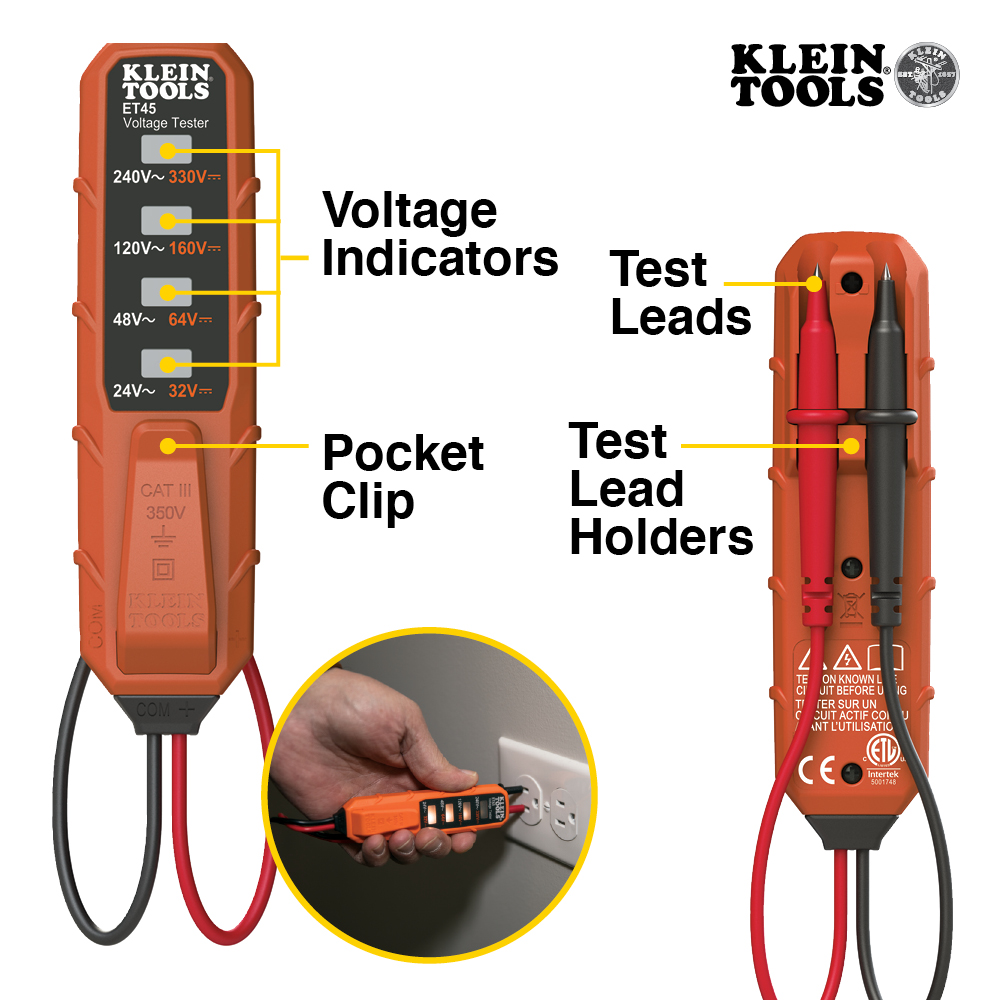

• ET45: Built-in Test Lead Holders; RT210: Convenient Chart on the Tester
• Nominal Voltage of receptacle tester: 110/125V AC at 50/60Hz in 3-wire outlet

Warnings

• Before each use, verify tester operation by measuring a known voltage.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Never use the tester on a circuit with voltages that exceed the category based rating of this tester.

Specifications

• Overall Height (Inch): 1.38
• Drop Protection: ET45 - 9.9' (3 m); RT210 - 6.6' (2 m)
• Width: 4.6300 in
• Tests Continuity: No
• Included: ET45 Electronic Voltage Tester; RT210 Receptacle Tester
• Type: ET45 - Electronic Products; RT210 - GFCI and Standard Receptacle Tester
• Weight: 0.2240 lbs
• Overall Width (Inch): 4.63
• Lead Length (m): 2.7
• Ingress Protection: ET45 - IP44
• Material: Plastic Housing, PCB with Electronic Components
• Frequency: ET45 - 50/60 Hz
• Standard: ET45: CATIII 350V, CE
• Depth: 7.8800 in
• Overall Width (cm): 11.8
• Overall Height (cm): 3.5
• Weight (g): 102
• Overall Length (Inch): 7.88
• Height: 1.3800 in
• Lead Length (Feet): 9
• Case Included: No
• Interchangeable Leads: No
• Weight (oz): 3.6
• Pollution Degree: ET45 - 2
• Voltage: ET45 - AC Level Indicators - 24V, 48V, 120V, 240V; DC Level Indicators - 32V, 64V, 160V, 330V; RT210 - 110/125V AC at 50/60Hz in. 3-Wire Outlet
• Overall Length (cm): 20
• Integral Lead Storage: Yes
• Display: ET45 - Analog LED
• Application: Measure AC/DC Voltage and Determine Wiring Condition in Outlet
