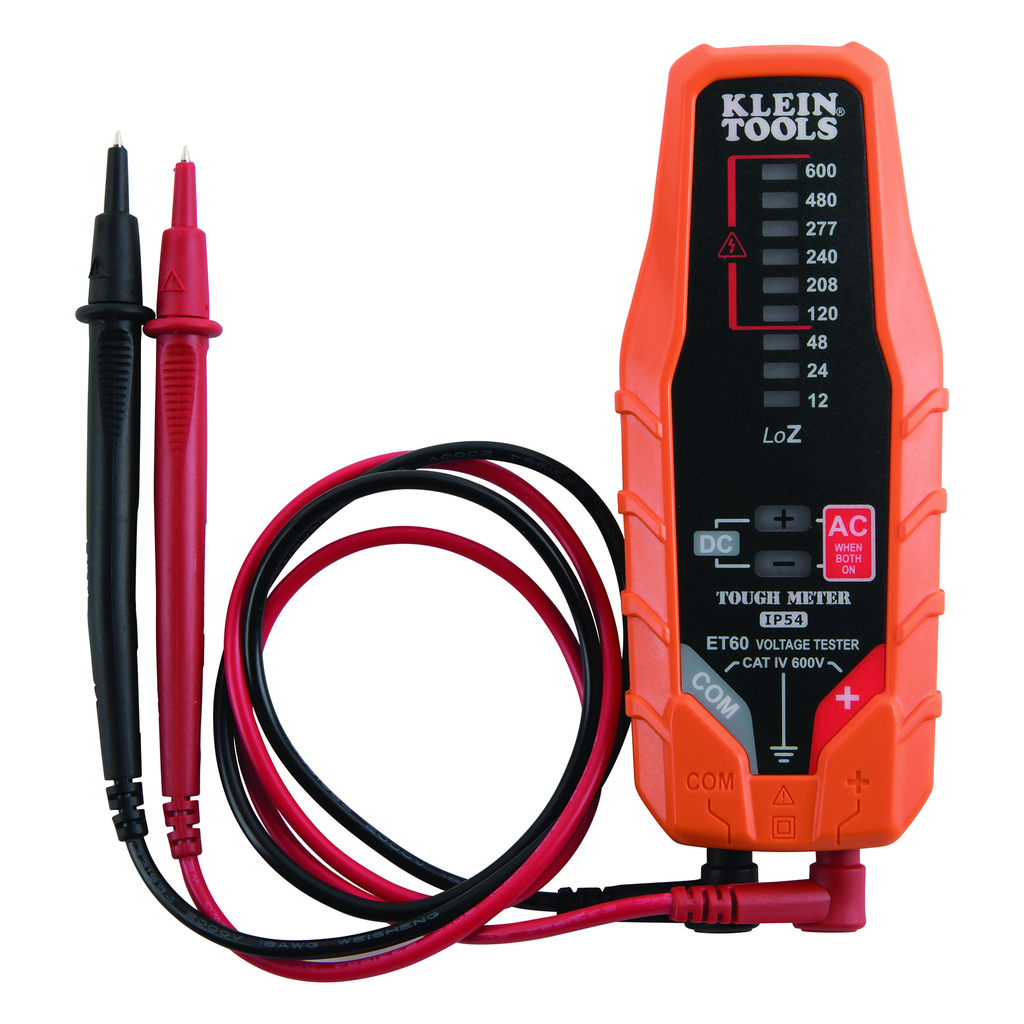

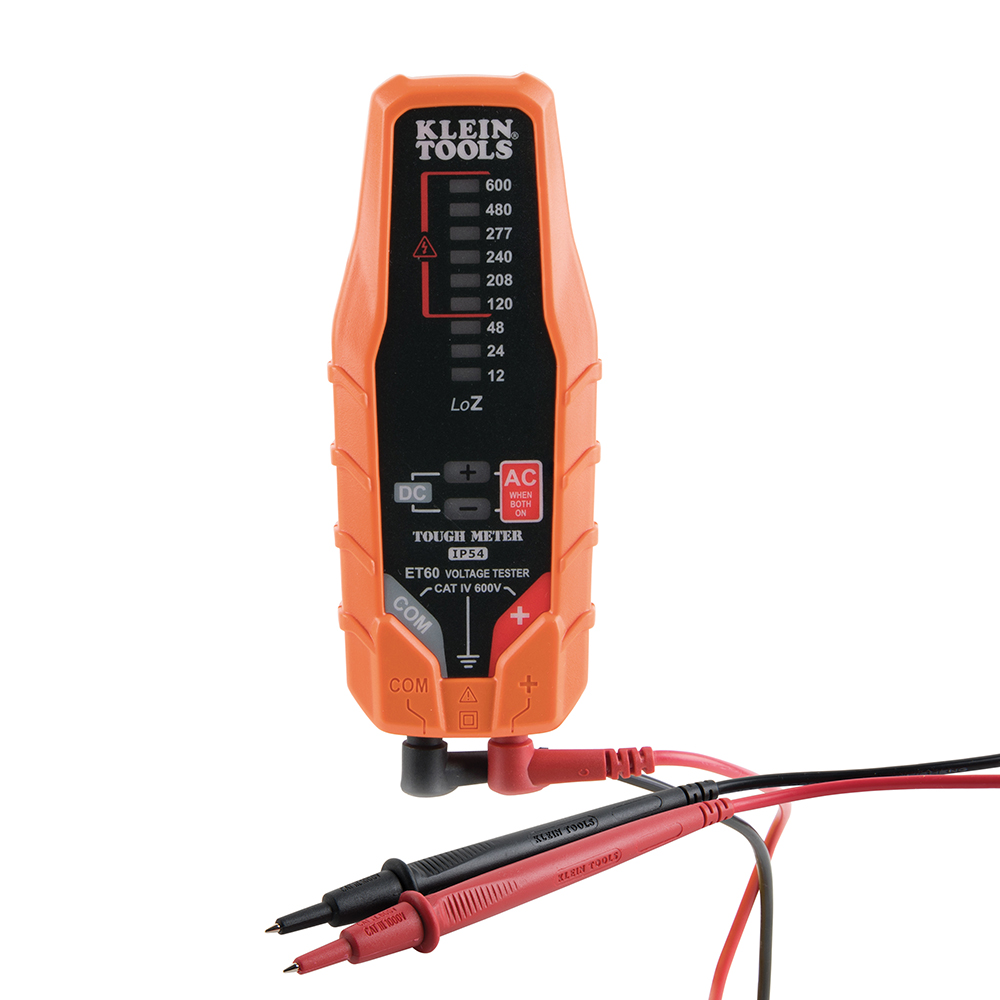

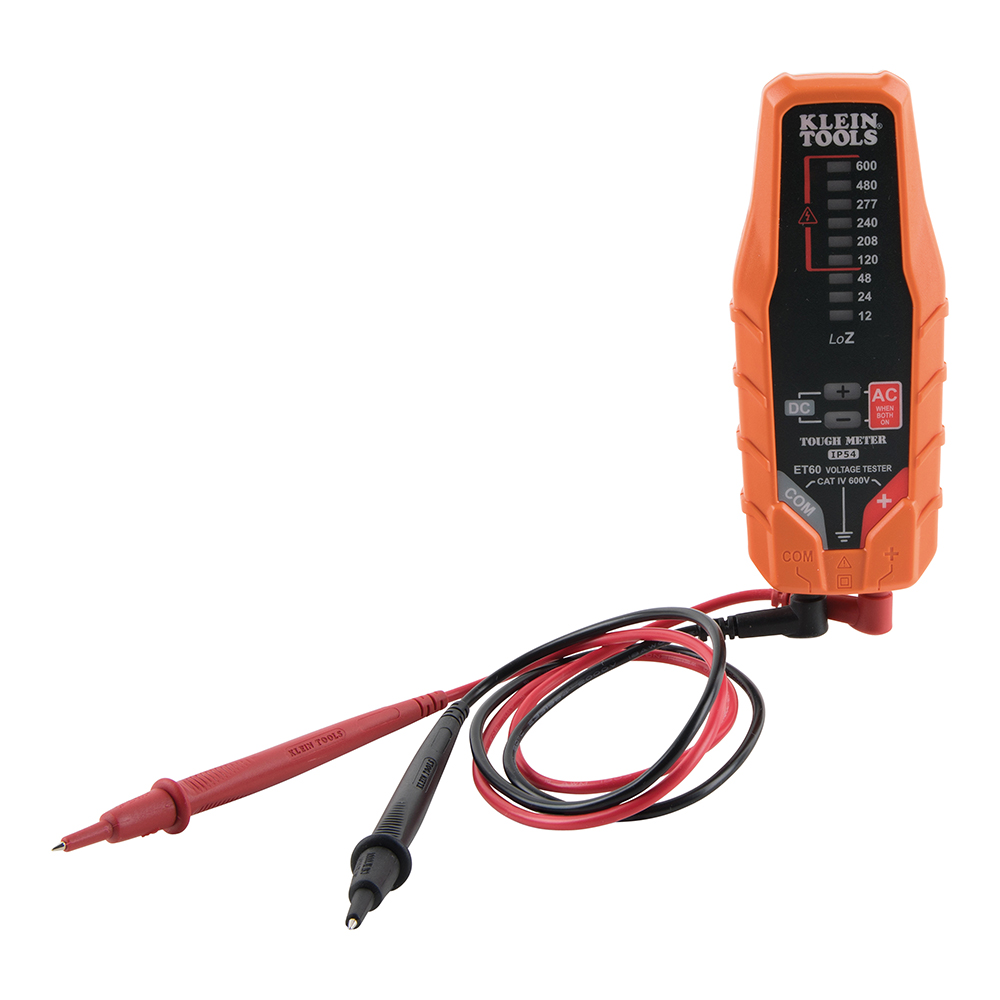

Electronic AC/DC Voltage Tester, 12 to 600V

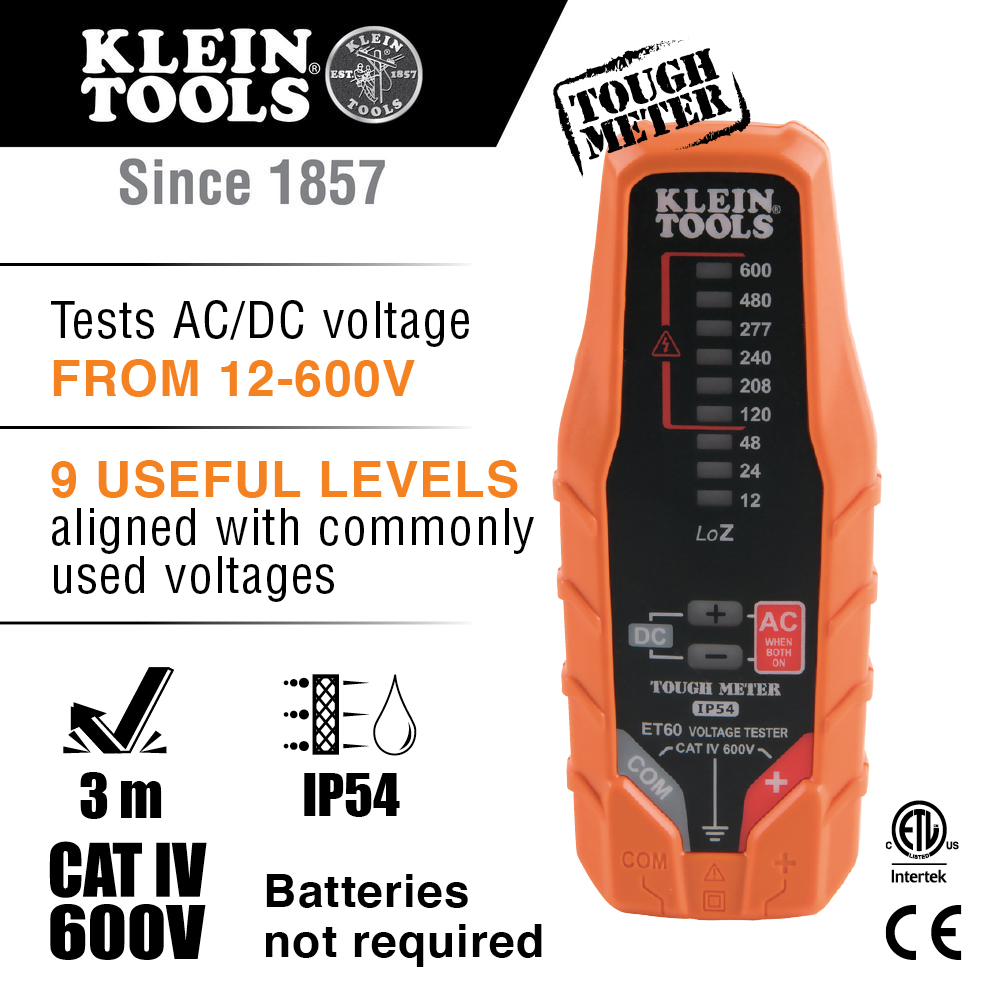

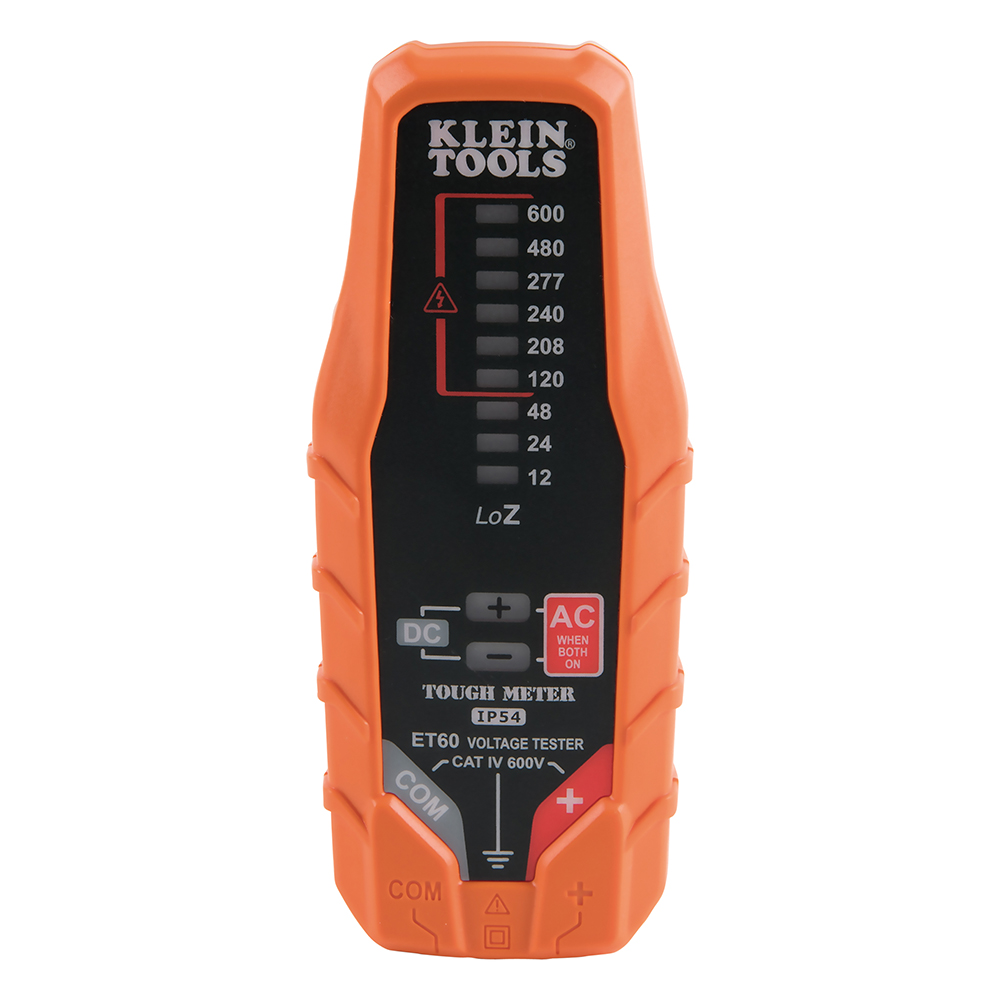

ET60 is a solid-state, low impedance, electronic voltage tester. It measures AC/DC voltages up to 600V. The ET60 does NOT require batteries; it is powered by the applied voltage. It is excellent choice for testing voltage in electrical circuits, at outlets, in light fixtures or anywhere else where AC/DC voltage testing is required.

Features

• Uses standard replaceable multimeter test leads for versatility
• Inherent low input impedance reduces the possibility of falsely reading ghost or stray voltages on non-energized circuits

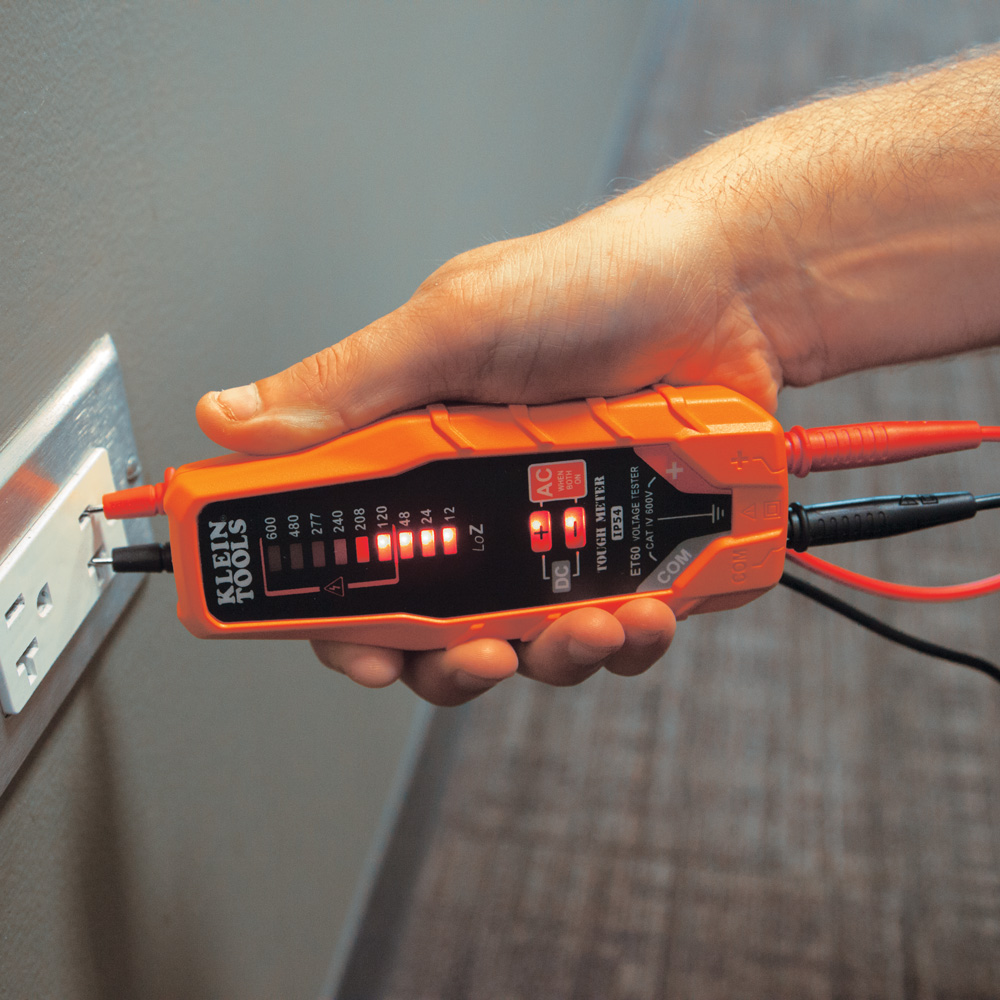

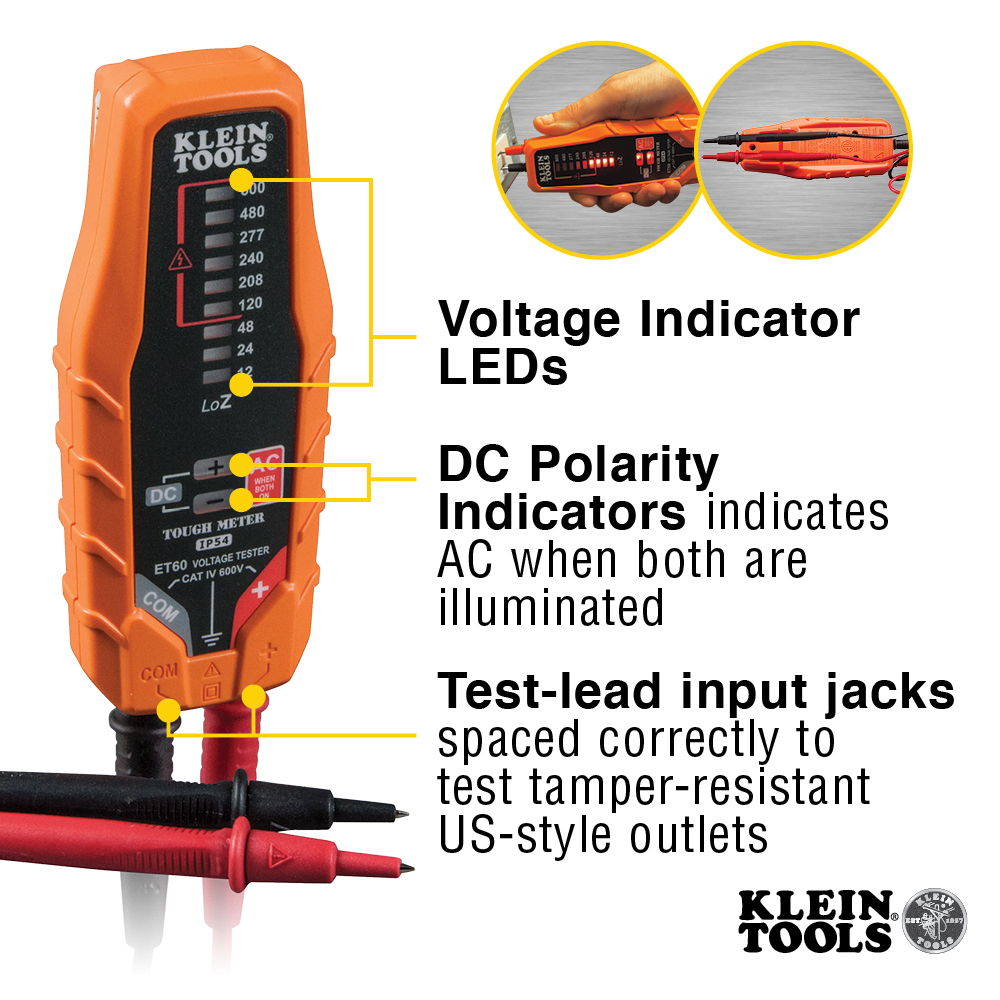

• Easy to use bright LED display clearly reports the voltage present in the circuit being tested
• CAT IV 600V modern solid-state design for safety
• Voltage Tester for AC/DC voltage from 12-600V at nine useful levels aligned with commonly used voltages
• No Batteries Required
• Batteries not required, as tester is powered by the applied voltage in the circuit being tested

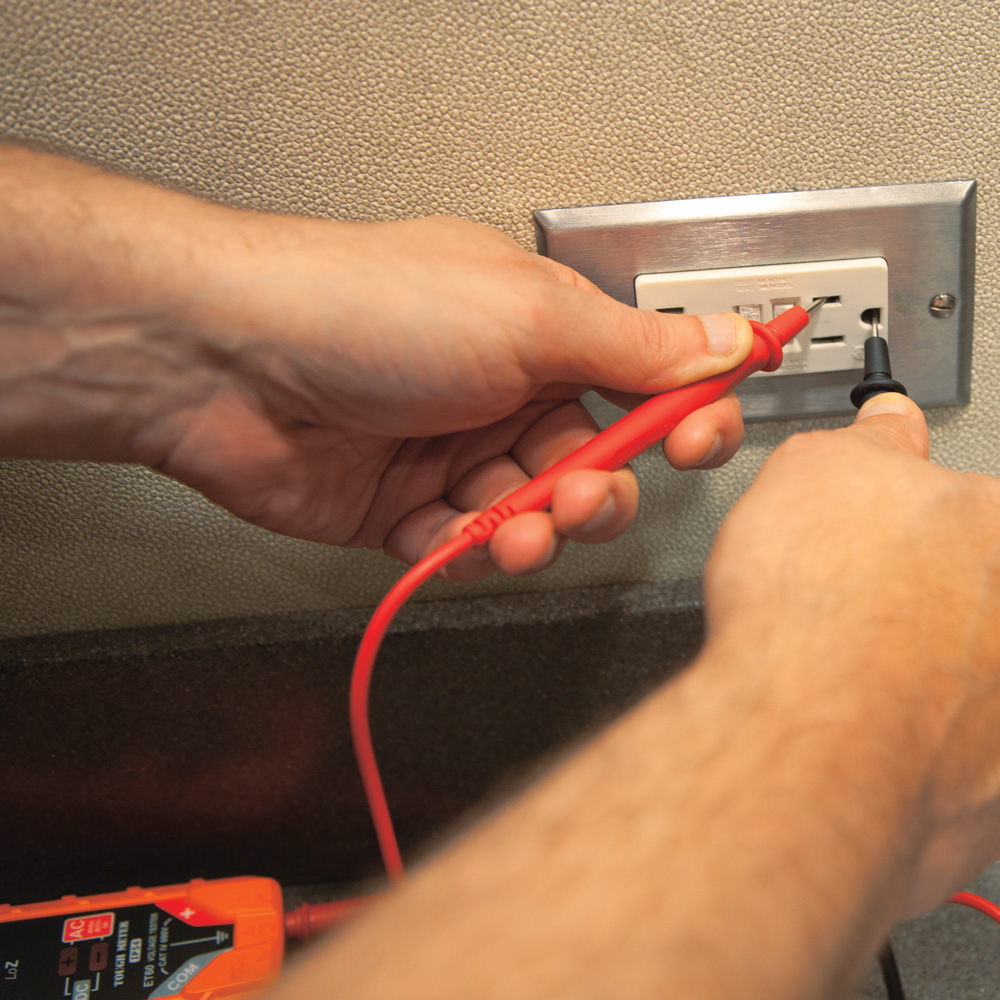

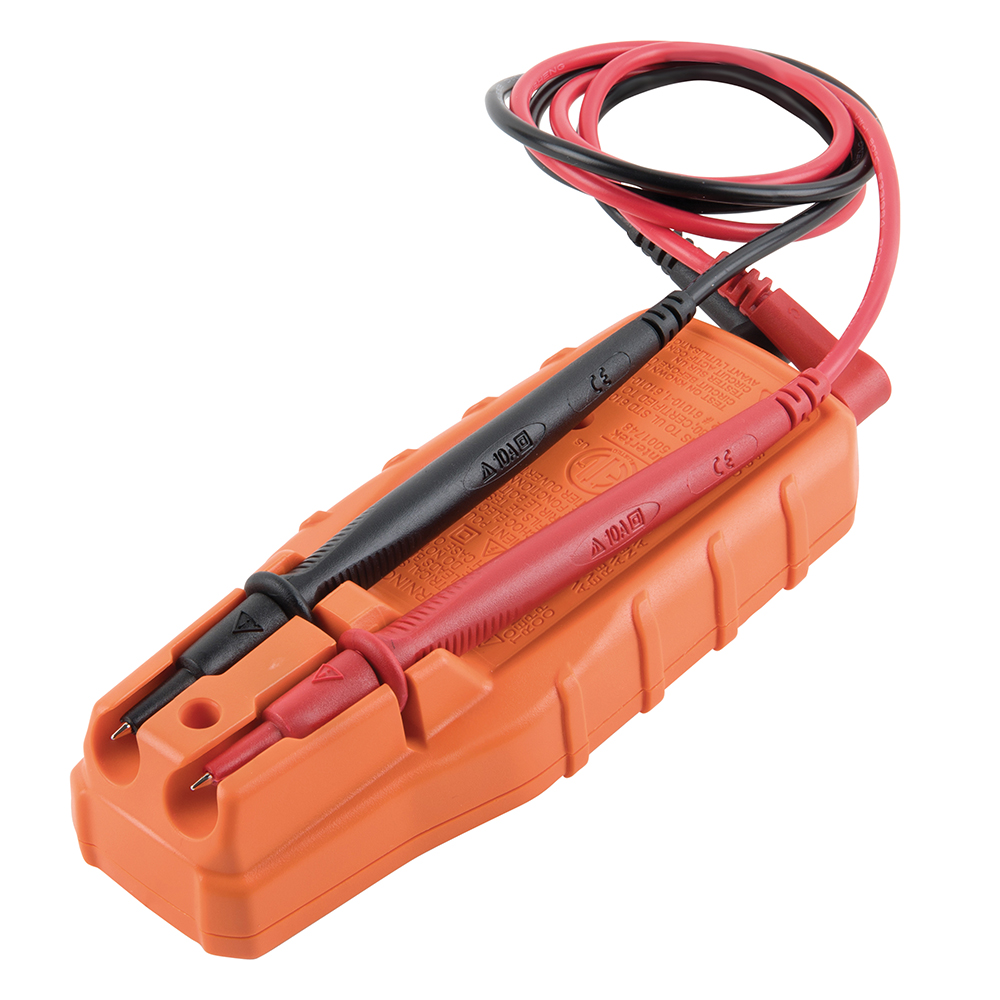

• Integrated test-lead holders are used for lead storage or for holding the probes correctly spaced for insertion into tamper-resistant US-style outlets

Warnings

• Before each use, verify tester operation by measuring a known voltage.
• Do not use the tester or test leads if they appear to be damaged.
• Never use the tester on a circuit with voltages that exceed the category based rating of this meter.

Specifications

• Drop Protection: 9.8' (3 m)
• Voltage: 12 to 600 V AC/DC
• Overall Height (Inch): 1.44
• Height: 1.4400 in
• Weight: 0.2000 lbs
• Overall Length (Inch): 5.67
• Frequency: 45Hz to 66Hz
• Pollution Degree: 2
• Application: Test AC/DC Voltage From 12-600V
• Overall Height (cm): 3.7
• Weight (oz): 3.2
• Interchangeable Leads: Yes
• Included: Tester; Test Leads
• Ingress Protection: IP54
• Depth: 5.6700 in
• Overall Width (Inch): 2.84
• Overall Width (cm): 7.2
• Display: LED
• Overall Length (cm): 14.4
• Weight (g): 91
• Width: 2.3500 in
• Standard: CAT IV 600V
• Type: Solid-State, Low Impedance, Electronic Voltage Tester
