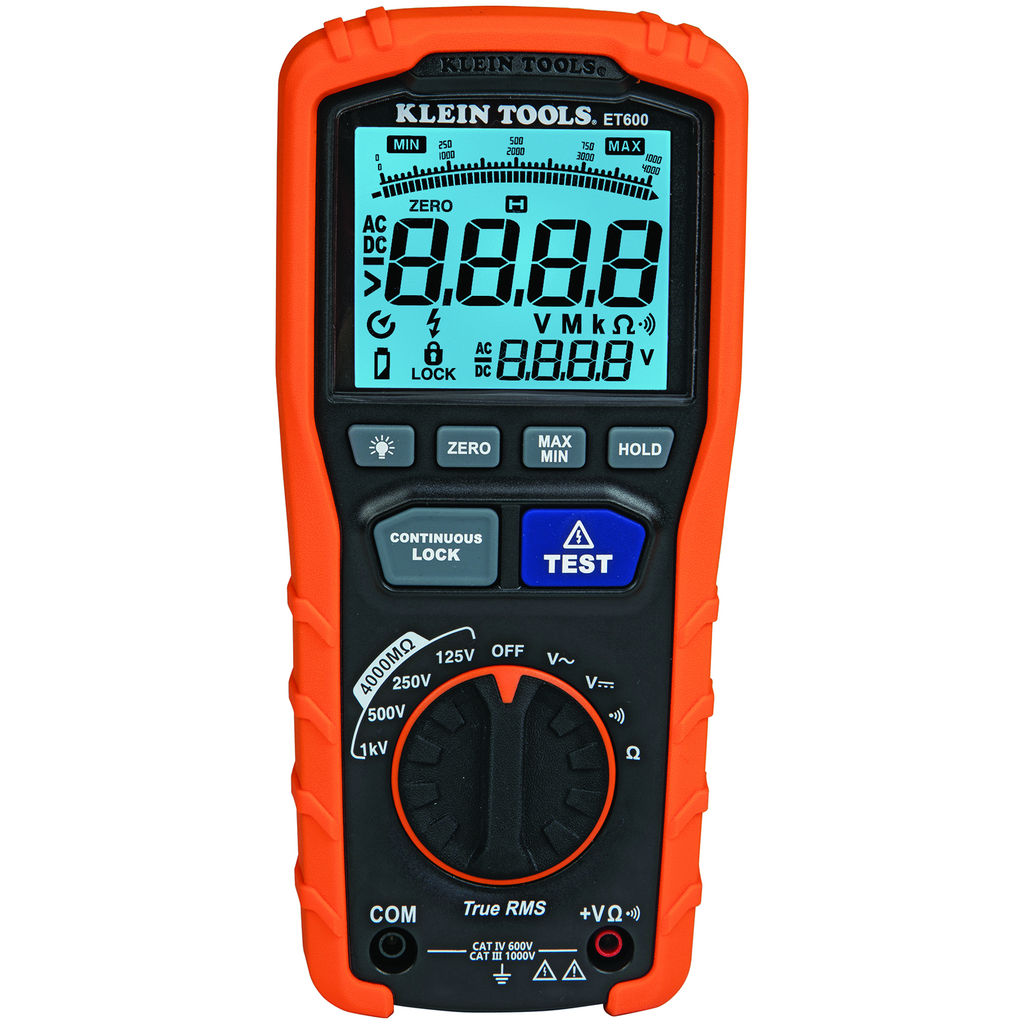

Insulation Resistance Tester

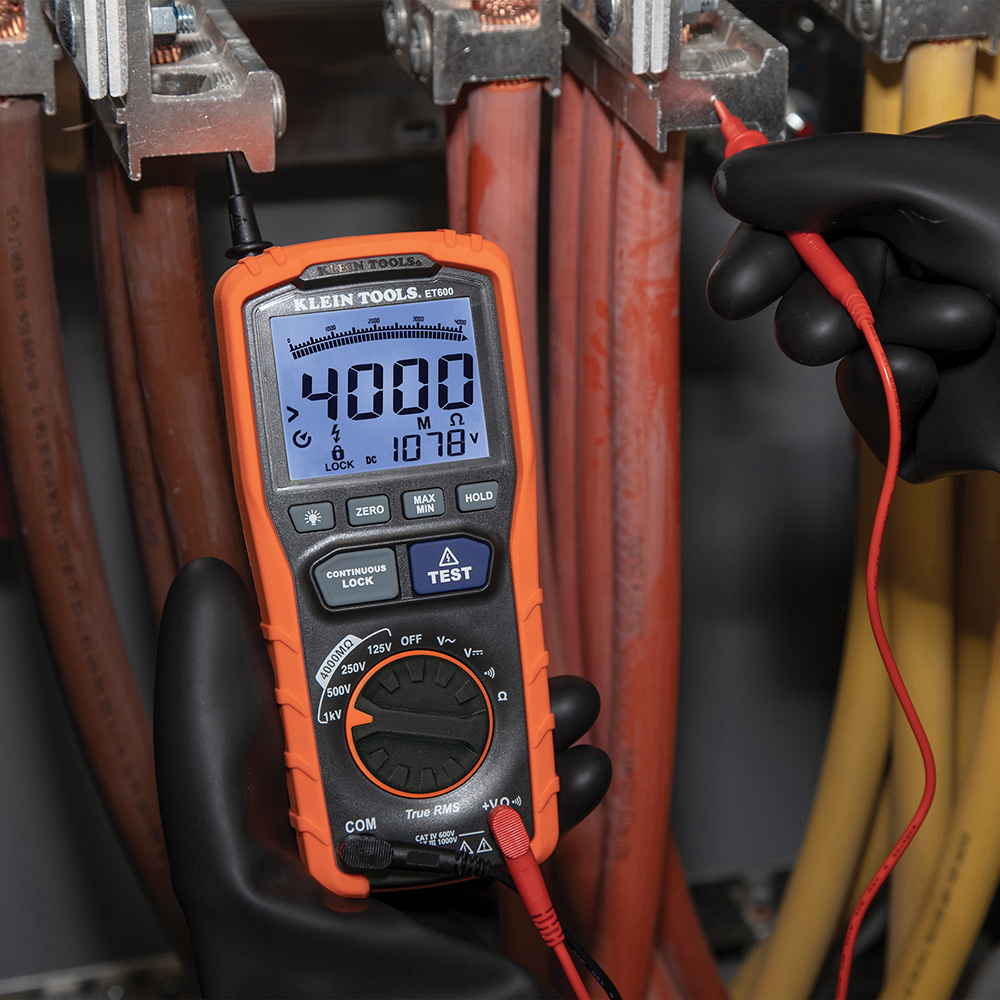

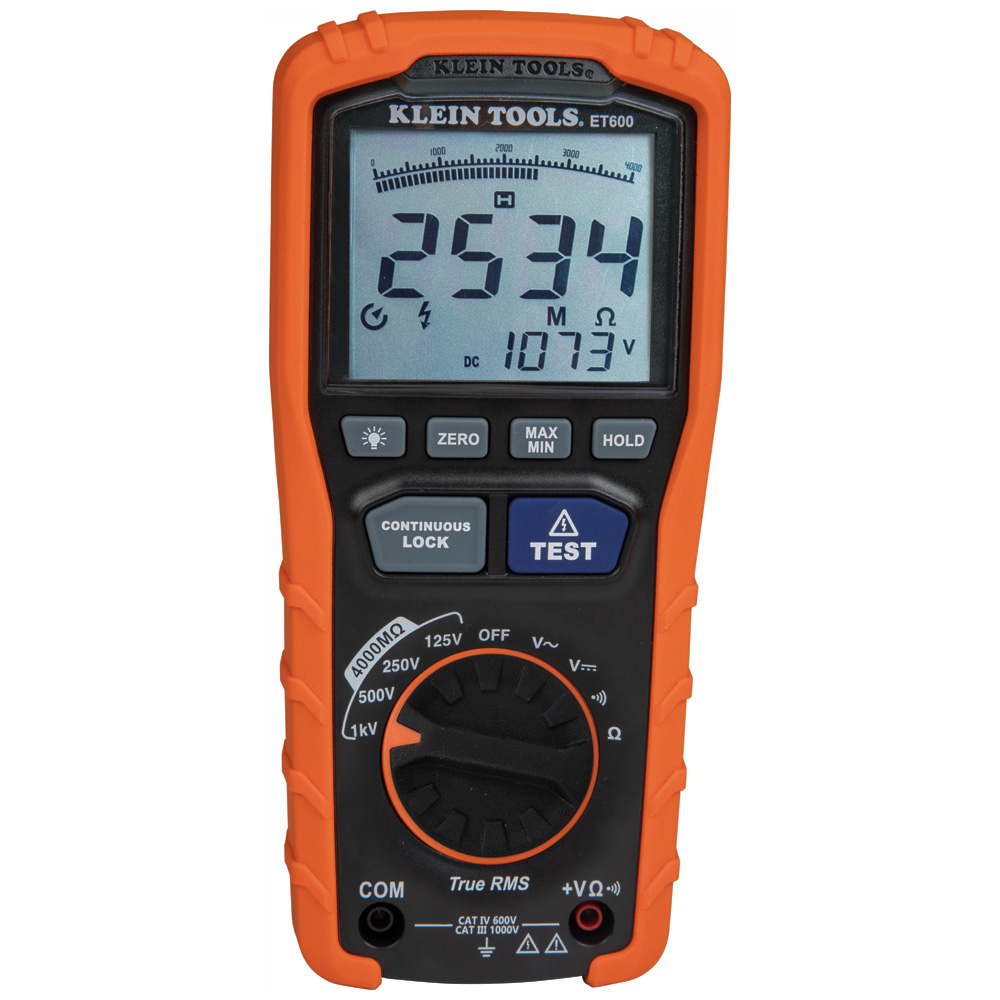

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Features

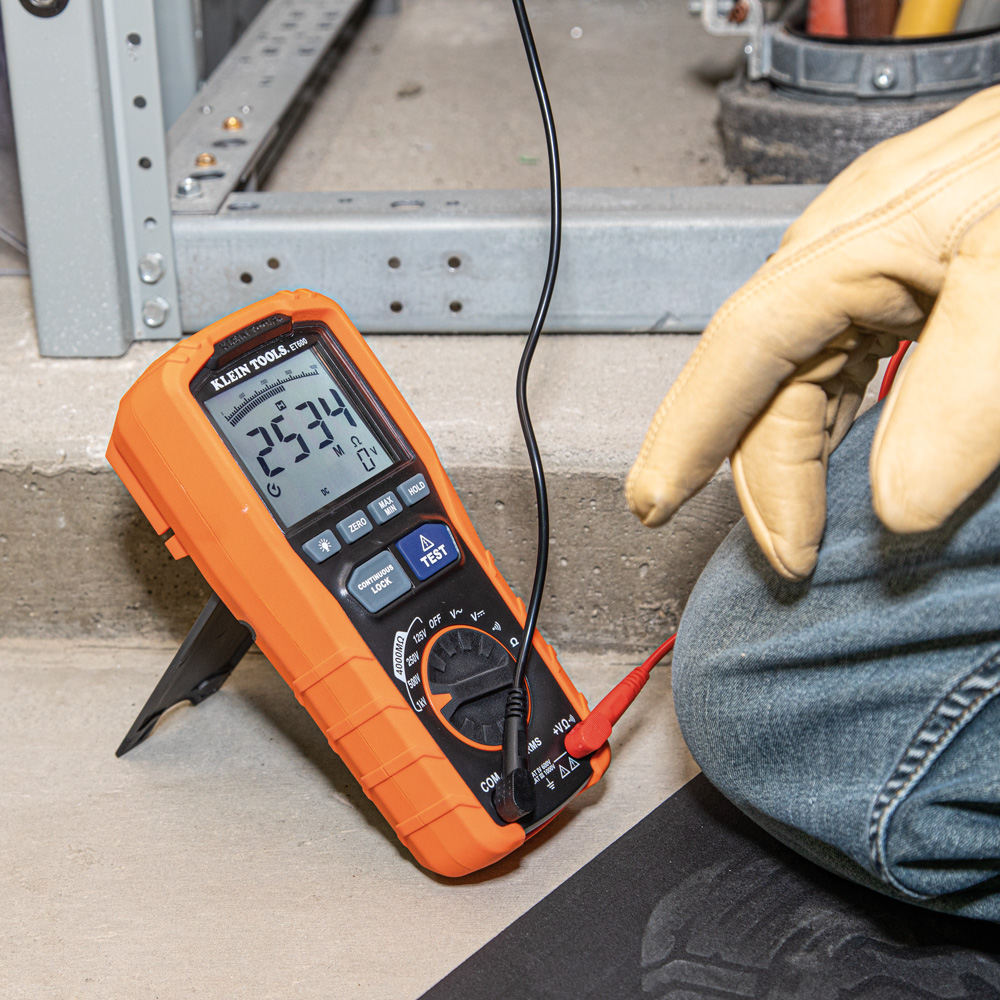

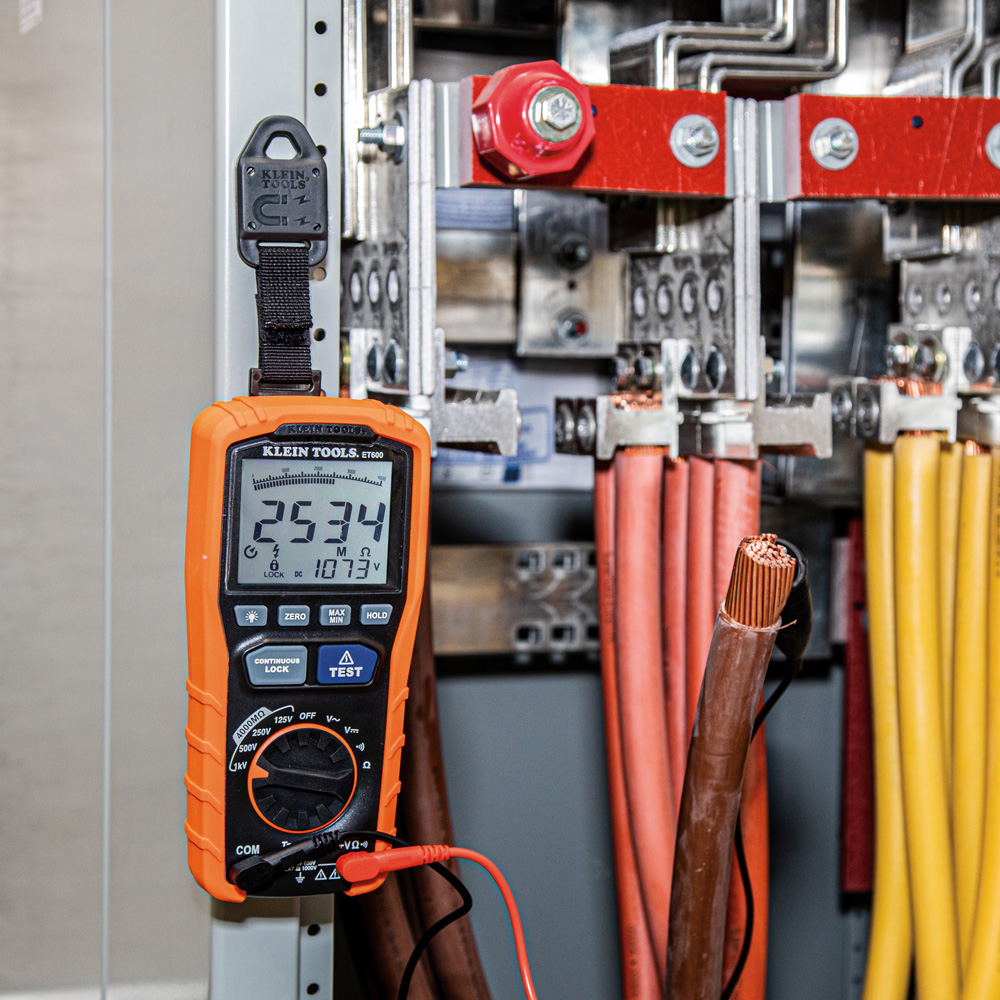

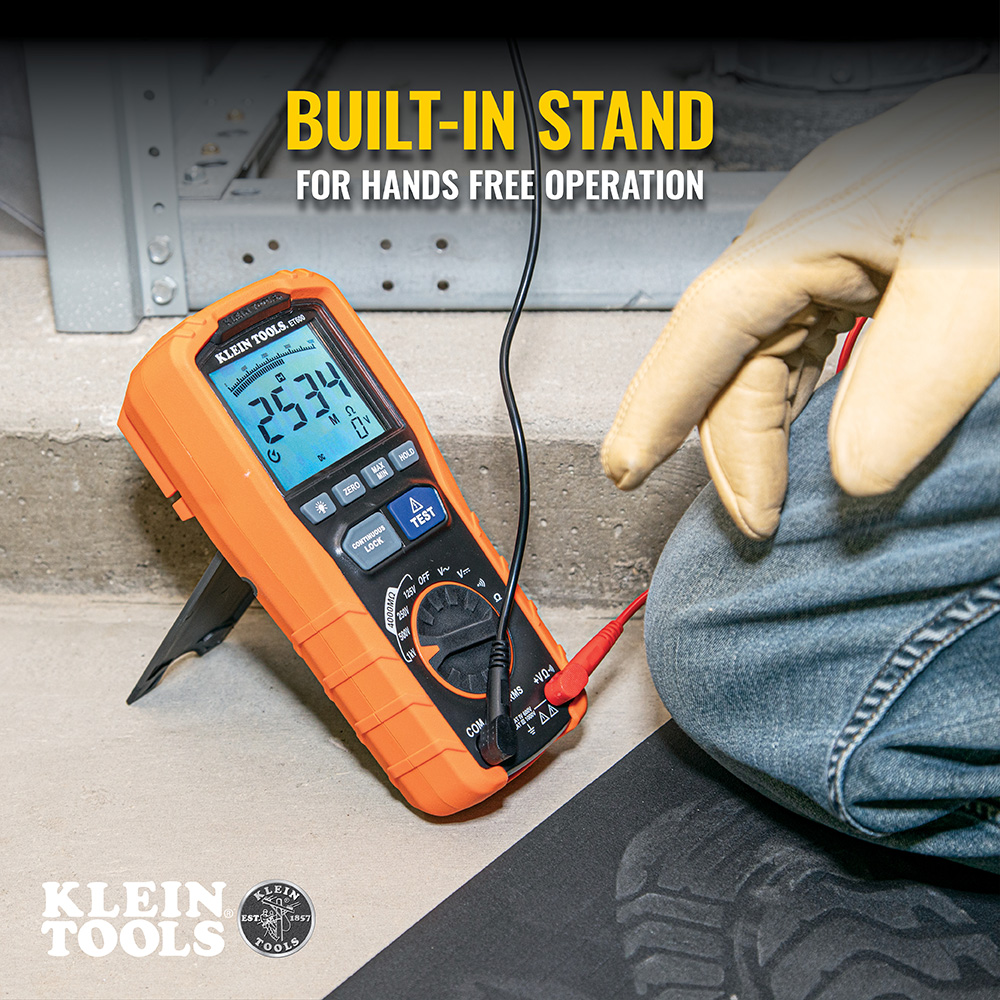

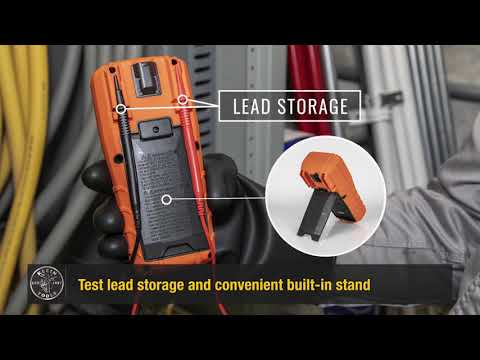

• Built-in stand and optional magnetic hanger for hands free operation
• Measures up to 1000V AC/DC, resistance, and continuity
• Test verification of conformity to EN61557-1,-2,-4
• Megohmmeter with test and lock buttons for simple insulation testing

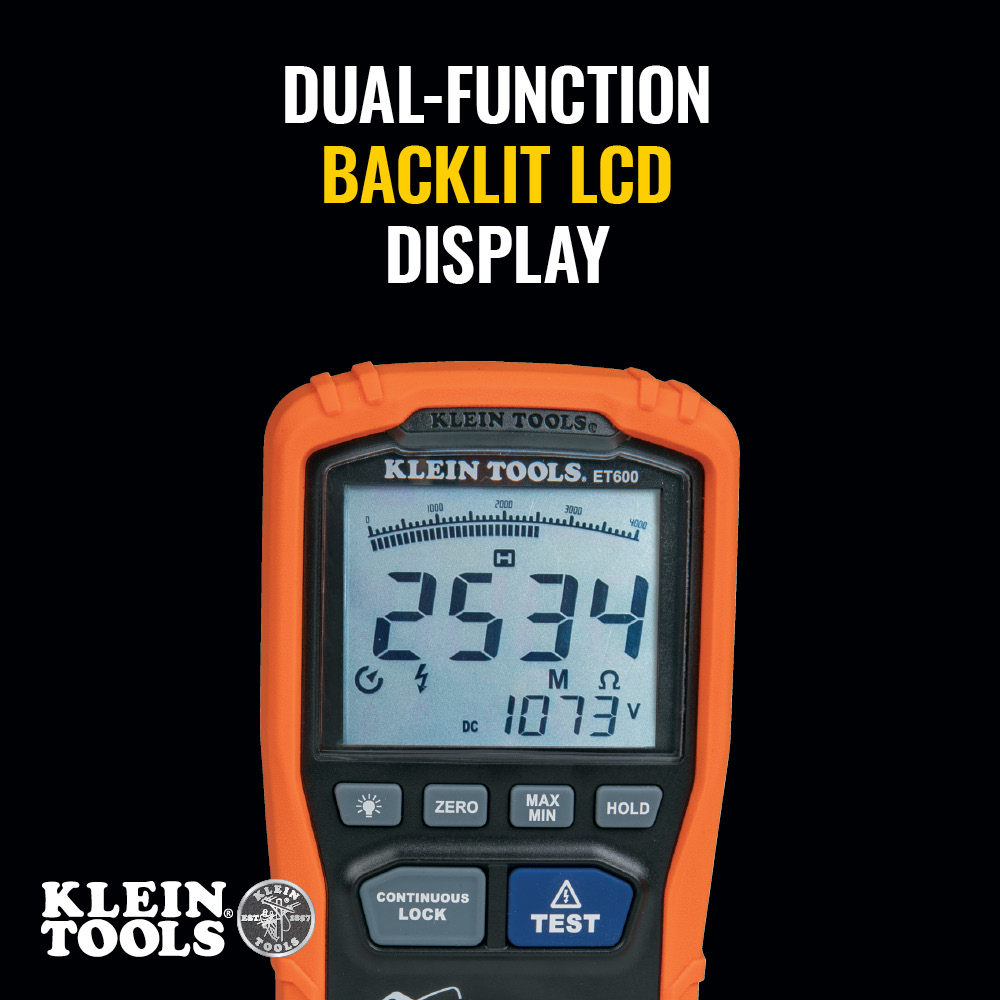

• Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
• Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
• Warning alarm and high voltage icon for detection of voltage
• Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
• CAT IV 600V and CAT III 1000V safety rating

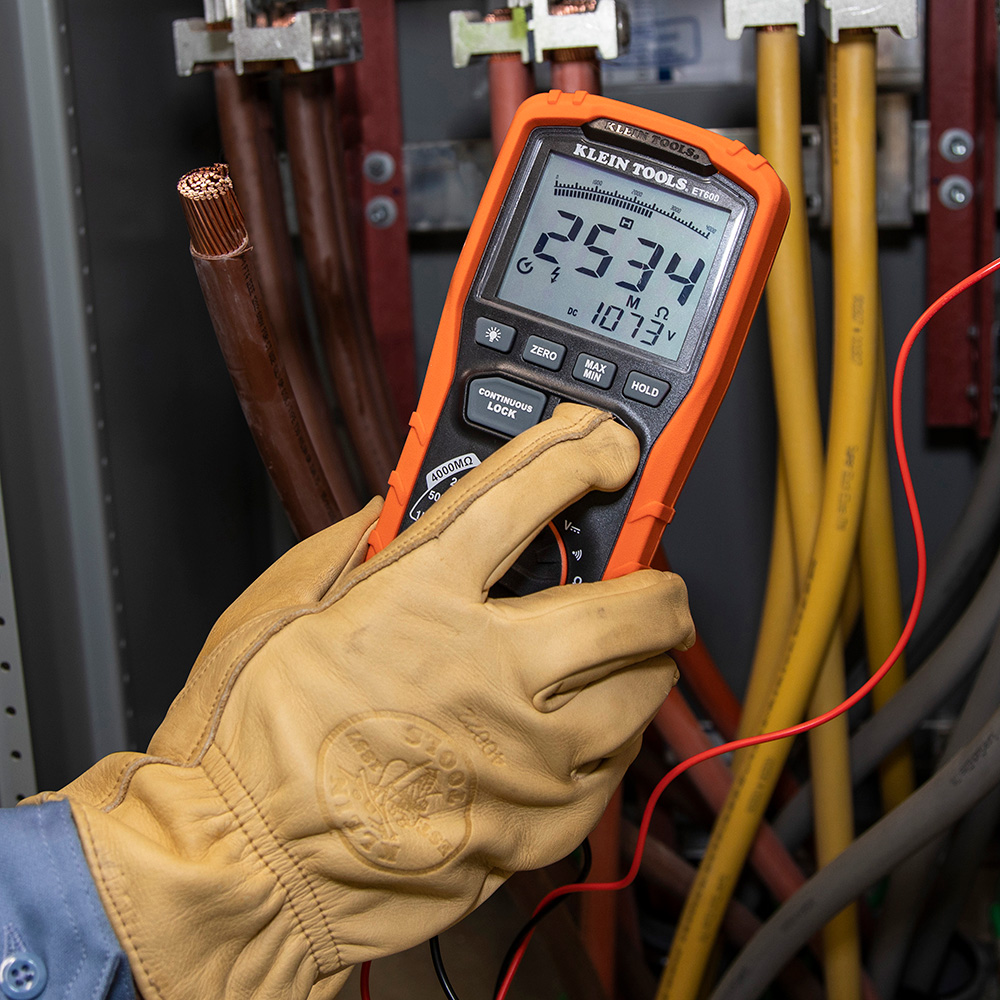

• Lock Button for Insulation Resistance Testing
• Low battery indicator with easily replaceable battery and fuse
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

Warnings

• Do not use meter during electrical storms or in wet weather.
• Read, understand, and follow all warnings and instructions before operating testers.
• Before each use verify meter operation by measuring known voltage.
• Do not attempt to measure insulation resistance, resistance, or continuity on live circuits.
• Use only CAT III/CAT IV safety rated test leads. Do use the meter if test leads appear to be damaged.

Specifications

• Weight (oz): 22.4
• Weight (g): 635
• Application: Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
• Material: ABS, Polycarbonate, Electrical Components
• Overall Width (cm): 9.1

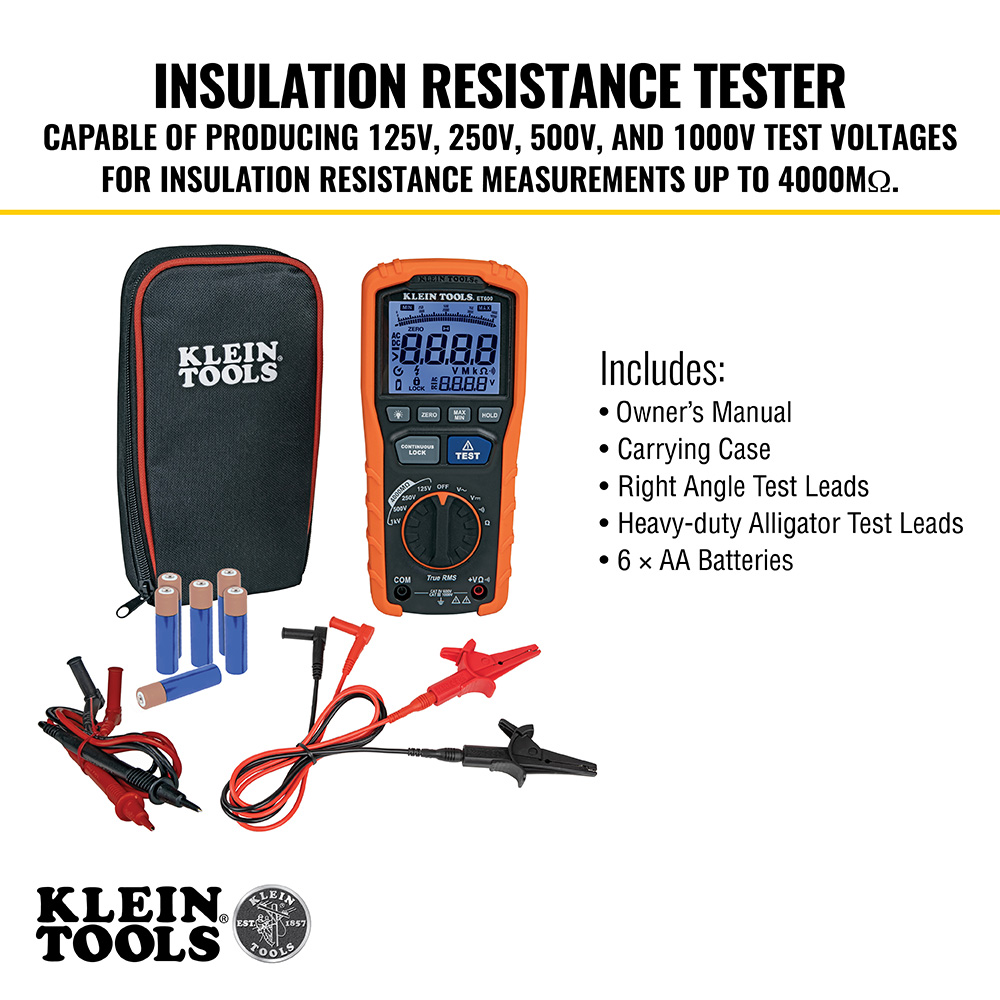

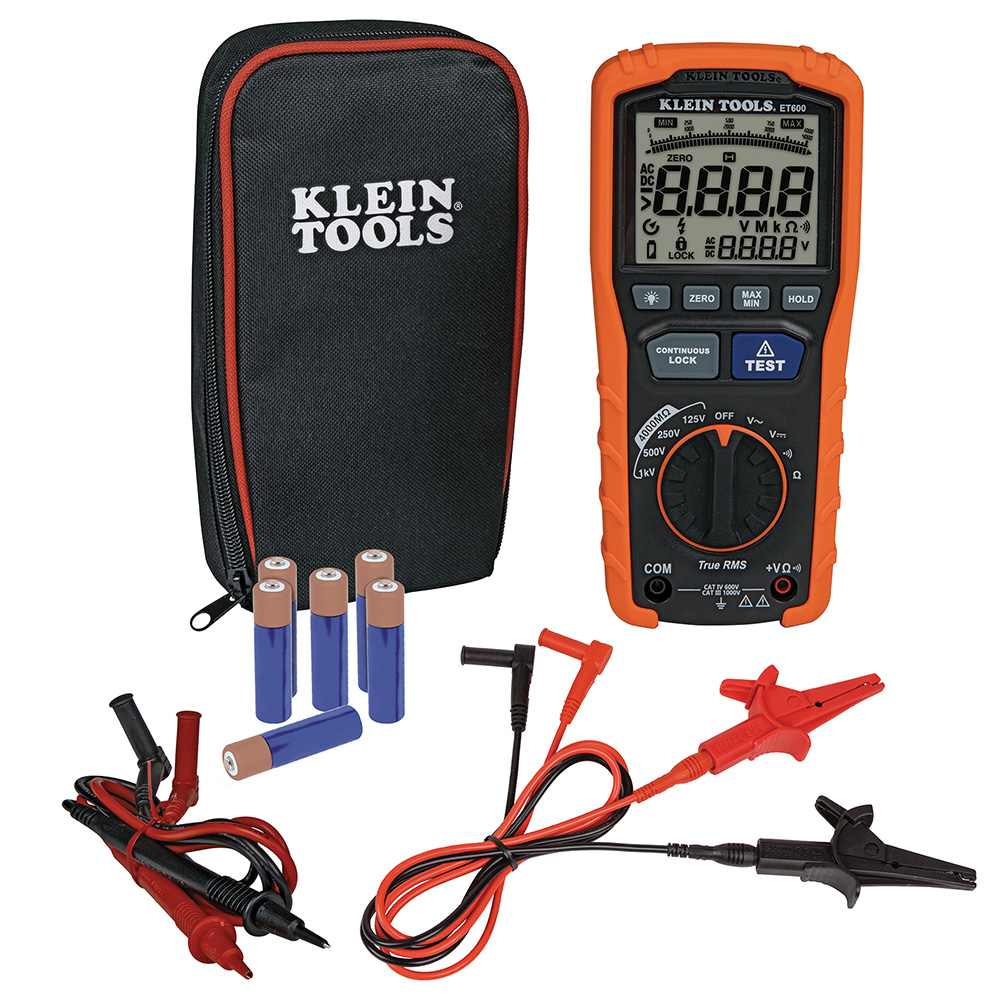

• Included: Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
• Overall Width (Inch): 3.59
• Overall Length (Inch): 7.93
• Overall Length (cm): 20.1
• Weight: 1.0620 lbs
• Voltage: 125V, 250V, 500V, and 1000V DC; 1000V AC/DC
• Functions: Insulation Resistance, Voltage AC/DC, Resistance, and Continuity
• Ohms (Resistance): 400kΩ
• Height: 2.4200 in
• Overall Height (Inch): 2.32
• Width: 3.5900 in
• Depth: 7.9400 in
• Color: Orange/Black
• Type: Insulation Resistance Tester
• Batteries: 6 x AA
• Display: 4000 Count LCD
• Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
• Overall Height (cm): 5.9
