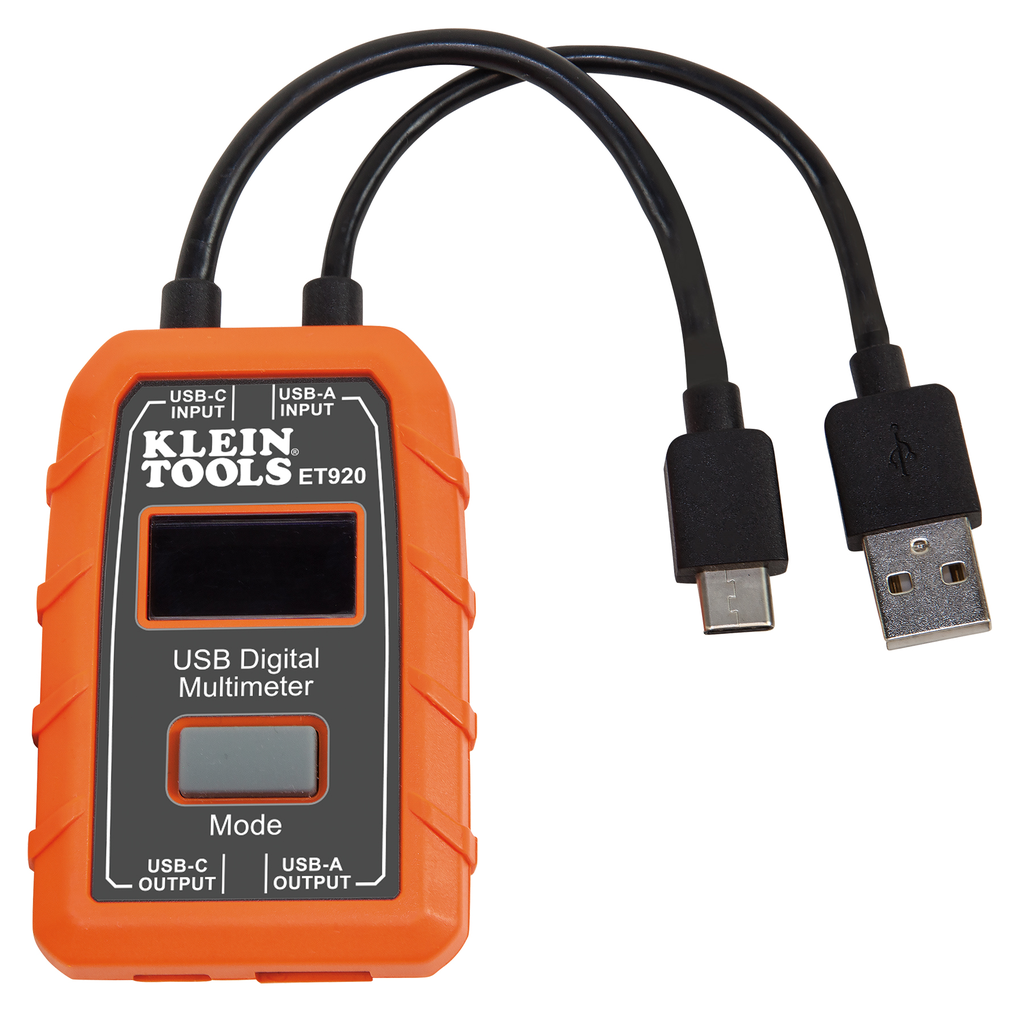

USB Digital Meter, USB-A and USB-C

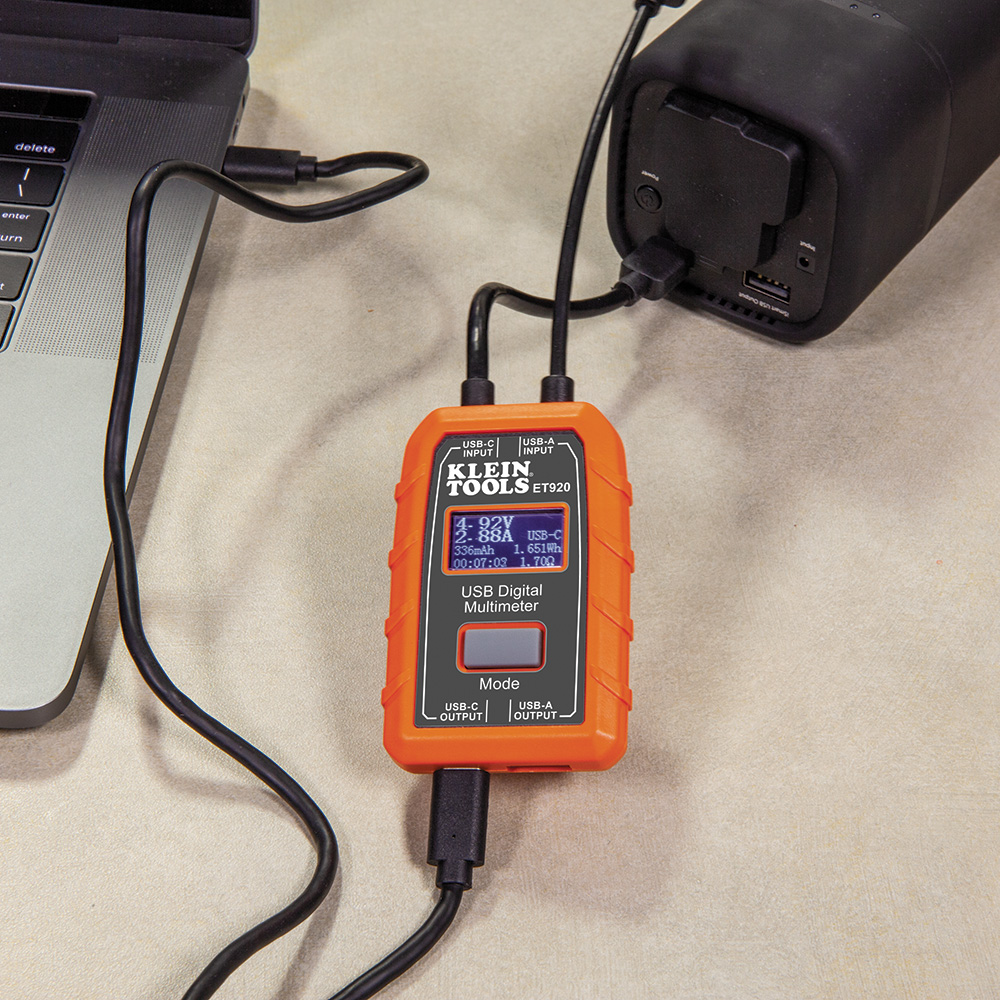

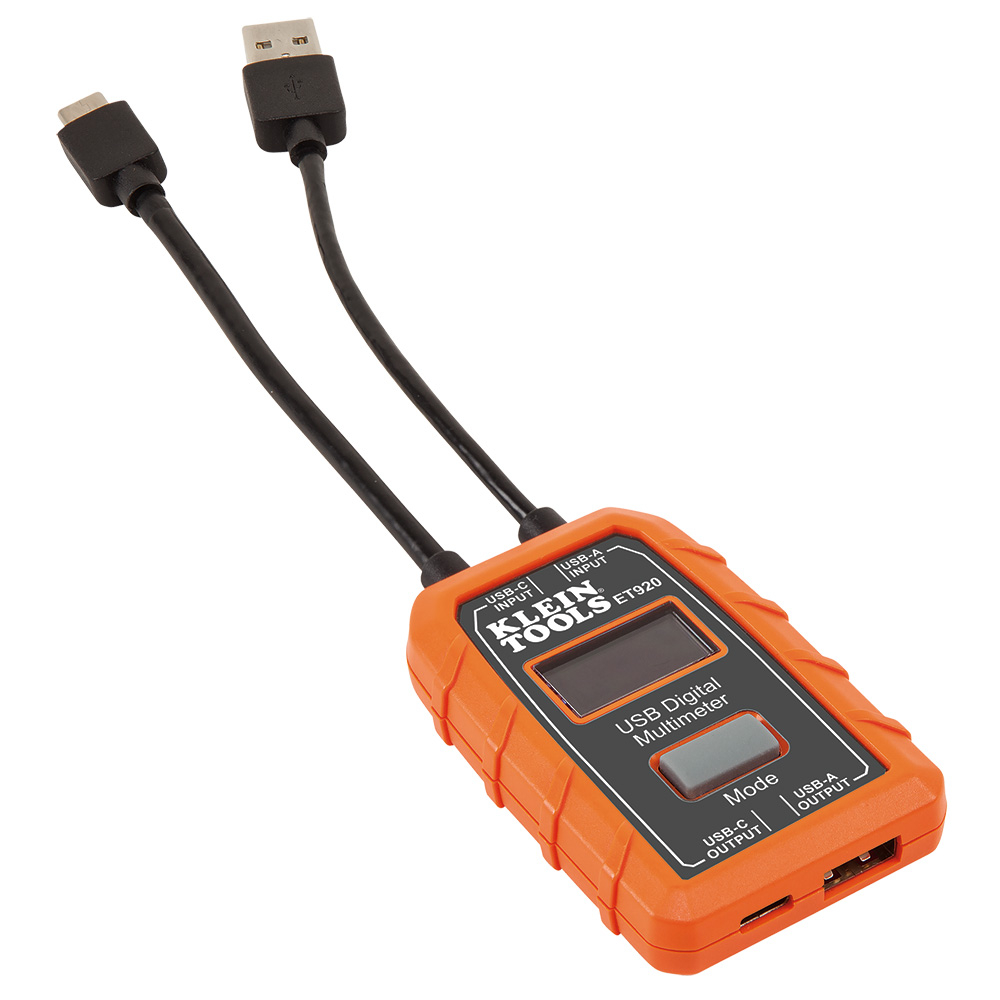

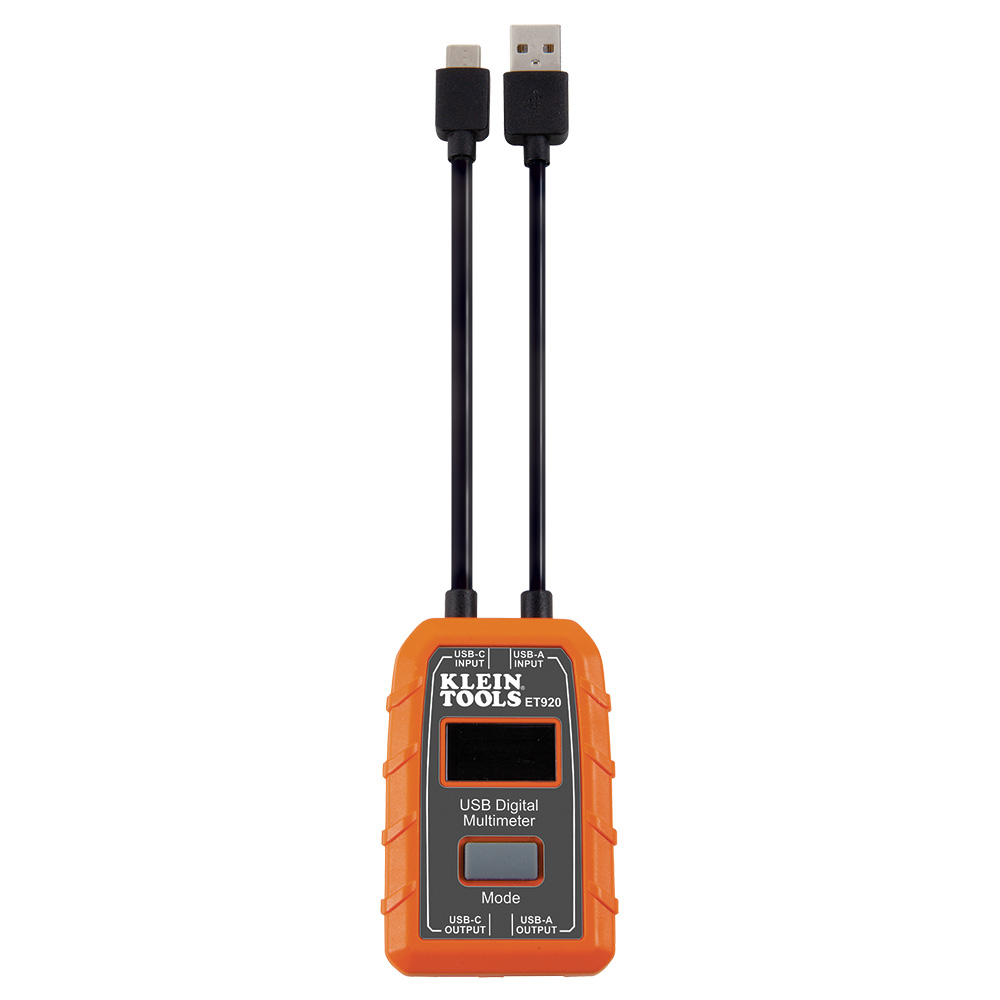

The Klein Tools ET920 is a USB digital meter for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge® ports that have the ability to deliver power. It requires NO batteries as it draws power from the power source to function.

Features

• Voltage and current overload detection
• Store and recall up to 10 readings

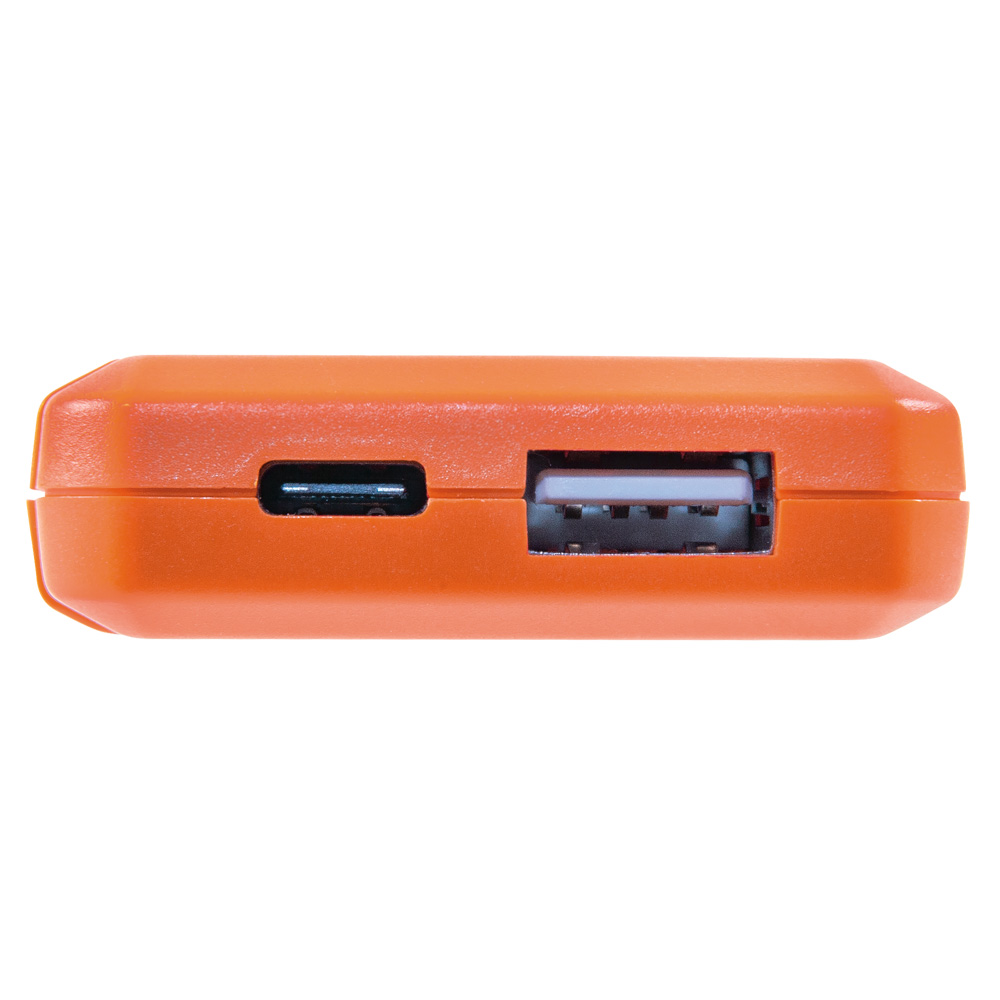

• Fits Any USB-A and USB-C Ports
• Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
• 3 to 20V DC; Current: 0.05 to 3A (USB-A); 3 to 20V DC; Current: 0.05 to 5A (USB-C)
• Built to withstand a 6.6-Foot (2m) drop
• Hi-resolution LCD for clear visibility in environments with low ambient lighting
• Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)

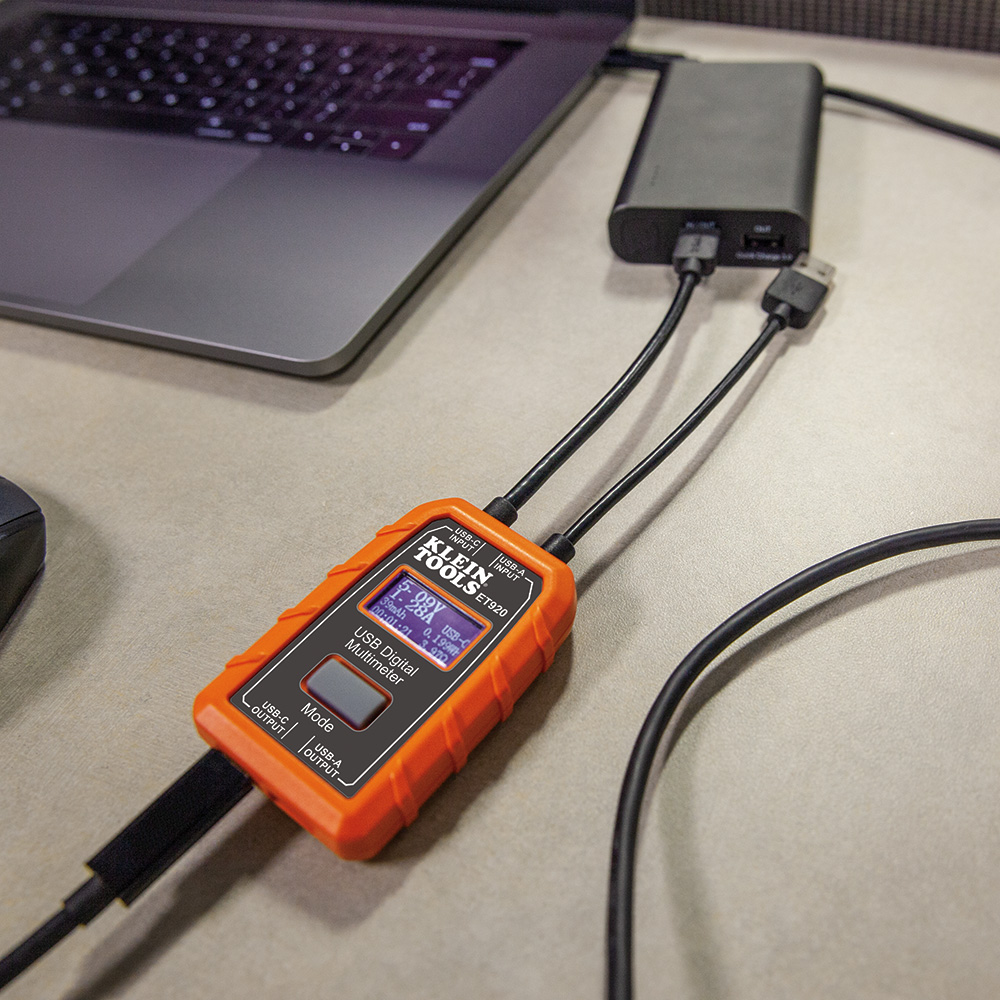

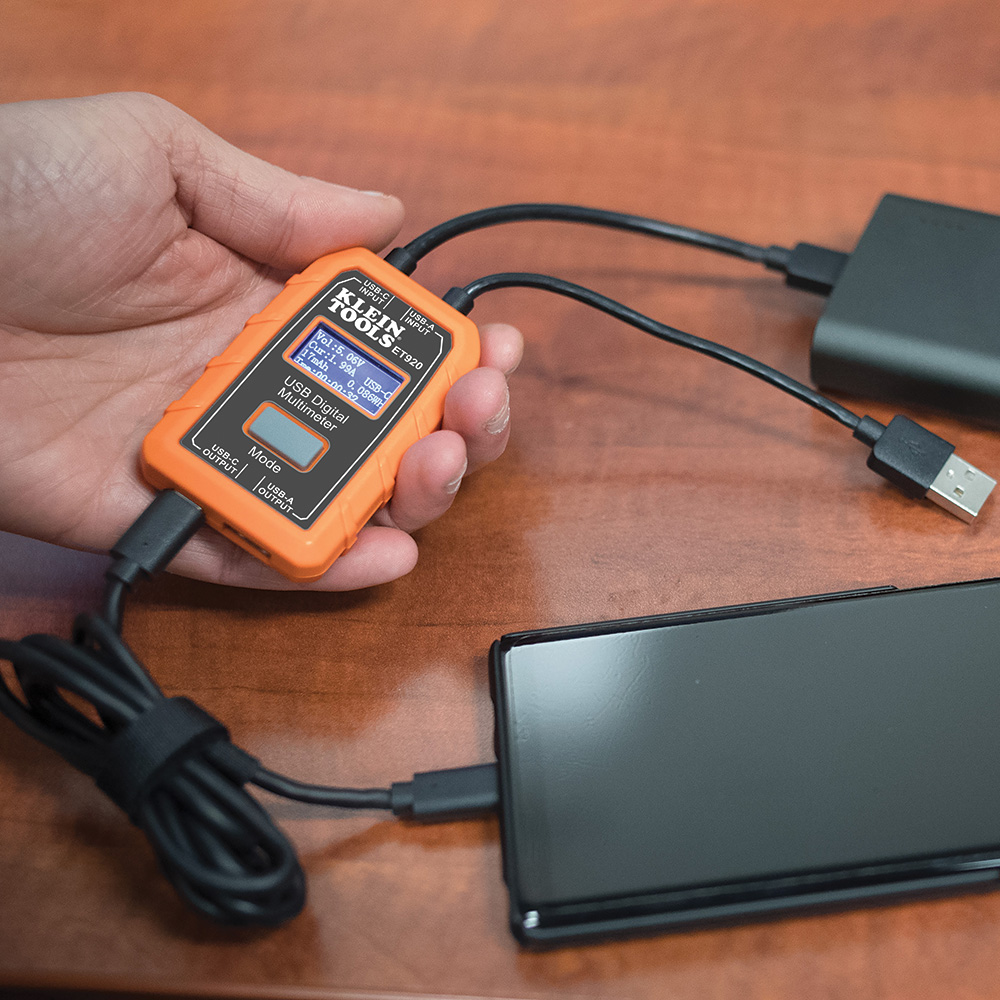

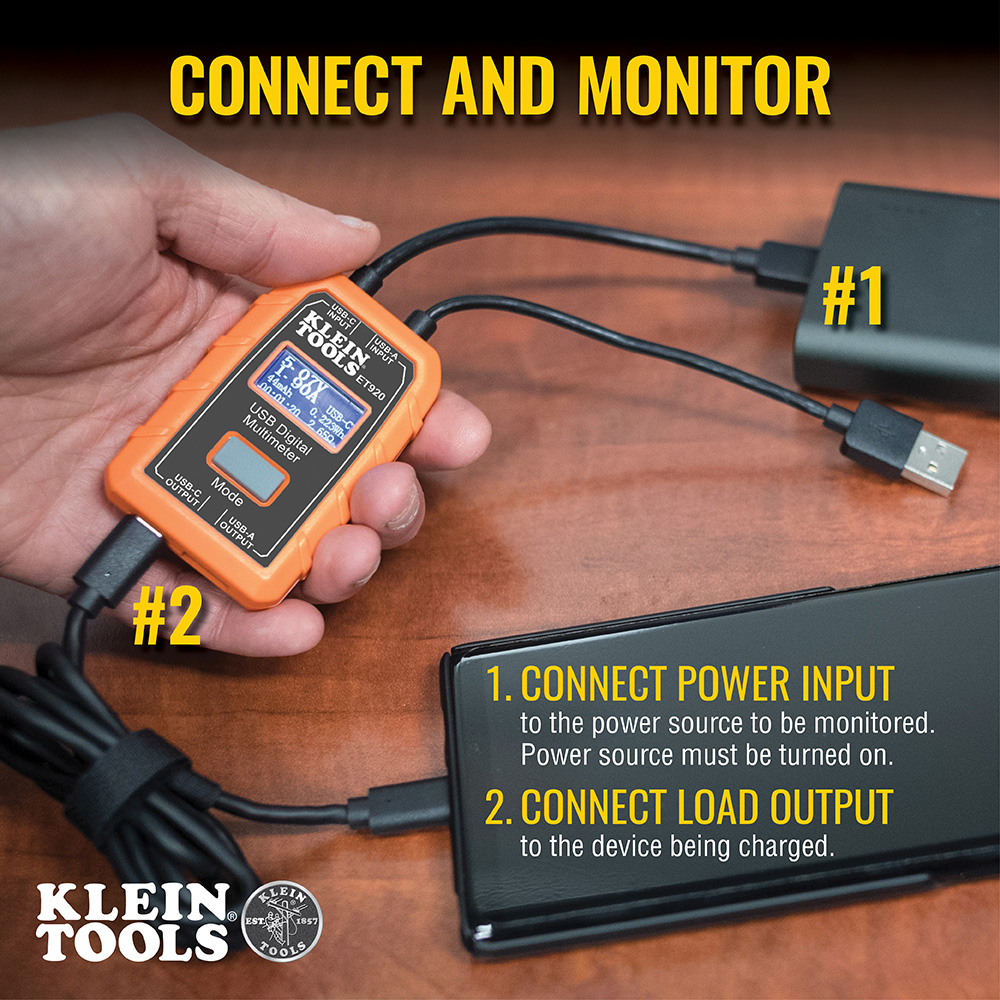

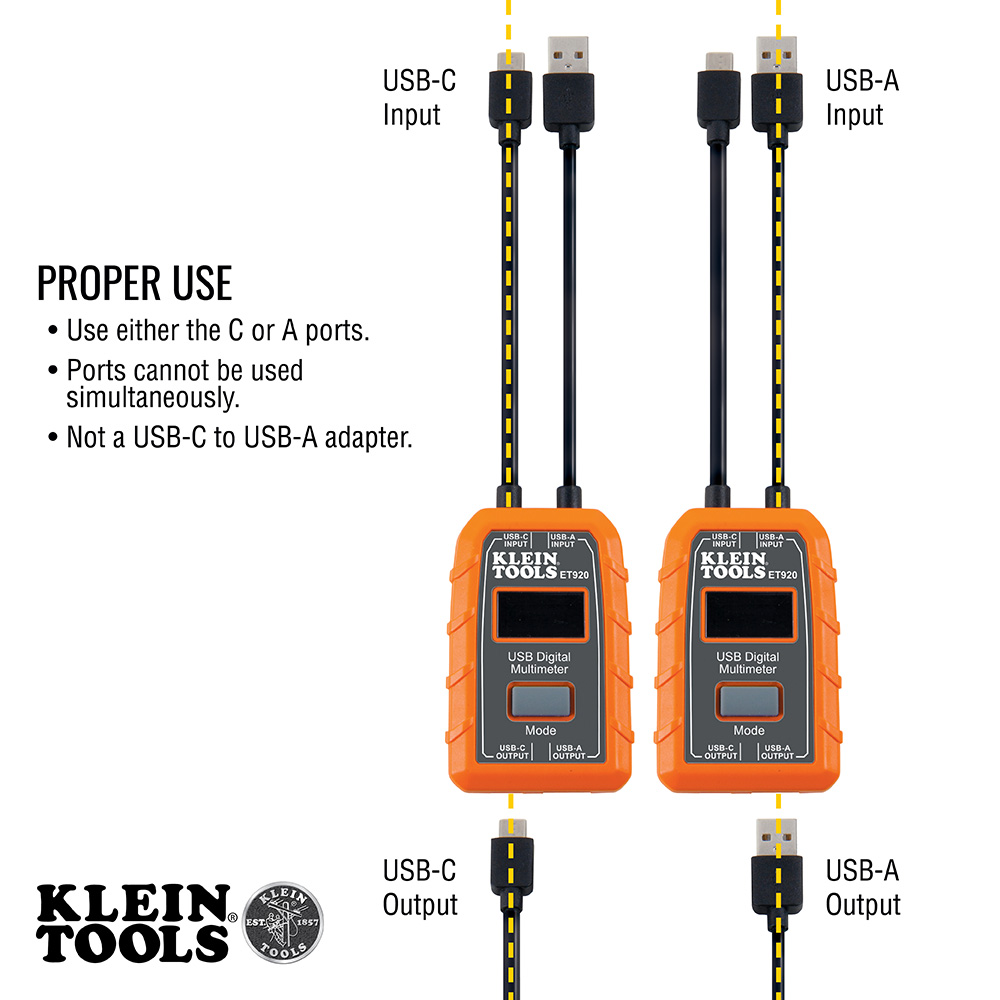

• Device must be used in line between source being measured and power source
• No batteries needed; powered by the USB port being tested
• Tests most common standard USB-A or USB-C ports, including Qualcomm Quick Charge® ports

Warnings

• To ensure safe operation and service of this meter, follow all instructions. Failure to observe warnings can result in severe injury or death.
• Do NOT use during electrical storms or in wet weather. Do NOT use if meter appears damaged. Use caution when working with voltages above 25V RMS or 24V DC. Such voltages pose a shock hazard.
• This meter will NOT display current below 50 milliamperes, even if it is allowing this to pass through. NOTE: The display will show zero current.
• Do NOT use with ports that operate outside of the rated voltage and current. NEVER use on a circuit with voltage or current that exceeds the maximums specified for this device.

Specifications

• Display: LCD
• Overall Length: 2.96" (7.5 cm)
• Capacity Used: 99,999mAh Maximum
• Current: USB-A - 0.05 to 3A; USB-C - 0.05-5A
• Resistance: 400 ohms Maximum
• Weight: 0.1070 lbs
• USB Compatibility: USB-A, USB-C; Qualcomm Quick Charge® Compatible
• Depth: 9.0400 in
• Width: 1.9500 in
• Drop Protection: 2 m (6.6')
• Height: 0.5300 in
• Type: USB-A (Type A) and USB-C (Type C)
• Overall Height: 0.6" (1.5 cm)
• Energy Delivered: 999Wh Maximum
• Application: USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
• Ingress Protection: IP20
• Material: Polymer
• Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
• Overall Width: 1.96" (5 cm)
• Voltage: 3 to 20V DC
