Block and Tackle, Blocks H267/H268, Anchor Hook 258

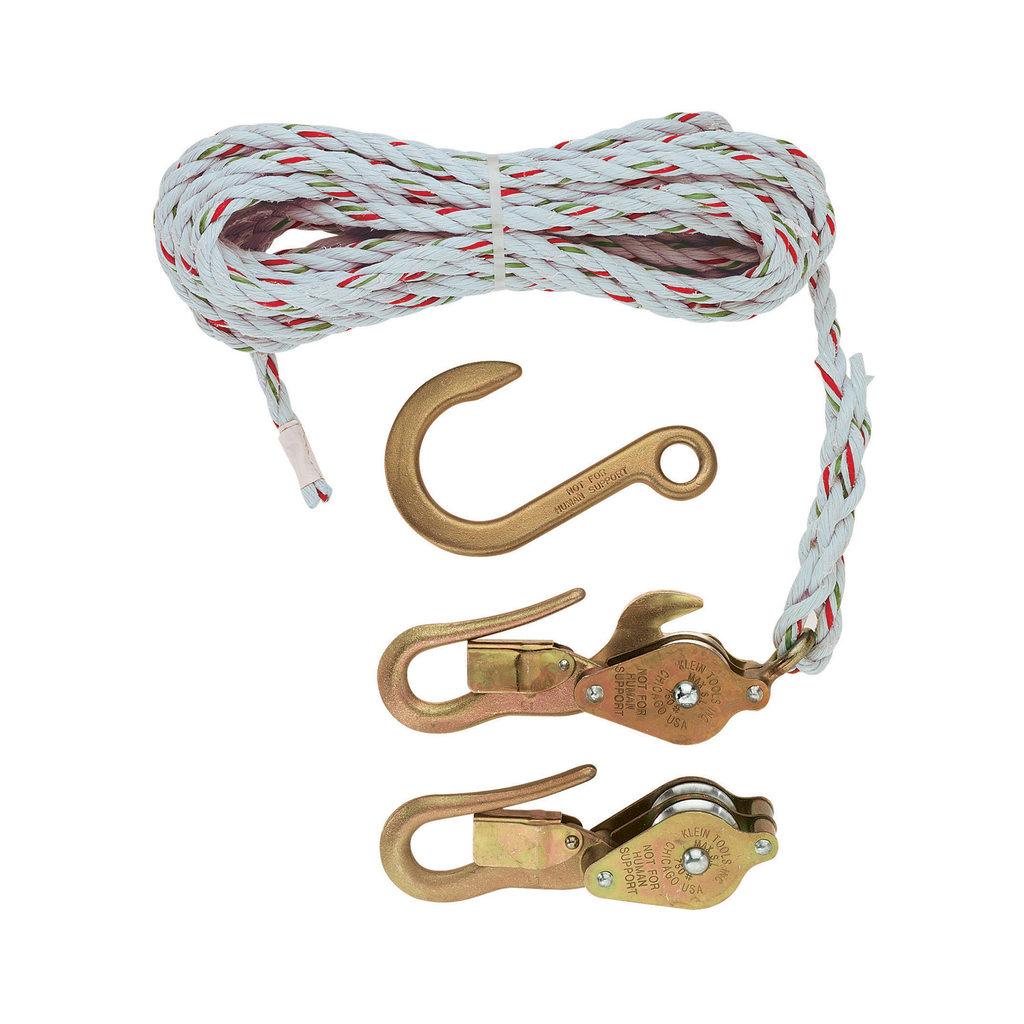

All Klein block and tackle use high-quality, 3/8-Inch (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with a forged standard Klein hook Cat. No. 258 with a maximum safe load is 750-pound (340 kg).

Features

• 25 ft (7.62 m) rope length

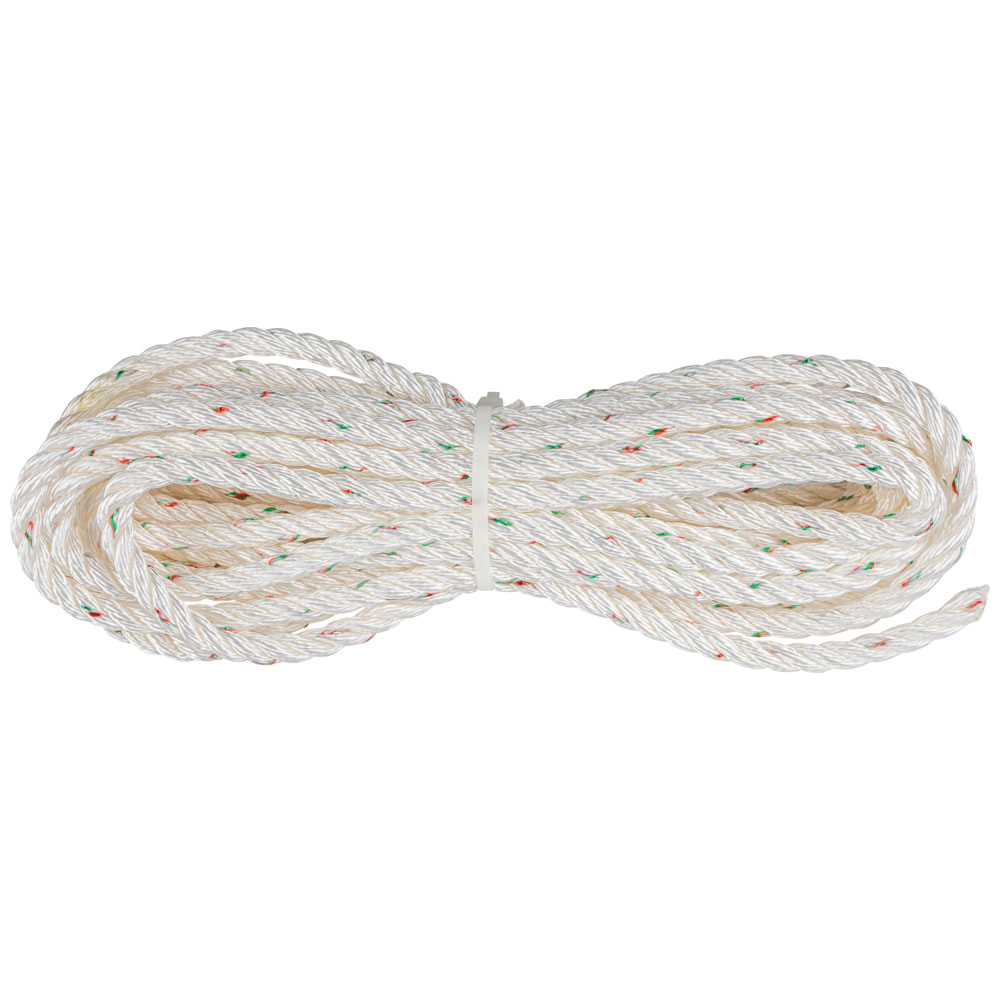

• All Klein block and tackle use high-quality, 3/8-Inch (1 cm) diameter rope
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
• Made in USA
• Hooks fit under insulator and engage pin on cross arm
• Maximum safe load is 750 lbs. (340 kg)

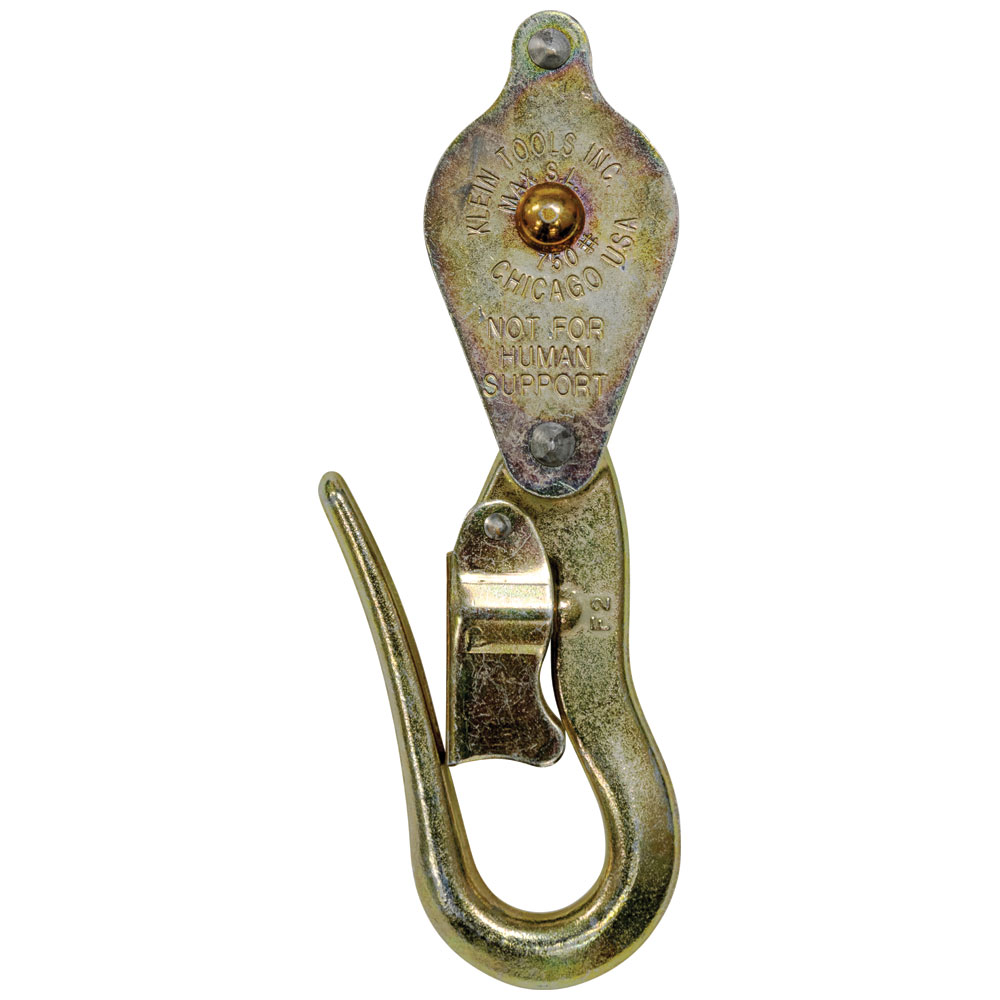

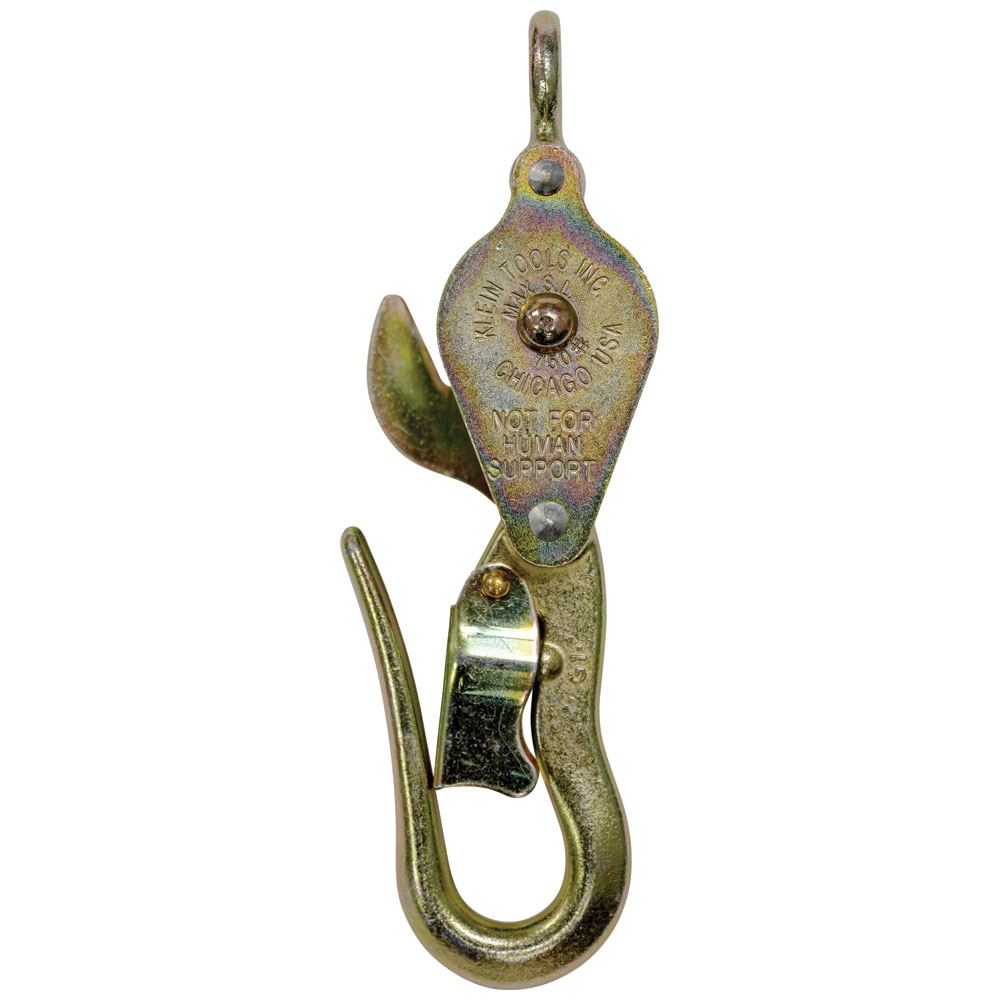

• Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load

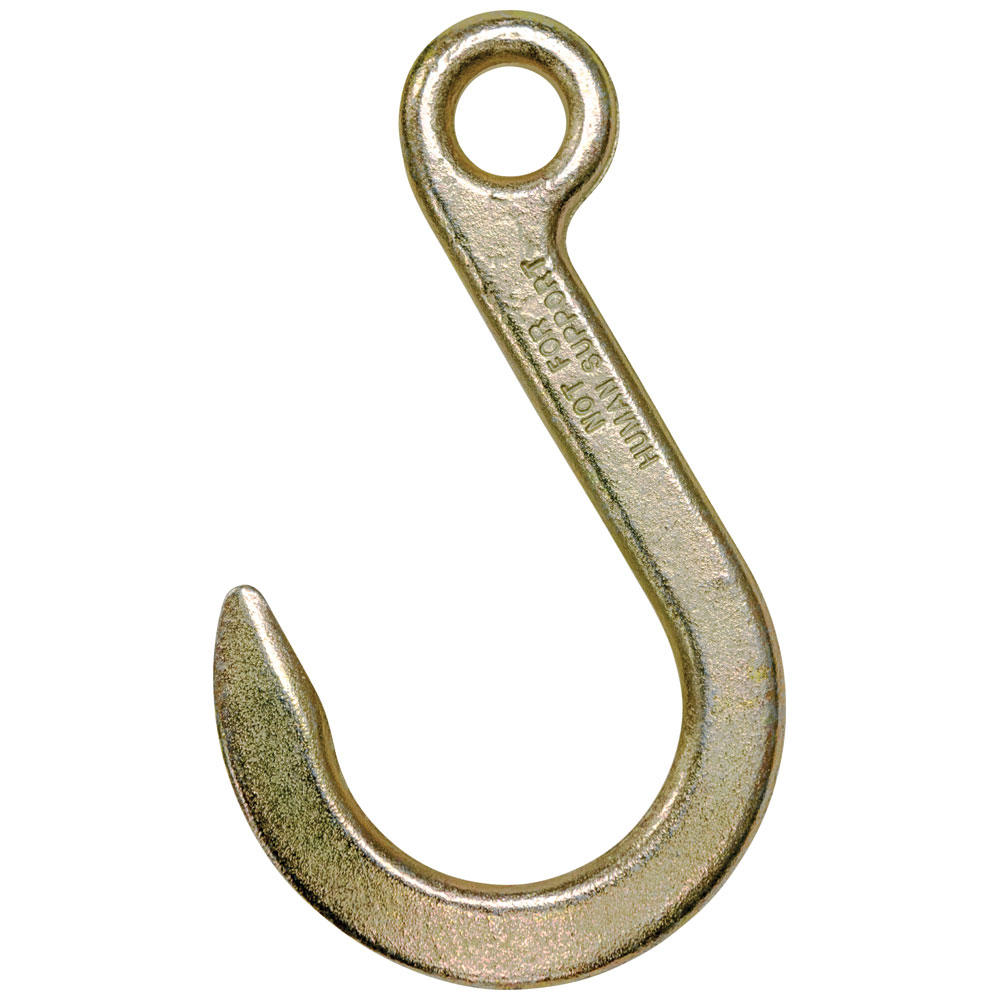

• Forged hook Cat. No. 258
• These are NOT occupational protective hooks. NOT for human support

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Specifications

• Hook Type: Guarded
• Rope Length: 25 Feet (7.6 m)
• Rope Diameter: 3/8" (9.53 mm)
• Overall Width: 5.85 Inch (14.9 cm)
• Overall Length: 14.85 Inch (37.7 cm)
• Width: 5.8500 in
• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Rope Material: Nylon
• Maximum Safe Load: 750 lb (340.2 kg)
• Height: 7.4700 in
• Overall Height: 7.47 Inch (19 cm)
• Weight: 2.9000 lbs
• Depth: 14.8500 in
