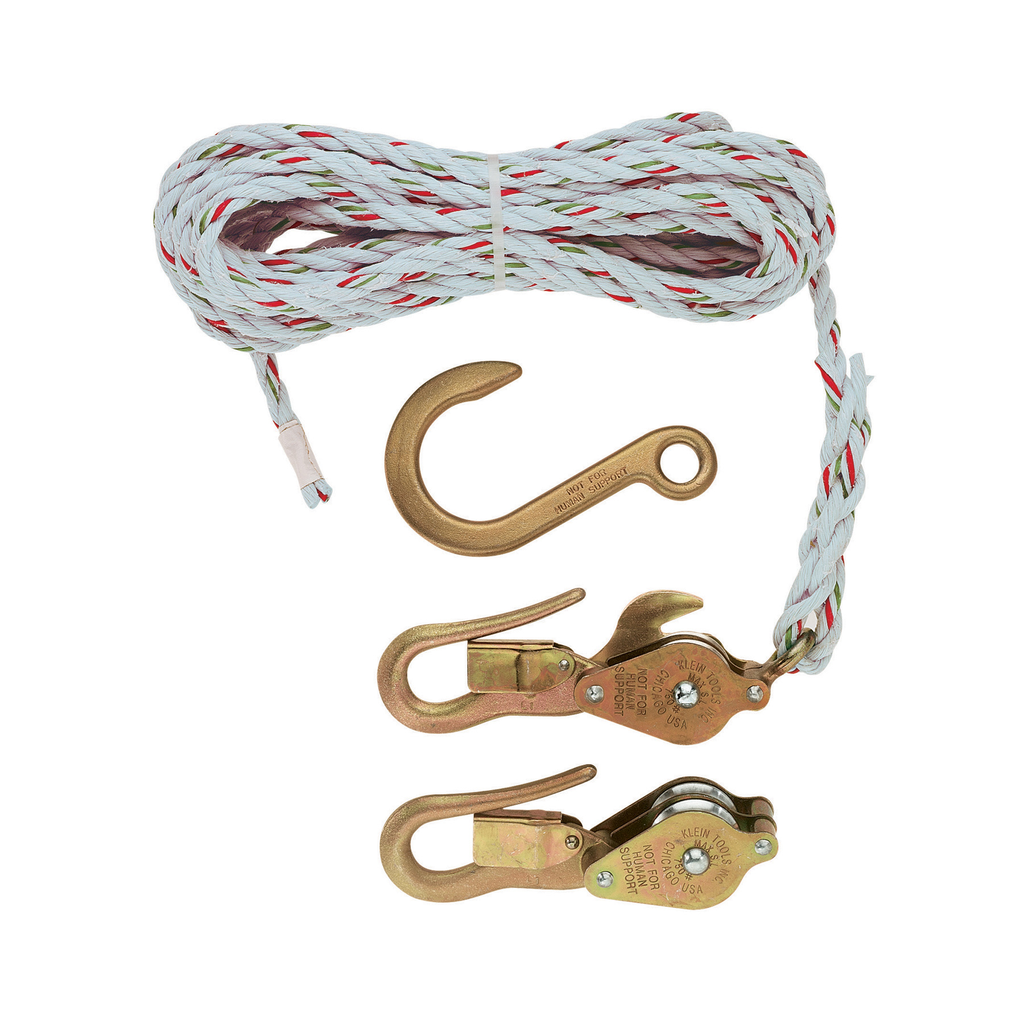

Block and Tackle, Spliced to H268, Block H267, Anchor Hook 258

All Klein block and tackle use high-quality, 3/8'' (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with an anchor hook with a maximum safe load is 750 lbs. (340 kg).

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Features

• Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
• Made in USA
• Maximum safe load is 750-pound (340 kg)
• These are NOT occupational protective hooks. NOT for human support
• 25-foot (7.62 m) rope length is spliced to the block
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
• Hooks fit under insulator and engage pin on cross arm

Specifications

• Overall Length: 12.33
• Maximum Safe Load: 750 lb (340 kg)
• Overall Height: 4.41
• Included: H268 Block; 258 Anchor Hook; 25' Rope
• Rope Material: Nylon
• Rope Length: 25'
• Weight: 2.7500 lbs
• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Hook Type: Guarded
• Height: 4.4100 in
• Depth: 12.3300 in
• Rope Diameter: 3/8" (9.53 mm)
• Width: 4.5000 in
• Overall Width: 4.5
