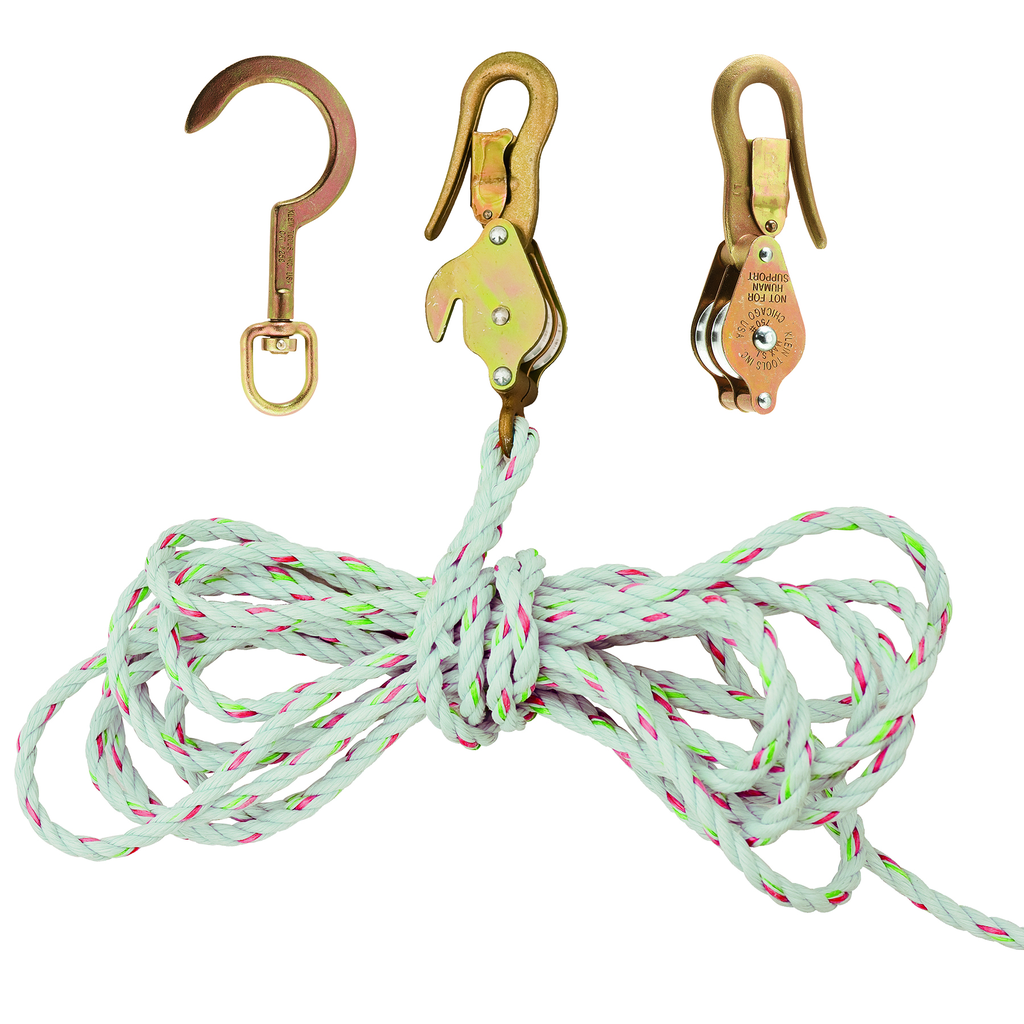

Block and Tackle, Spliced to H268, Block H267, Swivel Anchor Hook 259

All Klein block and tackle use high-quality, 3/8'' (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with a swivel anchor hook with a maximum safe load is 750 lbs. (340 kg).

Features

• Hooks fit under insulator and engage pin on cross arm
• Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
• Made in USA
• 25-foot (7.62 m) rope length is spliced to the block
• These are NOT occupational protective hooks. NOT for human support
• Available with a guarded snap hook with the nose lengthened to extend over the latch or keeper

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Specifications

• Material: Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
• Width: 3.0000 in
• Maximum Safe Load: 750 lb (340 kg)
• Hook Type: Guarded
• Included: H268 Block; 259 Snap Hook; 25' Rope
• Rope Material: Nylon
• Depth: 300.0000 in
• Weight: 3.0000 lbs
• Height: 1.0000 in
• Rope Diameter: 3/8" (9.53 mm)
• Rope Length: 25'
