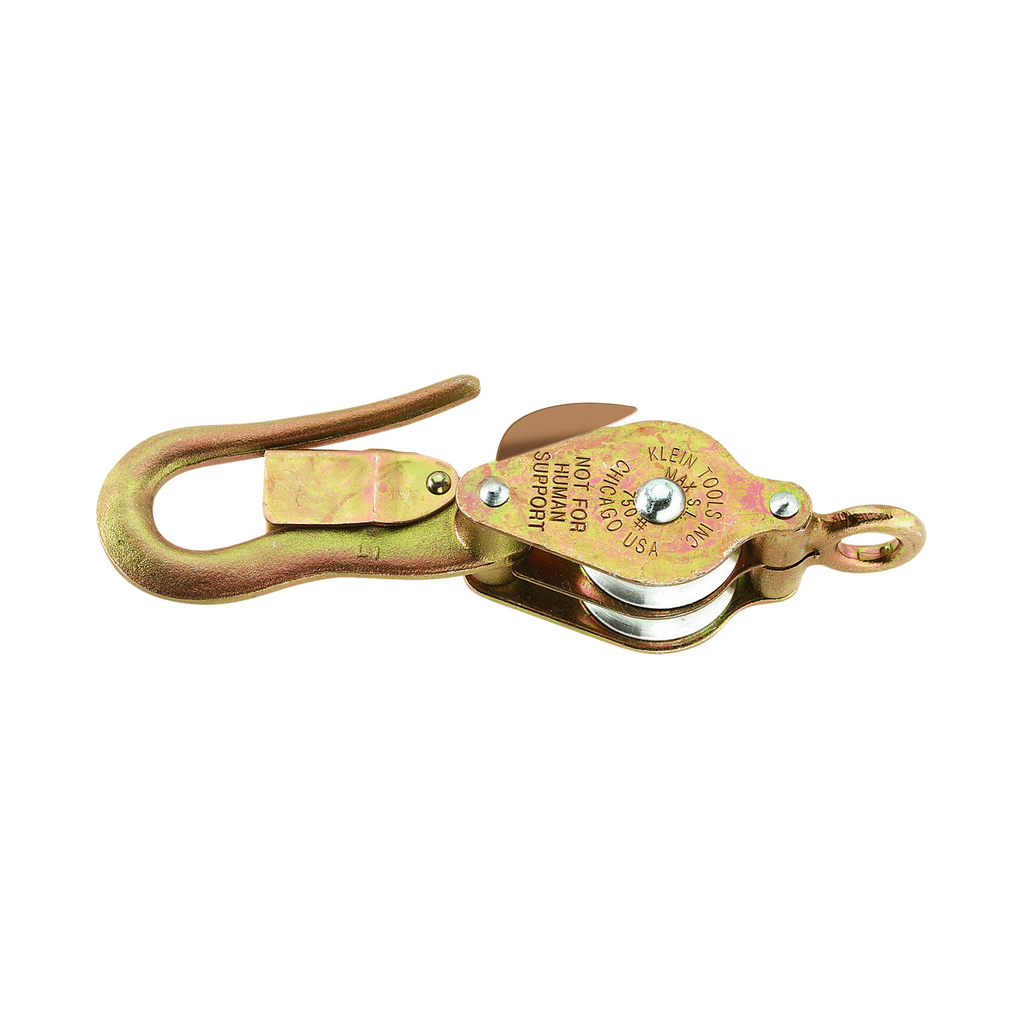

Block with Eye and Nose Extended Over Keeper

This block features an eye to splice line to block and rope tie-off. Made of light galvanized steel and aluminum alloy. The sheaves have bronze bushings for long life.

Features

• Nose Extended Over Keeper
• Hooks fit under insulator and engage pin on cross arm
• Block without ropes and hooks and nose extended over keeper
• These are NOT occupational protective hooks. NOT for human support
• Made in USA
• Sheaves have bronze bushings
• Maximum safe load is 750-pounds (340 kg)

Warnings

• These are NOT occupational protective devices. Do NOT use for human support.

Specifications

• Overall Length: 15.2 cm (6 Inch)
• Maximum Safe Load: 340.2 kg (750 lb)
• Depth: 6.0000 in
• Material: Bronze Bearing
• Width: 2.0000 in
• Overall Width: 5.1 cm (2 Inch)
• Weight: 1.0000 lbs
• Type: Block with Eye
• Overall Height: 1 Inch (2.5 cm)
• Height: 1.0000 in
