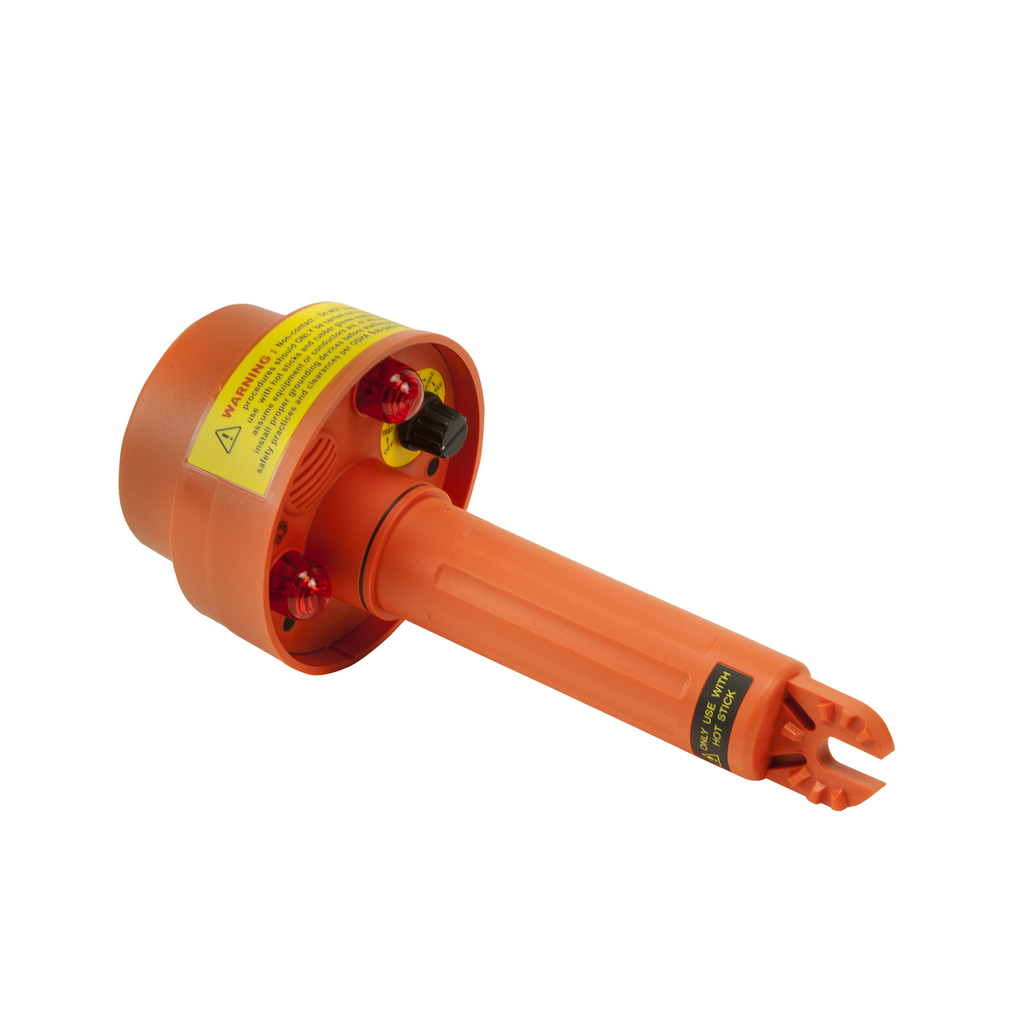

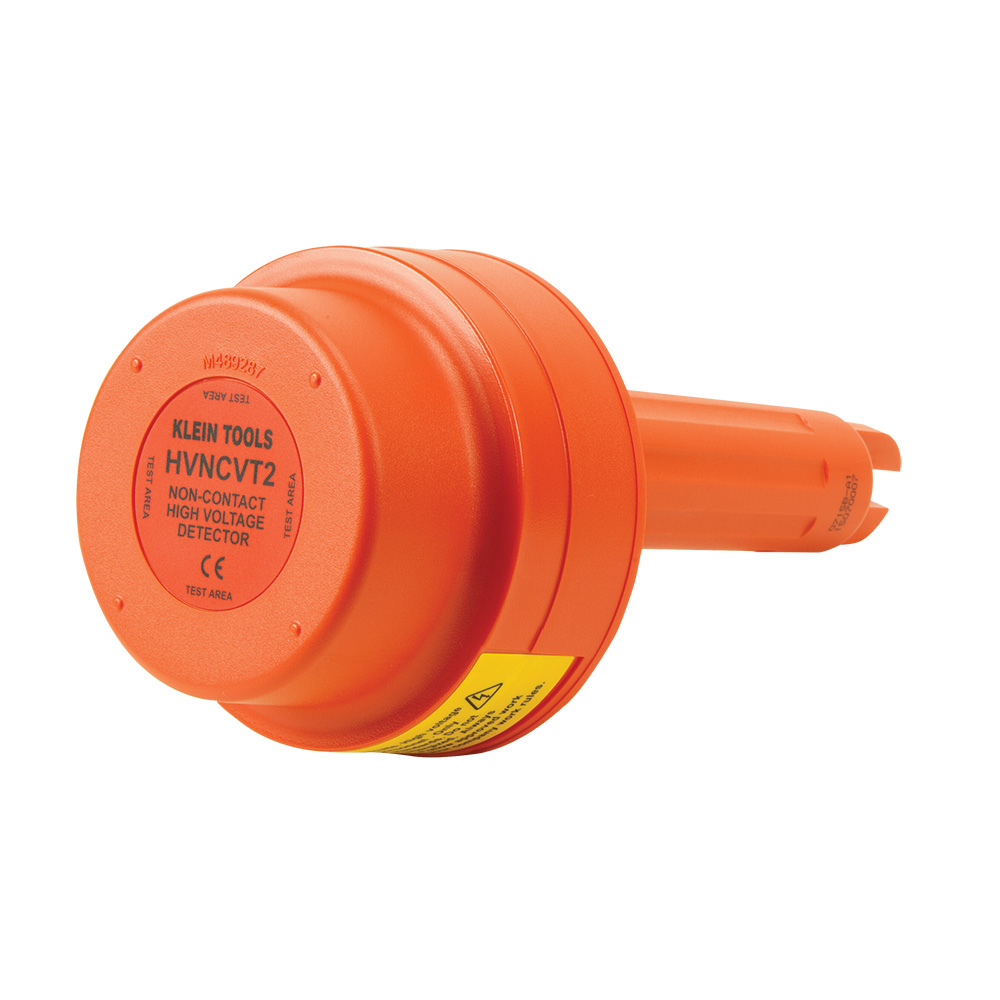

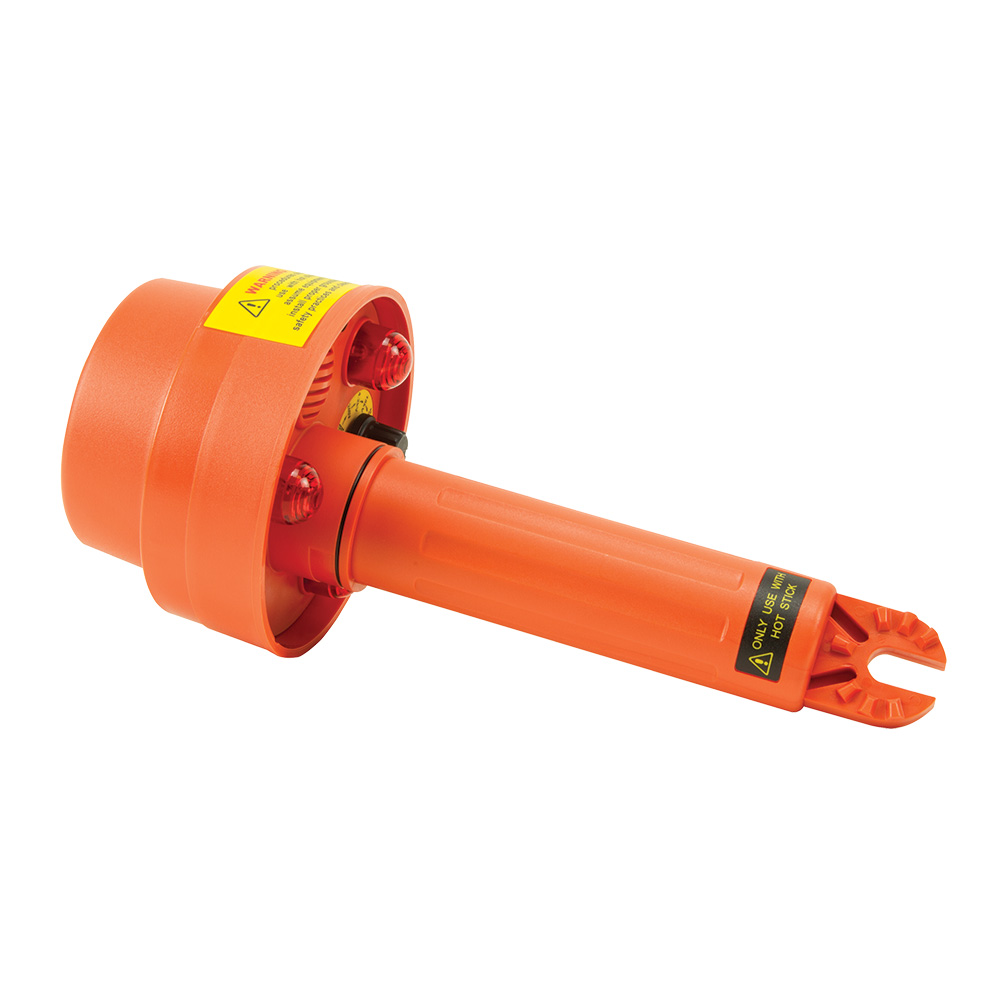

Broad Range Non-Contact Voltage Tester

Klein's Broad-Range High-Voltage Non-Contact Tester detects voltage up to 230kV AC in overhead conductors. The tester indicates the presence of voltage through multiple sensitivity levels with both audible and visual signals. Attach the tester directly to a hot stick or use the universal adapter to attach it to your shotgun.

Features

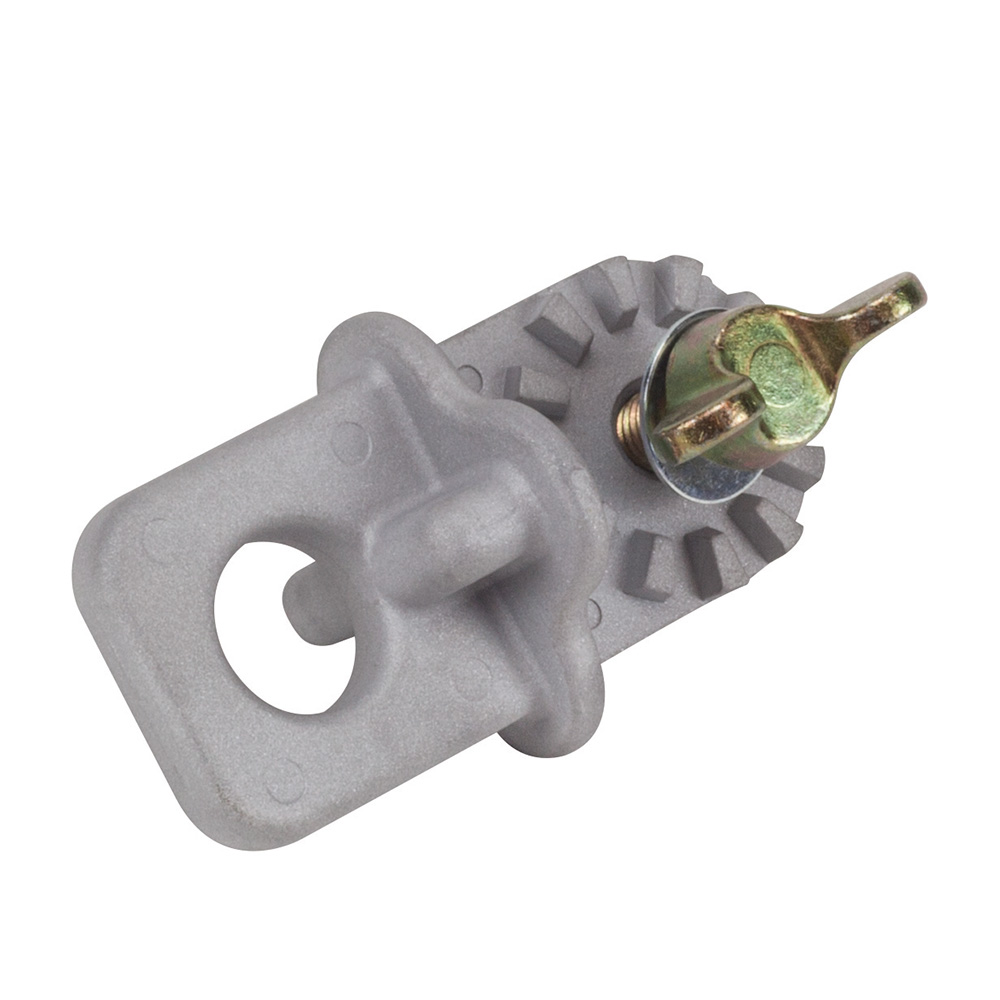

• Includes durable carrying case and universal/shotgun adapter
• Water resistant
• Audible and visual signals indicate the presence of voltage

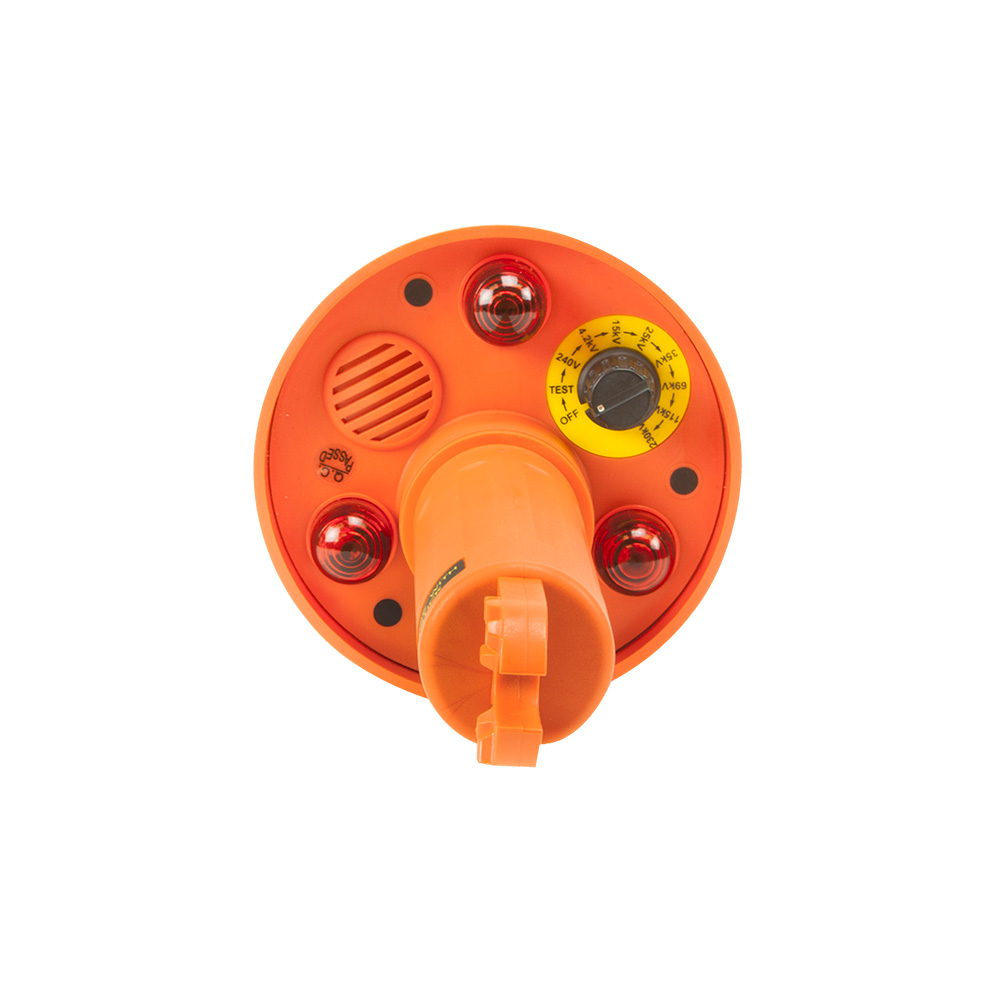

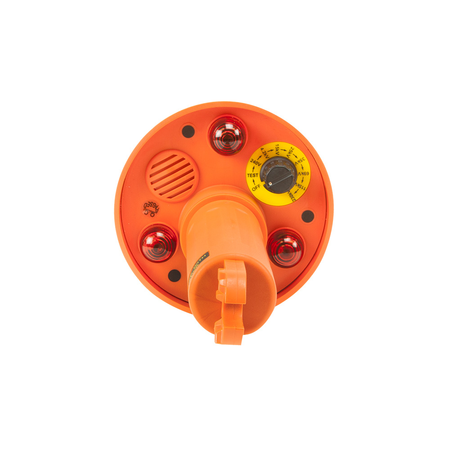

• 7 sensitivity ranges up to 230kV AC (240V, 4.2kV, 15kV, 25kV, 35kV, 69kV, 115kV, 230kV)
• Use to check for the presence of voltage in overhead conductors or to find faults in cables
• Indicates The Presence of Voltage With Both Audible and Visual Signals

Warnings

• Always wear approved eye protection.

Specifications

• Application: Detects Voltage Up to 230kV AC in Overhead Conductors
• Included: Tester; Carrying Case; Universal/Shotgun Adapter
• Weight: 1.3700 lbs
• Depth: 10.4000 in
• Voltage: Up to 230kV AC
• Overall Length: 10.39 Inch (26.4 cm)
• Type: Broad-Range
• Width: 9.0000 in
• Height: 4.8600 in

Downloads

Instructions
