Dual IR/Probe Thermometer

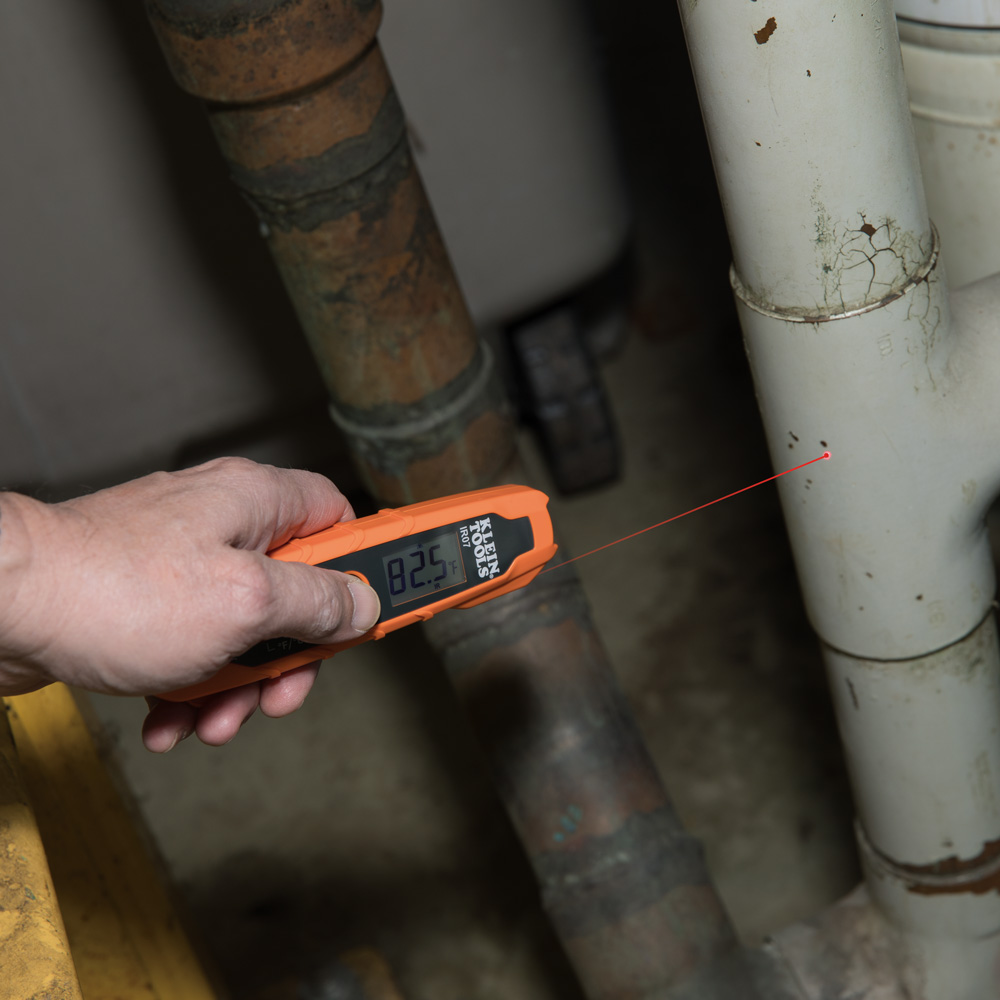

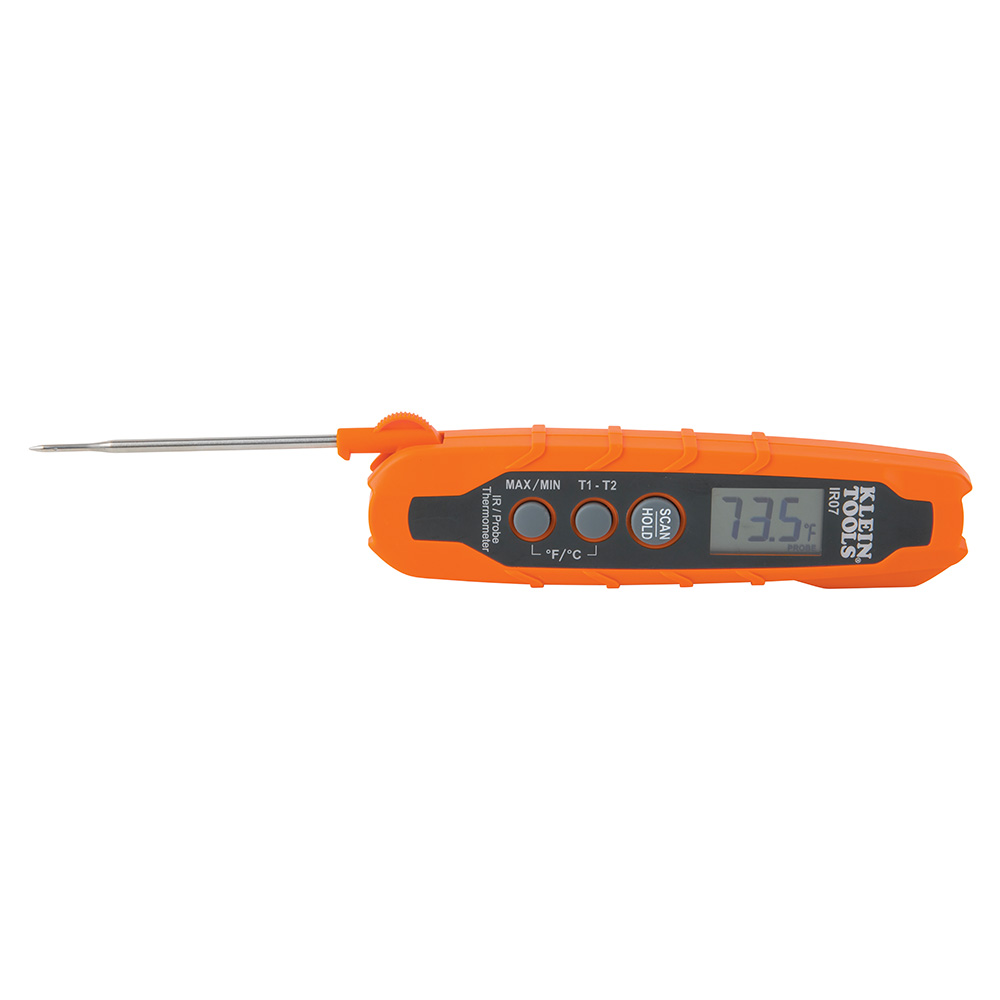

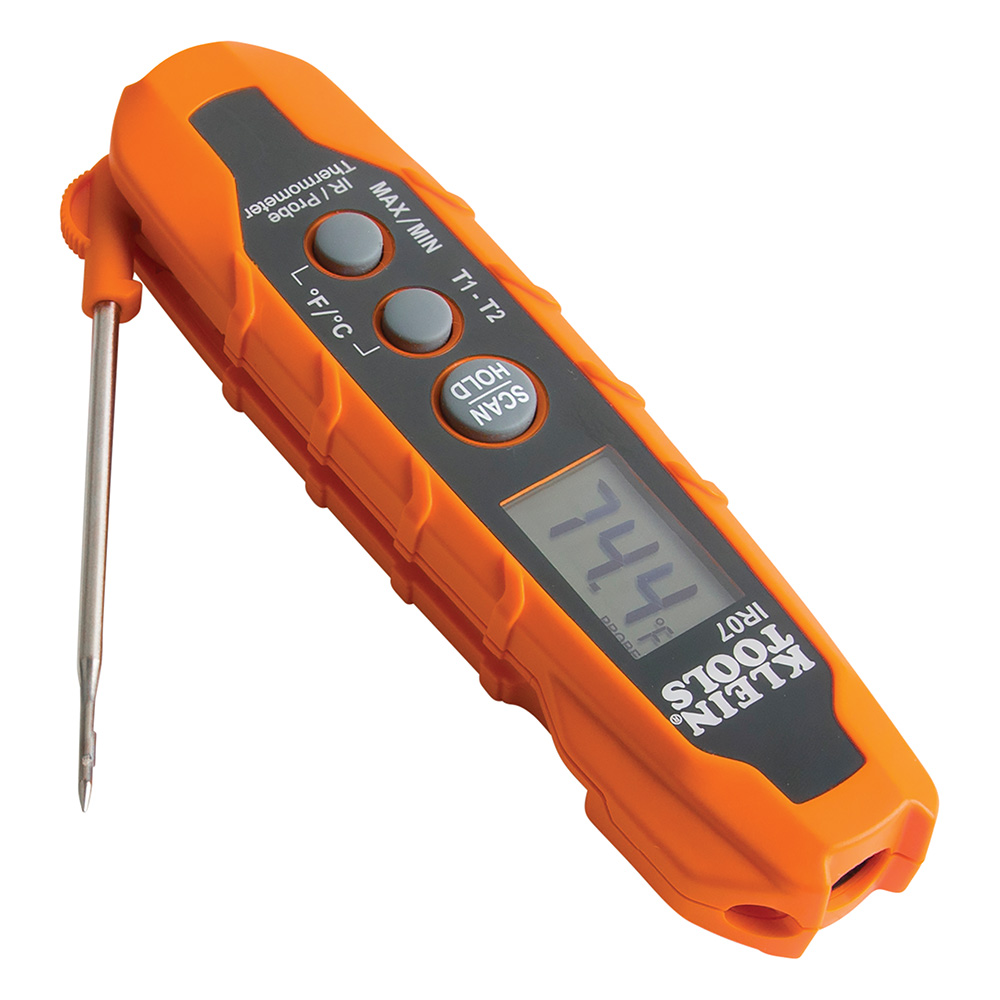

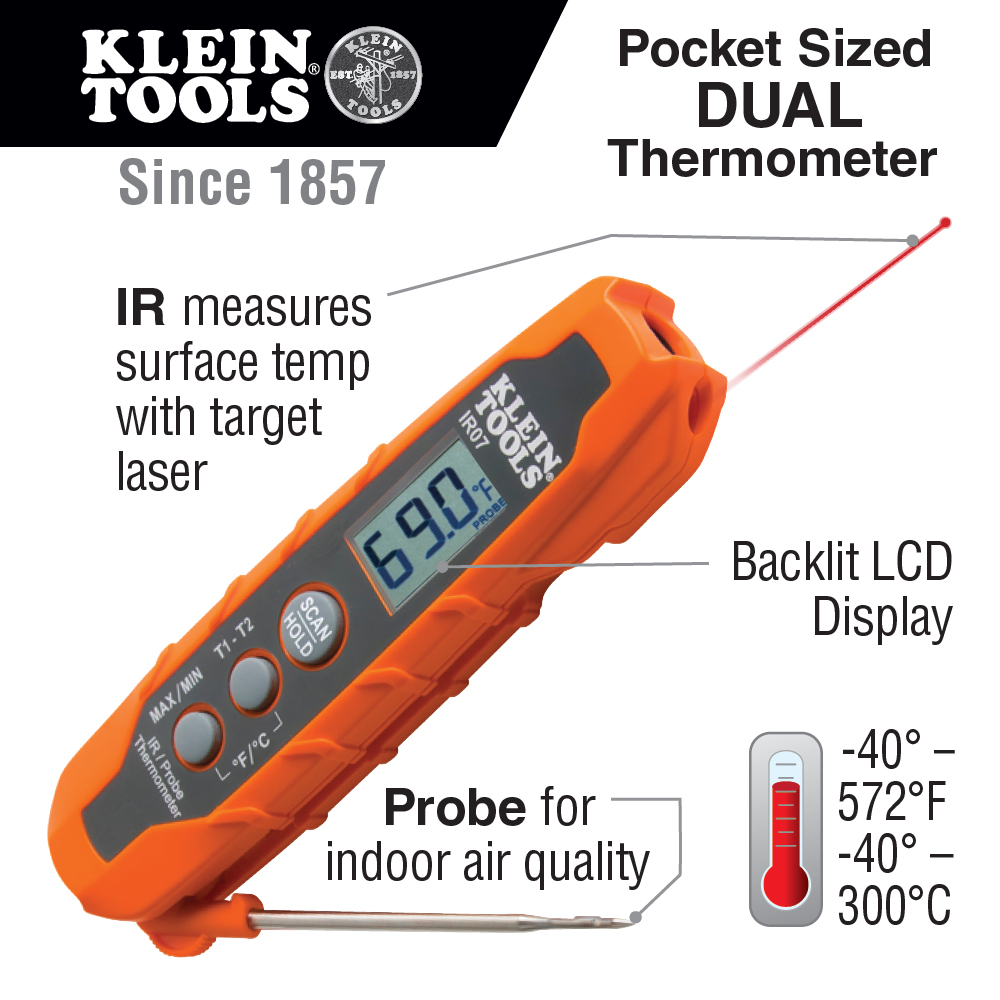

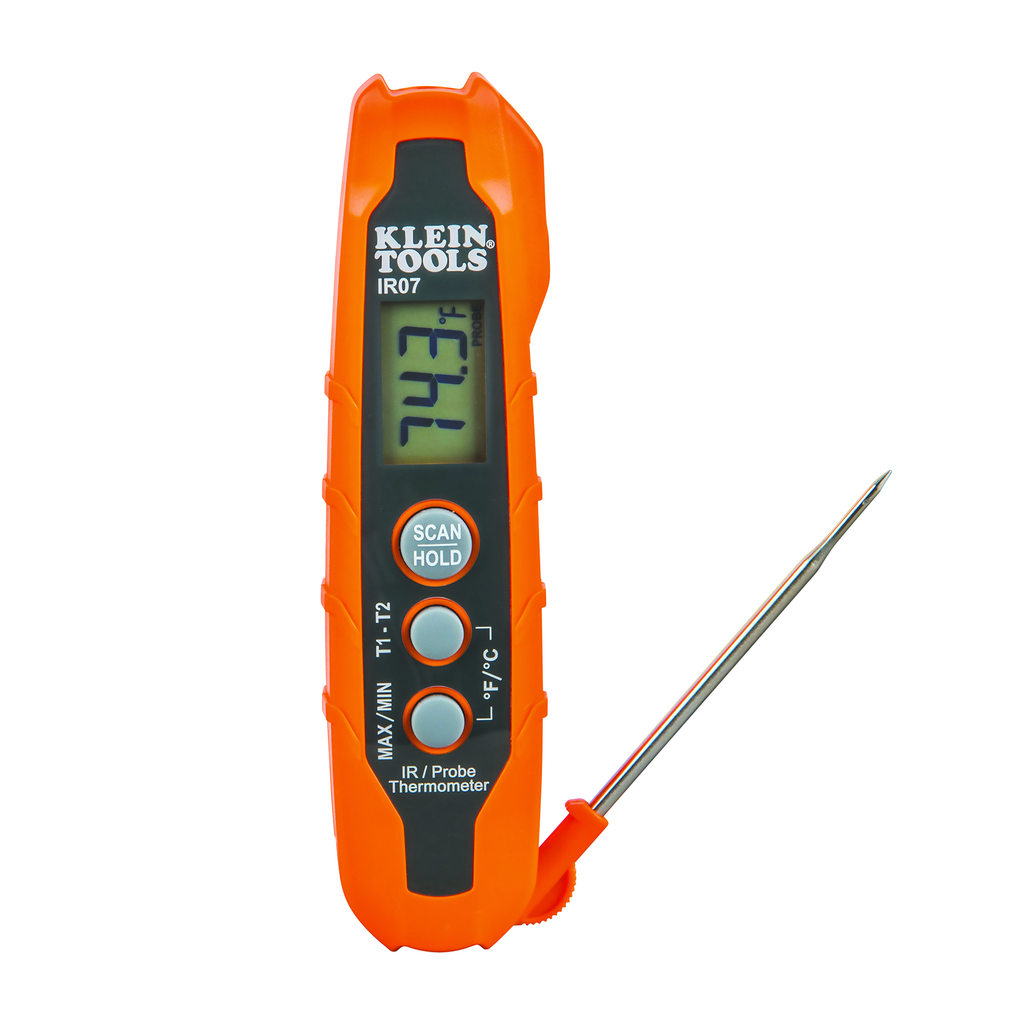

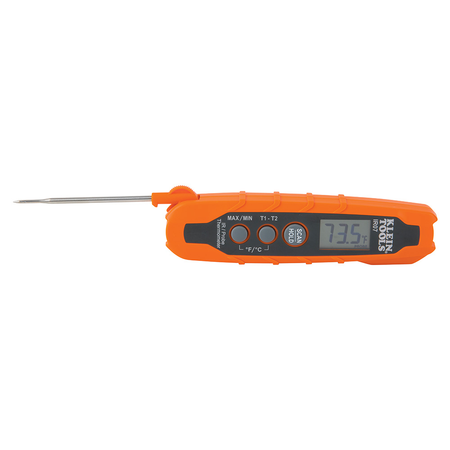

The Klein Tools IR07 is a dual IR (infrared) thermometer and probe thermometer. This rugged pocket thermometer measures temperature from -40 to 572-Degrees Fahrenheit (-40 to 400-Degrees Celsius) for both IR and probe measurements. The IR thermometer has a Distance-to-Spot ratio of 8:1 and the target laser can also be used as a laser pointer. The Probe accurately measures air, liquid and surface temps and has a convenient hook for hands free indoor measurements. The IR07 quickly calculates differential temperature (T1-T2) and has a backlit LCD for easy viewing in low light.

Warnings

• Do not direct laser beam into eyes, as this can cause permanent eye damage.
• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Thermometer is NOT intended for use on people or animals.

Features

• Stainless steel probe is FDA GRAS compliant
• Temperature probe also can measure liquid temperatures
• Quickly calculates differential temperature (T1-T2) for both IR and probe temperatures

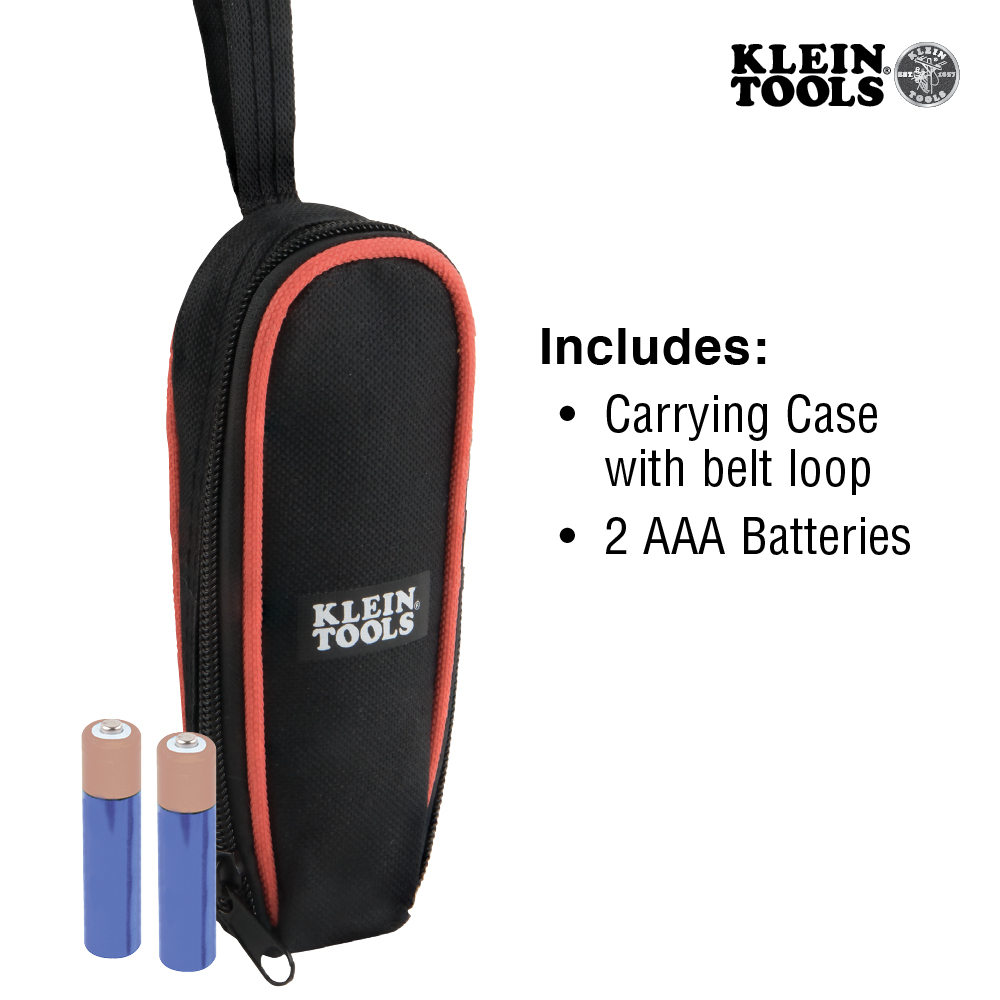

• Includes a pouch, owner's manual, and 2 x AAA batteries

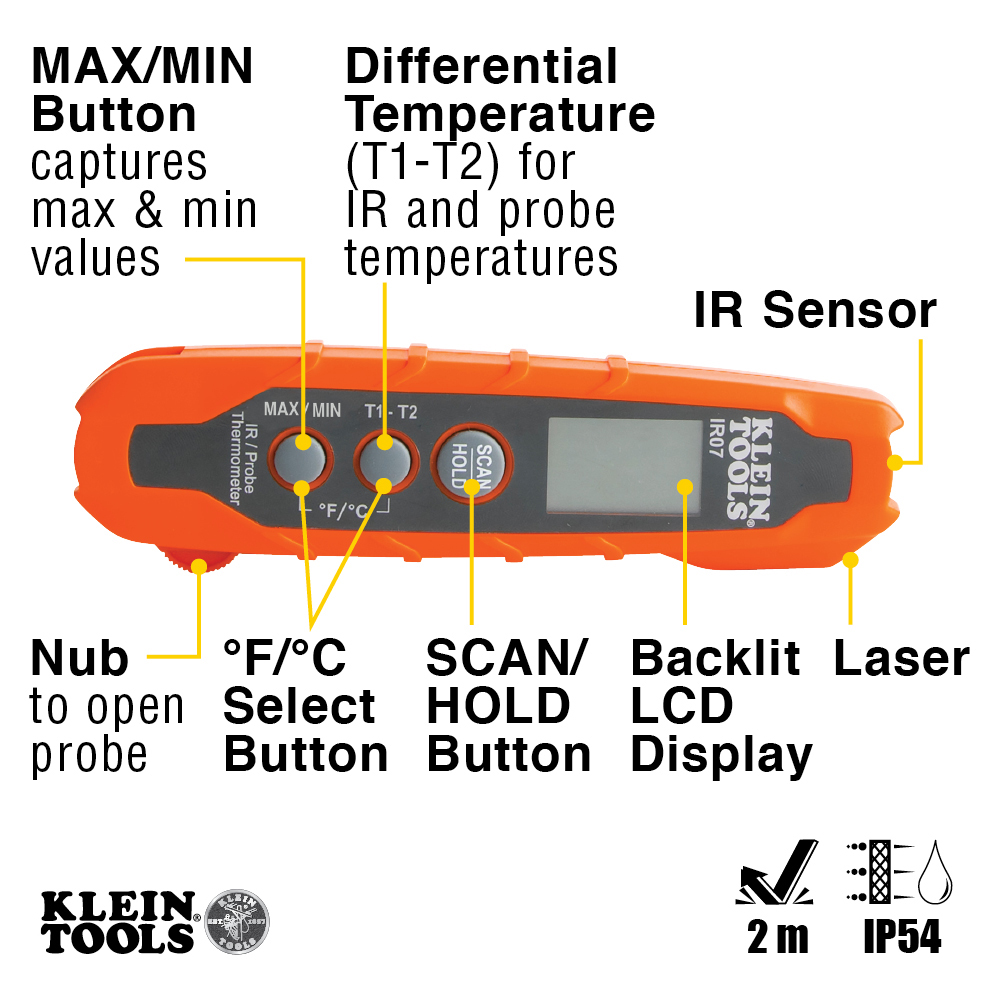

• Backlit display with Hold, Max/Min, APO, and Low Battery functions
• Not a medical device; thermometer is NOT intended for use on people or animals.
• Target laser may be used as a laser pointer
• Easy-open probe with nub to prevent temperature transfer while opening
• Accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)

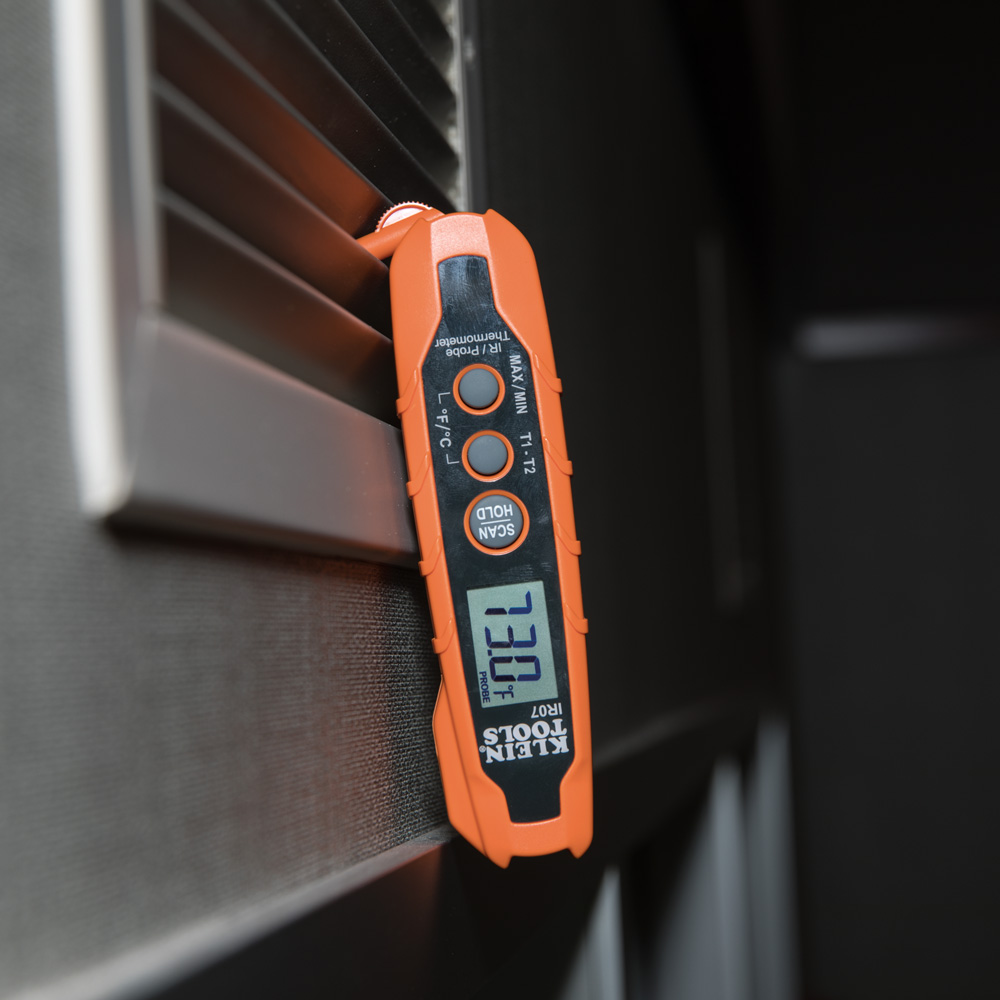

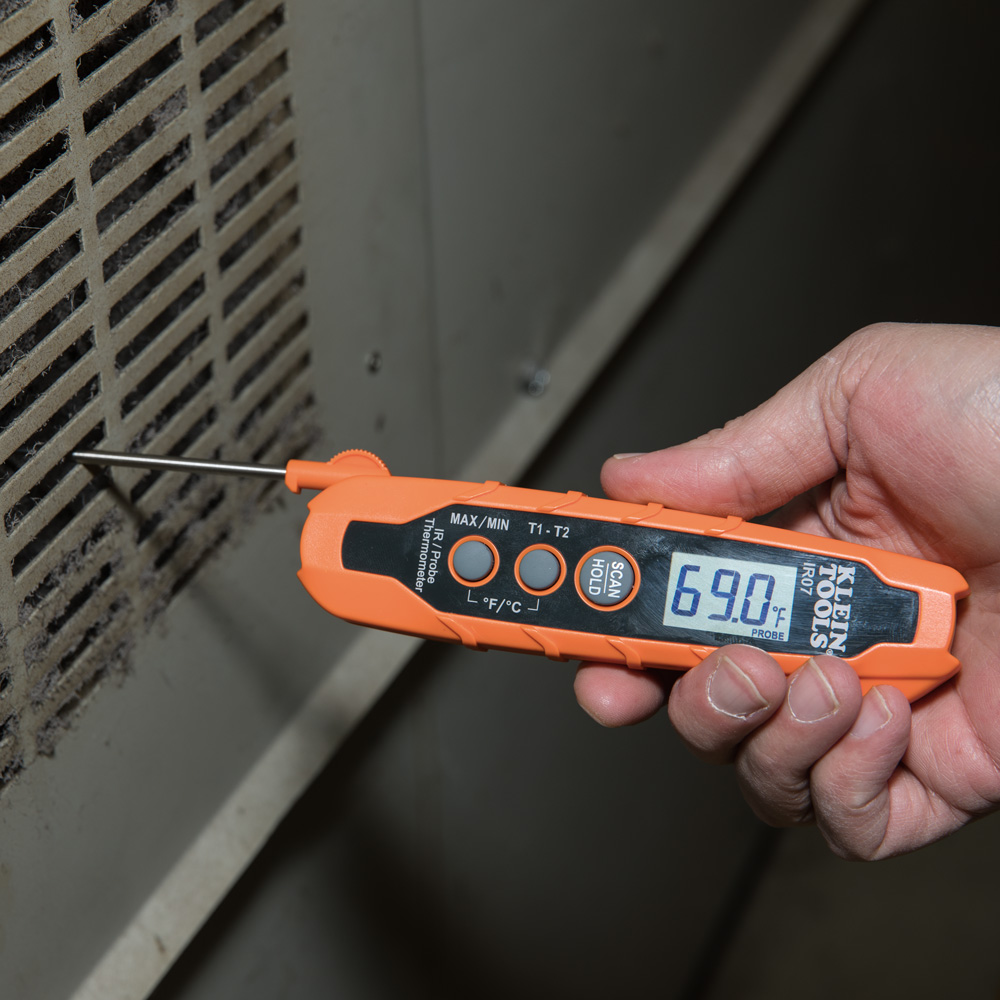

• Measure air vents and duct temperatures using temperature probe with hands-free hanging hook
• Pocket Sized, IR and Probe Thermometer; Hanging Hook for Use with Air Vents
• Certified to IEC EN 61326-1:2013; EN61326-2-3:2013
• Capable of measuring temperature from -40 to 572 Degrees Fahrenheit (-40 to 400 Degrees Celsius)

Specifications

• Height: 6.5000 in
• Weight: 0.0870 lbs
• Standard: IEC EN 61326-1:2013; EN61326-2-3:2013
• Display Resolution: 0.1
• Ingress Protection: IP54
• Material: ABS, Polycarbonate
• Overall Width (cm): 4.2
• Overall Length (cm): 14.8
• Overall Length (Inch): 5.82
• Weight (oz): 3.6
• Calculations: Differential Temperature Max/Min
• Display: Backlit LCD
• Overall Height (Inch): 0.95
• Overall Height (cm): 2.4
• Batteries: 2 x AAA
• Distance to Spot: 8 -1
• Depth: 1.0800 in
• Degree Format: Celsius and Fahrenheit
• Drop Protection: 2 m
• Overall Width (Inch): 1.67
• Response Time: IR <500 ms; Probe <20 s
• Weight (g): 102
• Application: Temperature Measurement via IR (Infrared) and Probe
• Range: -40° to 572° F (-40° to 300° C)
• Width: 0.9400 in
• Accuracy: -40 to 0° C - +/-2°; 1 to 300° C - +/- 1°C
• Included: IR07 Dual IR and Probe Thermometer; Pouch; Owner's Manual and 2 x AAA Batteries
• Type: Pocket Infrared Thermometer with Laser and Temperature Probe
