Infrared Digital Thermometer with Targeting Laser, 10:1

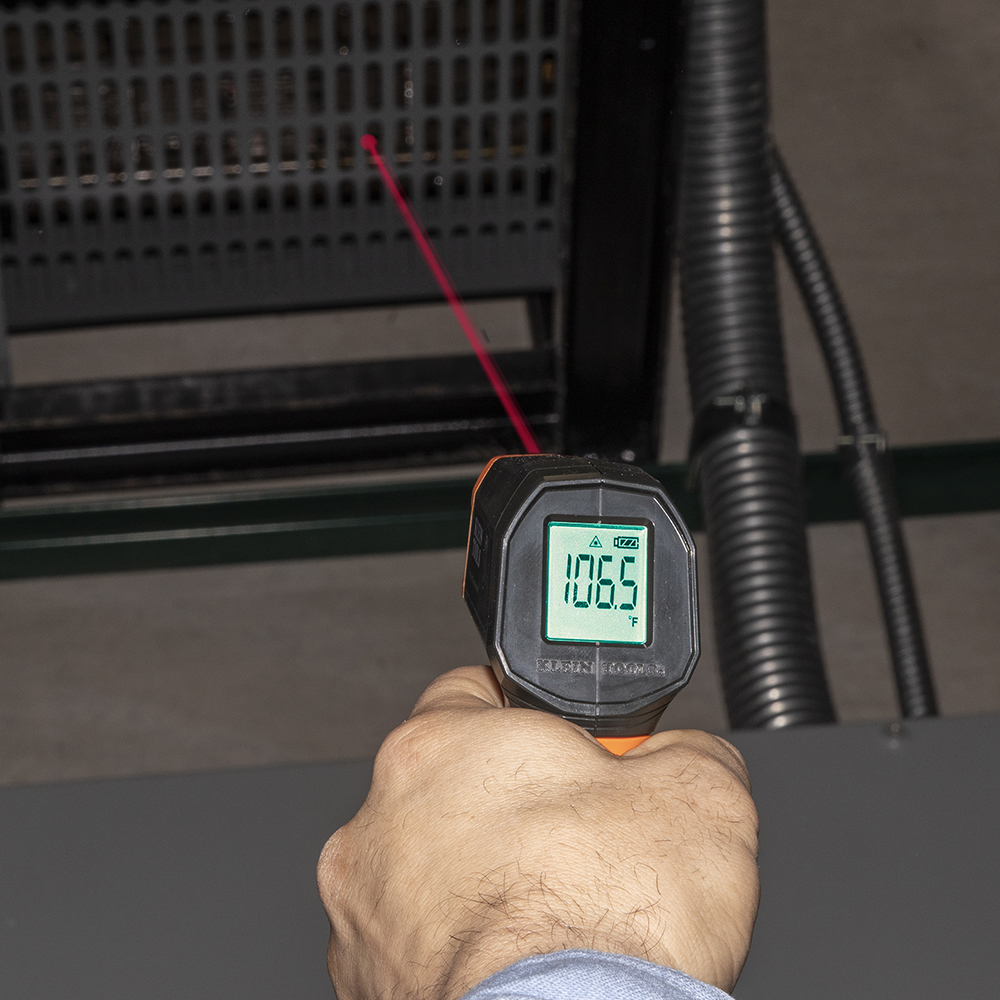

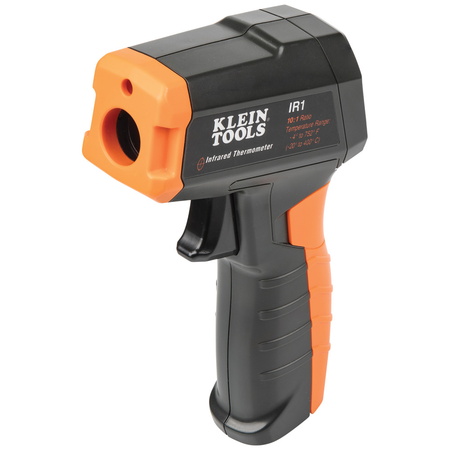

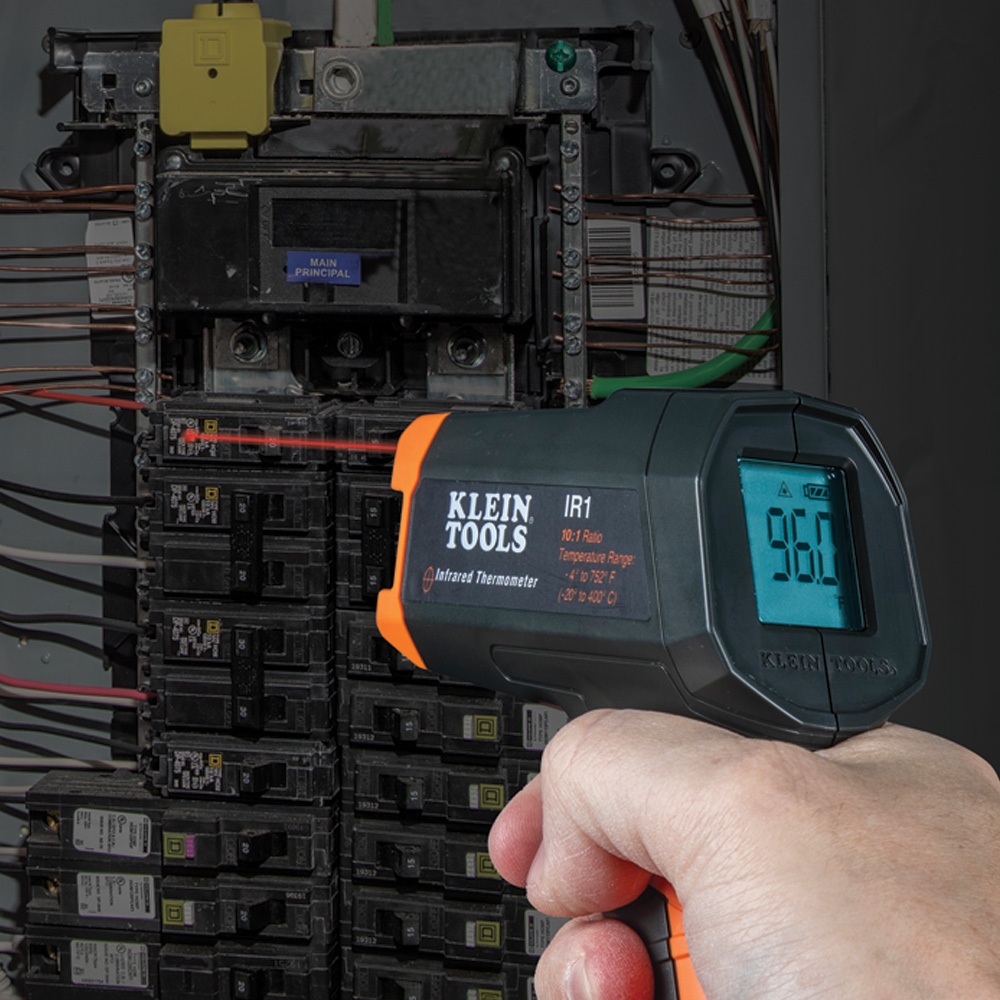

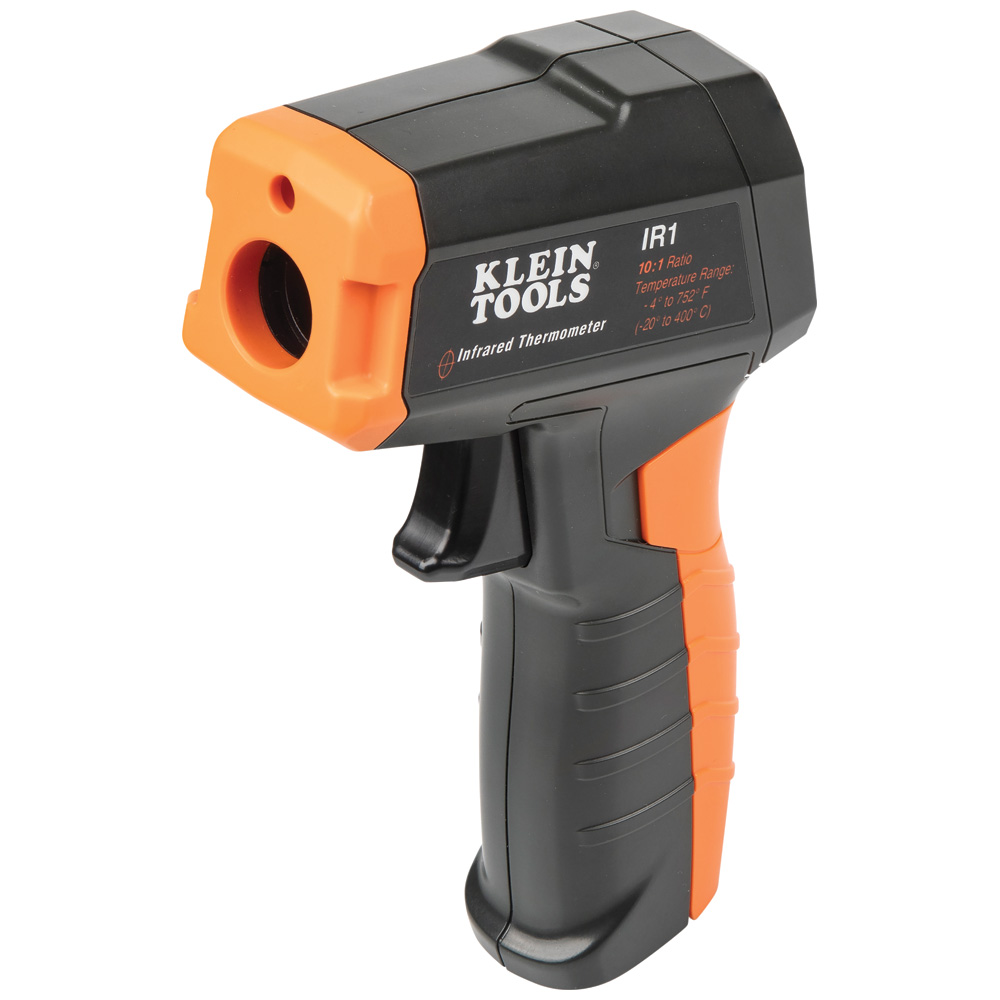

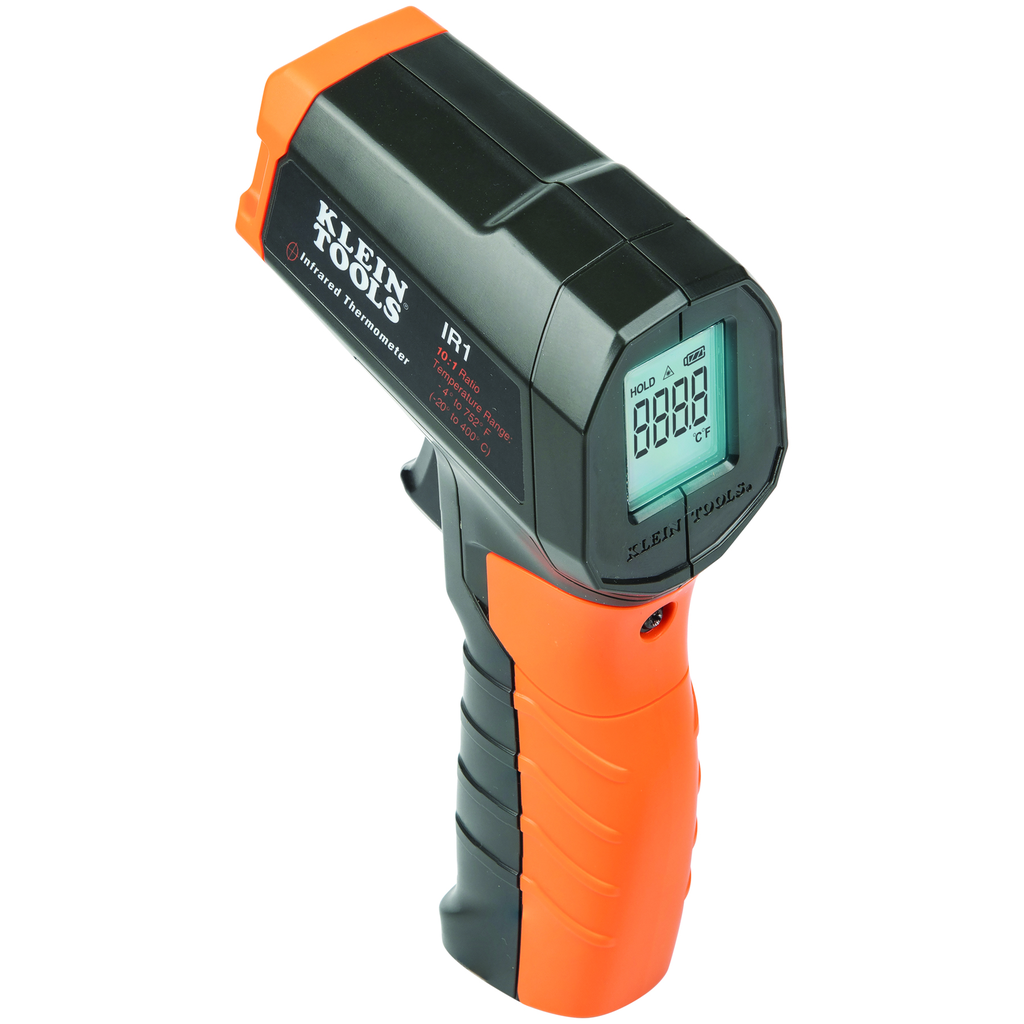

Klein Tools IR1 is an infrared thermometer with a targeting laser. It has a wide measurement range of -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) and a 10:1 distance-to-spot ratio. The backlit display provides clear readings.

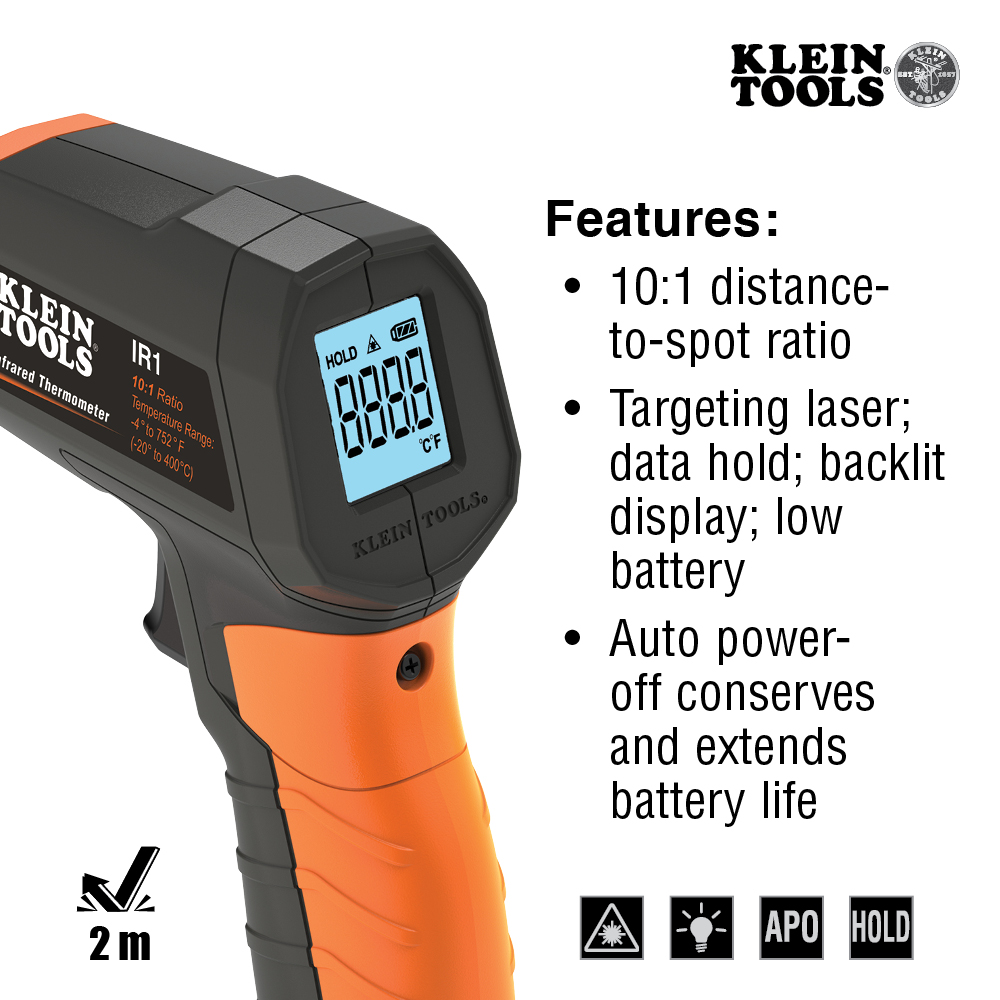

Features

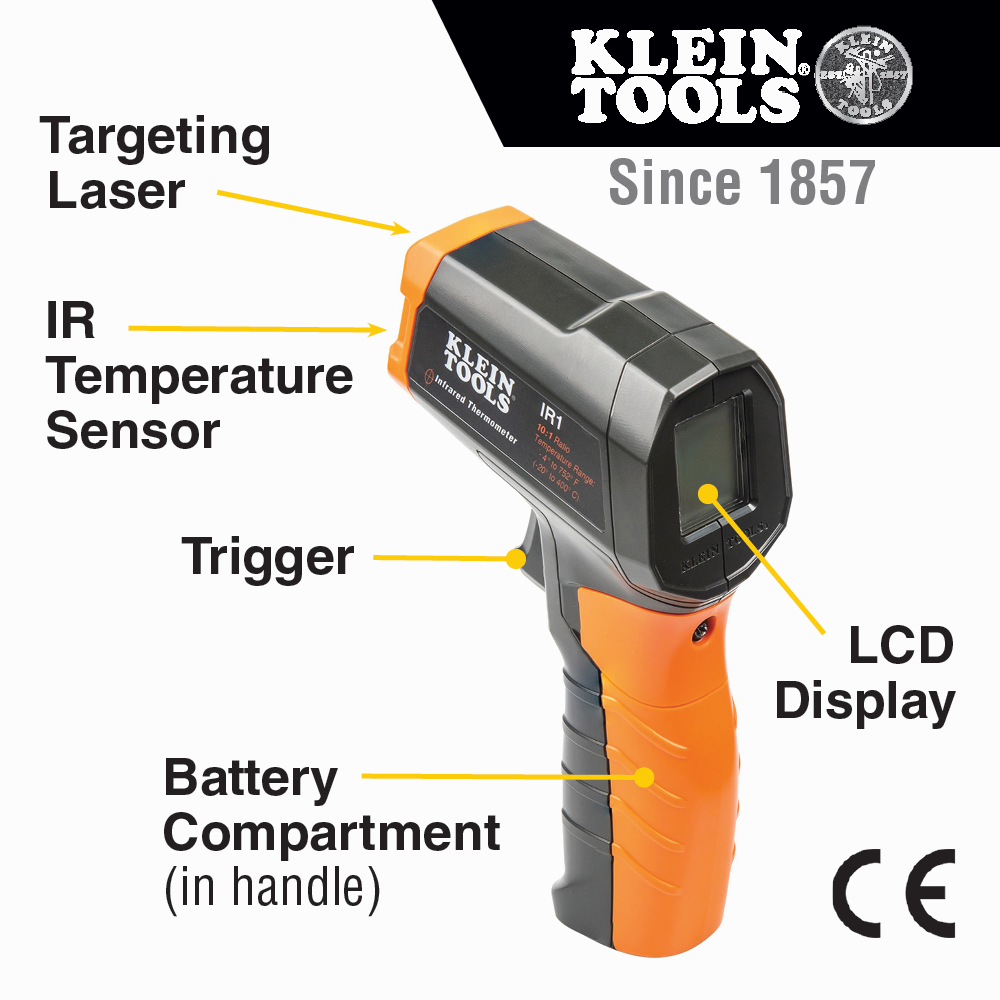

• Features include targeting laser; automatic hold; backlit display; low battery, auto power-off
• Drop protection to 6.6-Foot (2 m)
• Not a medical device; thermometer is NOT intended for use on people or animals
• Target Laser

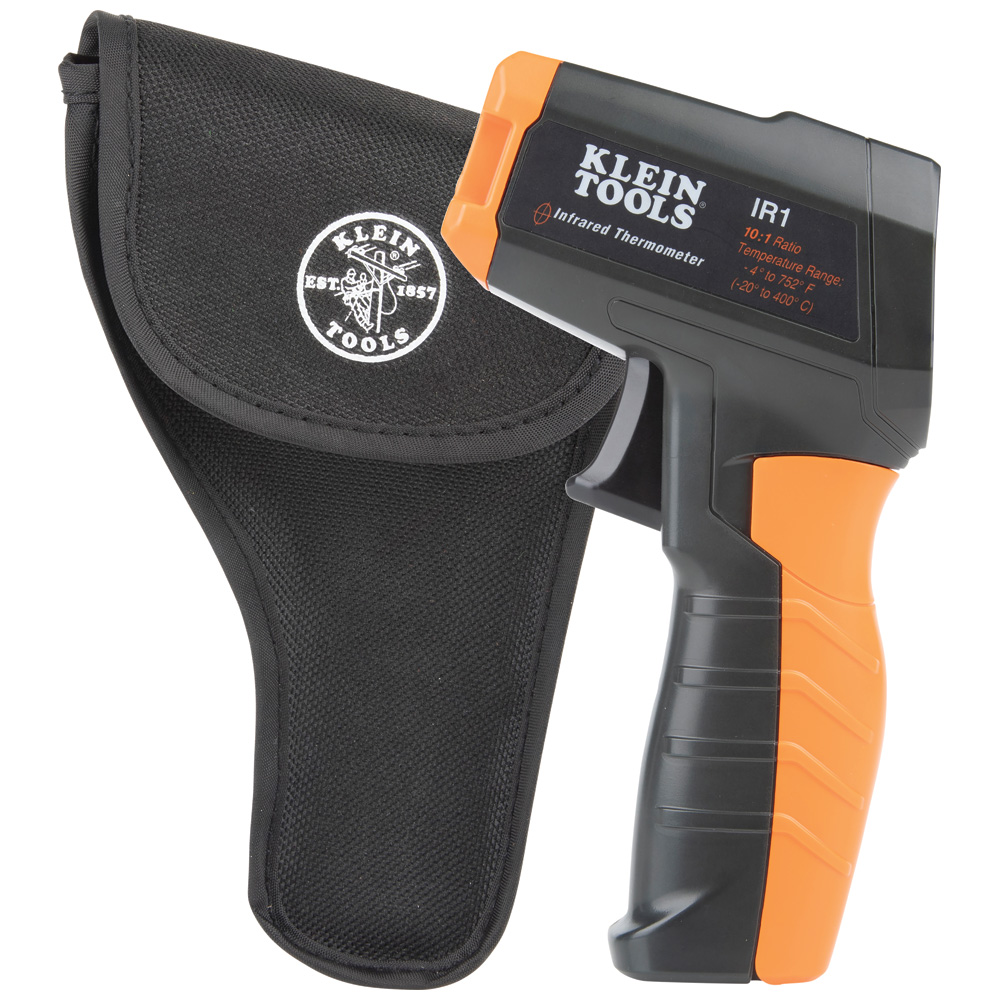

• Includes custom pouch and a 9V battery
• Infrared Thermometer has an optical resolution (distance-to-spot) of 10:1
• Fixed emissivity at 0.95
• Auto Power-Off conserves and extends battery life
• Measurement range is -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

Warnings

• Thermometer is NOT intended for use on people or animals.
• LASER RADIATION, Class II laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• NEVER look directly into the laser beam emitted by this instrument.
• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.

Specifications

• Overall Length (Inch): 6.01
• Included: Thermometer; Custom Pouch; 1 x 9V Battery
• Degree Format: F or C
• Auto Calibration: No
• Overall Width (cm): 3.1
• Depth: 6.0100 in
• Overall Length (cm): 15.3
• Overall Width (Inch): 1.24
• Weight (g): 201
• Accuracy: Above freezing - ±4° F or ±2%; Accuracy Below Freezing - ±4° F Plus 0.2 Degrees Per Degree Below 32° F
• Overall Height (Inch): 4.14
• Response Time: < 0.25s
• Weight: 0.3460 lbs
• Material: Plastic Housing, Electronic Components
• Overall Height (cm): 10.5
• Weight (oz): 7.1
• Standard: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
• Drop Protection: 6.6 ft (2 m)
• Display: Digital Backlit
• Batteries: 1 x 9V
• Distance to Spot: 10 -1

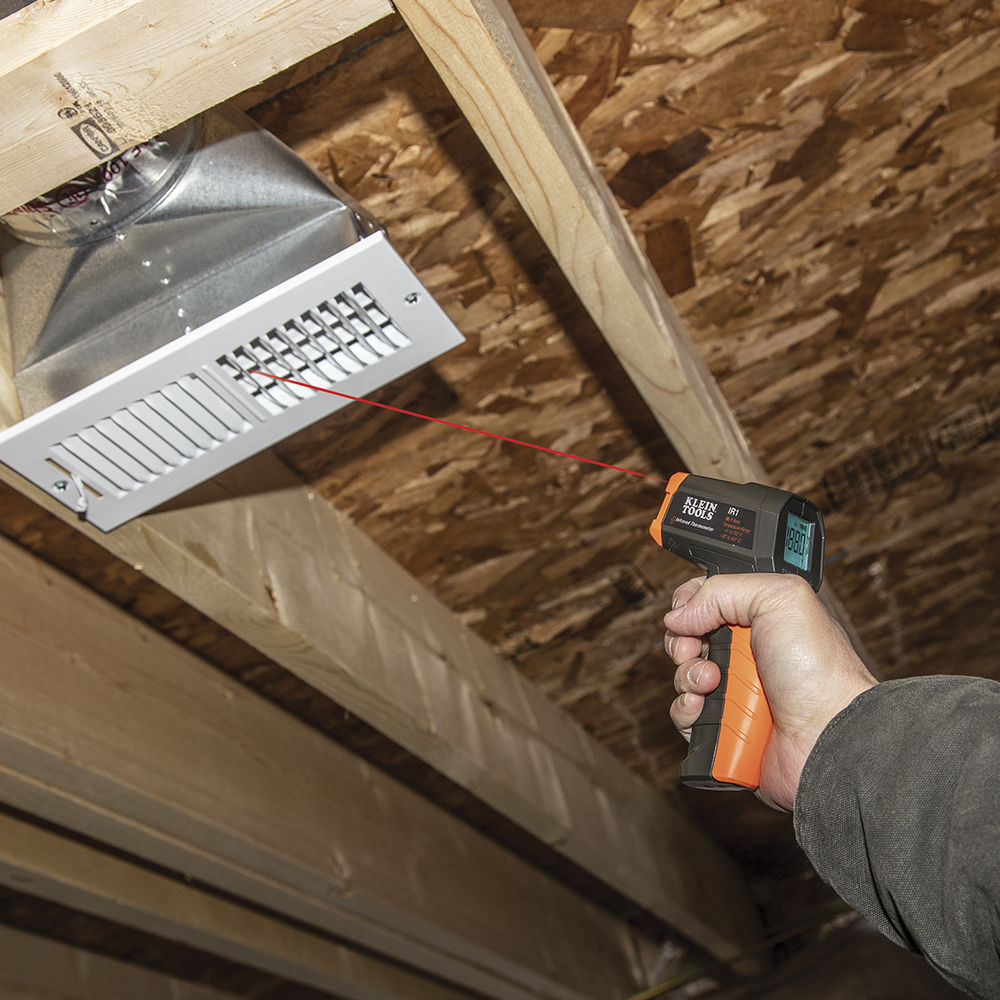

• Application: Accurate Targeting and Temperature Measurement
• Width: 4.1430 in
• Height: 1.7260 in
• Audible Alert: No
• Display Resolution: 0.1F (0.1 C)
• Range: -4° to 752° F (-20° to 400° C)
• Type: Infrared Thermometer with Targeting Laser
