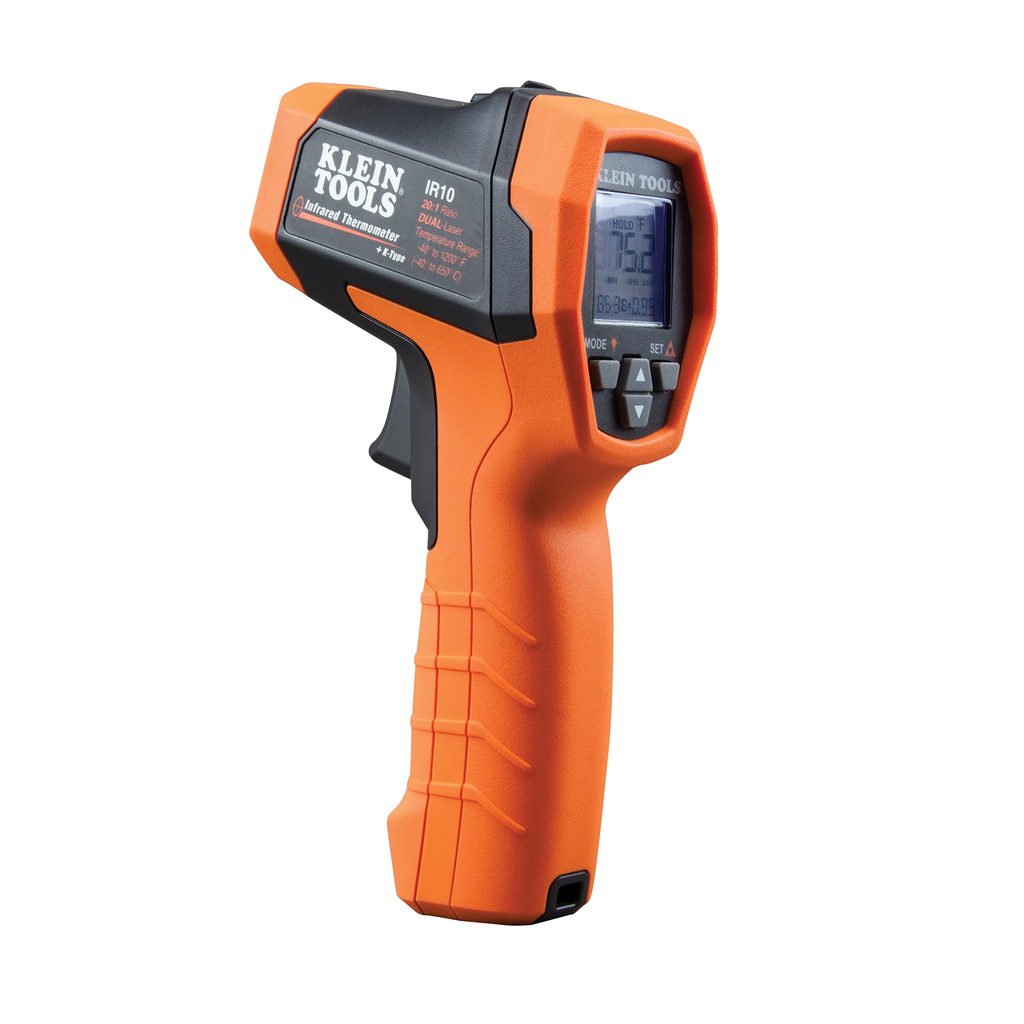

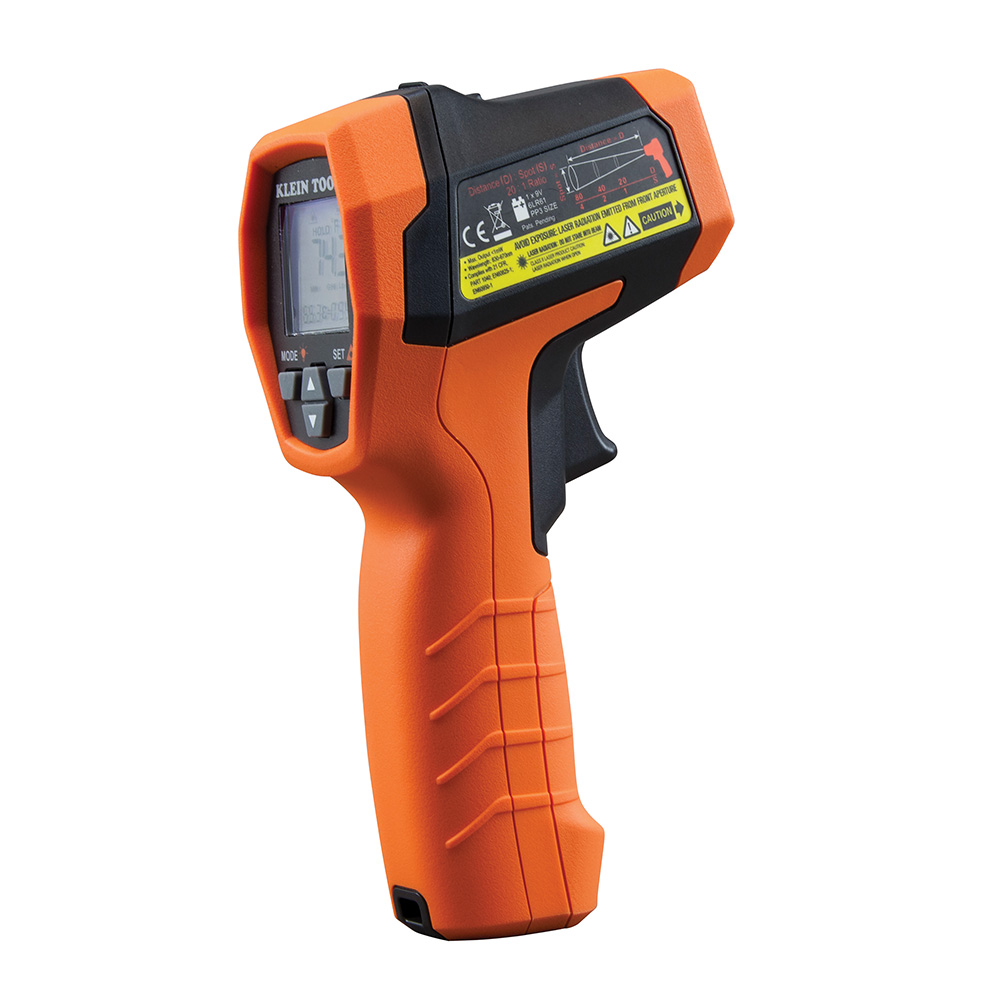

Dual-Laser Infrared Thermometer, 20:1

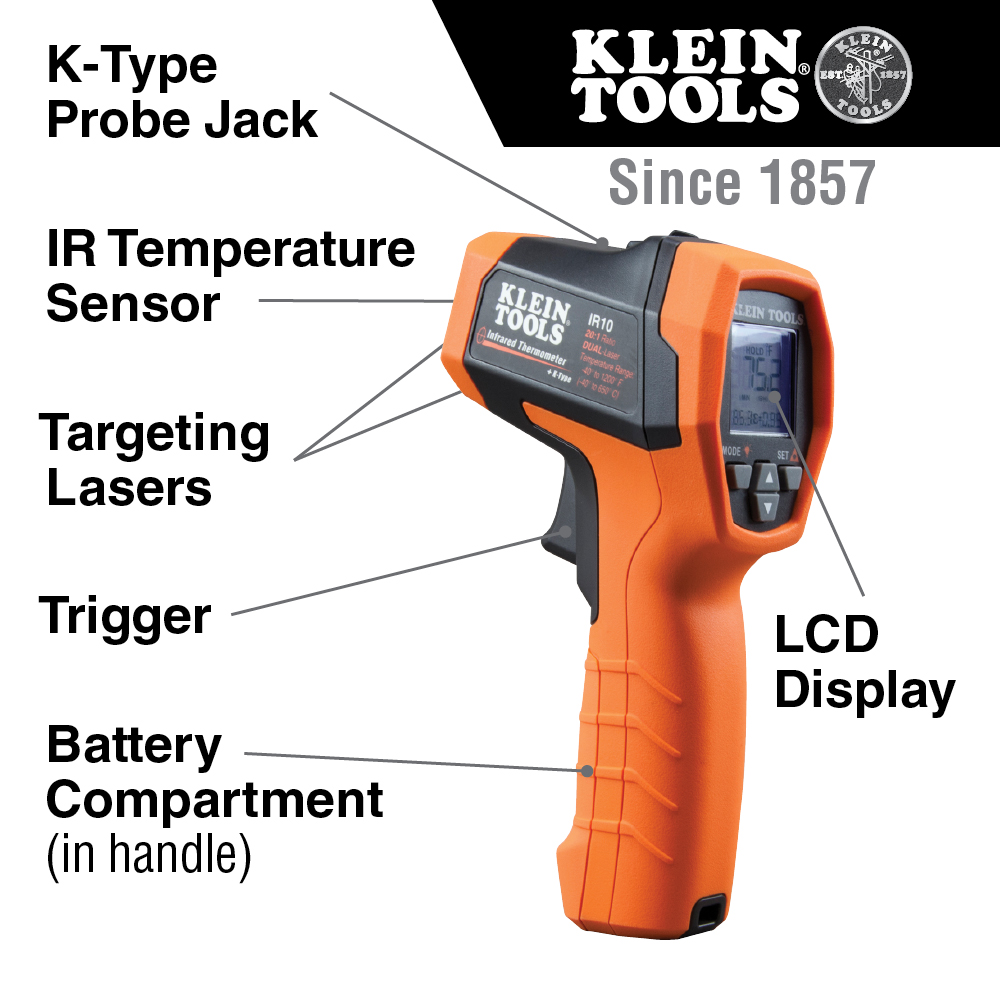

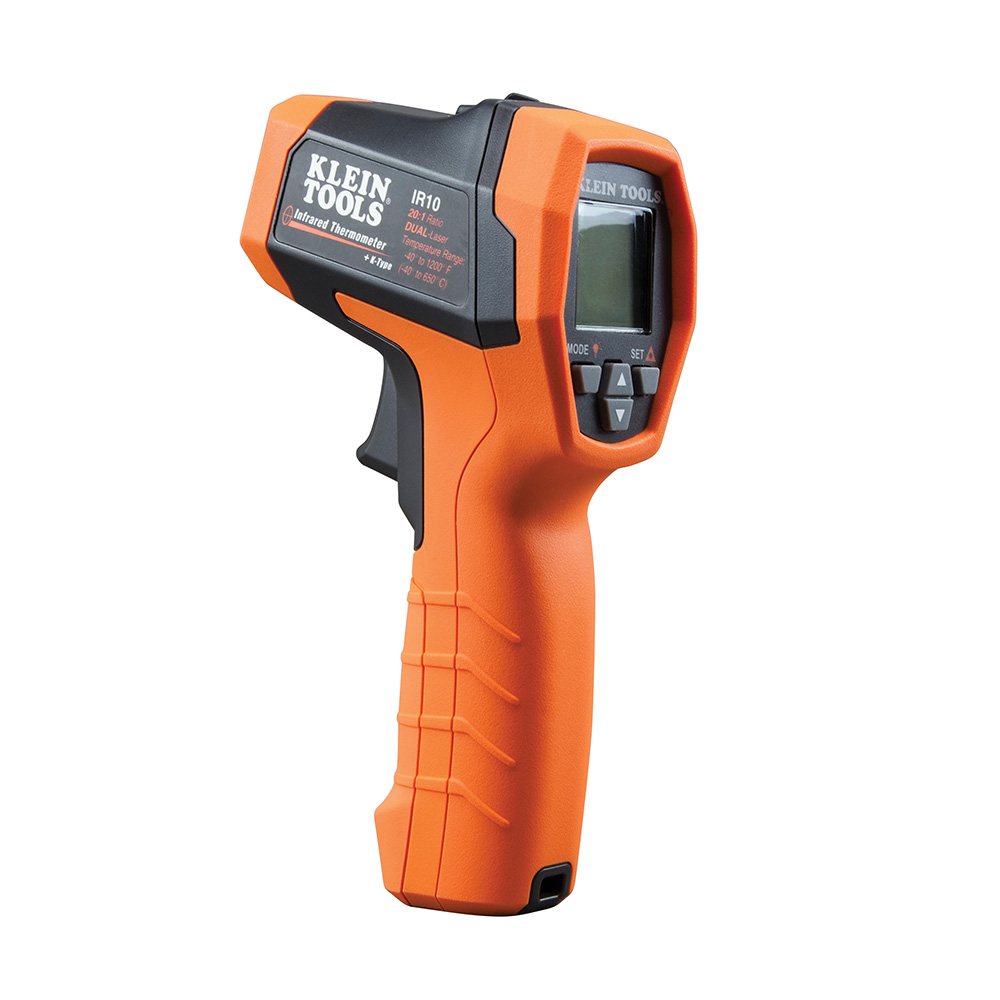

Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.

Features

• Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
• IP54 ingress protections for dust and water resistance
• Auto Power-Off conserves and extends battery life

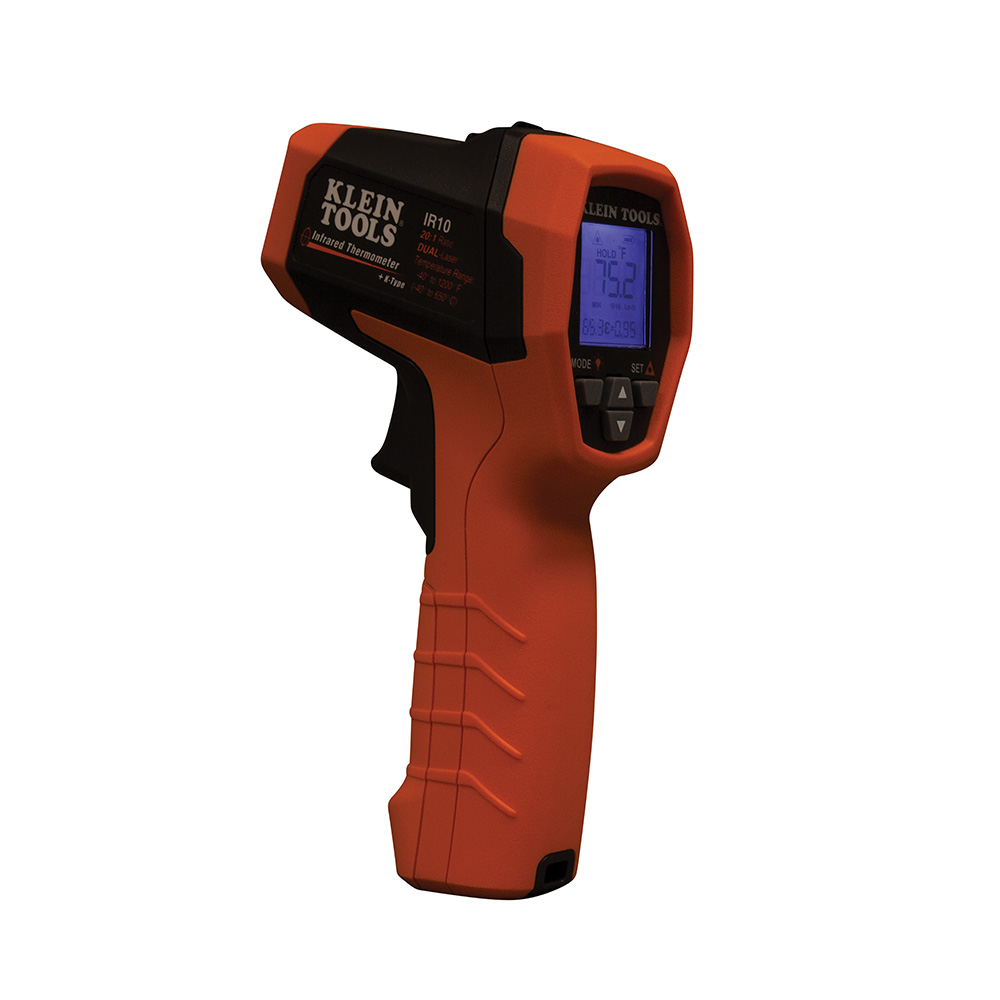

• Bright backlit display for working in low ambient lighting conditions
• Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop

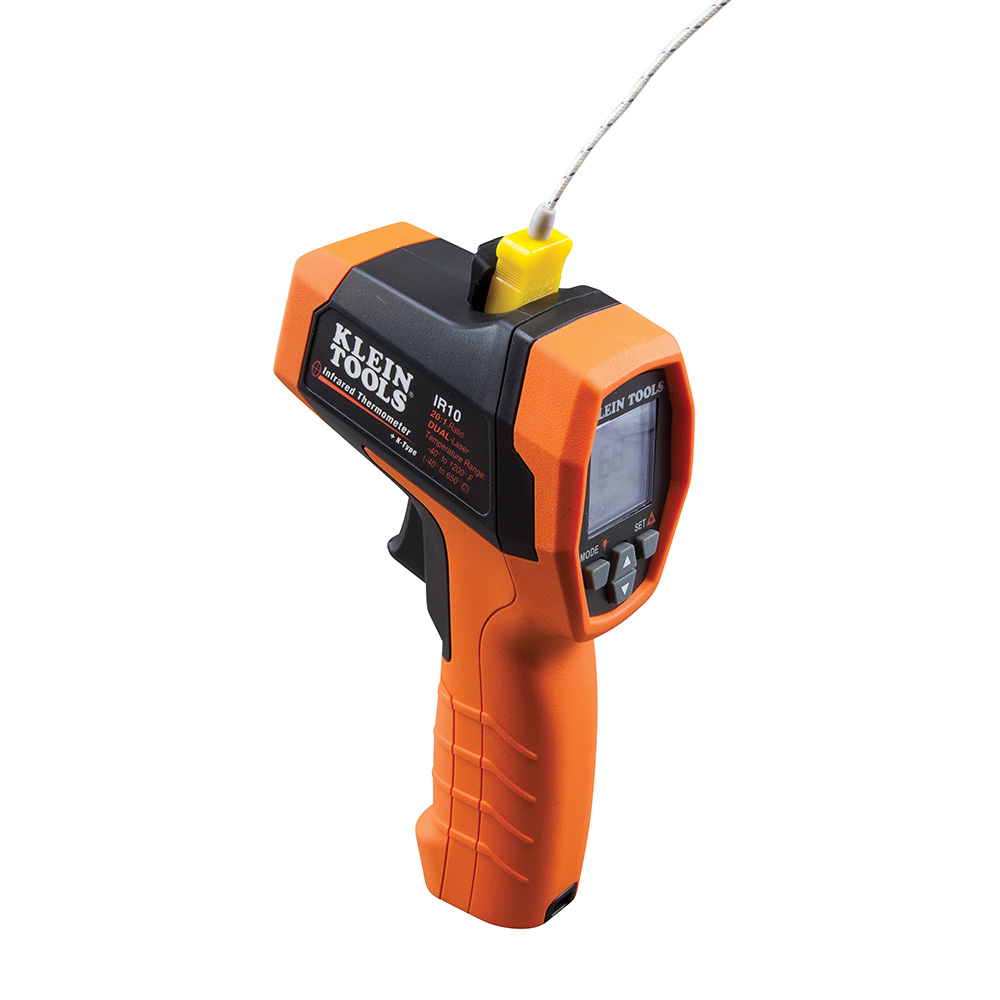

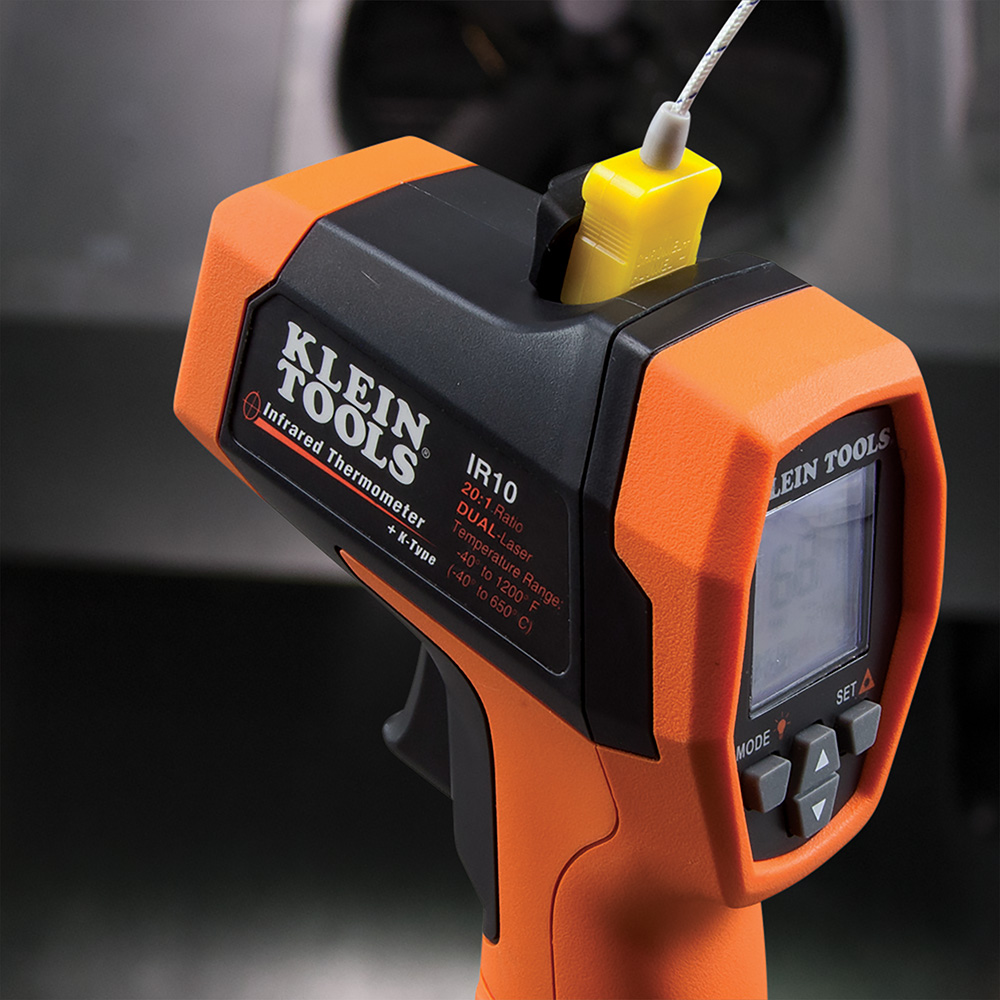

• Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
• Statistical parameters for measurement event - max/min/avg/diff
• Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
• Includes custom pouch, K-Type probe and battery
• Optical Resolution (Distance-to-Spot) is 20:1
• U.S. patent D791,624
• Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
• Not a medical device; thermometer is NOT intended for use on people or animals.
• User definable high/low limits with audible and visual alarms when limits are breached

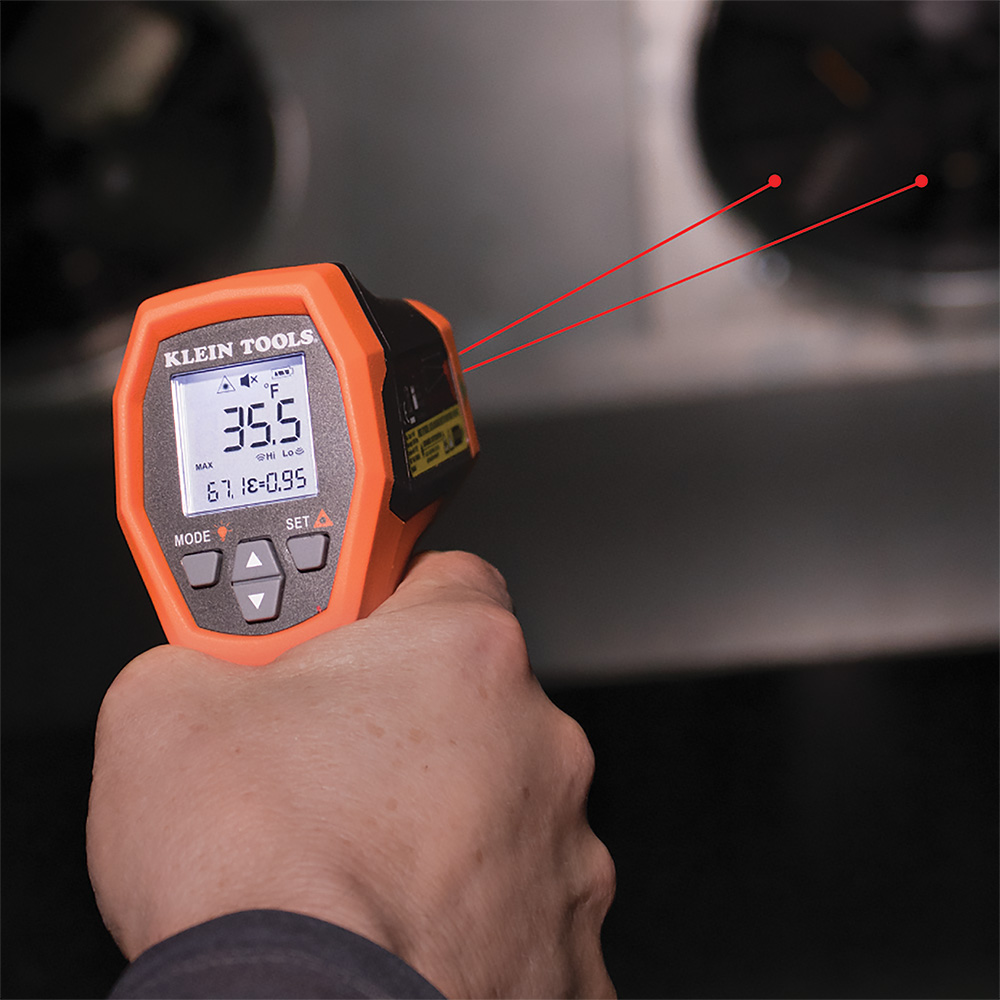

• Dual targeting lasers offer more accurate determination of the area being tested
• Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Thermometer is NOT intended for use on people or animals.
• LASER RADIATION, Class 2 laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

Specifications

• Audible Alert: Yes
• Overall Width (cm): 5.2
• Response Time: <150ms
• Included: Thermometer; Custom Pouch; K-Type Probe; Battery
• Ingress Protection: IP54
• Application: Temperature Measurements Using IR Emission or K-Type Probe
• Weight (g): 210
• Overall Height (Inch): 4.49
• Width: 2.0500 in
• Batteries: 1 x 9V
• Drop Protection: 3 m
• Accuracy: IR - 32° F and Above - +/- 3° F or +/- 1.5% (Whichever is Greater); Less Than 32° F - +/- (3.6° F + 0.2° F per Degree); K-Type - 32° F and Above - +/- 2° F or +/-% (Whichever is Greater); Above 32° F - +/- 3° or +/1% (Whichever is Greater)
• Overall Length (Inch): 7
• Distance to Spot: 20 -1
• Height: 7.0500 in
• Degree Format: F or C
• Range: -40° to 1200° F (-40° to 650° C)
• Display Resolution: 0.1F (0.1 C)
• Material: Plastic Housing, Electronic Compenents
• Auto Calibration: No
• Display: Digital Backlit
• Type: Dual-Laser Infrared Thermometer
• Calculations: Min/Max/Difference/Average
• Depth: 4.5600 in
• Weight (oz): 7.4
• Weight: 0.4630 lbs
• Overall Width (Inch): 2.05
• Overall Height (cm): 11.4
• Overall Length (cm): 17.8
• Standard: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
