10:1 Infrared Thermometer with GFCI Receptacle Tester

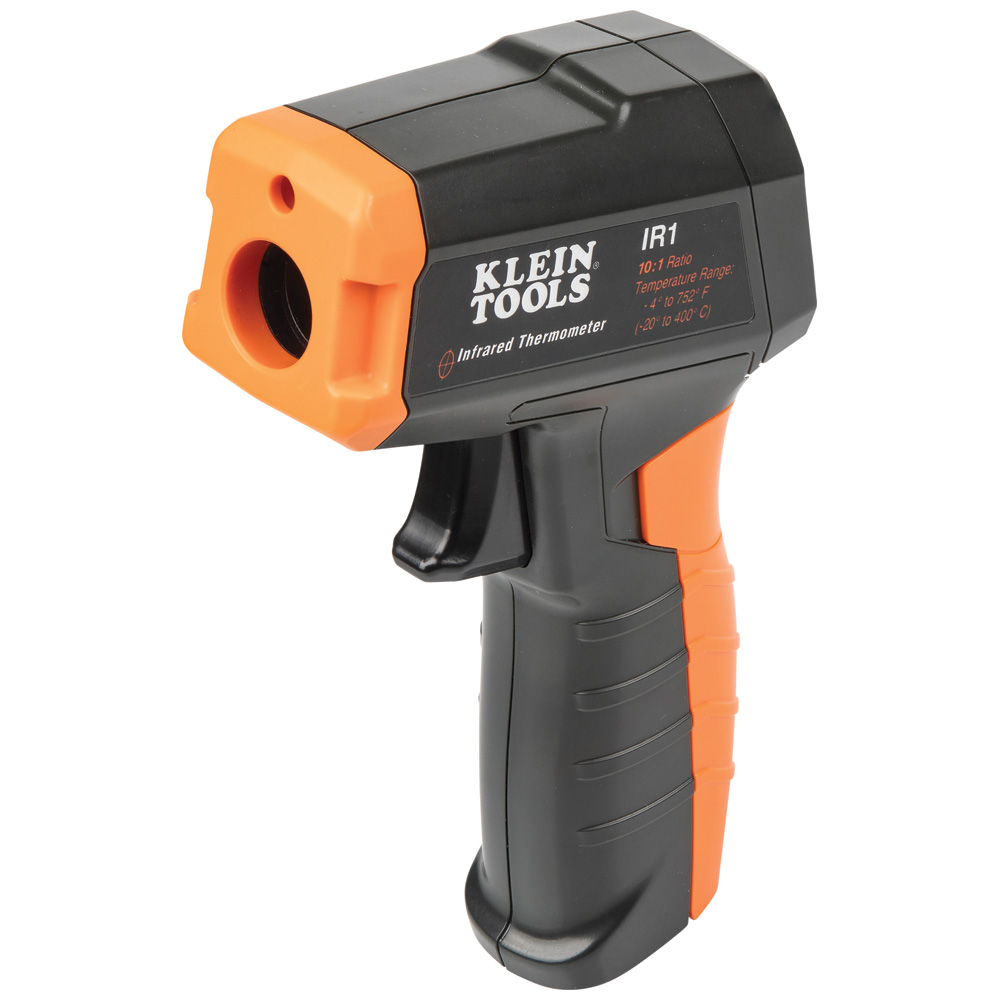

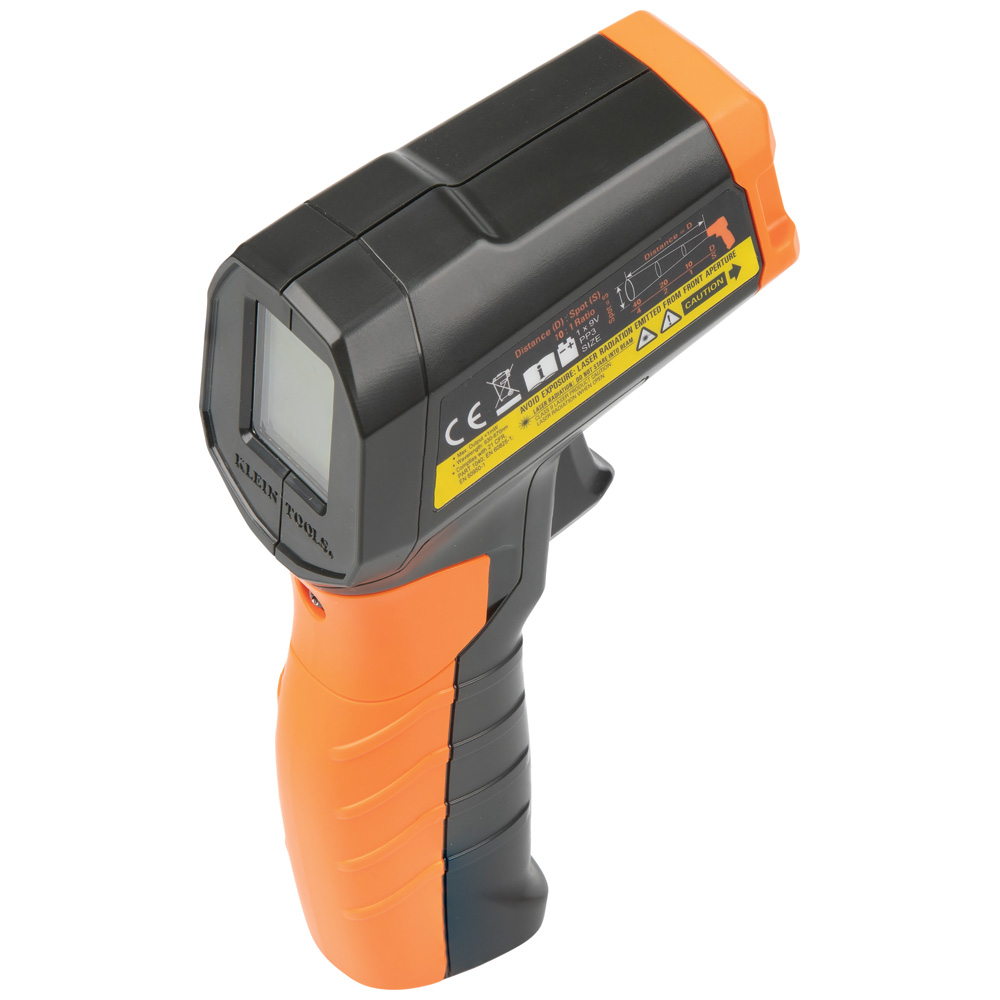

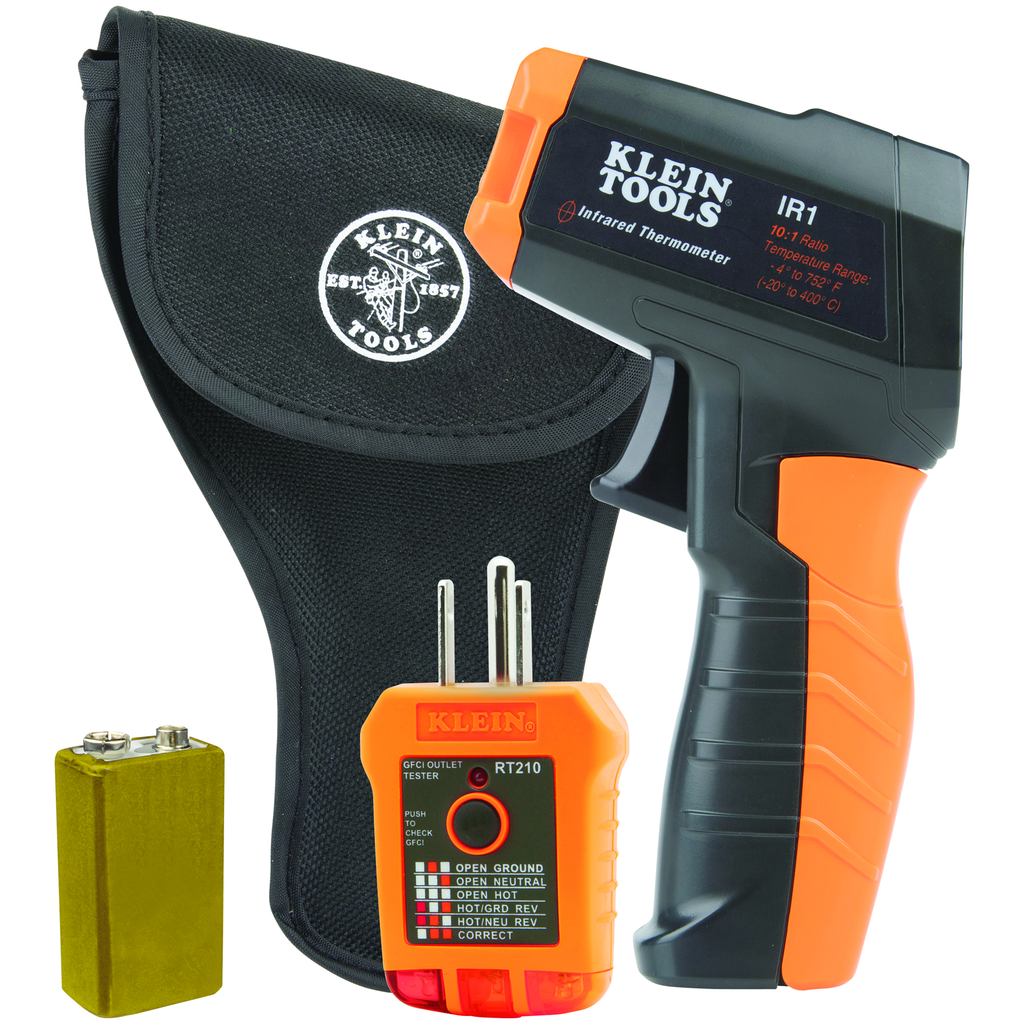

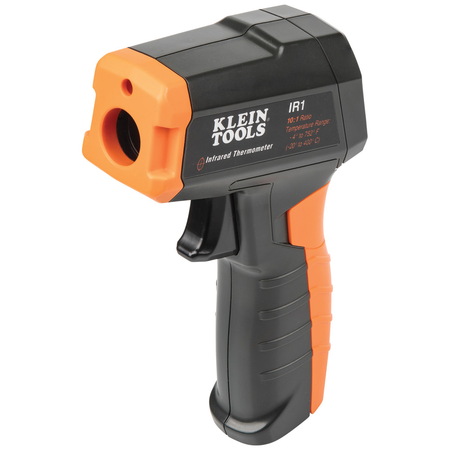

The Klein Tools IR1KIT includes the Infrared Thermometer (Cat. No. IR1) and GFCI Receptacle Tester (Cat. No. RT210). The IR1 infrared thermometer with a targeting laser has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) and a 10:1 distance-to-spot ratio. The RT210 GFCI Receptacle Tester detects common wiring problems.

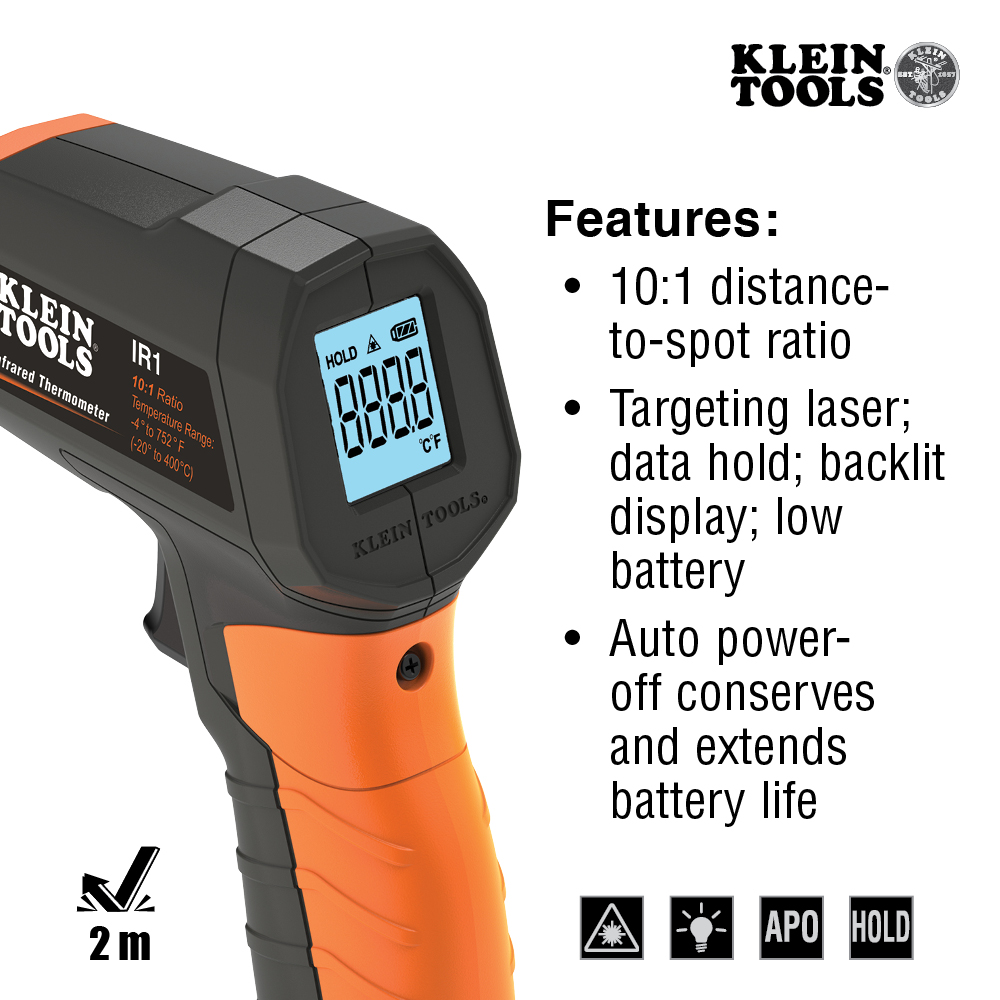

Features

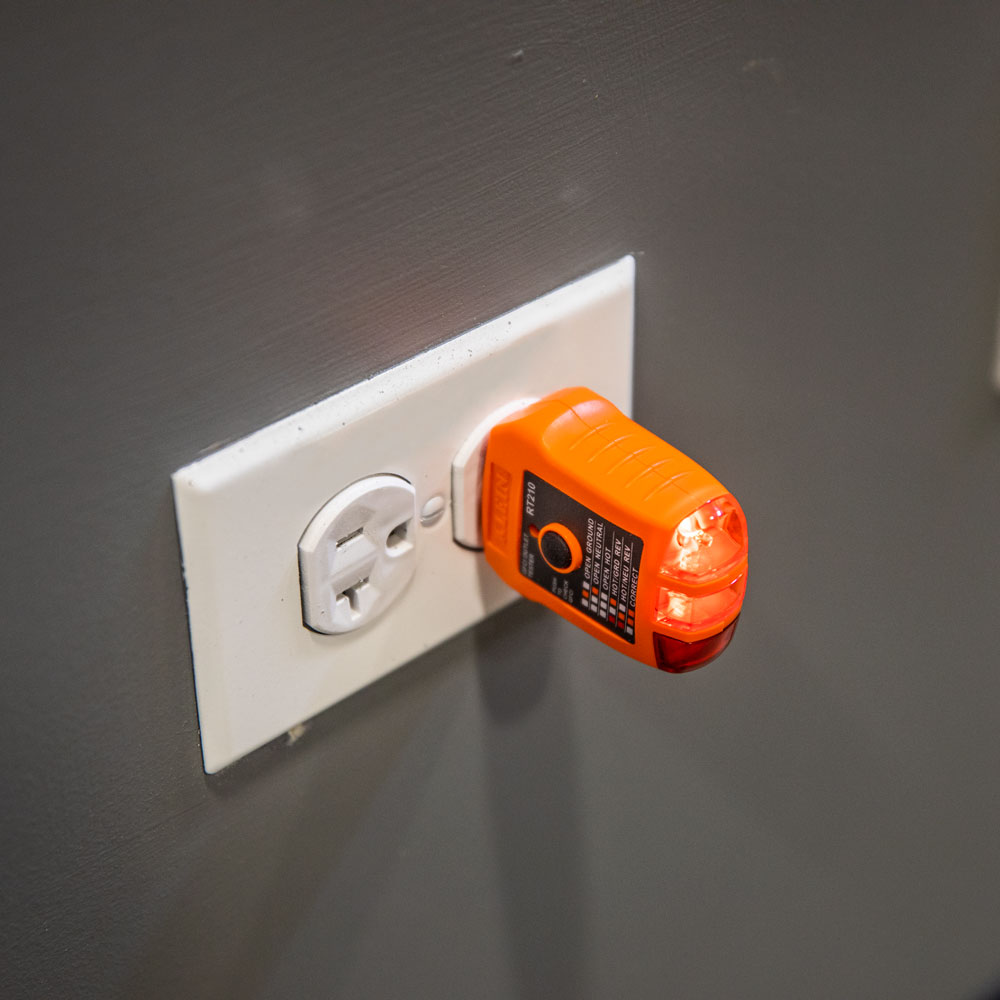

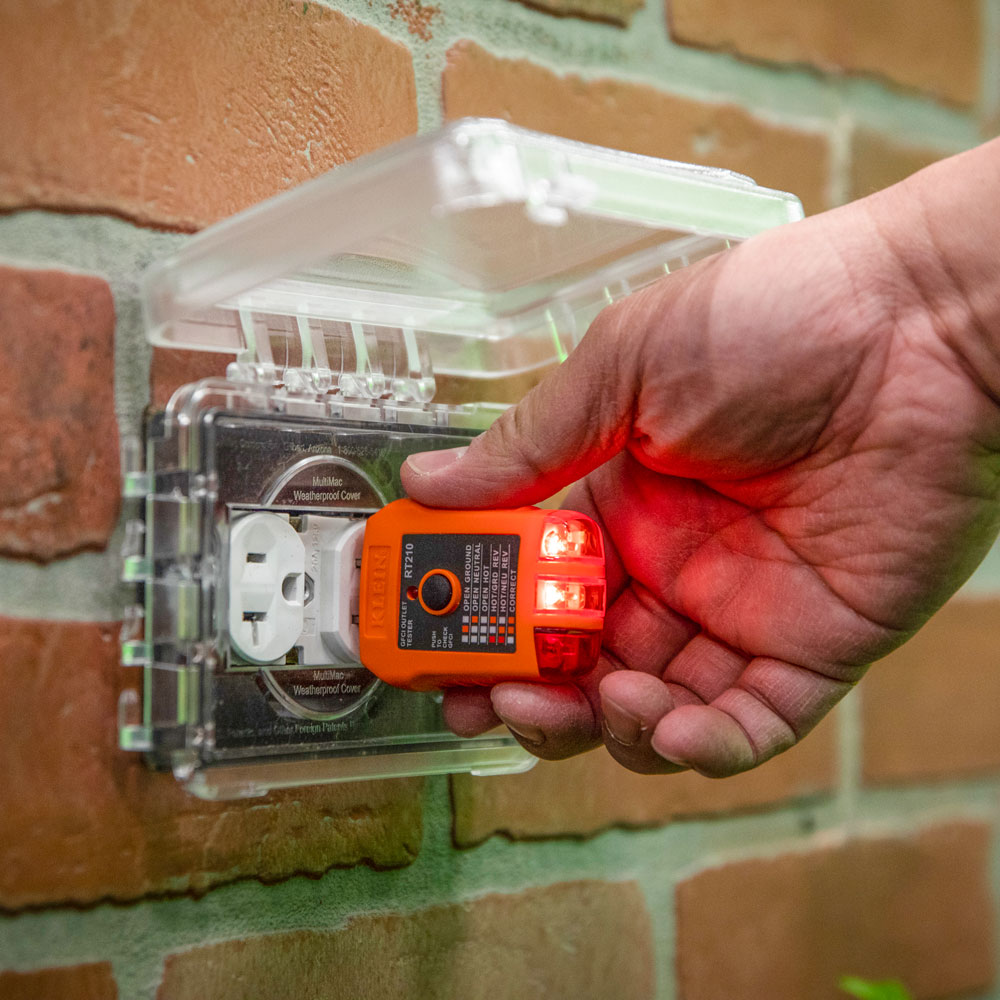

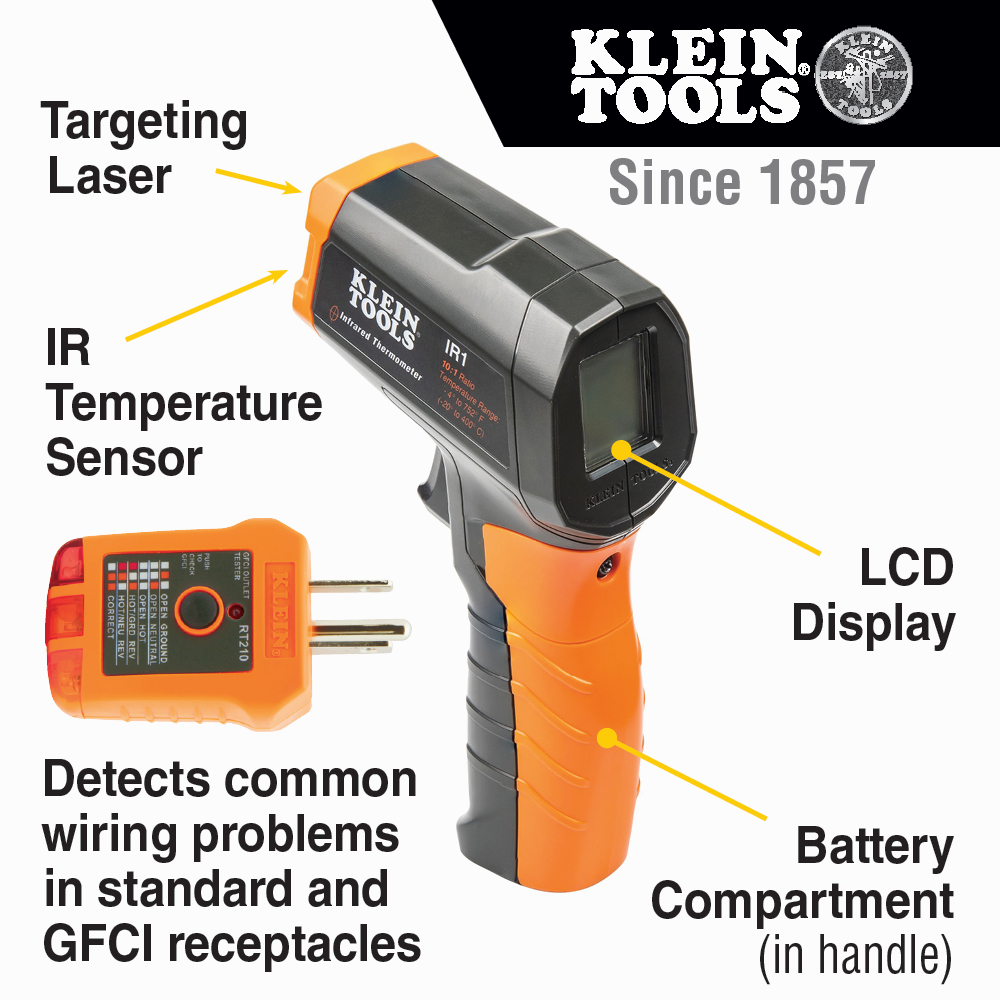

• GFCI Outlet Tester (Cat. No. RT210) detects common wiring problems in standard and GFCI receptacles
• Not a medical device; thermometer is NOT intended for use on people or animals
• Infrared Thermometer includes custom pouch and a 9V battery
• Infrared Thermometer is Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

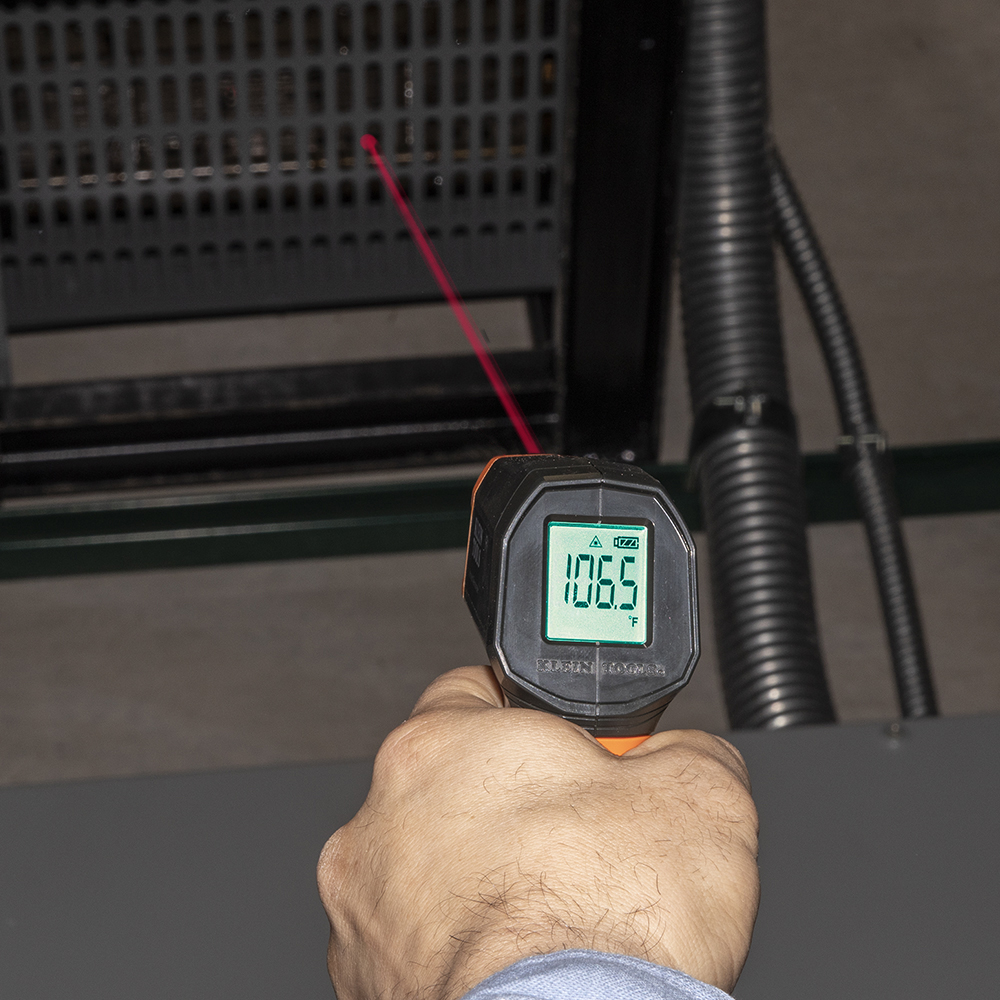

• Target Laser on IR1
• Fixed emissivity of 0.95 for the Infrared Thermometer
• Infrared Thermometer (Cat. No. IR1) has an optical resolution (distance-to-spot) of 10:1
• Both products have a drop protection to 6.6-Foot (2 m)
• Infrared Thermometer has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Auto Power-Off feature of the Infrared Thermometer conserves and extends battery life

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Thermometer is NOT intended for use on people or animals.
• NEVER look directly into the laser beam emitted by this instrument.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• LASER RADIATION, Class II laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries.

Specifications

• Weight (g): 201
• Audible Alert: No
• Overall Width (cm): 3.1
• Display Resolution: 0.1F (0.1 C)
• Application: Temperature Measurement and Electrical Testing
• Type: Infrared Thermometer with Targeting Laser
• Overall Width (Inch): 1.24
• Material: Plastic Housing, Electronic Components
• Included: RT210 GFCI Receptacle Tester; Custom Pouch; 1 x 9V Battery
• Width: 6.4570 in
• Depth: 9.2130 in
• Weight (oz): 7.1
• Overall Height (Inch): 4.14
• Accuracy: ±4° F or ±2%; Accuracy Below Freezing is ±4° F Plus 0.2 Degrees Per Degree Below 32° F
• Standard: IR1: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
• Response Time: <0.25s
• Overall Height (cm): 10.5
• Drop Protection: 6.6' (2 m)
• Height: 3.2500 in

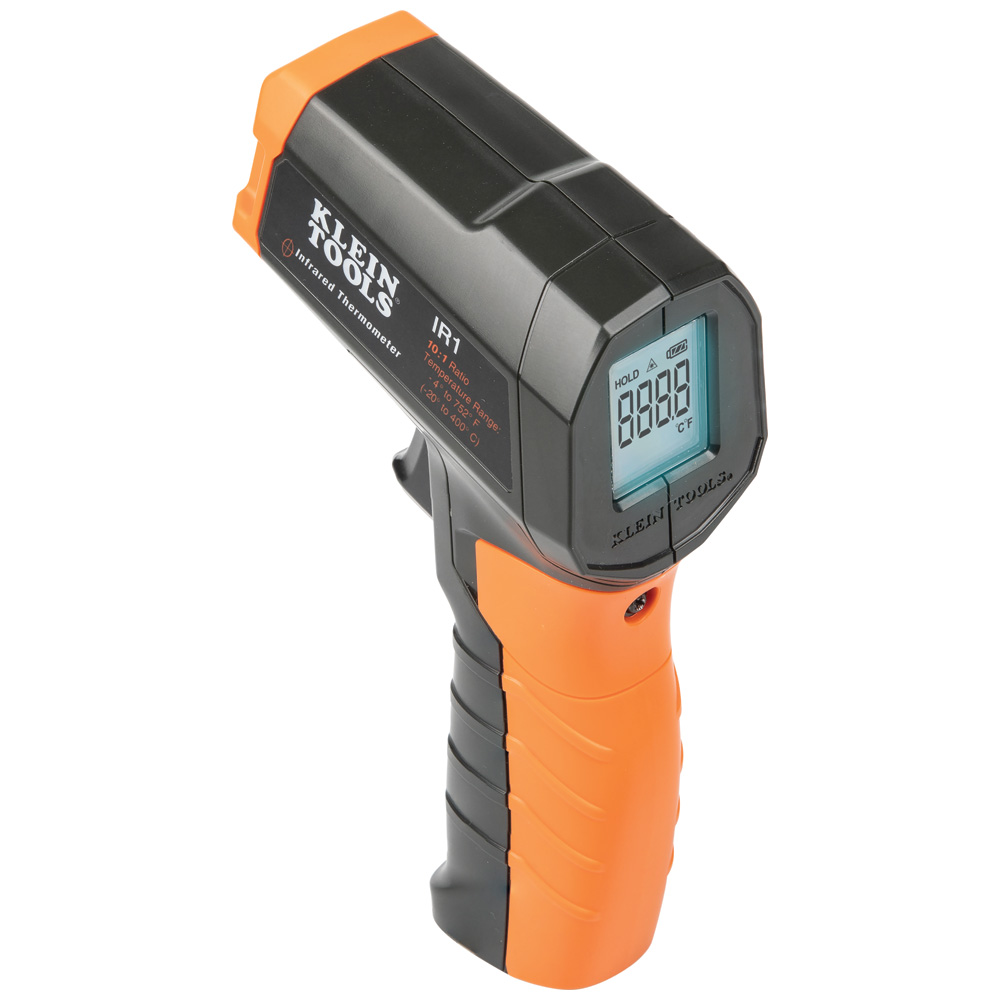

• Display: Digital Backlit
• Overall Length (cm): 15.3
• Distance to Spot: 10 -1
• Range: -4° to 752° F (-20° to 400° C)
• Batteries: 1 x 9V
• Overall Length (Inch): 6.01
• Degree Format: F or C
• Auto Calibration: No
• Weight: 0.7300 lbs
