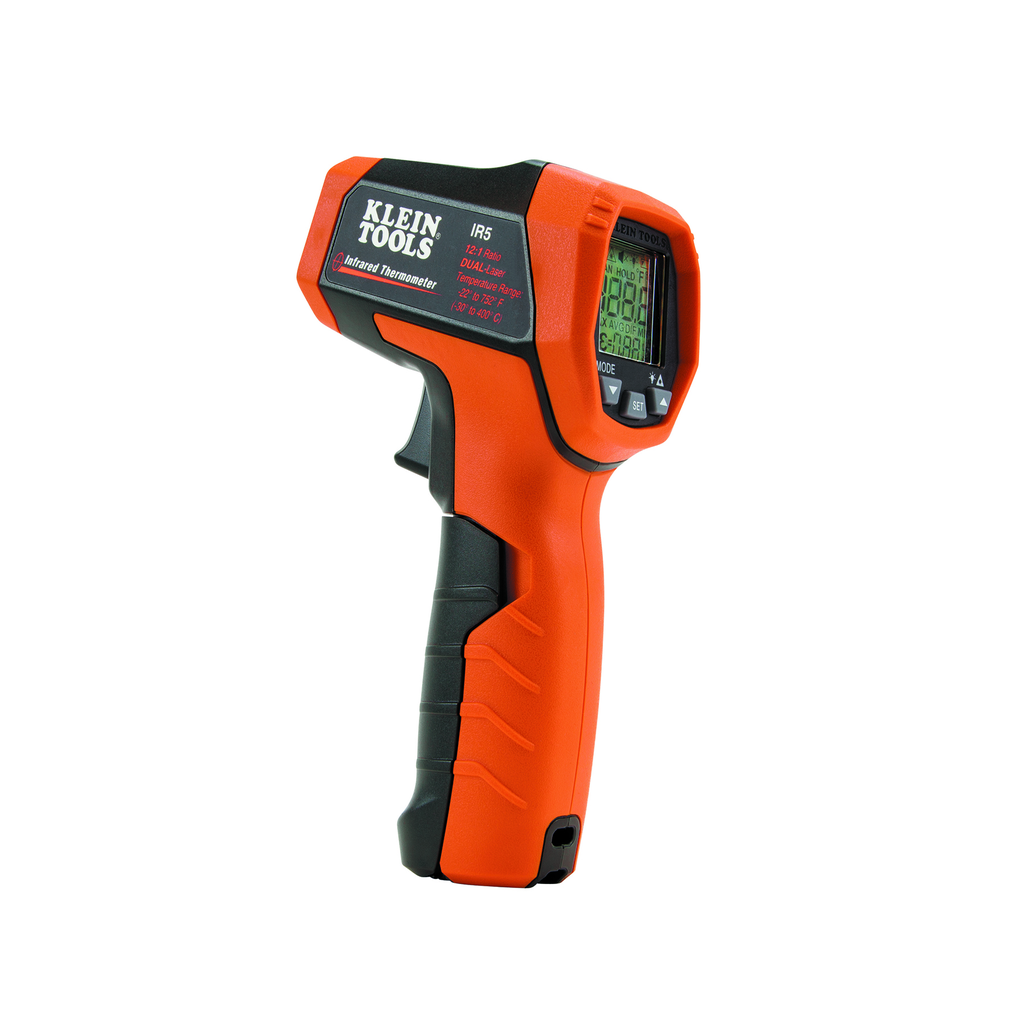

Dual Laser Infrared Thermometer

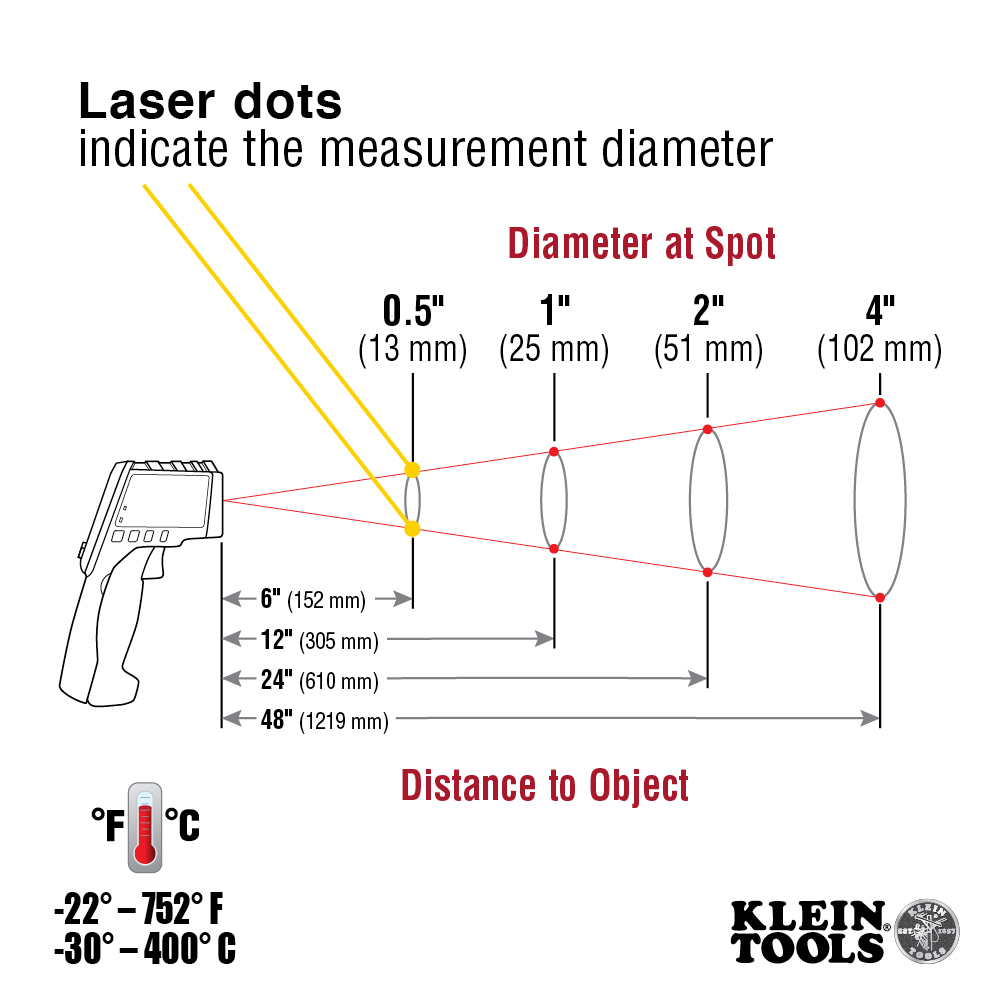

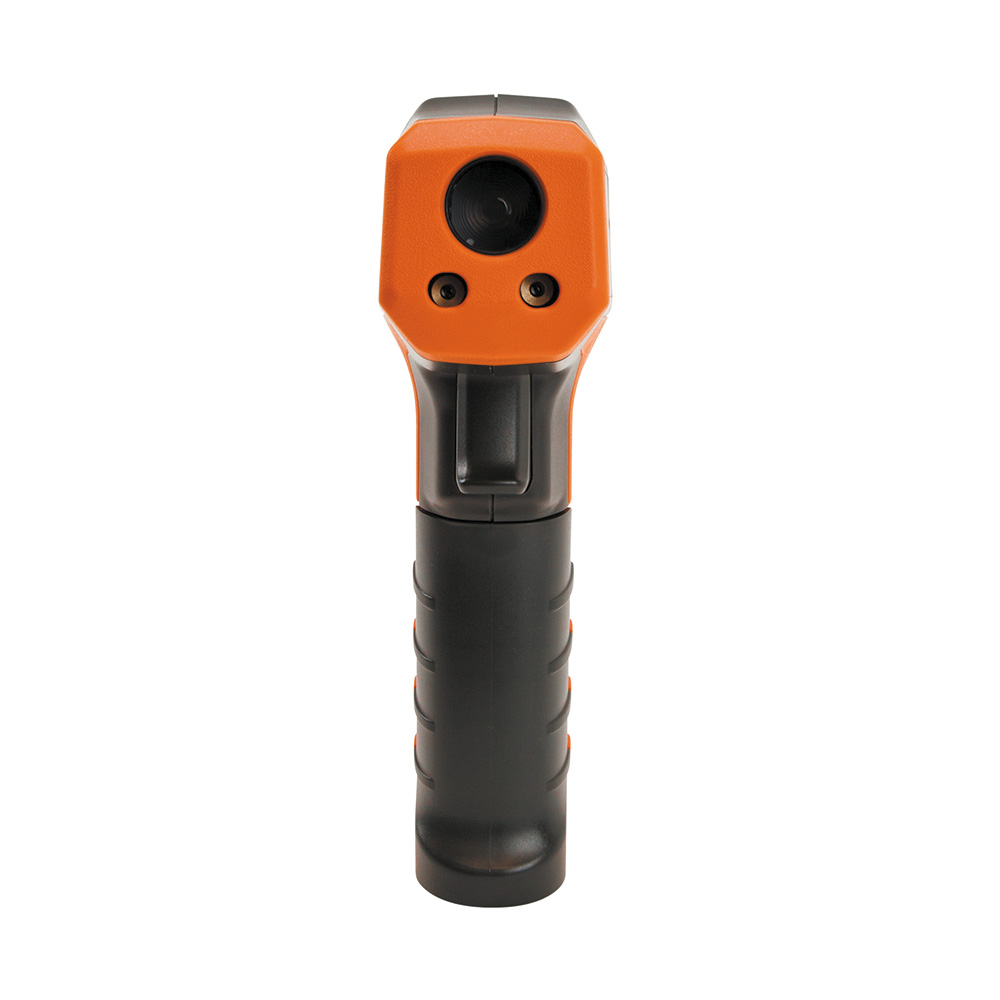

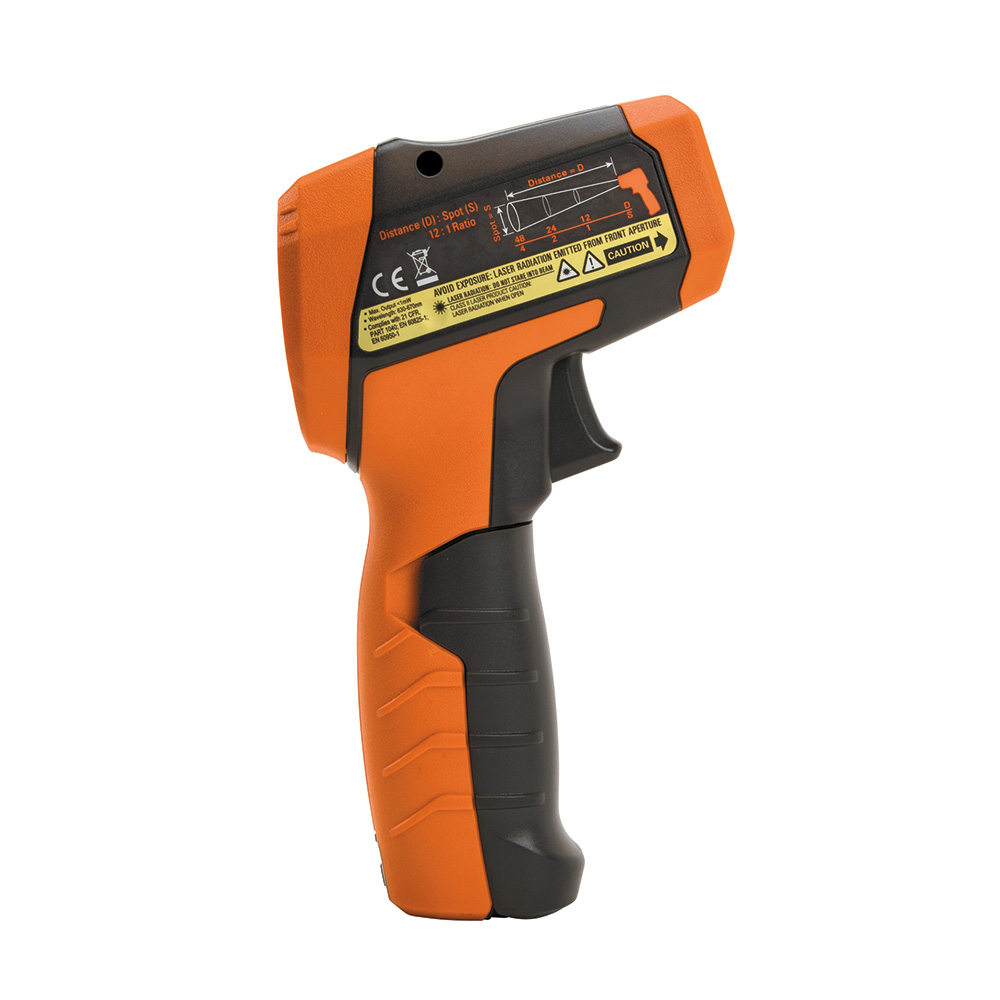

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.

Features

• For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F

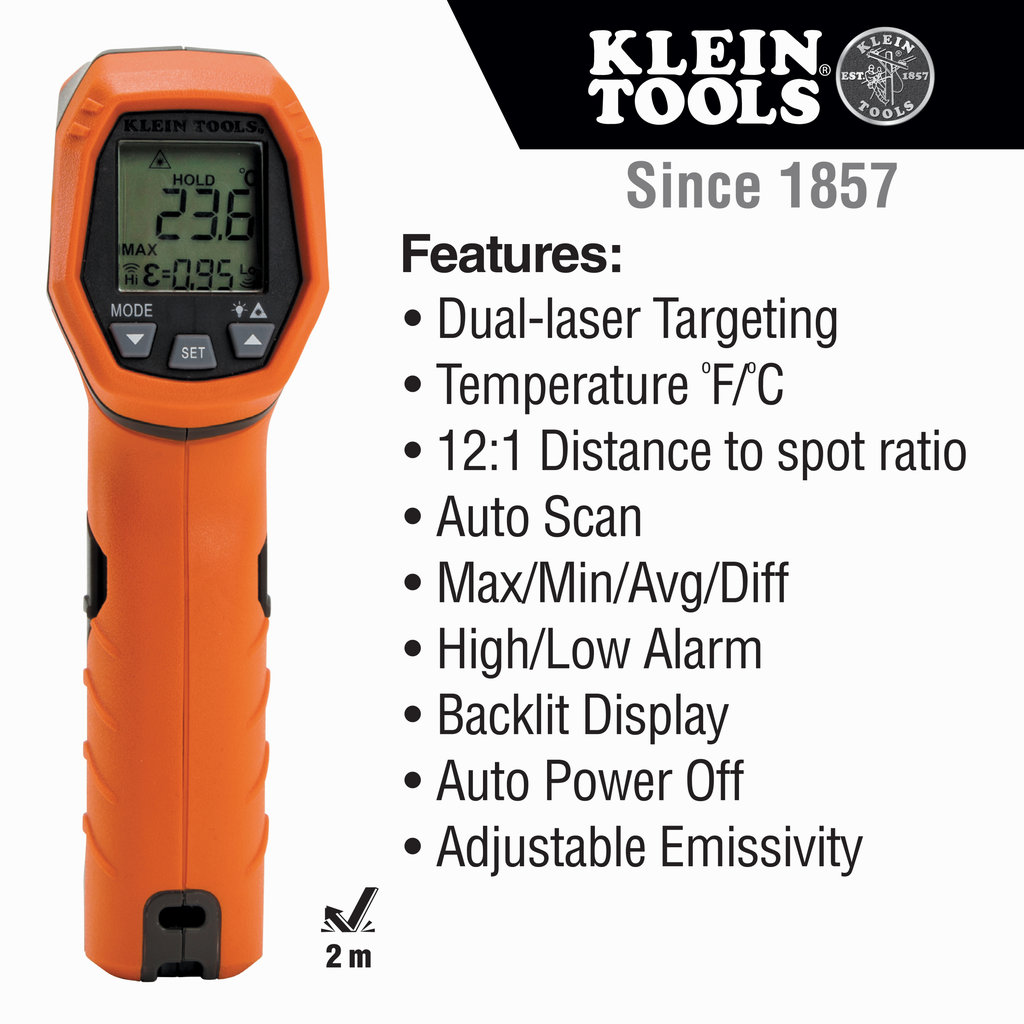

• Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
• Not a medical device; thermometer is NOT intended for use on people or animals.
• Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
• Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
• Soft-touch, over-mold housing
• Includes custom pouch and batteries
• Adjustable emissivity
• Drop protection to 6.6-feet (2 m)
• Several Calculation Modes to Facilitate Different Temperature Measurement Applications
• Optical Resolution (Distance-to-spot) is 12:1
• Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

Warnings

• Do not direct laser beam into eyes, as this can cause permanent eye damage.
• Thermometer is NOT intended for use on people or animals.
• Do not use the instrument if the case is damaged in any way.
• Replace the battery as soon as the low battery indicator appears.
• Avoid using the instrument around strong electromagnetic fields.

Specifications

• Height: 4.5300 in
• Depth: 6.8300 in
• Batteries: 1 x 9V
• Weight: 0.6150 lbs
• Overall Height (cm): 11.5
• Type: Dual Laser Infrared Thermometer
• Weight (g): 281
• Response Time: <0.25s
• Drop Protection: 2 m
• Display: Digital Backlit
• Distance to Spot: 12 -1
• Overall Height (Inch): 4.53
• Overall Width (cm): 4.7
• Width: 1.8500 in
• Overall Length (cm): 17.3
• Application: Accurate Targeting and Temperature Measurement

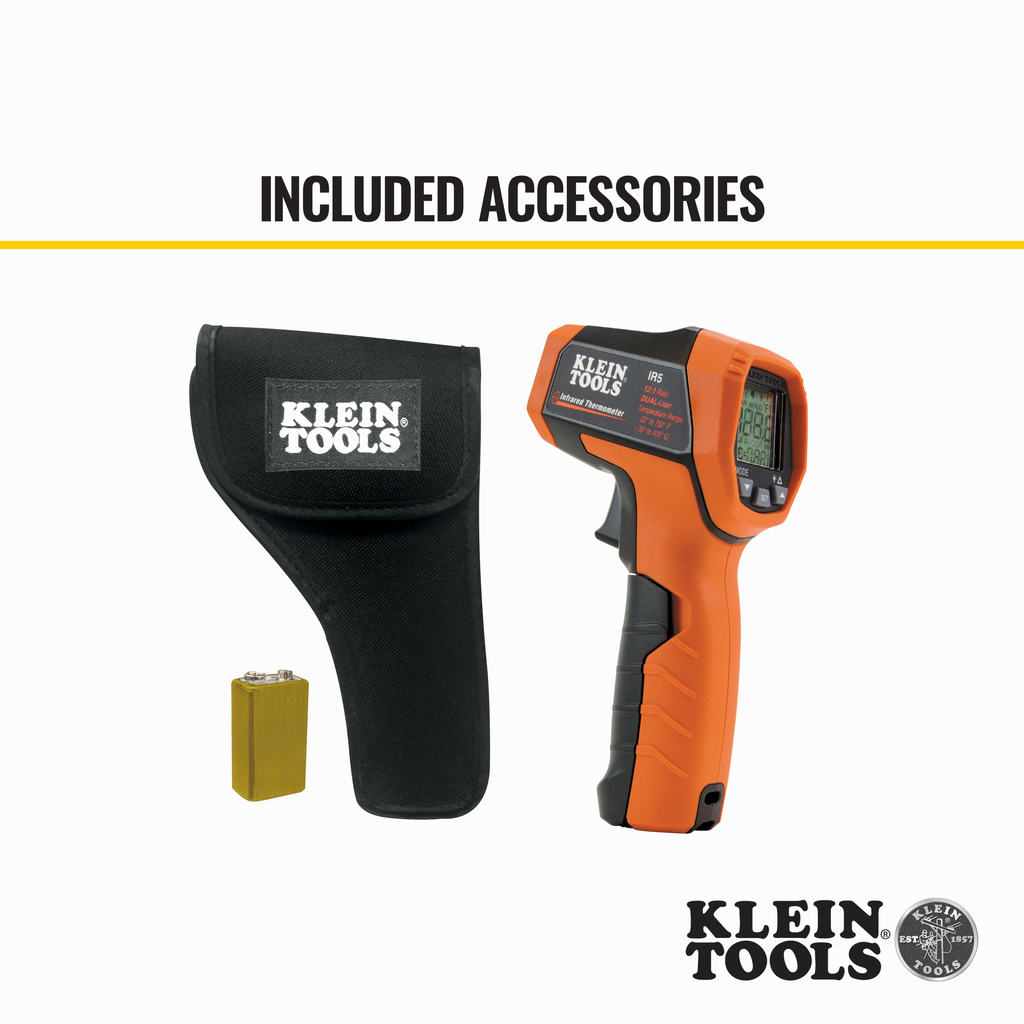

• Included: Thermometer; Custom Pouch; Batteries
• Weight (oz): 9.9
• Overall Width (Inch): 1.84
• Accuracy: +/- 4° F or +/- 2%; Accuracy Below Freezing is +/- 4° F Plus 0.2 Degrees Per Degree Below 32° F
• Overall Length (Inch): 6.82
