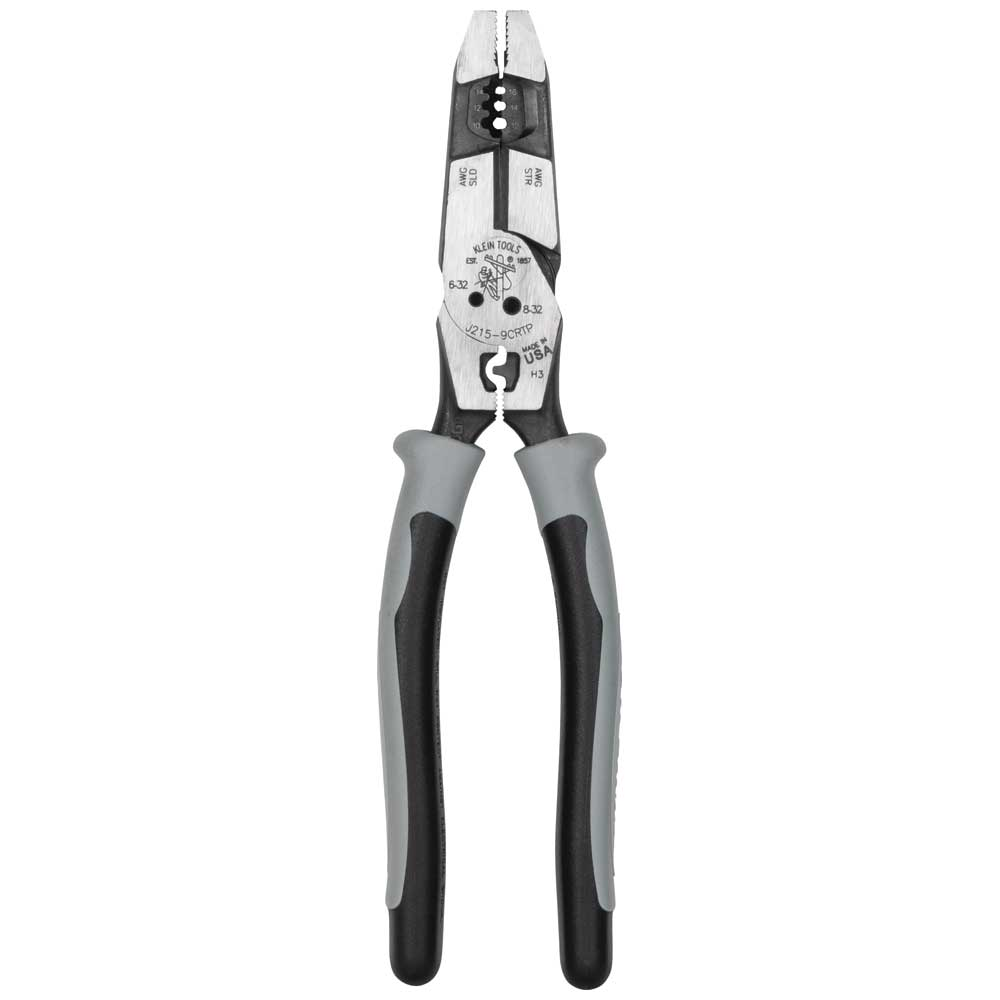

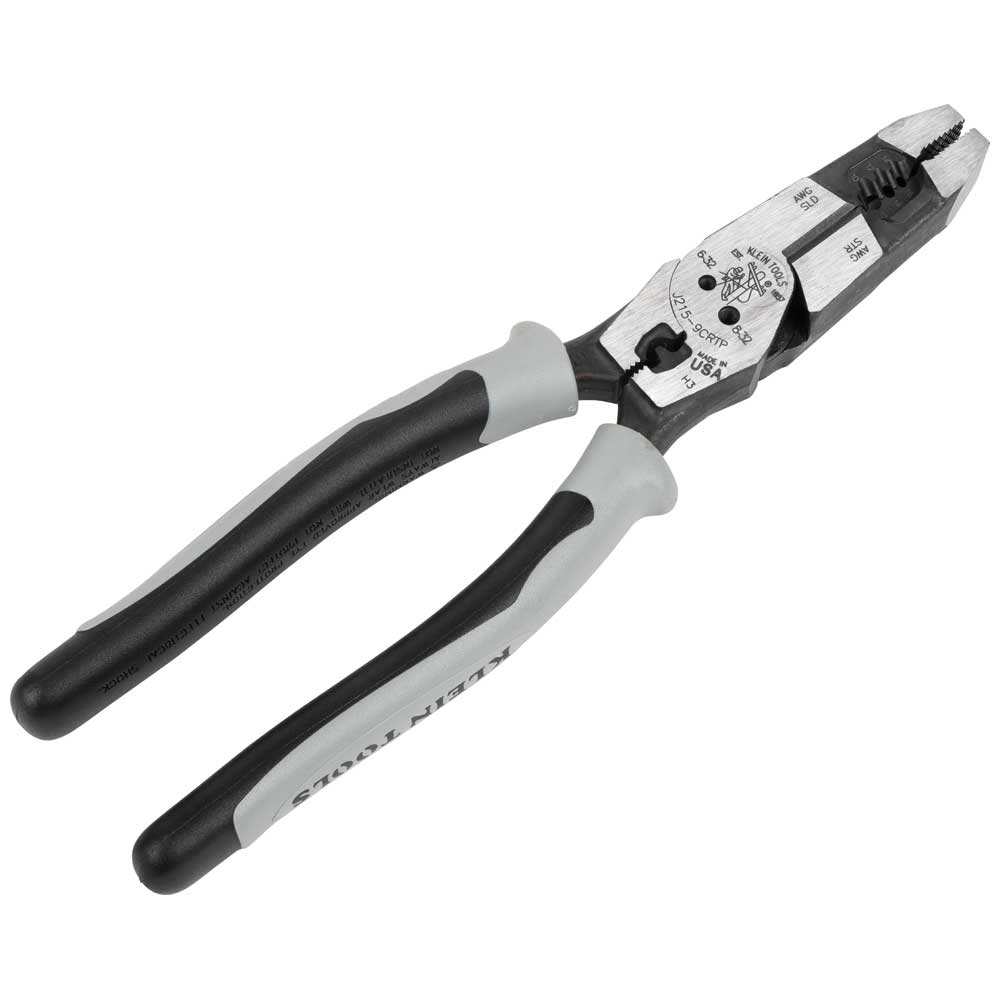

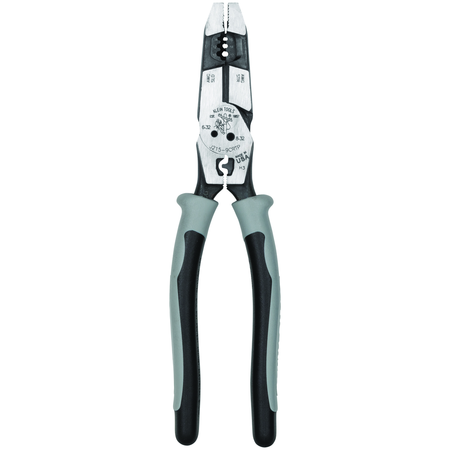

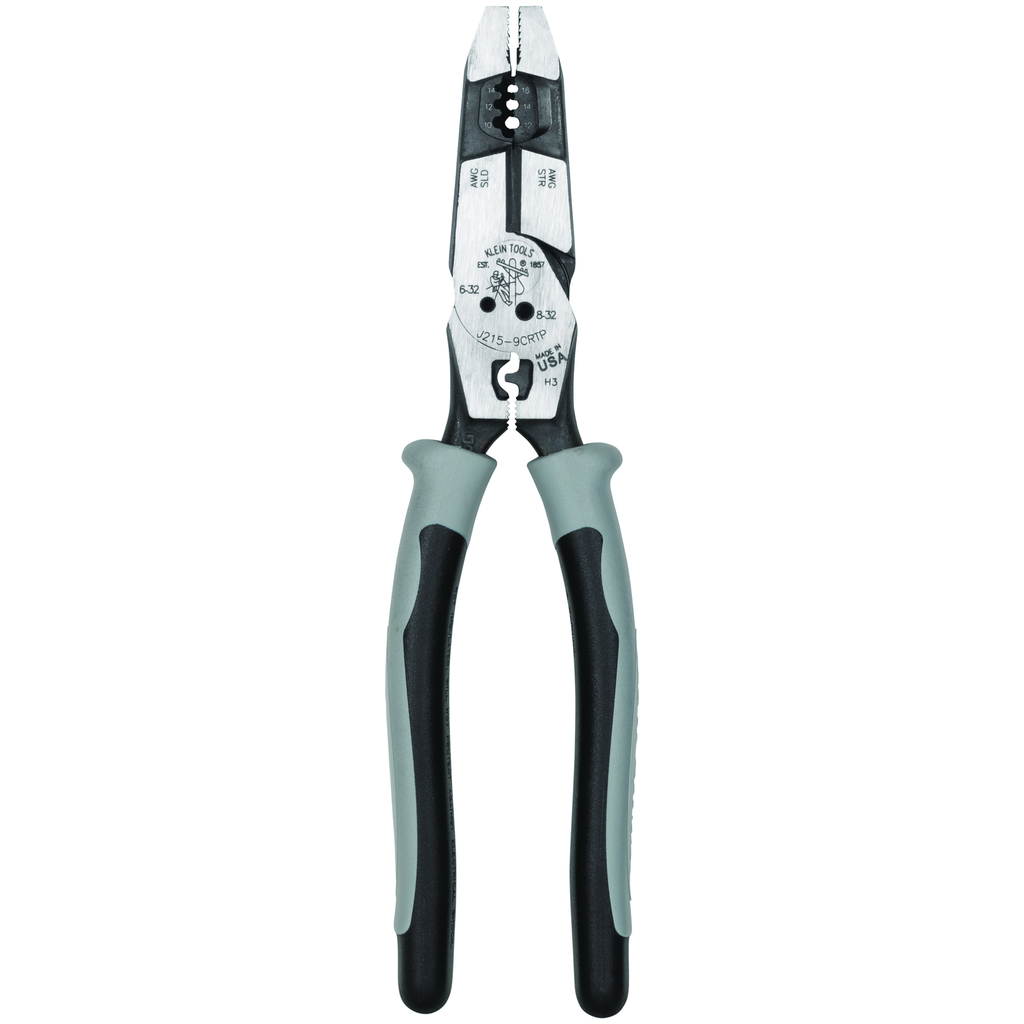

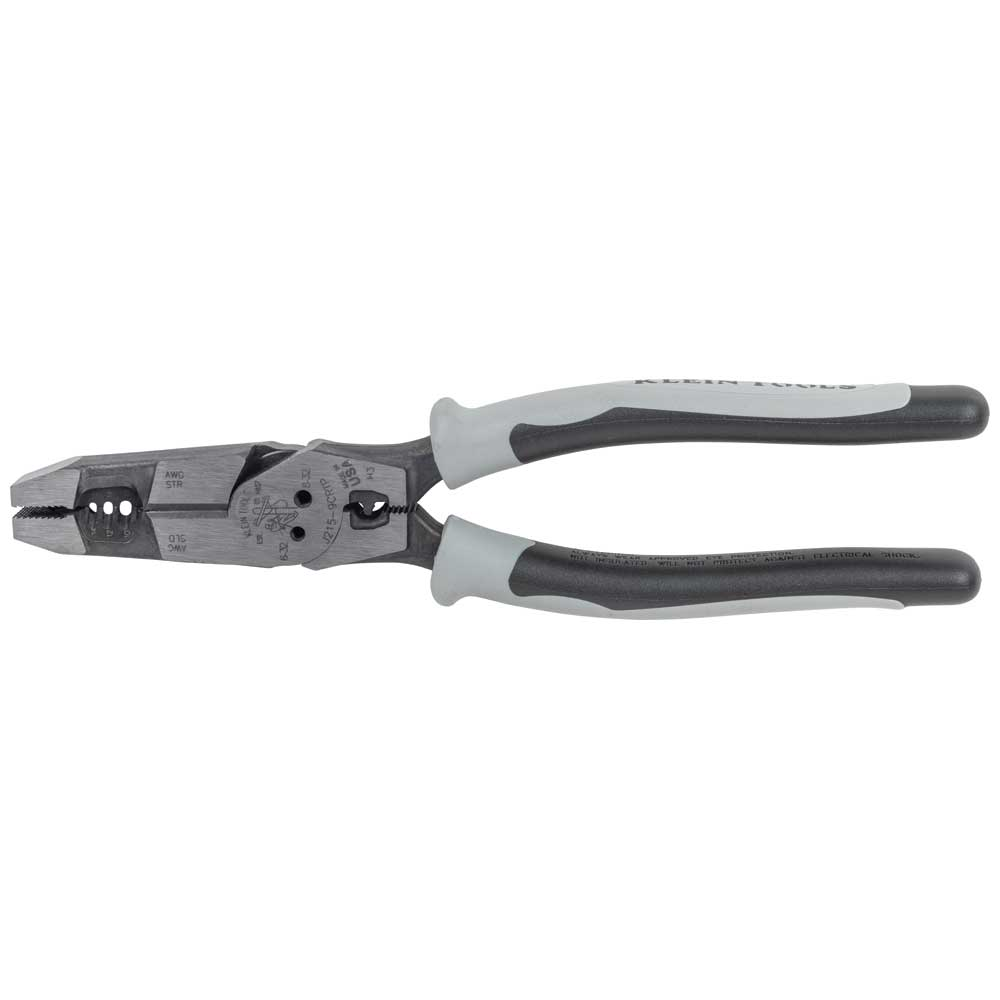

Hybrid Pliers with Crimper, Fish Tape Puller and Wire Stripper

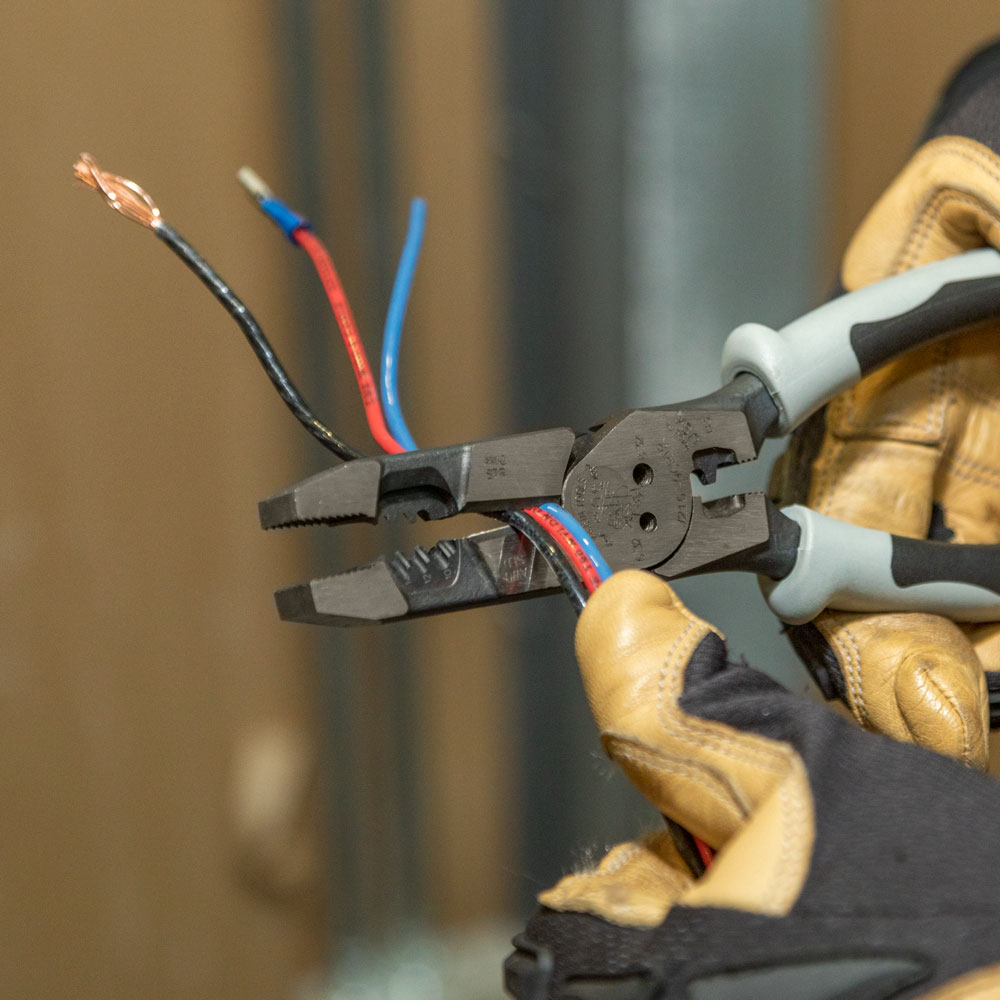

Pliers strip, cut, pull, twist, shear and crimp with one tool. These hybrid pliers feature a built-in channel to pull steel fish tape without damaging the wire. With full length, induction hardened knives and a high-leverage design, these hybrid pliers provide more cutting power on hard wire. It easily strips 10-14 AWG solid and 12-16 stranded wire. The wide, knurled head easily grabs and twists wires. Convenient holes for shearing 6-32 and 8-32 bolts plus a crimper for non-insulated connectors, lugs and terminals make this a must-have tool for your bag.

Features

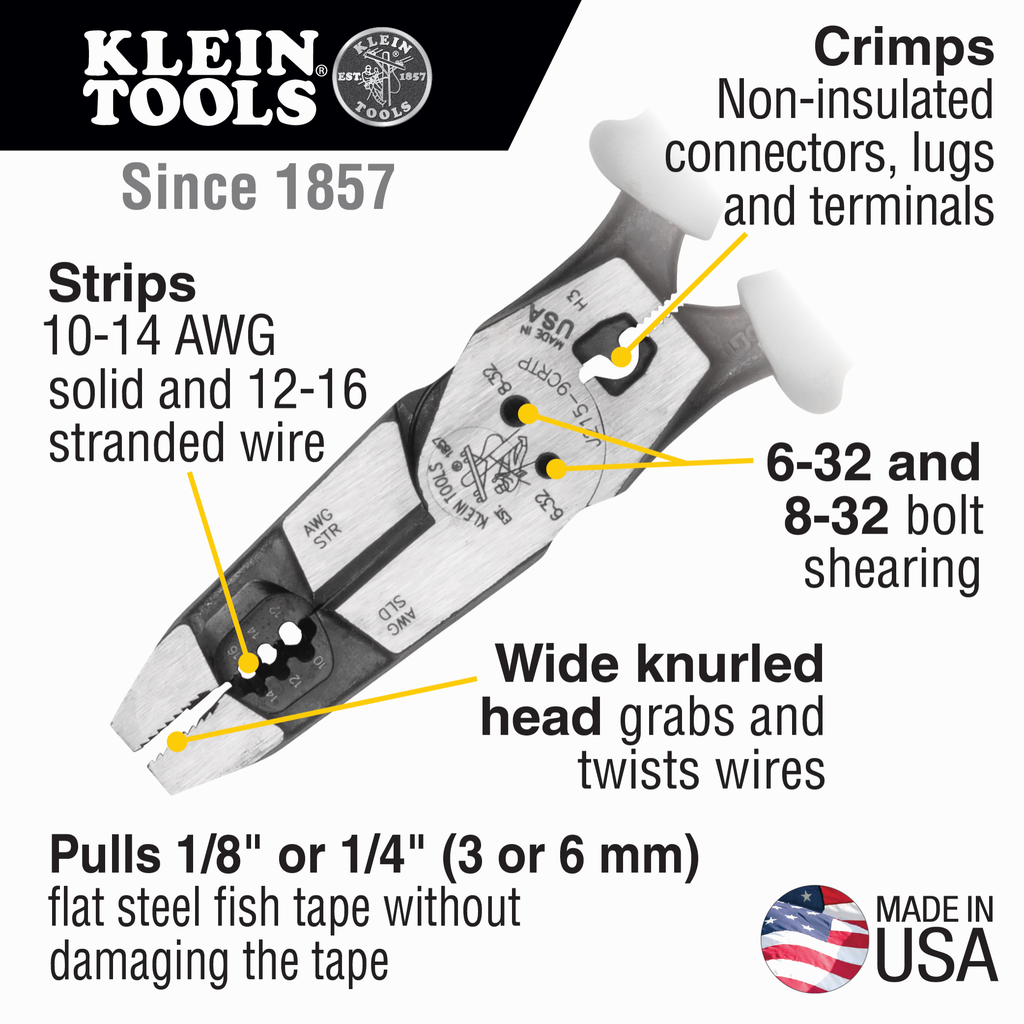

• Multi-purpose Hybrid Pliers save time and lessen the tool count
• Made in USA
• Dual-material Journeyman grips are more comfortable and last longer than other handles

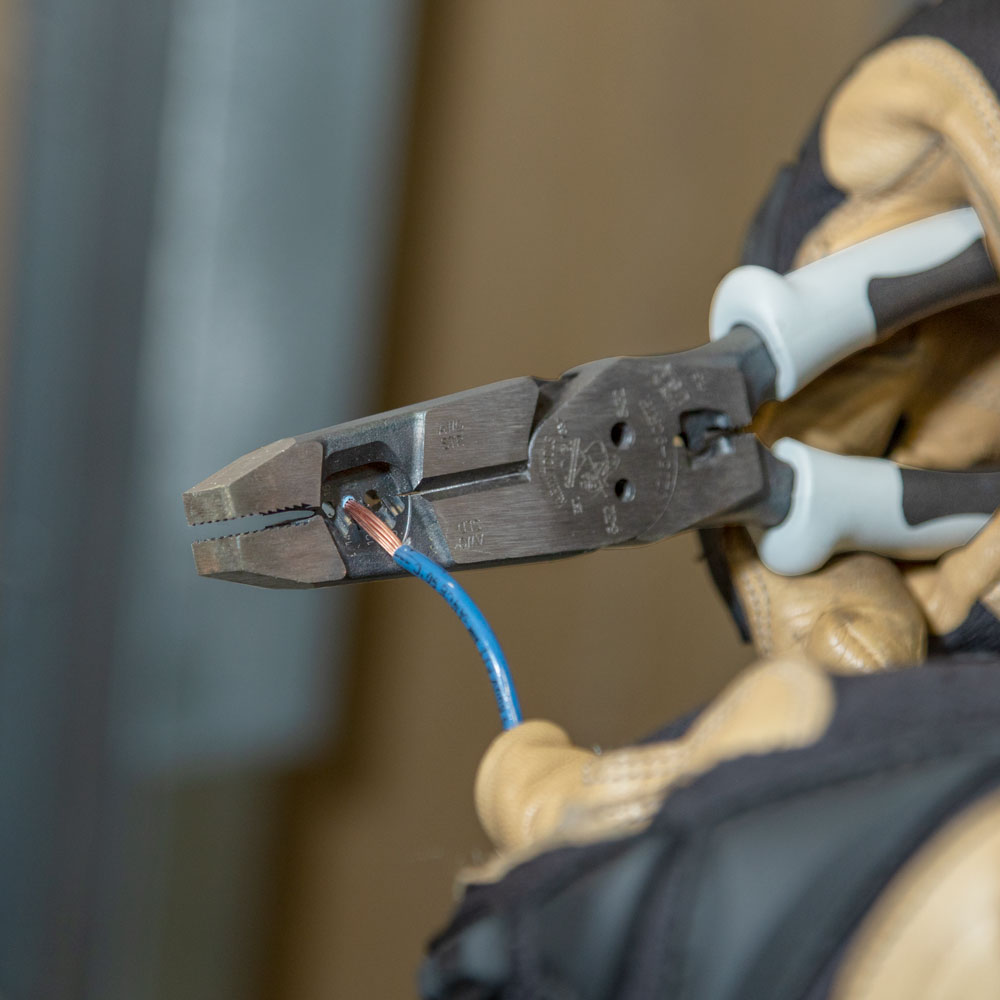

• Pliers strip 10-14 AWG solid and 12-16 stranded wire

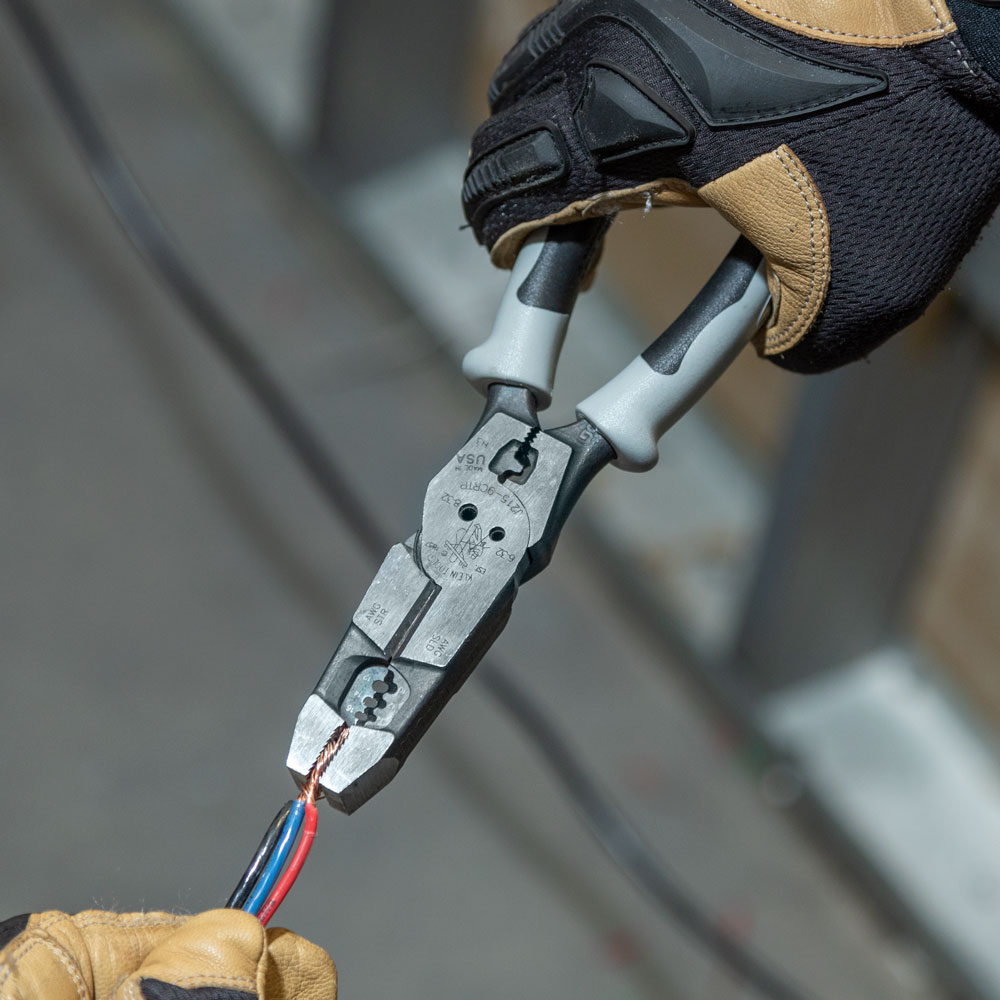

• Wide knurled head easily grabs and twists wires

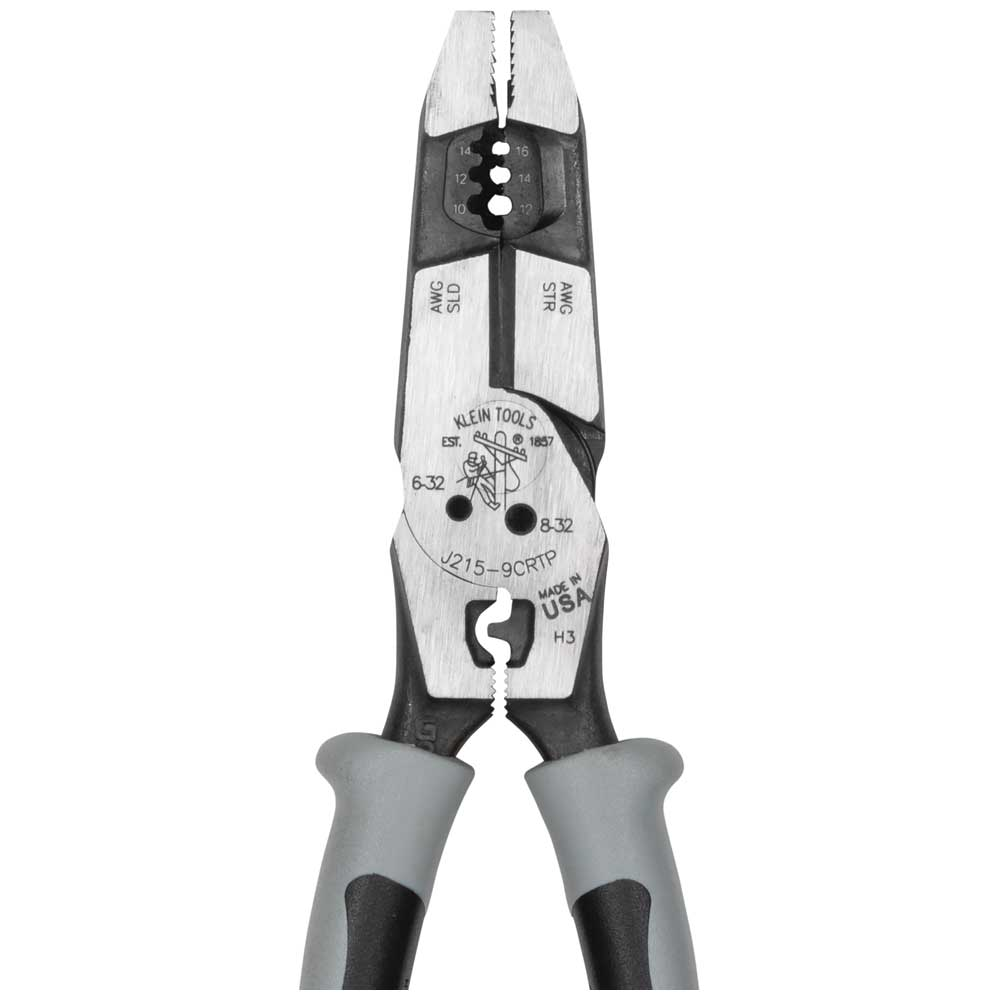

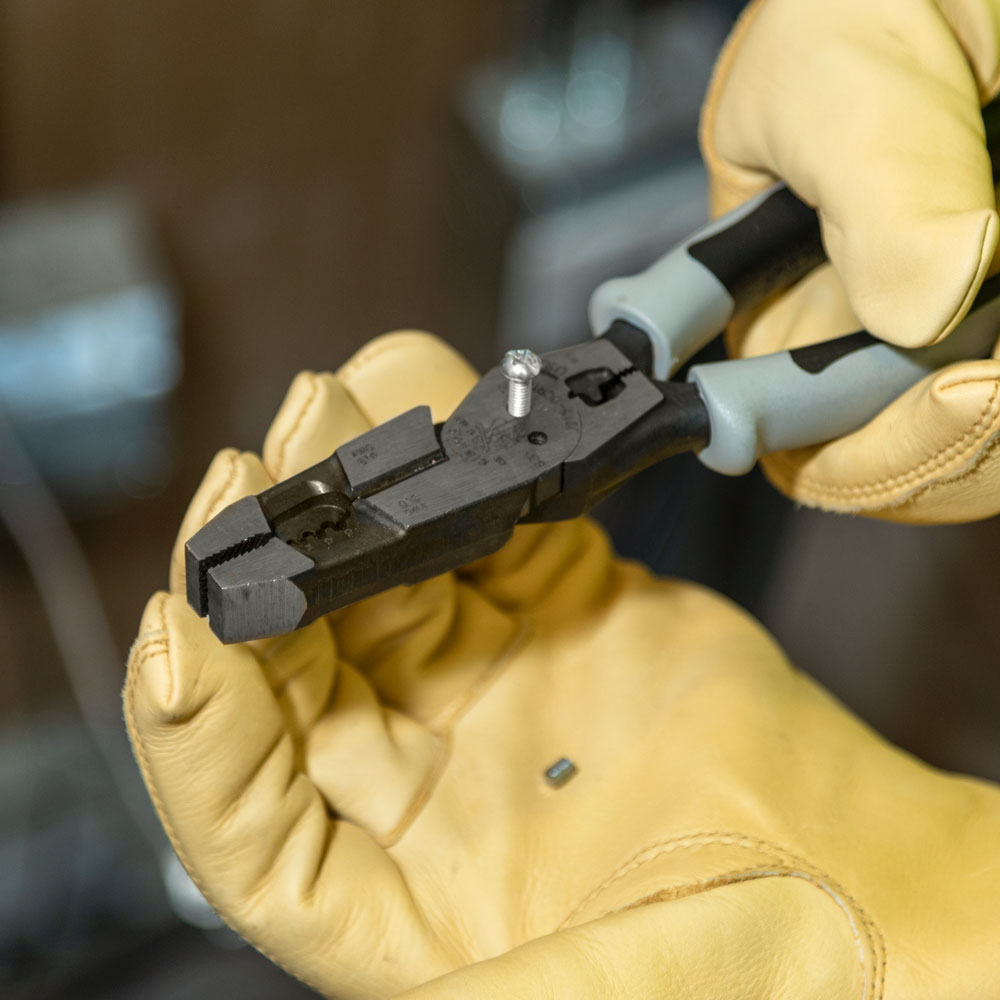

• 6-32 and 8-32 bolt shearing
• Full length, induction hardened cutting knives for hard wire
• Quickly and easily pulls 1/8-Inch or 1/4-Inch (3 or 6 mm) flat steel fish tape without damaging the tape

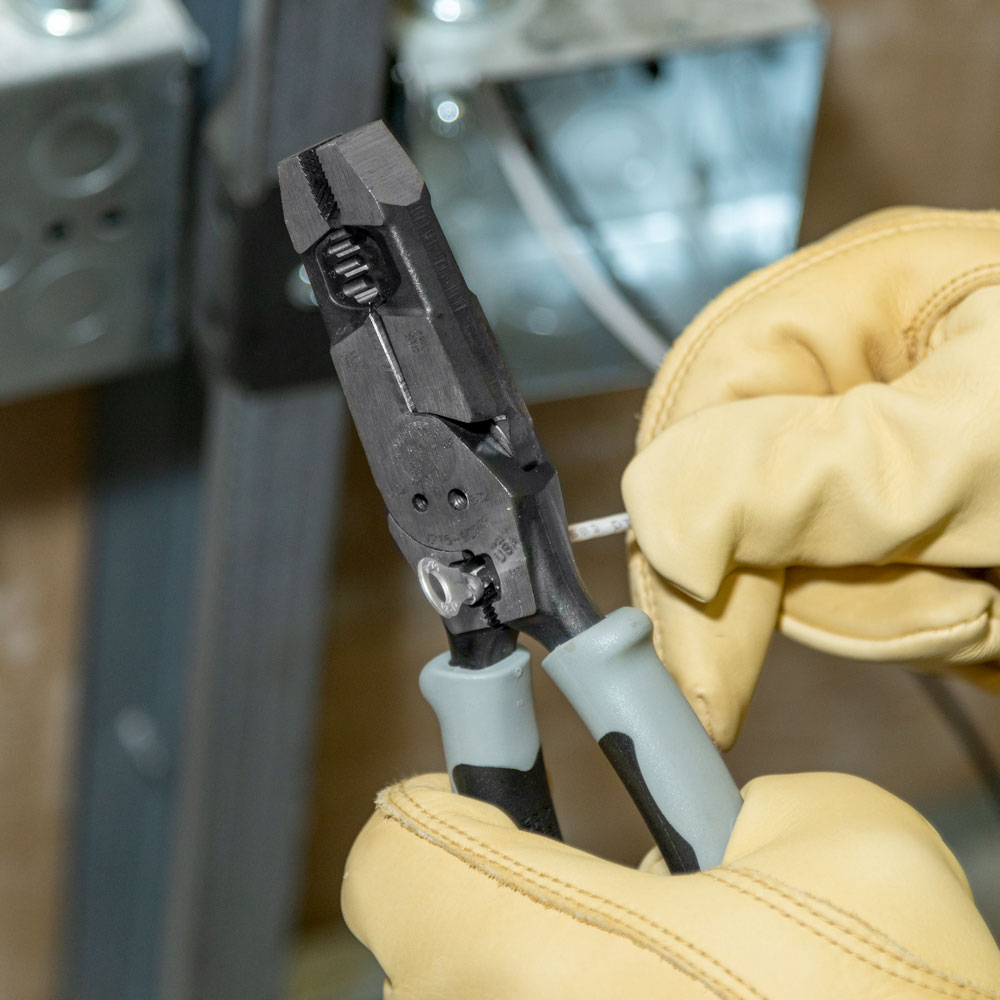

• Crimps non-insulated connectors, lugs and terminals and features high-leverage design for increased cutting power
• High-Leverage Design

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Overall Width (Inch): 2.25
• Application: Strip (10-14 SLD)(12-16 STR), Bolt Shear #6-32 and #8-32, Crimps Non-Insulated Connectors, Lugs and Terminals, Cuts Screws, Nails and Most Hardened Wire
• Insulated: No
• Screw Shearing: 6-32, 8-32
• Jaw Width (Inch): 1.154
• Material: Chrome-Vanadium Steel
• Height: 0.7500 in
• Overall Width (cm): 5.7
• Handle Finish: Journeyman™ Dual Material
• Knife Length (Inch): 0.8
• Weight: 0.6800 lbs
• Weight (oz): 10.9
• Strips and Cuts AWG Stranded: 12-16
• Jaw Capacity (cm): 3.8
• Handle Color: Gray/Black
• Knife Length (cm): 2
• Tether Capable: No
• Cut Style: Side Cut
• Weight (g): 309
• Width: 2.2500 in
• Nose Type: Square
• Handle Length (cm): 12.7
• Jaw Capacity (Inch): 1.5
• Overall Length (cm): 22.8
• Jaw Thickness (Inch): 0.6
• Jaw Thickness (cm): 1.5
• Jaw Width (cm): 2.9
• Type: High Leverage Stripping Crimping Shearing Side-Cut Hybrid Plier
• Joint Type: Solid
• Handle Length (Inch): 5.01
• Strips and Cuts AWG Solid: 10-14
• Jaw Length (cm): 5.2
• Overall Length (Inch): 8.98
• Depth: 9.1100 in
• Overall Height (cm): 1.9
• Overall Height (Inch): 0.75
• Jaw Length (Inch): 2.04
• Cutting Knives: Yes
