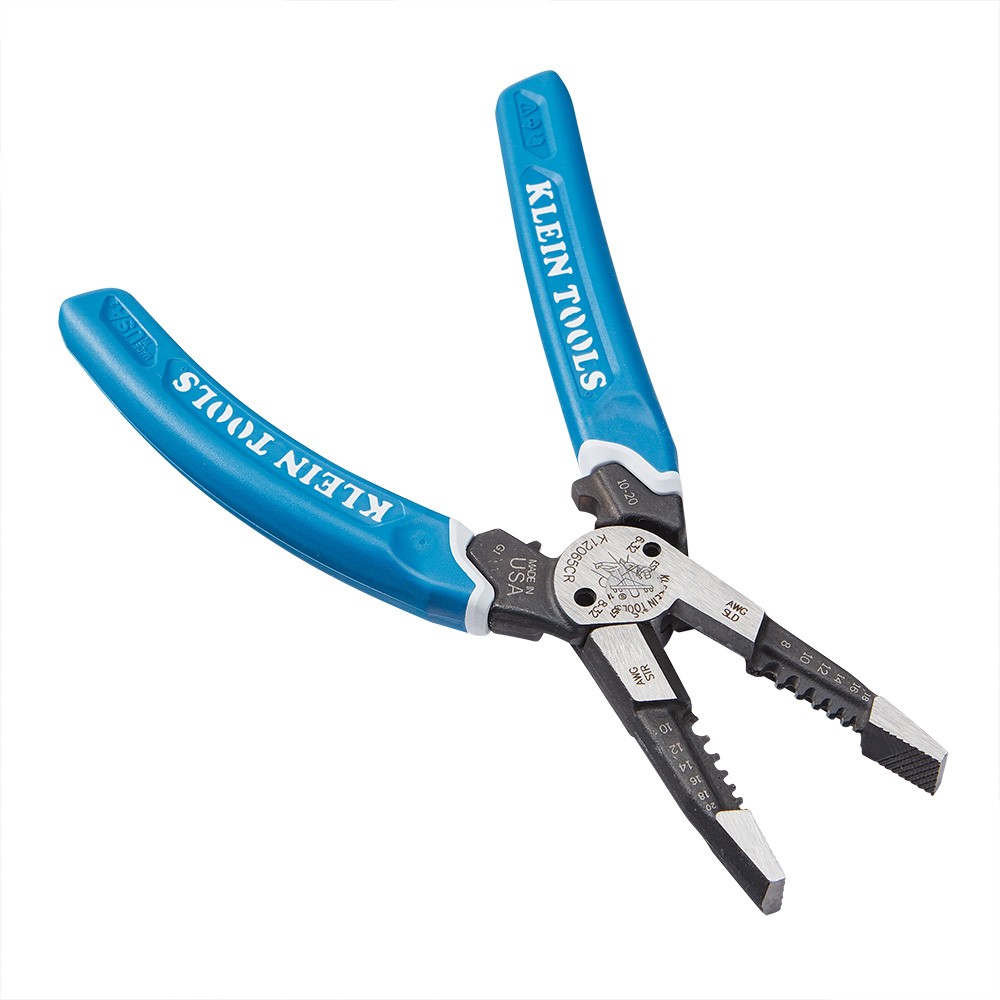

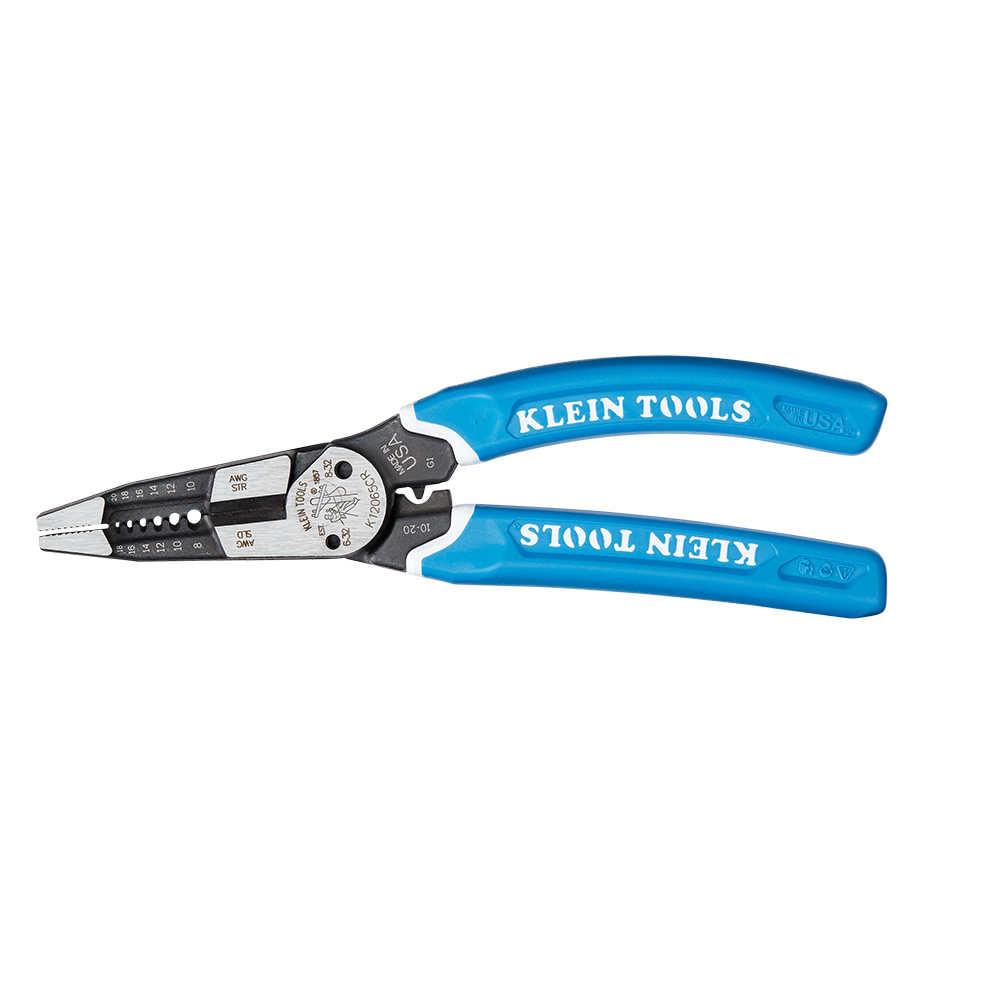

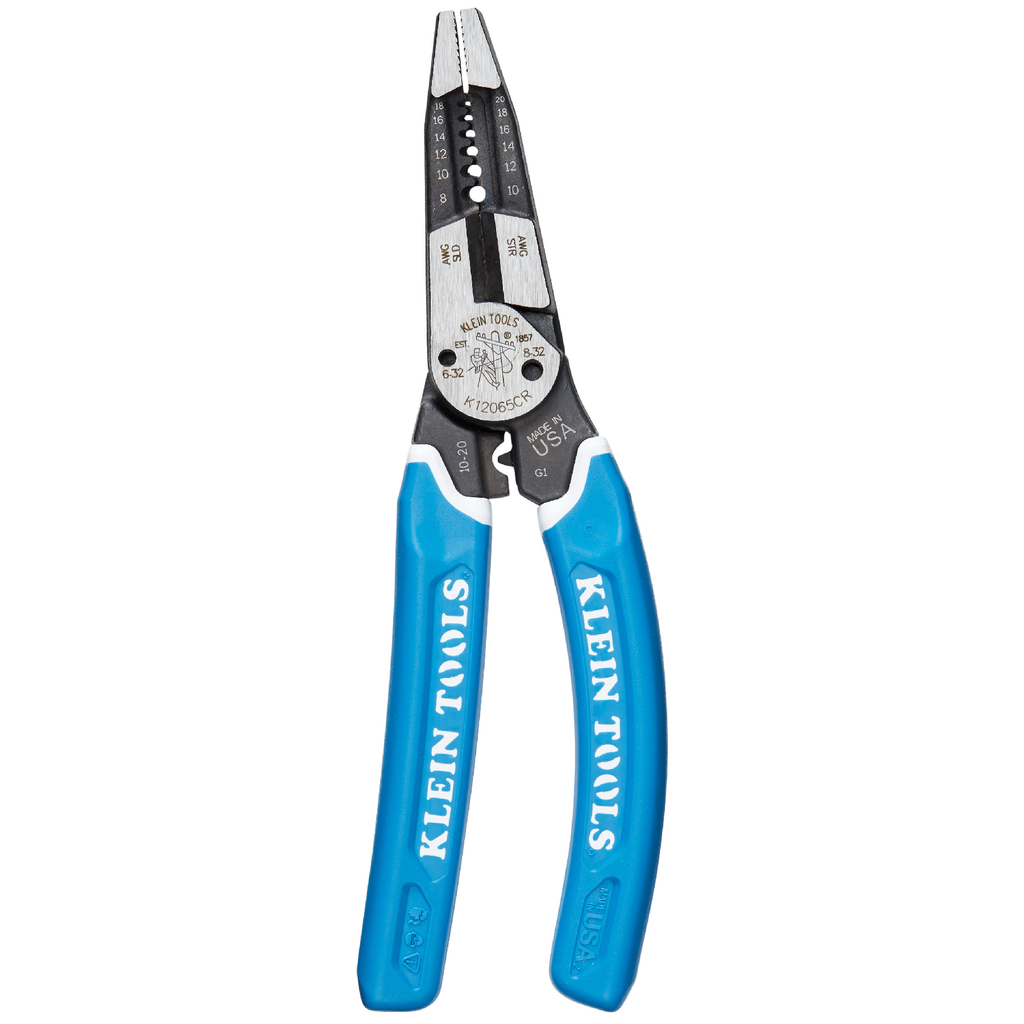

Klein-Kurve® Heavy-Duty Wire Stripper / Cutter / Crimper Multi Tool, 8-20 AWG

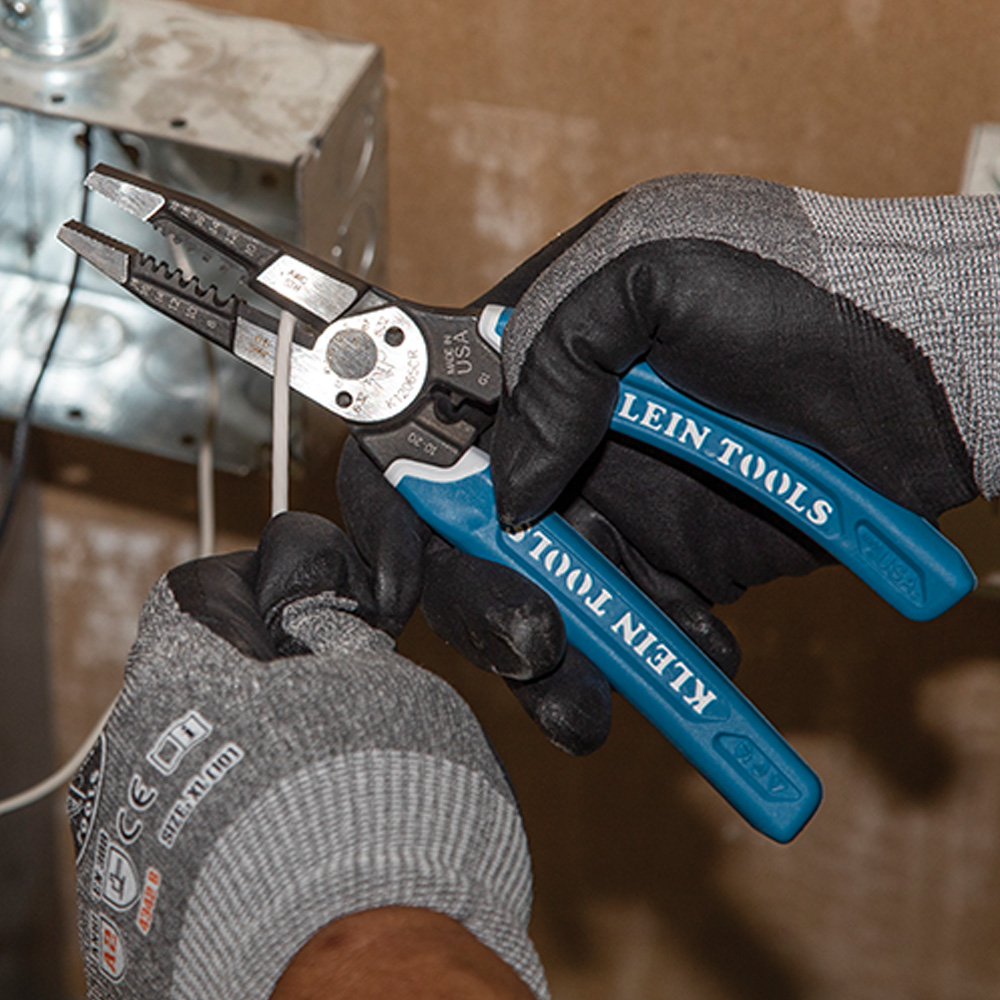

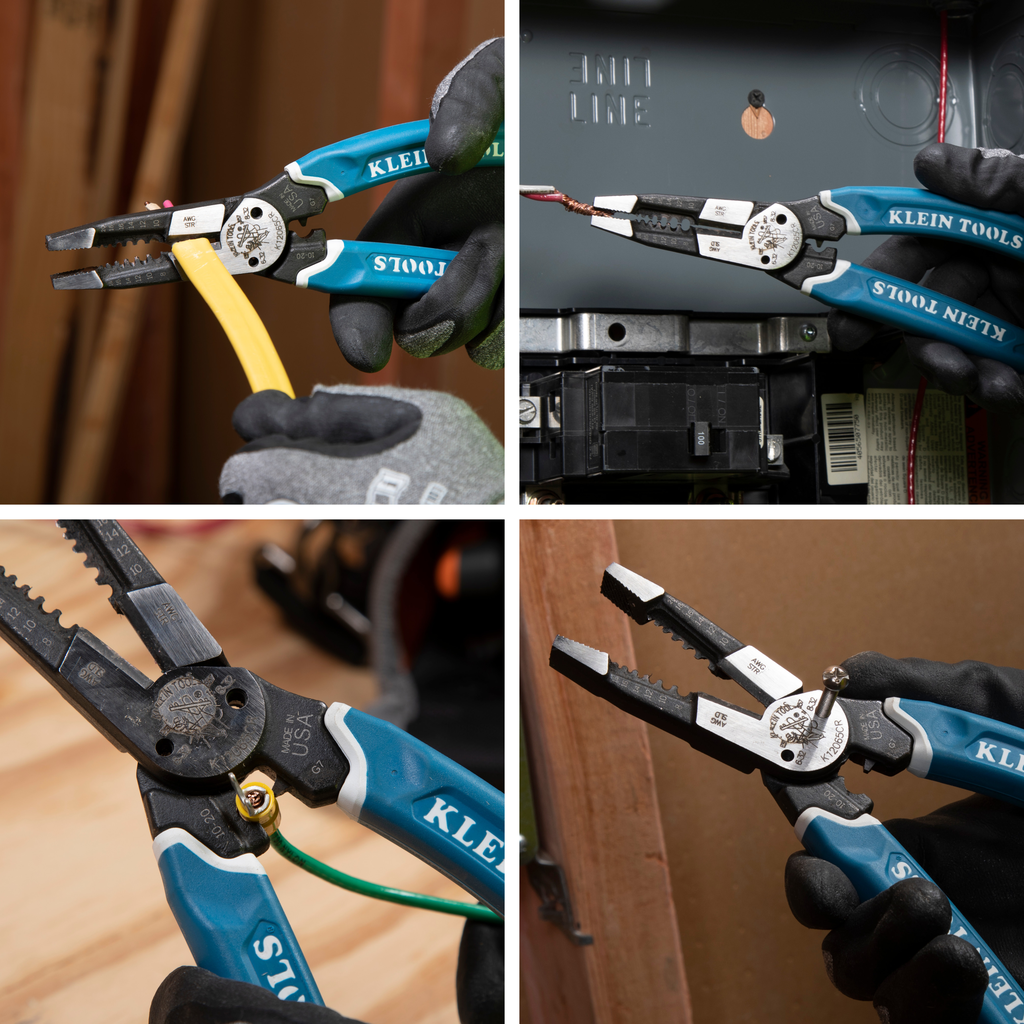

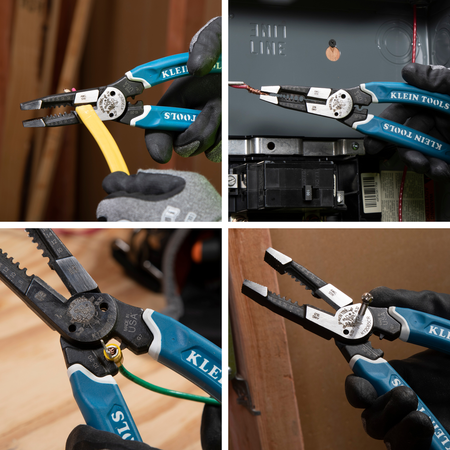

Klein's forged Wire Stripper / Cutter / Crimper Heavy-Duty Multi Tool is built with the durability of pliers, the sharpness and precision of a wire stripper and an integrated crimper. This American-made tool provides durable wire cutting, stripping, crimping and twisting plus bolt shearing in one tool. Four times (4X) stronger than traditional Klein wire strippers. This tool strips 8-18 AWG solid and 10-20 AWG stranded wire and crimps 10-20 AWG stranded. Easily twists three wires at a time.

Features

• Forged of custom, US made steel
• Knurled jaw for twisting, grabbing and looping wire, twists up to three wires at a time
• 4X Stronger Than Traditional Klein Wire Strippers
• Made in USA

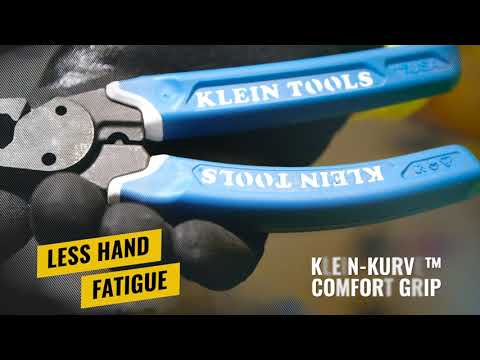

• Klein-Kurve® comfort grip handles for reduced hand fatigue
• Hot-riveted joint ensures smooth action and no handle wobble

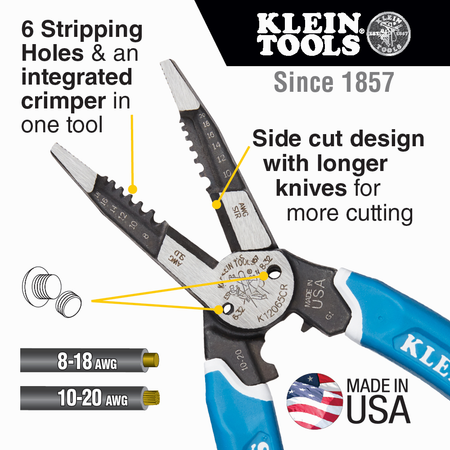

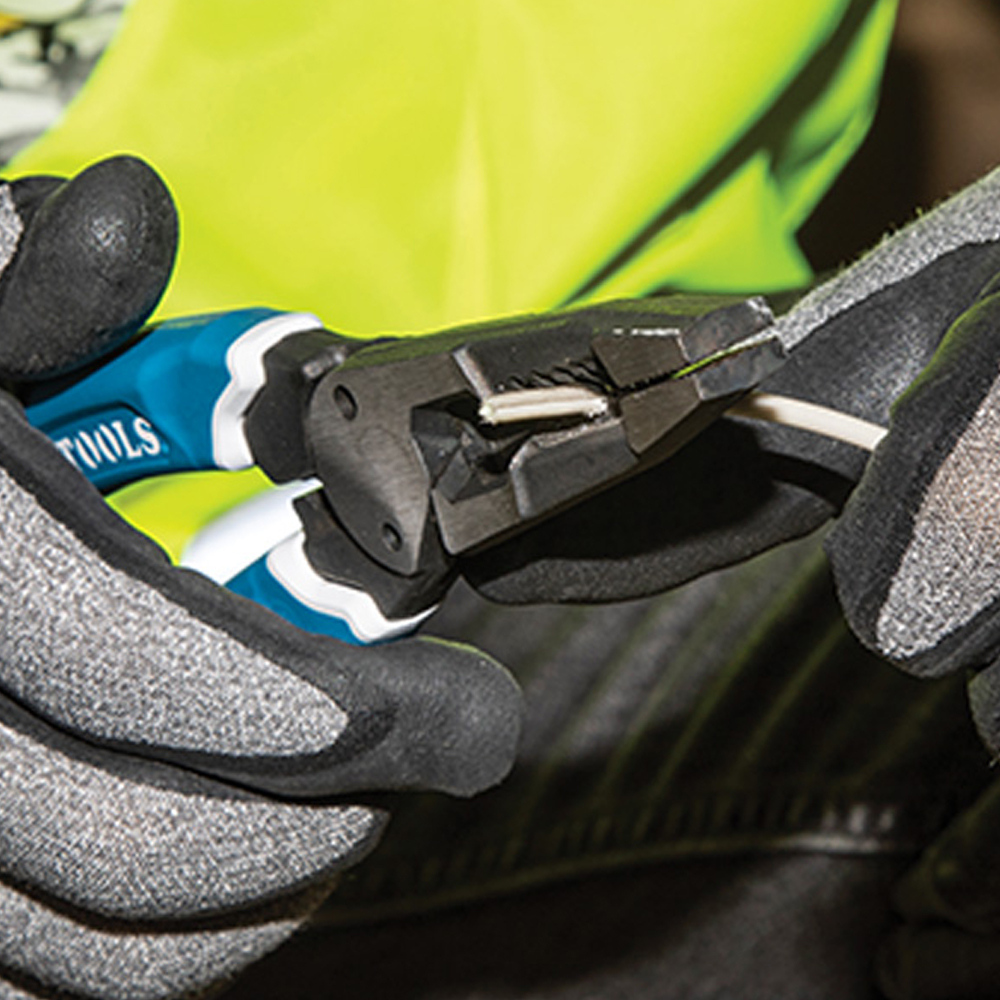

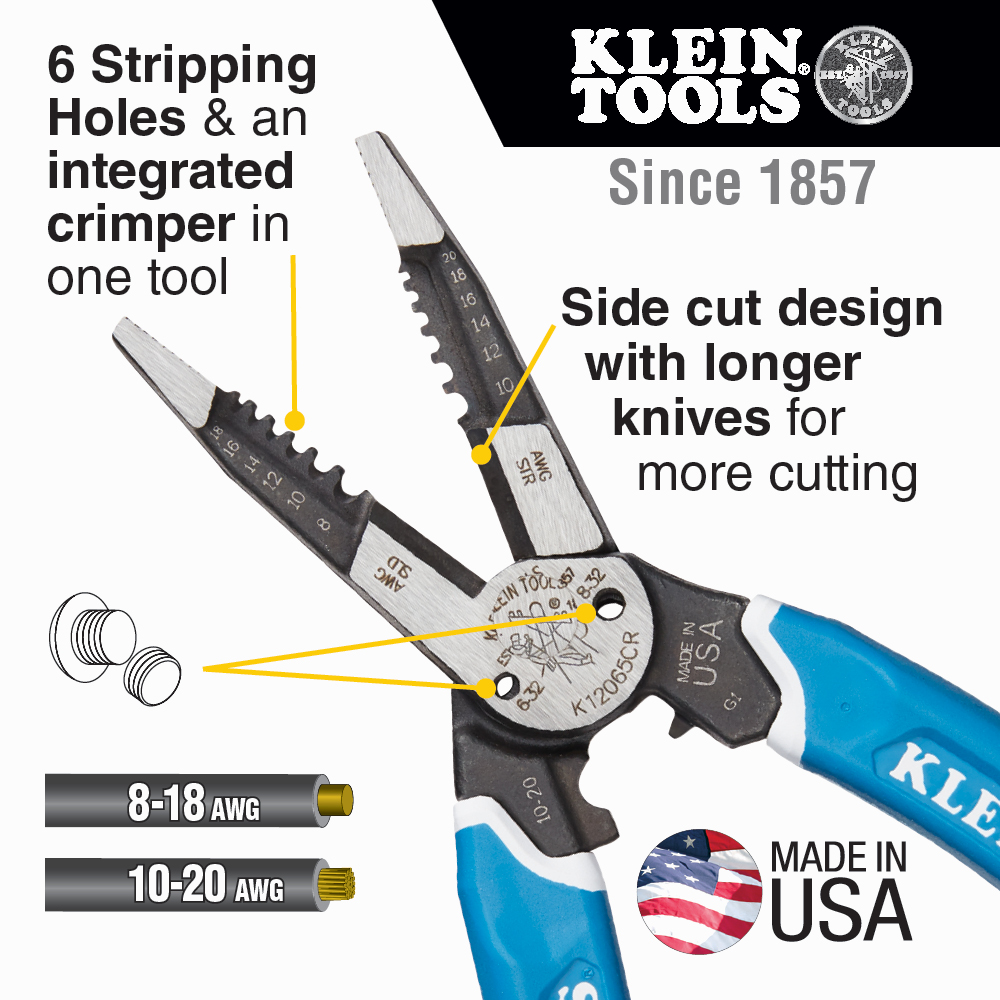

• Multi Tool's side cut design features longer knives for more cutting

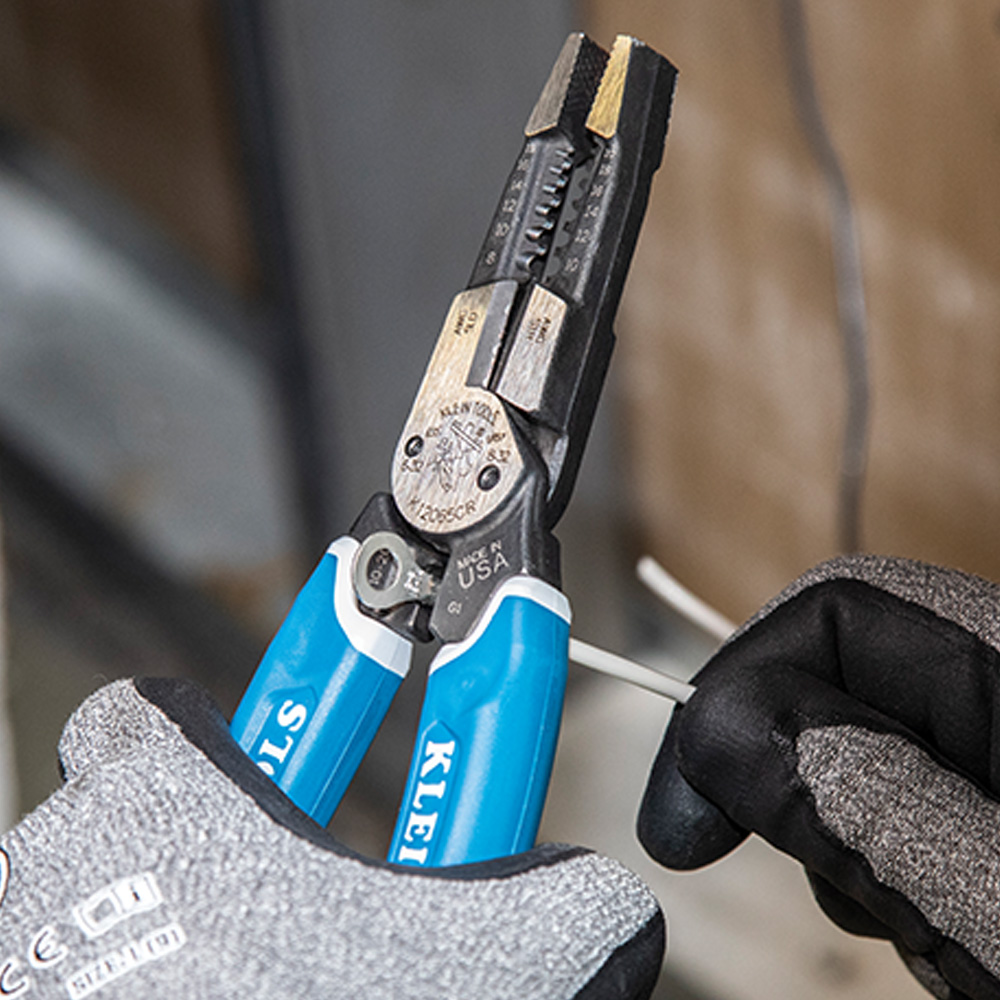

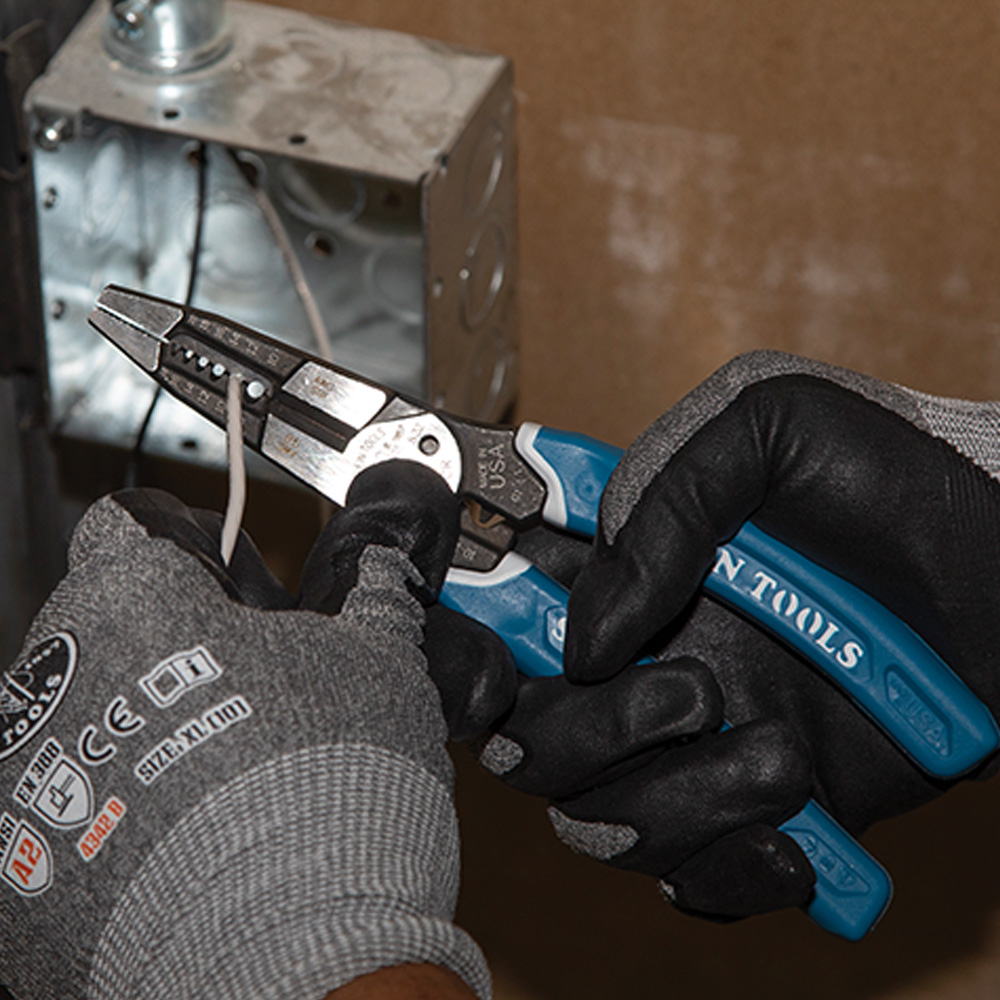

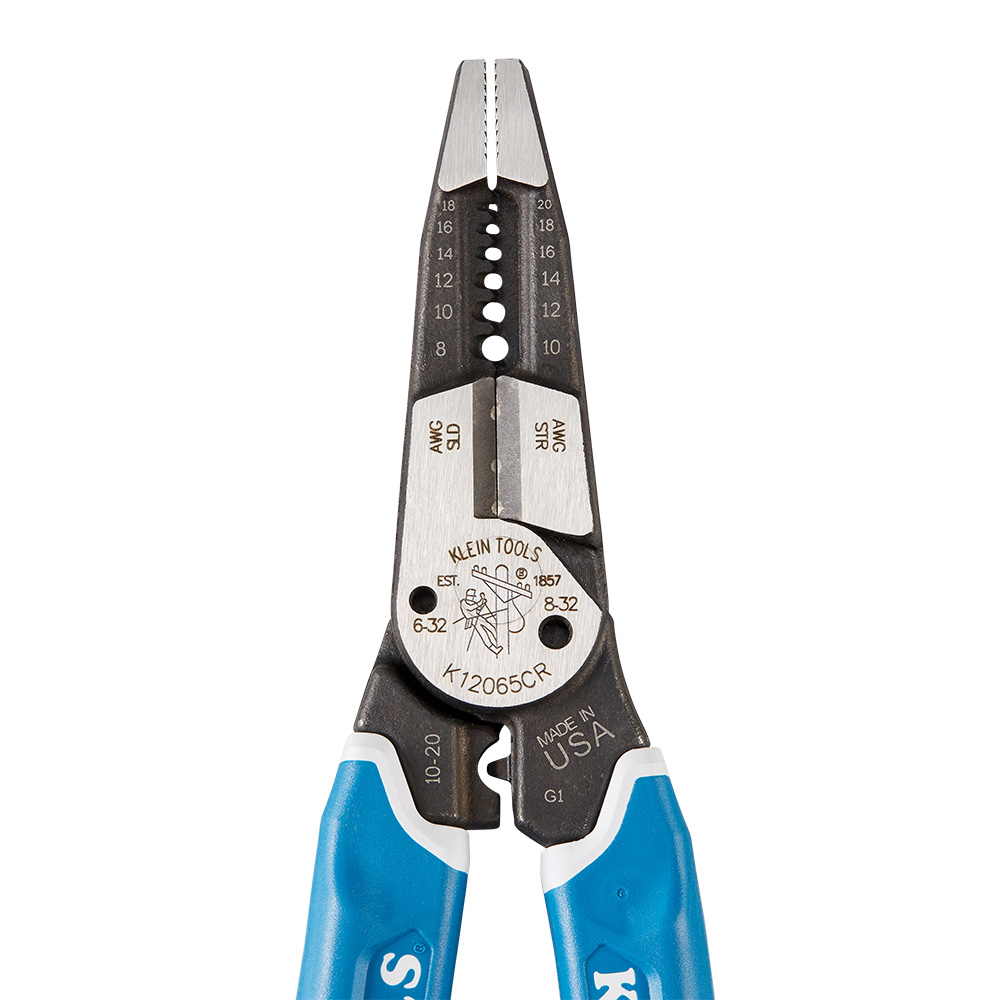

• Wire Stripper with six stripping holes for 8-18 AWG solid and 10-20 AWG stranded wire

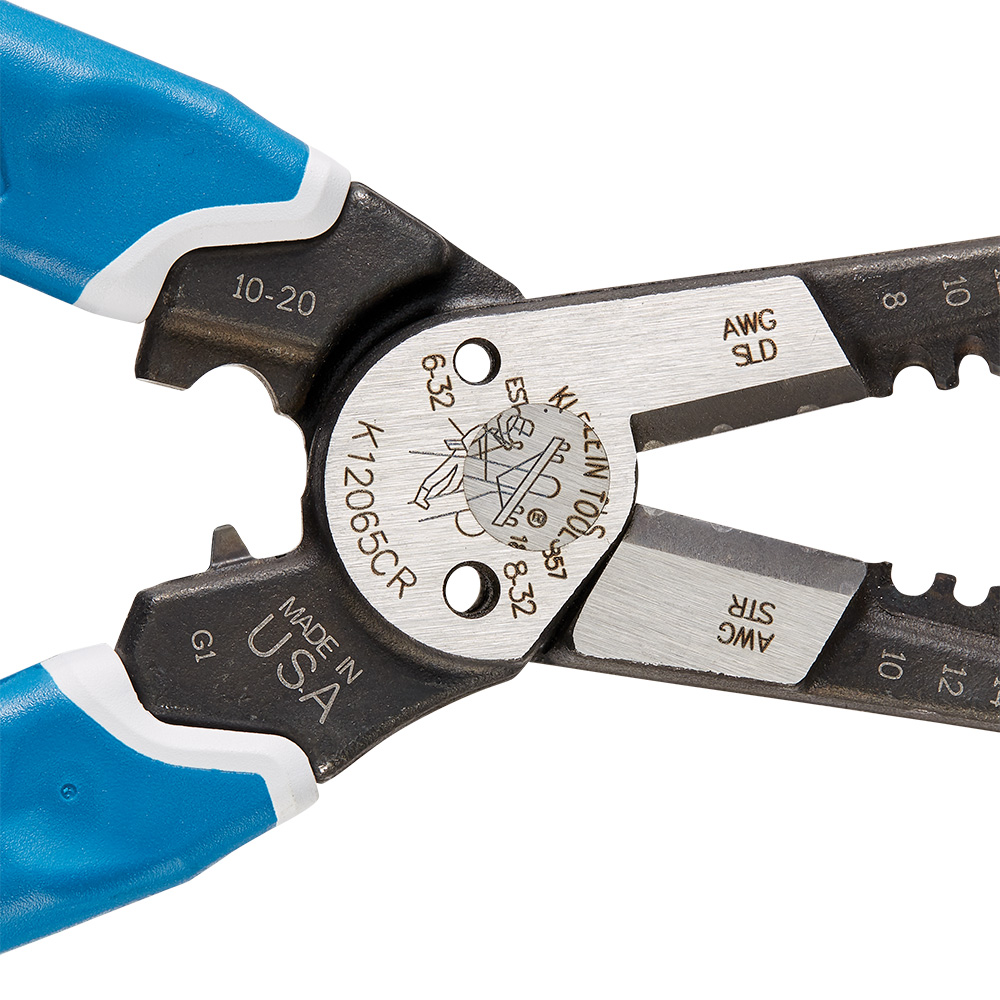

• Crimps non-insulated connectors, lugs and terminals for 10-20 AWG stranded wire
• High leverage design for improved performance
• Induction hardened cutting knives for long life

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Overall Width (Inch): 2.25
• Overall Height (Inch): 0.73
• Overall Length (Inch): 8
• Material: Forged Steel
• Weight (g): 318
• Width: 2.2500 in
• Overall Length (cm): 20.3
• Screw Shearing: 6-32, 8-32
• Strips and Cuts: 8-18 AWG Solid; 10-20 AWG Stranded
• Weight: 0.6900 lbs
• Overall Width (cm): 5.7
• Crimping Capacity: 10-20 AWG Stranded
• Application: Wire Stripping, Cutting and Crimping
• Height: 0.7250 in
• Handle Color: Blue/White
• Overall Height (cm): 1.9
• Depth: 8.2700 in
• Type: Multi-Tool Wire Stripper
• Weight (oz): 11.2
