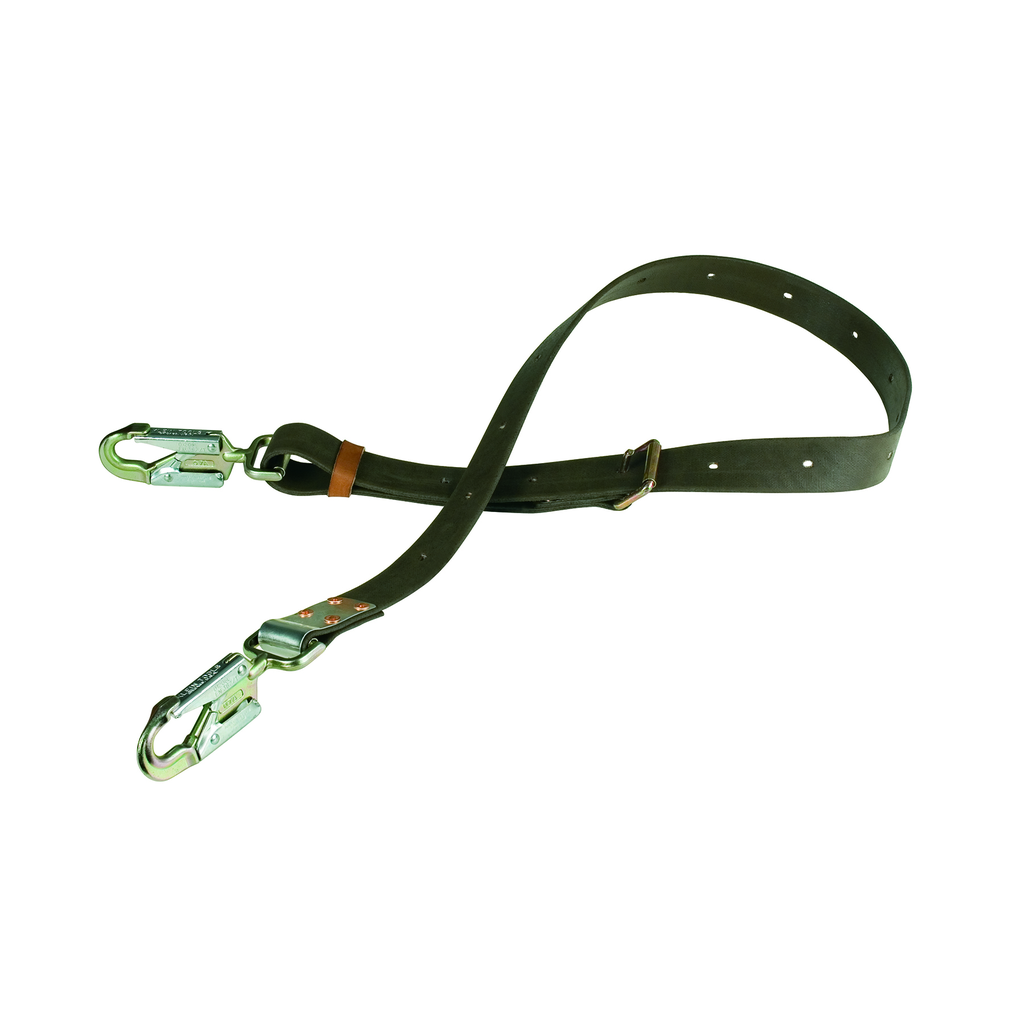

Positioning Strap, 7-Foot with 6-1/2-Inch Snap Hook

Klein's positioning straps work with Klein's climbing equipment for linemen. Made with exceptionally strong and long-lasting Klein-Kord, the straps are adjustable within a 2.5-Foot range. Features a Gard snap hook with 5000-Pound (2268 kg) gate strength. The drop-forged, single tongue adjustment buckle has a corrosion-resistant finish. Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage.

Features

• Internal lock mechanism
• 2.5-Foot adjustable range

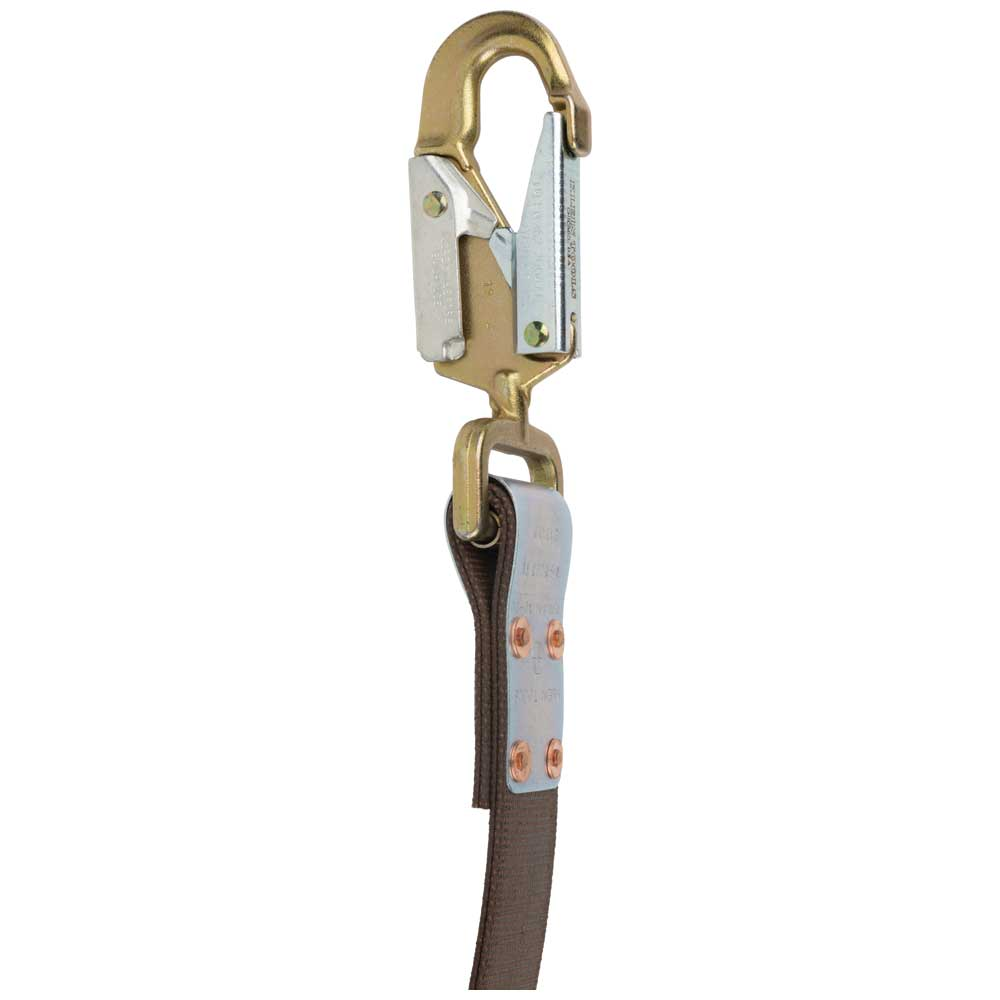

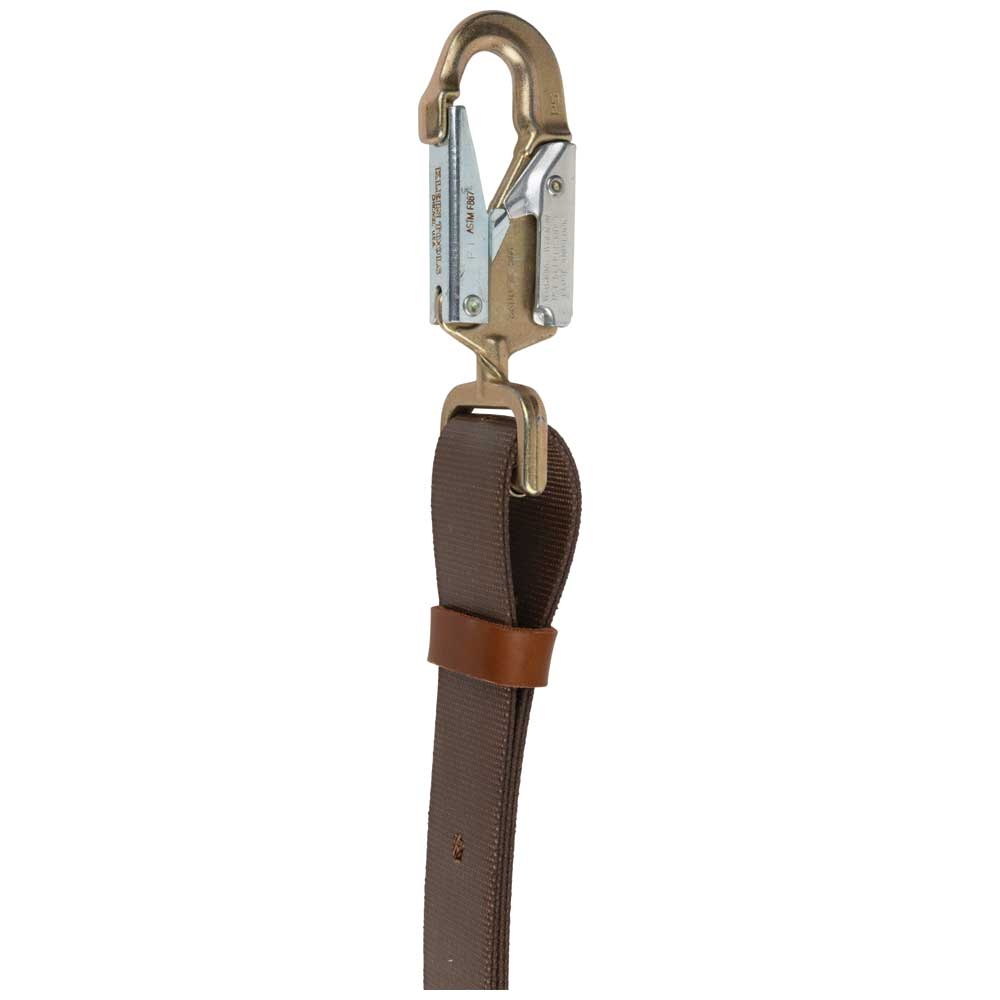

• Elongated 6-1/2-Inch (165 mm) snap hook is easy to use with even the thickest gloves
• Elongated 6-1/2" (16.5 cm) Snap Hook; 6-ply neoprene coated nylon construction; Built in red wear indicator layer
• Made of 6-ply, 1-3/4-Inch (44 mm) wide Klein-Kord®, an exceptionally strong, flexible fabric
• Red wear indicator in center of strap alerts user when strap needs to be replaced
• Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage
• Gard snap hook has 5000-pound (2268 kg) strength proof-loaded rating

Warnings

• Never allow a positioning strap to become twisted before engaging D-ring.
• Always attach snap hooks to positioning D-rings on both sides of the belt or harness with keepers facing outward.
• Never attach multiple snap hooks onto a D-ring.

Specifications

• Number of Plies: 6
• Application: Distribution and Transmission Poles
• Standard: 29 CFR 1910.268 & 29 CFR 1910.269 & 29 CFR 1926.954
• Color: Brown
• Maximum Length: 7' (2.1 m)
• Adjustable Range: 2'3" (0.7 m)
• Material: 6-Ply Klein-Kord®
• Height: 4.4100 in
• Pole Diameter: 11" to 23" (27.9 to 58.4 cm)
• Depth: 84.0000 in
• Width: 8.7300 in
• Minimum Length: 4'9" (1.5 m)

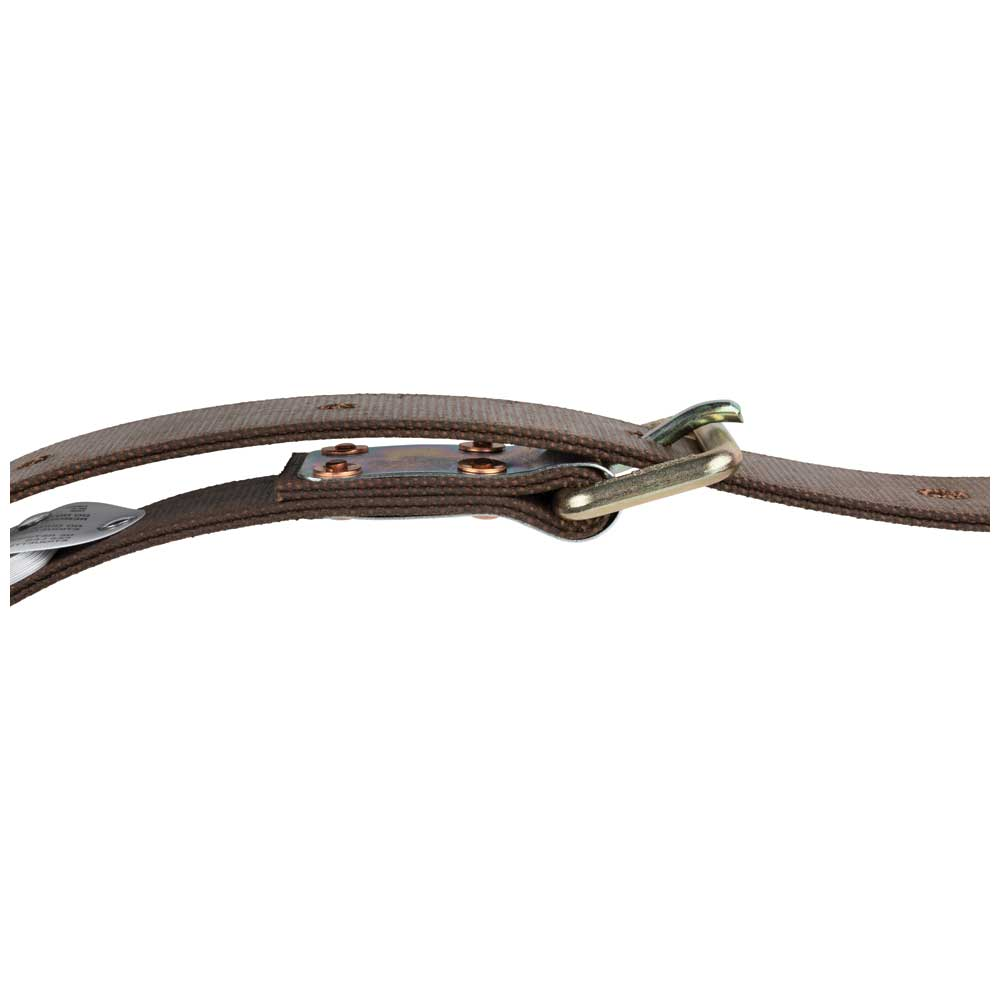

• Buckle Type: Drop-forged, Single Tongue Adjustment Buckle
• Weight: 3.4380 lbs
