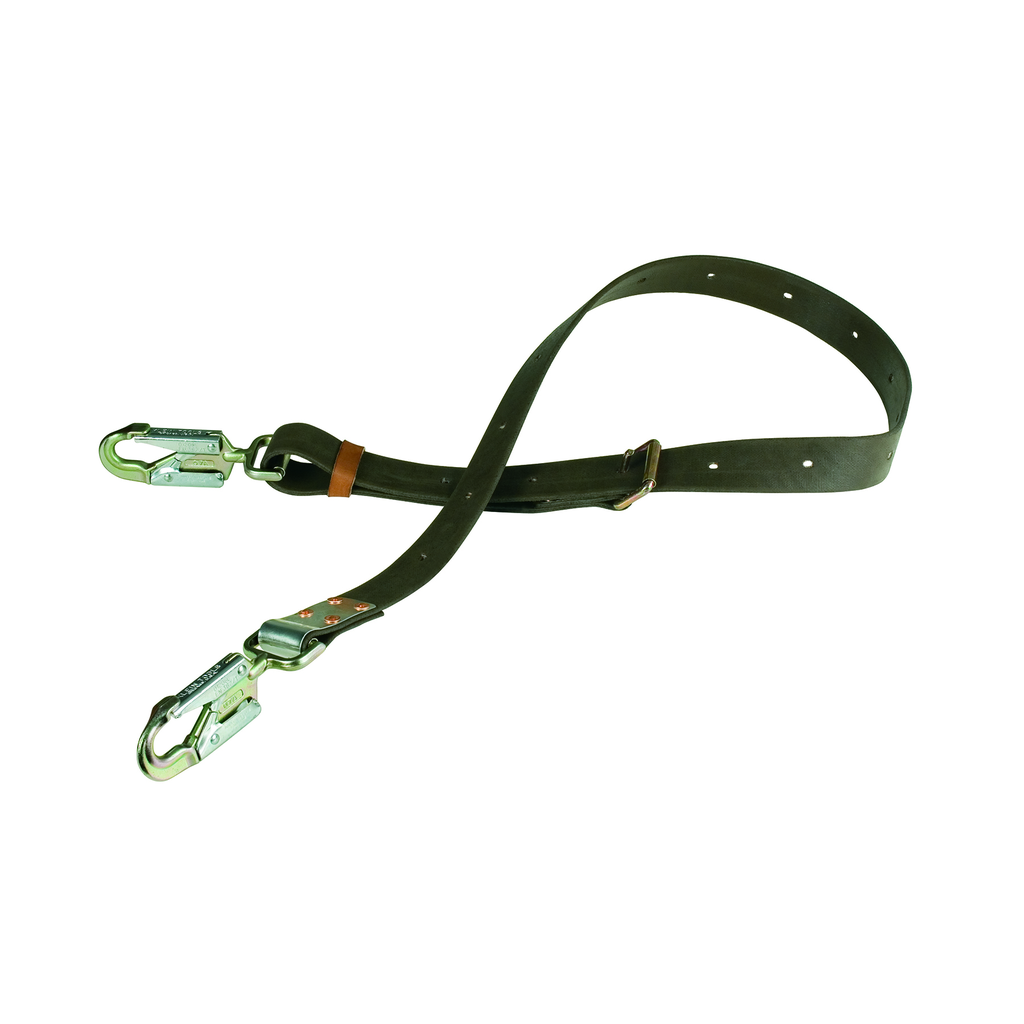

Positioning Strap, 5.67-Foot with 6-1/2-Inch Snap Hook

Klein's positioning straps work with Klein's climbing equipment for linemen. Made with exceptionally strong and long-lasting Klein-Kord, the straps are adjustable within a 1-Foot 10-Inch range. Features a Gard snap hook with 5000 lb. (2268 kg) gate strength. The drop-forged, single tongue adjustment buckle has a corrosion-resistant finish. Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage.

Warnings

• Never attach multiple snap hooks onto a D-ring.
• Always attach snap hooks to positioning D-rings on both sides of the belt or harness with keepers facing outward.
• Never allow a positioning strap to become twisted before engaging D-ring.

Features

• Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage
• Snap hook has 5000-Pound (2268 kg) proof-loaded rating
• Made of 6-ply, 1-3/4-Inch (44 mm) wide Klein-Kord®, an exceptionally strong, flexible fabric
• Internal lock mechanism
• Maximum length up to 68-Inches
• Red wear indicator in center of strap alerts user when strap needs to be replaced
• Elongated 6-1/2" (16.5 cm) Snap Hook; 6-ply neoprene coated nylon construction; Built in red wear indicator layer

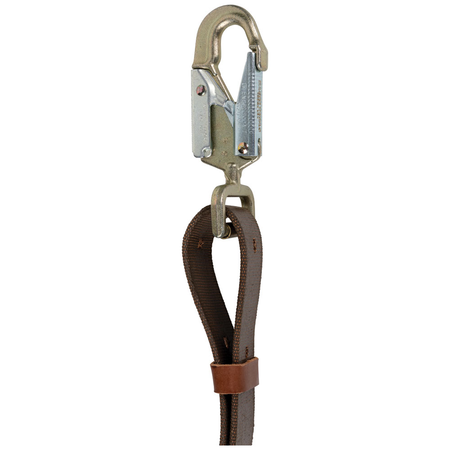

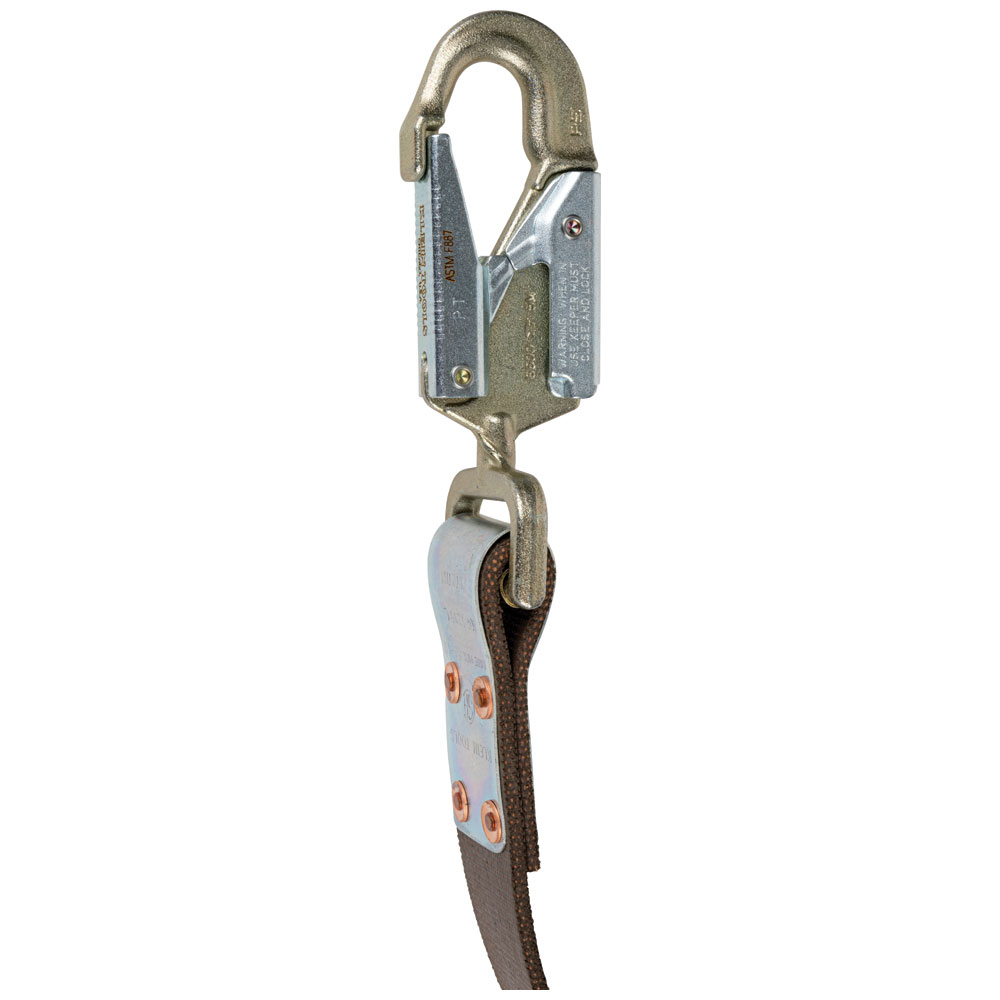

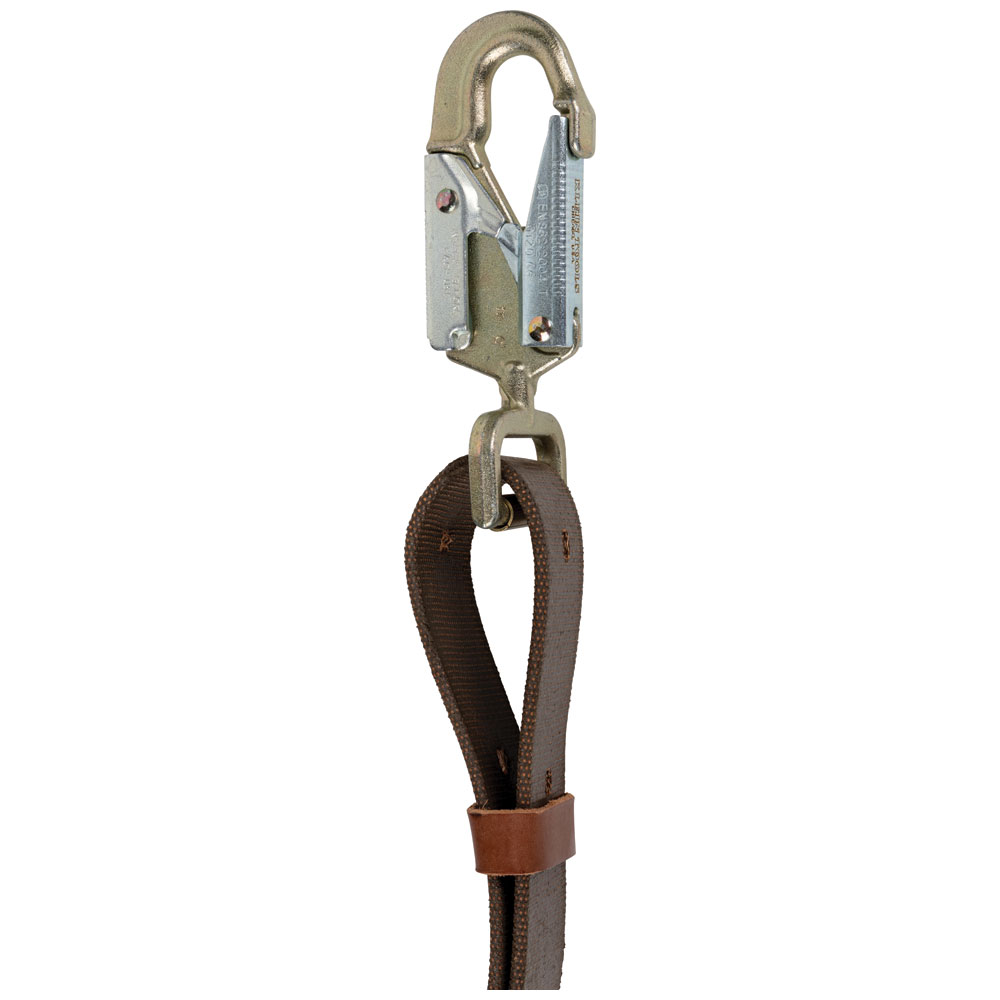

• Elongated 6-1/2-Inch (165 mm) snap hook is easy to use with even the thickest gloves

Specifications

• Pole Diameter: 7.5" to 17" (17.8 to 43.2 cm)
• Minimum Length: 4'1" (1.2 m)
• Material: 6-Ply Klein-Kord®

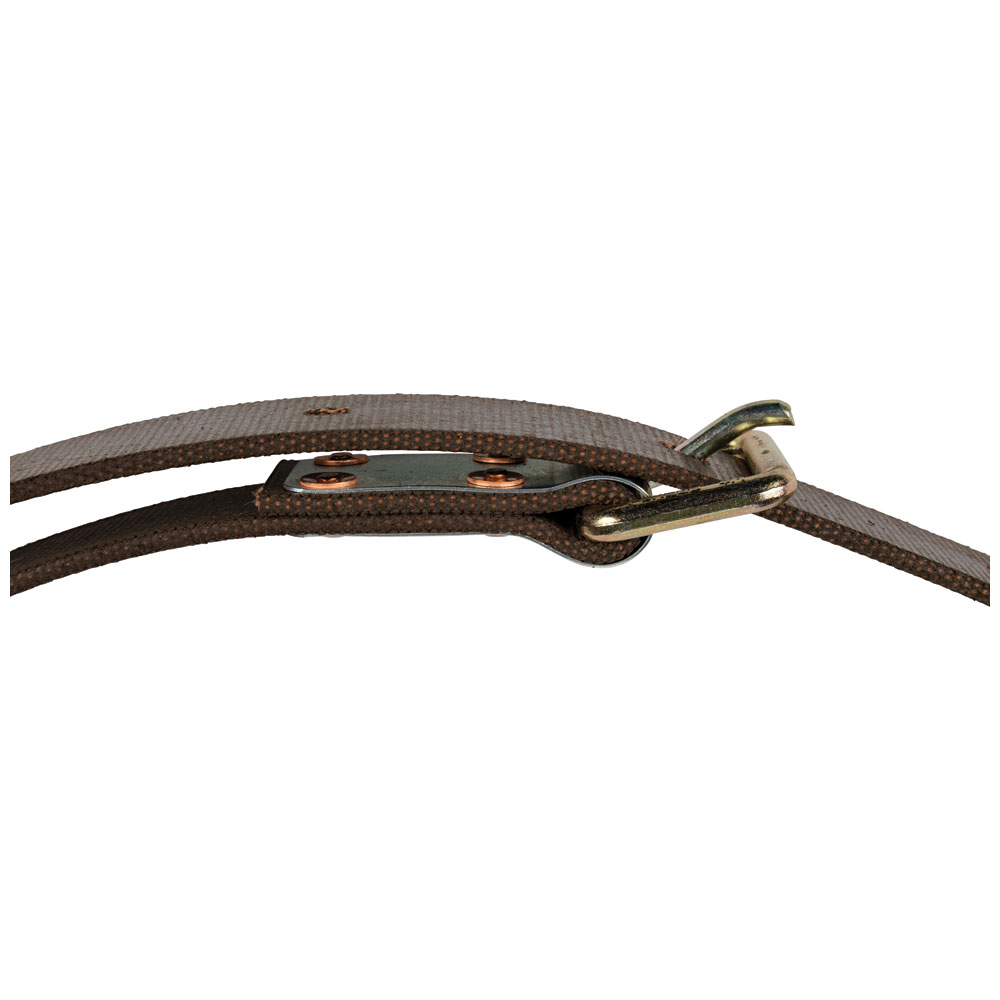

• Buckle Type: Drop-forged, Single Tongue Adjustment Buckle
• Maximum Length: 5'8" (1.7 m)
• Standard: 29 CFR 1910.268 & 29 CFR 1910.269 & 29 CFR 1926.954
• Depth: 696.0000 in
• Adjustable Range: 1'7" (0.5 m)
• Color: Brown
• Application: Distribution and Transmission Poles
• Width: 8.4380 in
• Weight: 3.2220 lbs
• Height: 4.2750 in
