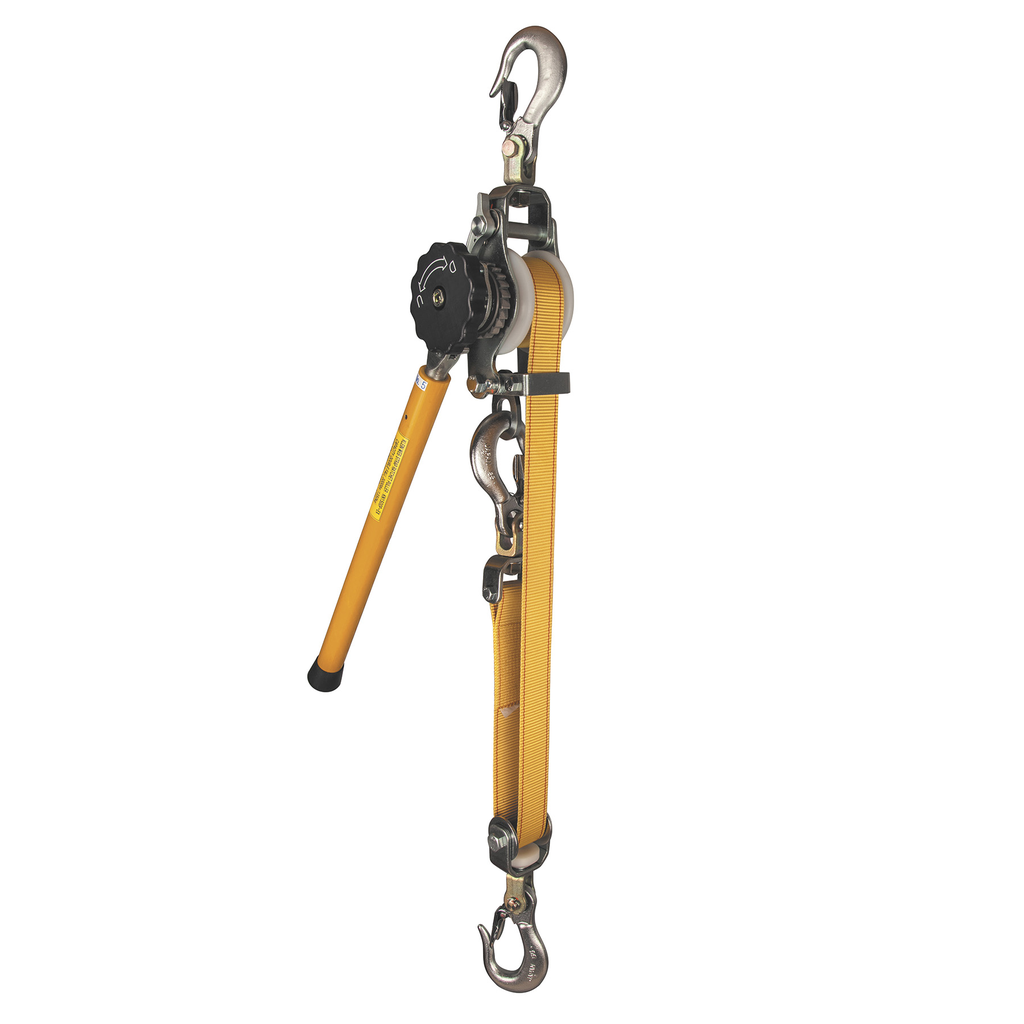

Web-Strap Ratchet Hoist

Klein Tools' Web-Strap Ratchet Hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free wheeling. The hoist can be used in both a single line and double line configuration. The handle provides a 360 degree range of motion for easier adjustment from any angle.

Features

• Large, non-conductive dial (drum knob) allows web slack to be adjusted with ease
• Hoist can be used with either a single line or a double line
• Has a single line pulling distance of 20-Inches to 138-Inches (50.5 to 350.5 cm)
• 360-degree handle rotation
• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• 3/4-ton single line and 1-1/2-ton double line load rating
• Tight ratcheting mechanism allows precise tensioning

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

Specifications

• Height: 4.0500 in
• Weight: 12.5000 lbs
• Double Line Pulling Distance: 26" to 79" (66.0 to 200.6 cm)
• Depth: 26.1000 in
• Double Line Load Rating: 3000 lb (1360.8 kg)
• Single Line Pulling Distance: 20" to 138" (50.5 to 350.5 cm)
• Single Line Load Rating: 680.4 kg (1500 lb)
• Width: 6.7500 in
