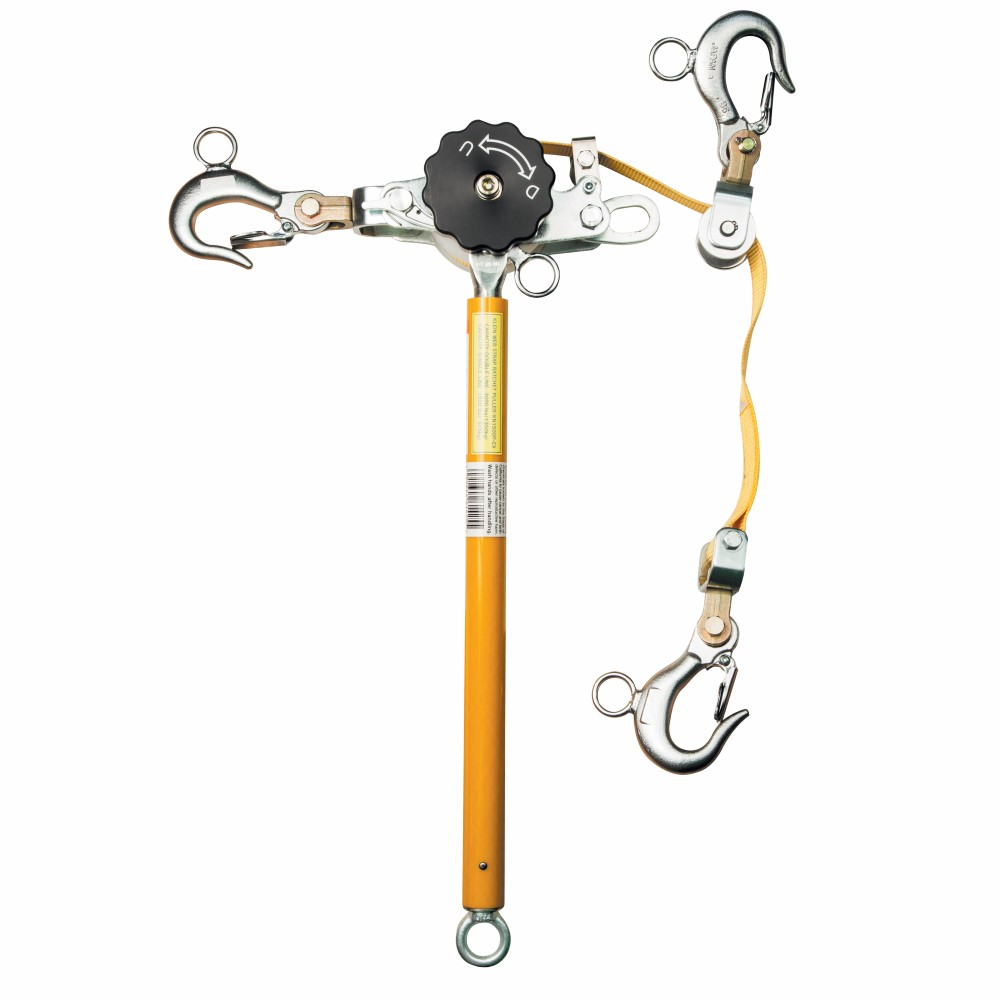

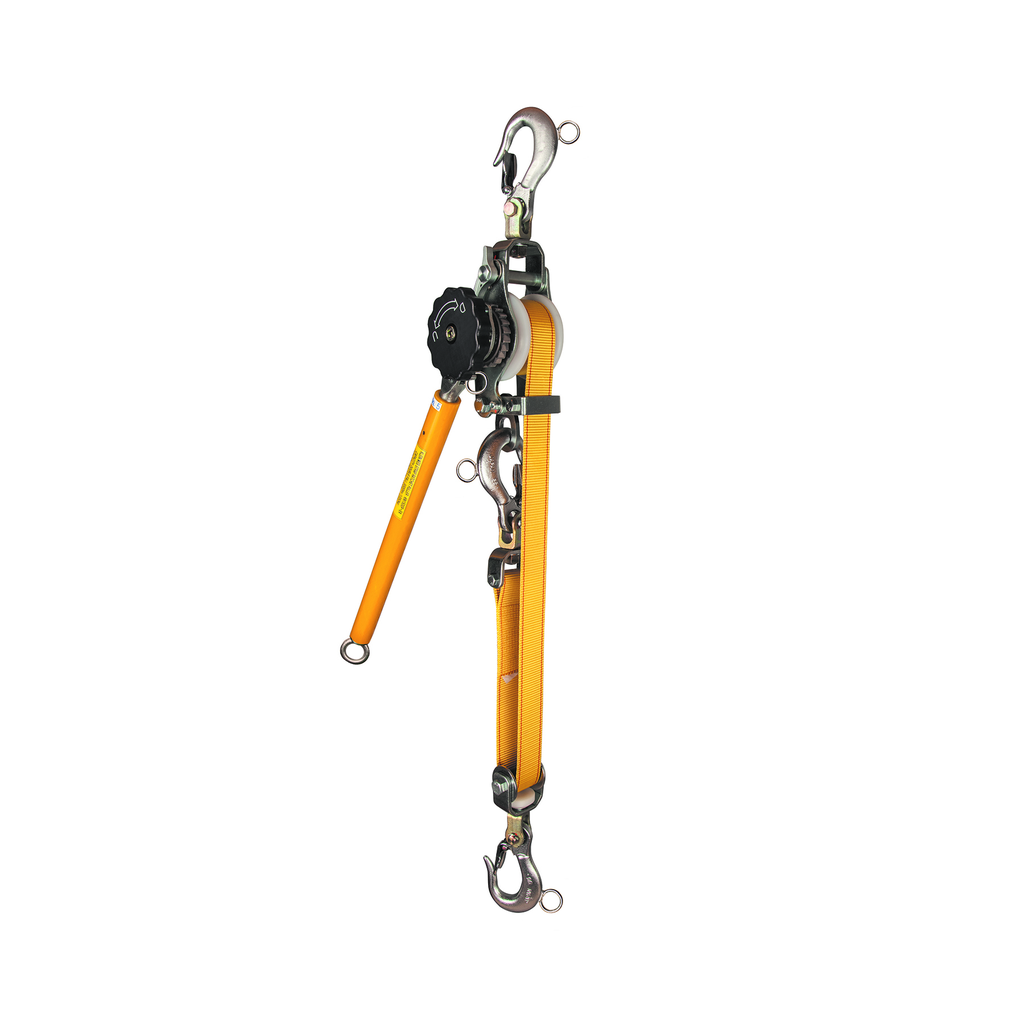

Web-Strap Ratchet Hoist with Hot Rings

Klein Tools' Web-Strap Ratchet Hoist with hot rings to accommodate hotsticks. The hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free wheeling. The hoist can be used in both a single line and double line configuration. The handle provides a 360-degree range of motion for easier adjustment from any angle.

Features

• 1-1/2-ton double line, 3/4-ton single line load rating
• Hot rings on hooks, switch and end of handle enable use with hotstick
• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• 360-degree handle rotation allows for use from any angle
• Non-conductive dial allows web slack to be adjusted with ease
• Tight ratcheting mechanism allows precise tensioning with less work and fatigue
• Single line pulling distance is 20-Inches to 138-Inches (50.5 to 350.5 cm)

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

Specifications

• Height: 4.2750 in
• Width: 6.7500 in
• Depth: 27.4500 in
• Single Line Load Rating: 680.4 kg (1500 lb)
• Single Line Pulling Distance: 20" to 138" (50.5 to 350.5 cm)
• Double Line Pulling Distance: 26" to 79" (66.0 to 200.6 cm)
• Included: Hoist; Hot Rings
• Standard: ANSI/ASME B30.21-2014 and B30.10-2014
• Weight: 13.6000 lbs
• Double Line Load Rating: 3000 lb (1360.8 kg)
