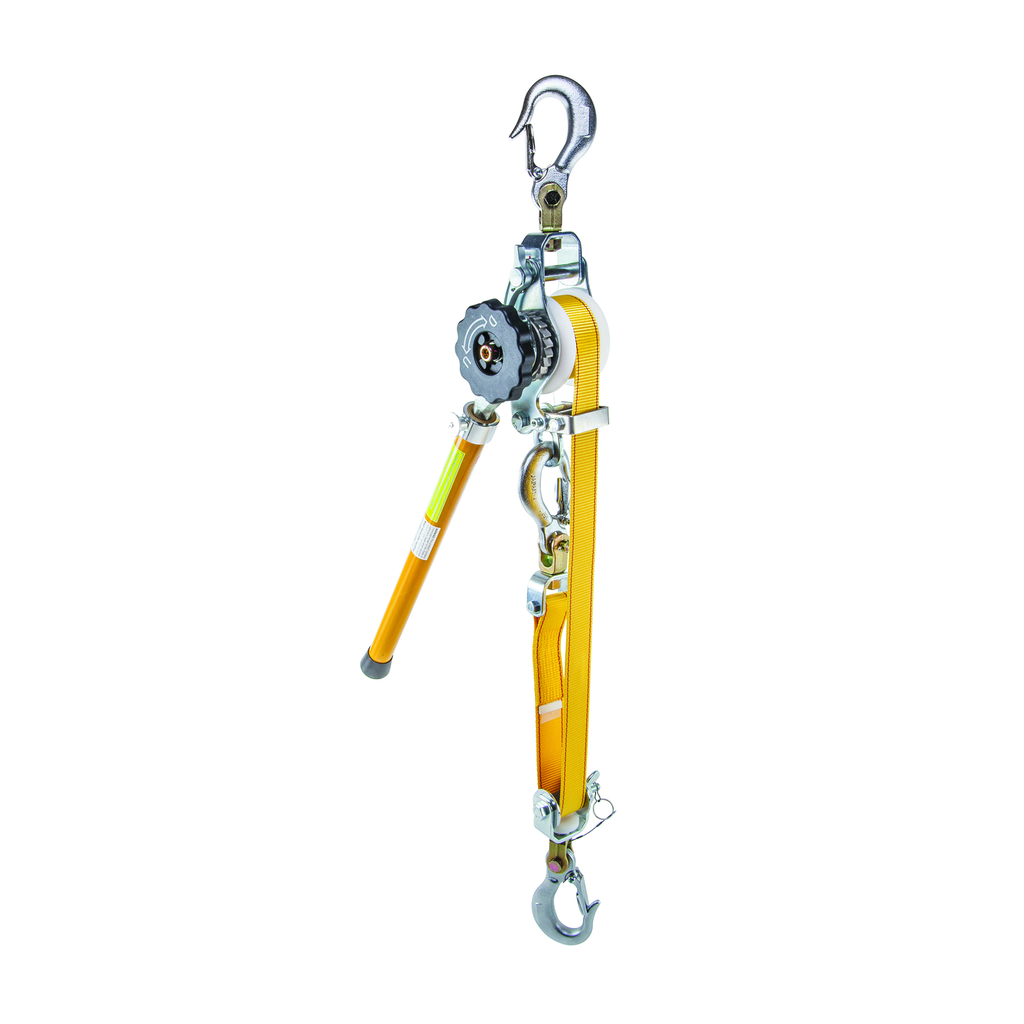

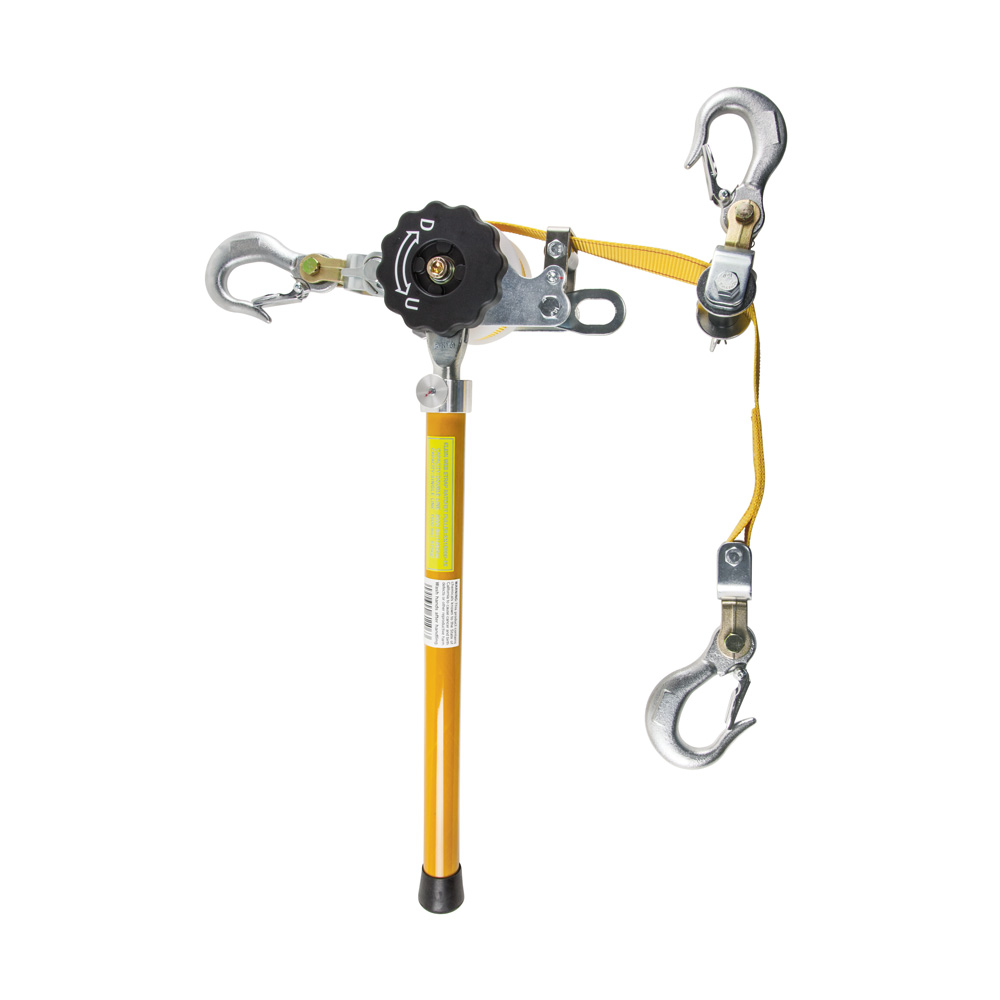

Web-Strap Hoist Deluxe with Removable Handle

The Web Strap Hoist Deluxe has new features to make work easy and efficient. The handle can be removed for less obstruction when working near the hoist and less storage space needed. The deep V-notch in the hook latches for secure closure. Tighter ratcheting mechanism means less work, less fatigue. The handle and non-conductive drum knob allow you to safely control the tension release to avoid free wheeling. 360 degree handle rotation easily works from any angle for added flexibility on the job.

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

Features

• 3/4 ton single line and 1-1/2 ton double line load rating

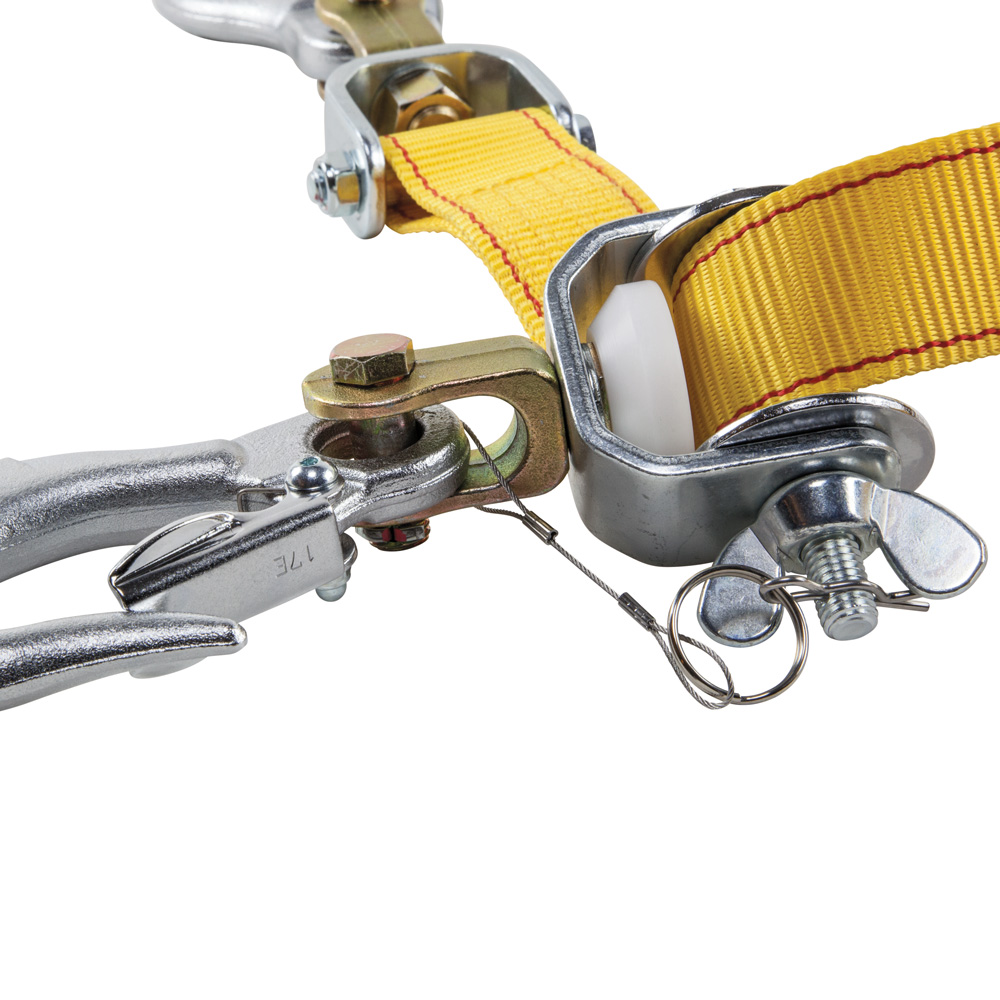

• Wing nut and cotter pin assembly for easy removal of the floating hook
• Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation
• 360 degree handle rotation easily works from any angle
• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• Deep V-notch in hook reduces lateral movement

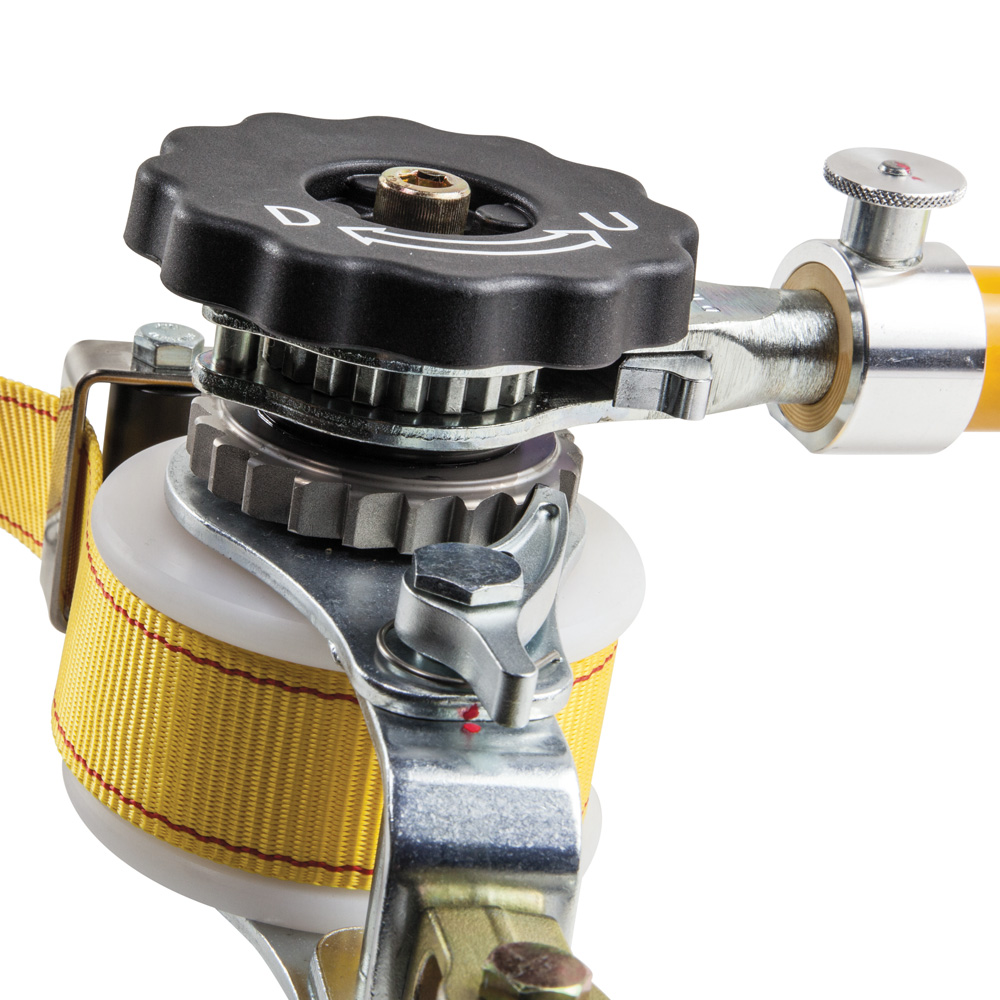

• Tight ratcheting for less work and less fatigue

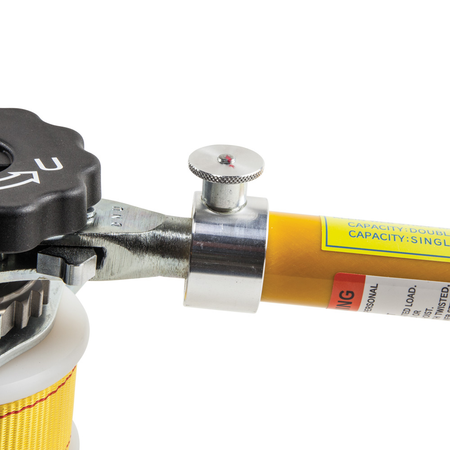

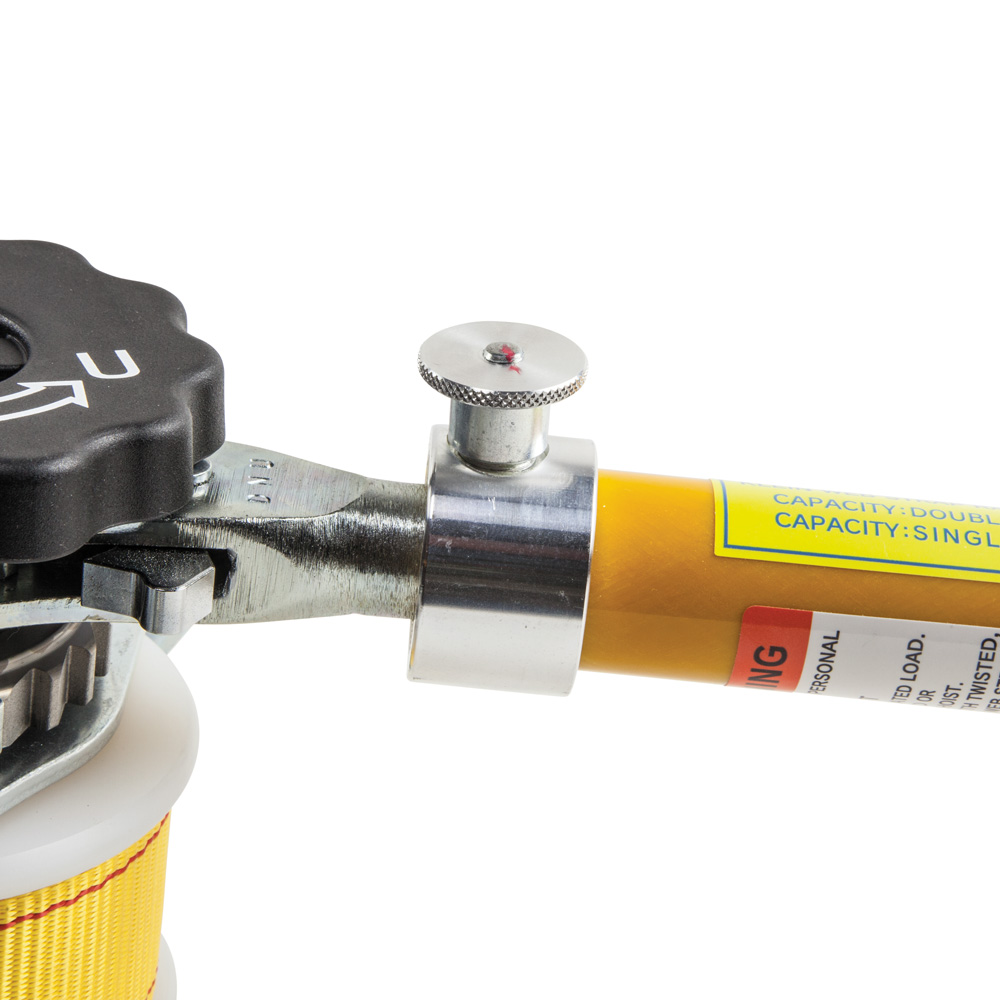

• Removable handle for less obstruction when working near the hoist; requires less space for storage
• Controlled tension release for safety

Specifications

• Double Line Pulling Distance: 26" to 79" (66.0 to 200.6 cm)
• Standard: Meets ANSI/ASME B30.21-2014 and B30.10-2014 Standards
• Overall Width: 4 Inch (10.2 cm)
• Width: 4.0000 in
• Overall Height: 12.7 cm (5 Inch)
• Single Line Pulling Distance: 20" to 138" (50.5 to 350.5 cm)
• Double Line Load Rating: 3000 lb (1360.8 kg)
• Weight: 13.0000 lbs
• Type: Hoists
• Height: 5.0000 in
• Depth: 33.0000 in
• Application: Lifting
• Single Line Load Rating: 680.4 kg (1500 lb)
• Overall Length: 83.8 cm (33 Inch)

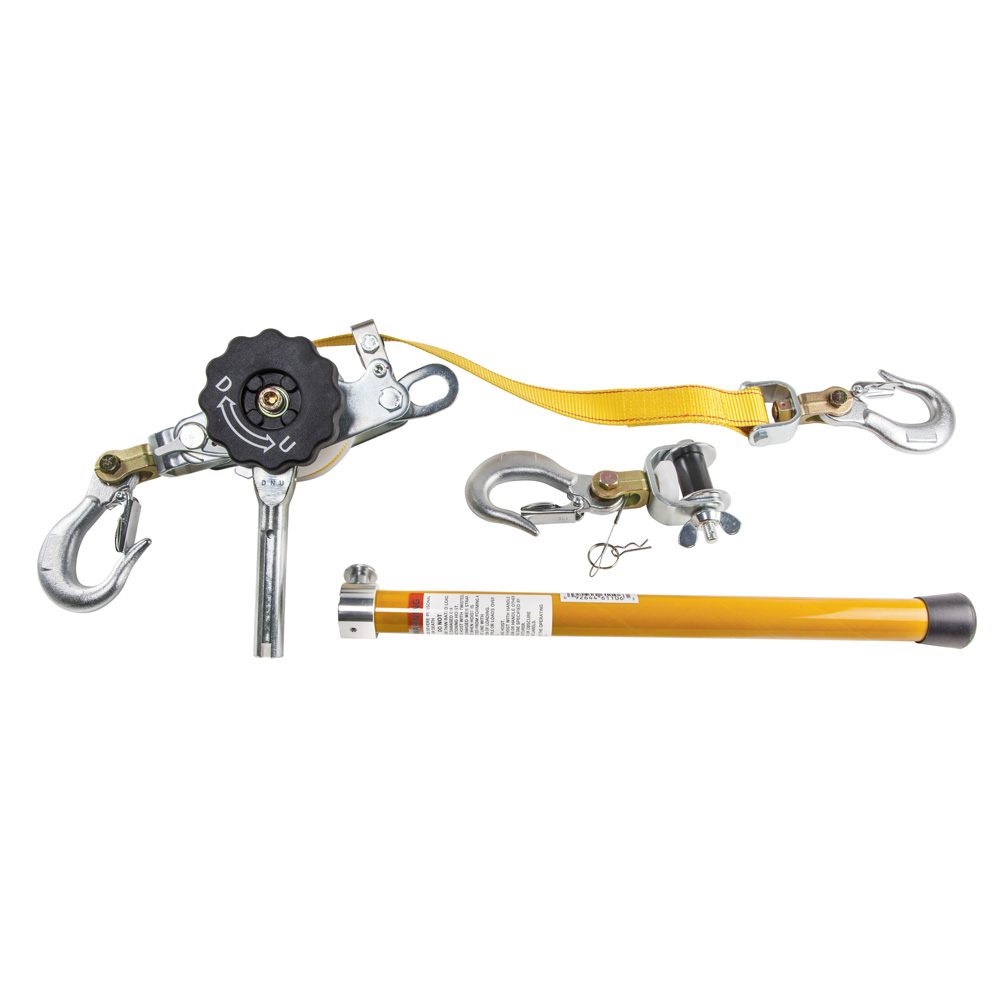

• Included: Hoist; Removable Handle
