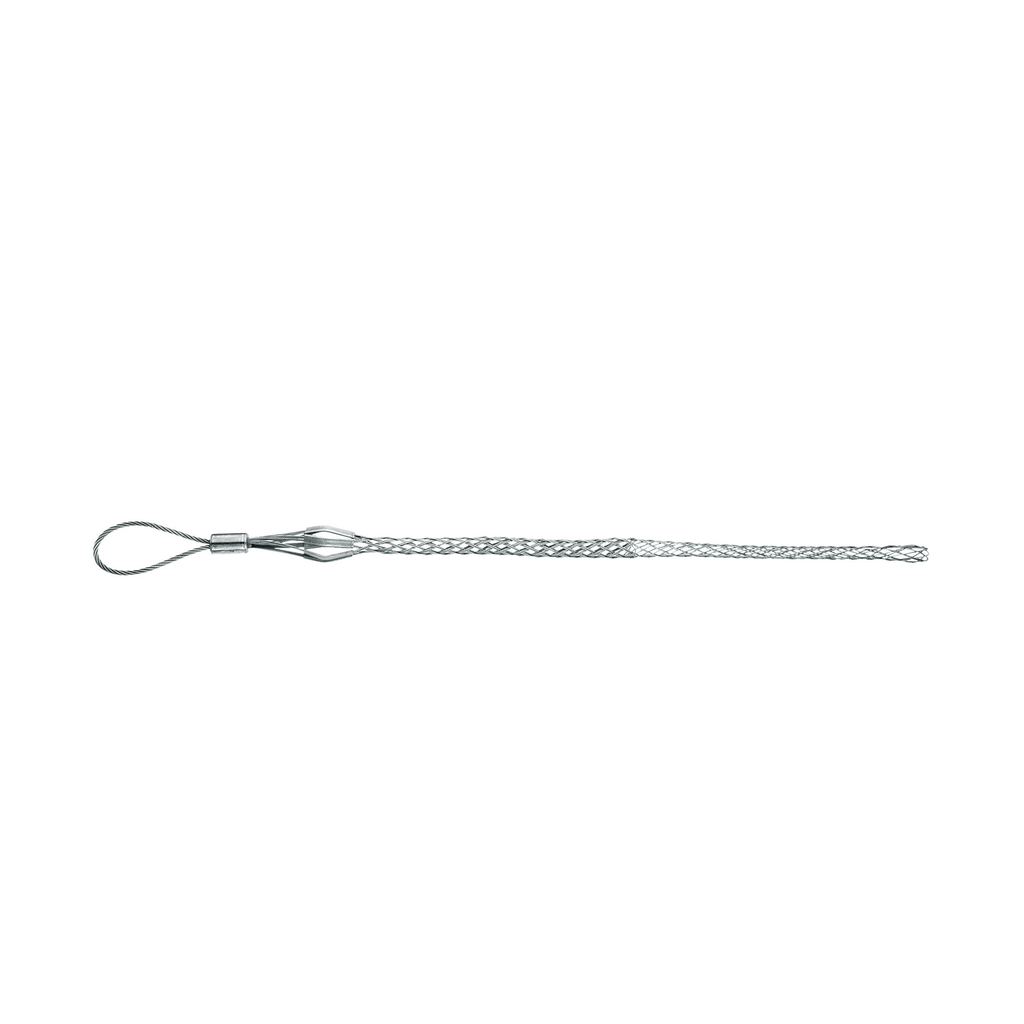

Pulling Grip, 0.75 to 1-Inch Diameter Short Length

These heavy-duty, long length closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Features

• 1360-Pound maximum safe load
• 0.75 to 0.99-Inch cable diameter (3/4 to 63/64-Inch or 19.05 to 25.00 mm)
• Made in USA to provide line workers with maximum strength and durability
• KP Heavy Duty - Short Length

Warnings

• Always inspect equipment before use.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Always match proper size and type of grip to application.
• Do NOT use on live circuits.

Specifications

• Maximum Safe Load: 616.9 kg (1360 lb)
• Depth: 24.0000 in
• Height: 1.7600 in
• Width: 2.2500 in
• Weight: 0.5000 lbs
• Cable Diameter: 0.75" to 0.99" (19.05 to 25.15 mm)
• Material: Galvanized Steel
• Mesh Length: 61 cm (24 Inch)
