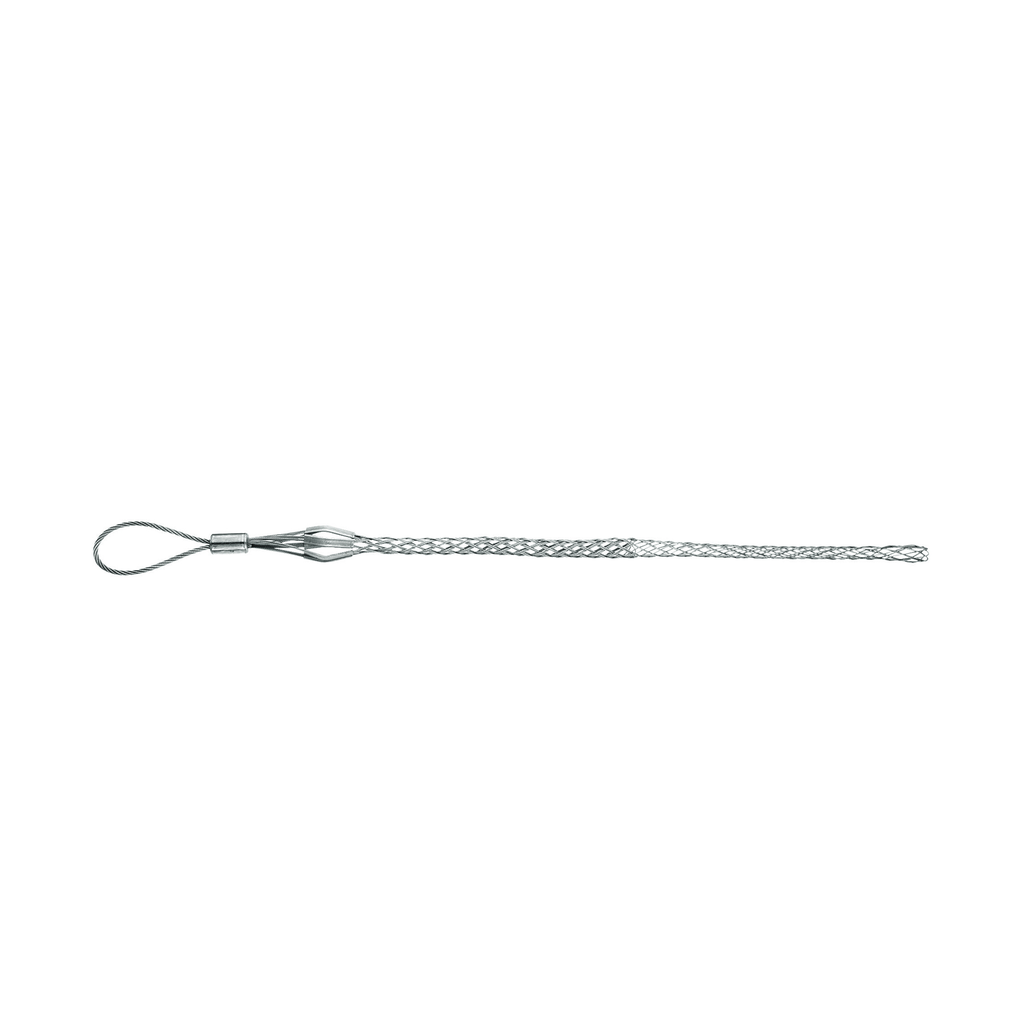

Pulling Grip 36-Inch Length 0.75 to 1-Inch Dia

These heavy-duty, long length closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Always match proper size and type of grip to application.
• Do NOT use on live circuits.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Always inspect equipment before use.

Features

• KP Heavy Duty - Medium Length
• Made in USA to provide line workers with maximum strength and durability
• 0.75 to 0.99-Inch cable diameter (3/4 to 63/64-Inch or 19.05 to 25.00 mm)
• 1360-Pound maximum safe load

Specifications

• Mesh Length: 91.4 cm (36 Inch)
• Depth: 36.0000 in
• Maximum Safe Load: 616.9 kg (1360 lb)
• Width: 7.0000 in
• Height: 1.0000 in
• Material: Galvanized Steel
• Weight: 0.7400 lbs
• Cable Diameter: 0.75" to 0.99" (19.05 to 25.15 mm
