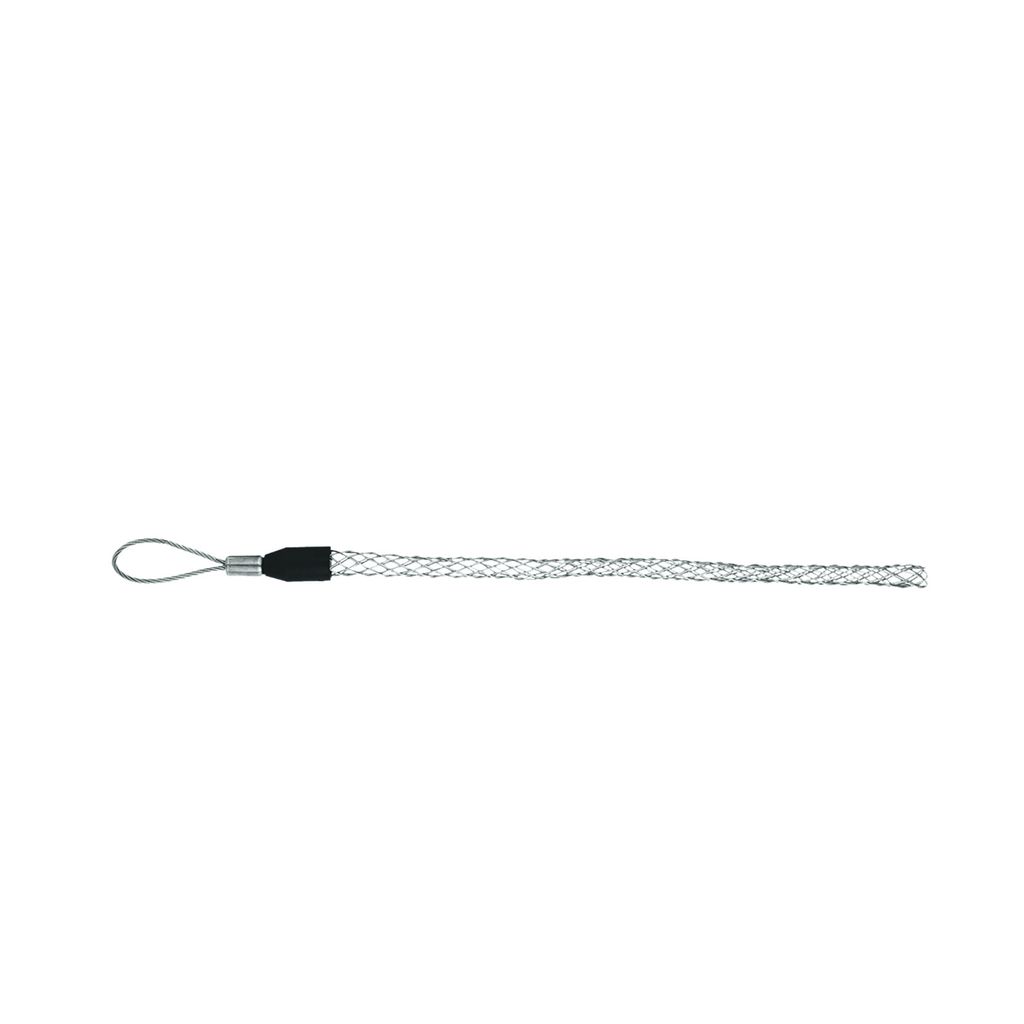

Single Weave Flexible Eye Pulling Grips

These junior-duty, closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA to provide line workers with maximum strength and durability
• 560-Pound maximum safe load
• .75-Inch- .99-Inch cable diameter (3/4 63/64-Inch or 19.05 25.00 mm)
• Drop-forged, high-quality steel

Warnings

• Always inspect equipment before use.
• Always match proper size and type of grip to application.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Do NOT use on live circuits.

Specifications

• Width: 0.7500 in
• Material: Galvanized Steel
• Maximum Safe Load: 560 lb (254 kg)
• Depth: 10.0000 in
• Height: 1.7500 in
• Mesh Length: 10" (25.4 cm)
• Weight: 0.1000 lbs
• Cable Diameter: 0.75" to 0.99" (19.05 to 25.15 mm
