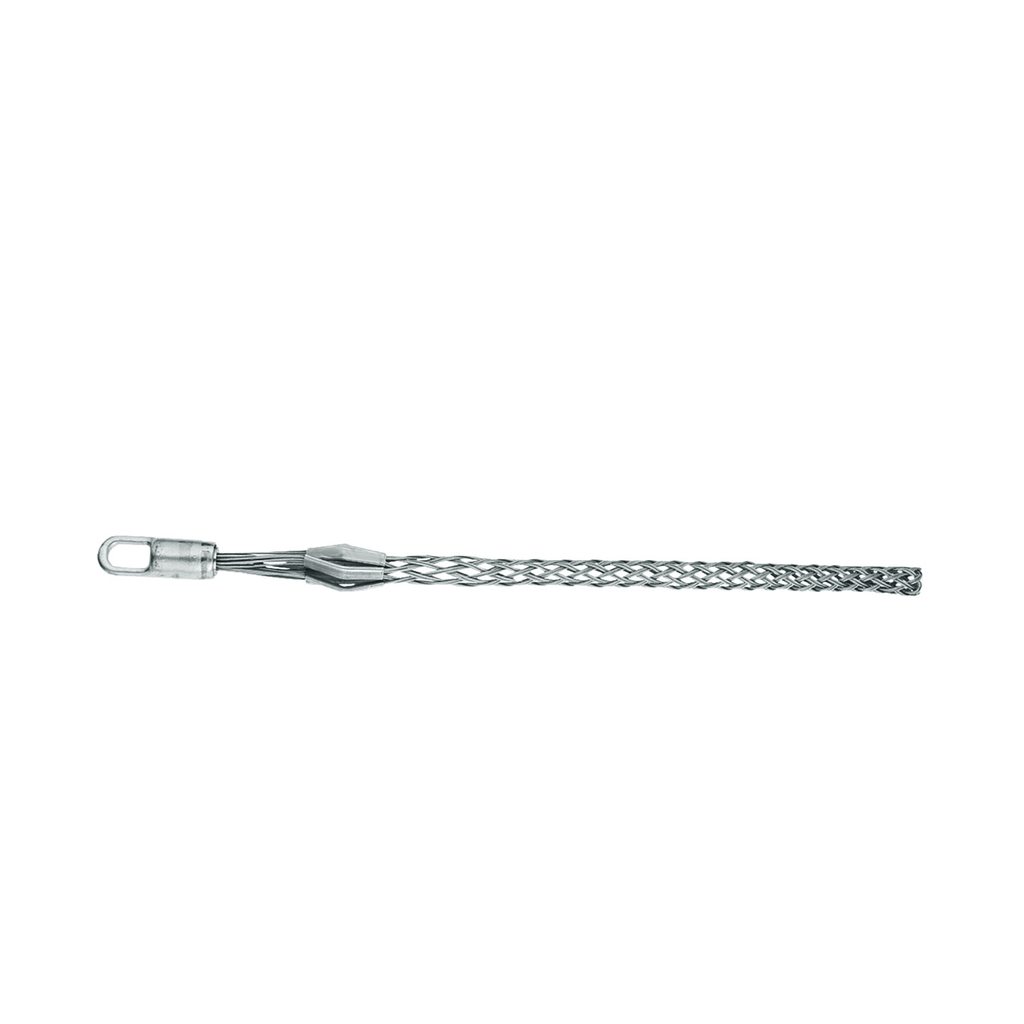

Pulling Grip 20-Inch L 1.0 to 1.2-Inch Dia

These heavy duty, medium length closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Do NOT use on live circuits.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Always inspect equipment before use.
• Always match proper size and type of grip to application.

Features

• Made in USA to provide line workers with maximum strength and durability
• 1.00 to 1.24-Inch cable diameter (1 to 1-15/64-Inch or 25.40 to 31.35 mm)
• KPS Heavy Duty - Medium Length
• 2560-pound max safe load

Specifications

• Cable Diameter: 1.00" to 1.24" (25.4 to 31.50 mm)
• Width: 3.0000 in
• Depth: 20.0000 in
• Weight: 1.9000 lbs
• Maximum Safe Load: 2560 lb (1161 kg)
• Material: Galvanized Steel
• Mesh Length: 20" (50.8 cm)
• Height: 1.5000 in
