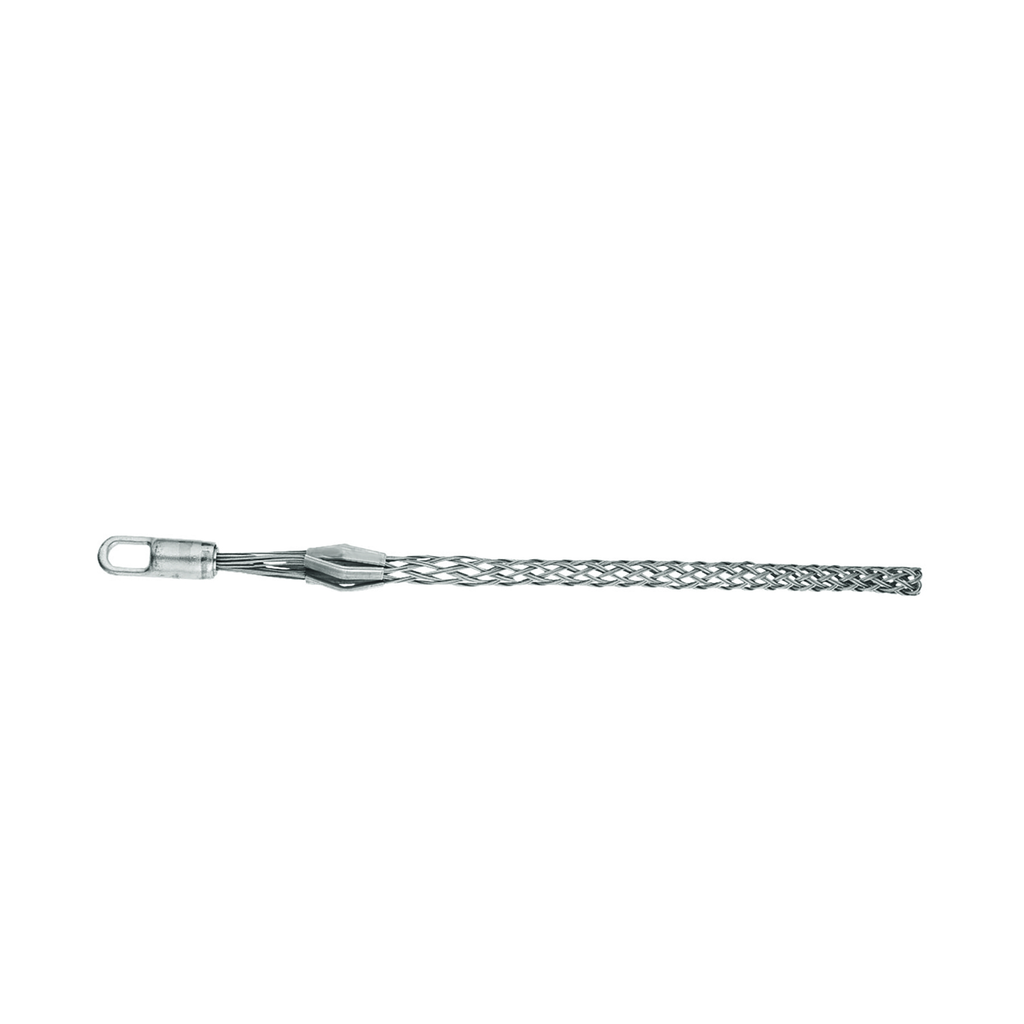

Pulling Grip for 2 to 2.5-Inch Diameter, 26-Inch

These heavy duty, medium length closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Do NOT use on live circuits.
• Always inspect equipment before use.
• Always match proper size and type of grip to application.

Features

• 2.00 to 2.49-Inch cable diameter (2 to 2-31/64-Inch or 50.80 to 63.10 mm)
• 5440-Pound maximum safe load
• KPS Heavy Duty - Medium Length
• Made in USA to provide line workers with maximum strength and durability

Specifications

• Mesh Length: 66 cm (26 Inch)
• Depth: 26.0000 in
• Height: 3.0000 in
• Maximum Safe Load: 2467.5 kg (5440 lb)
• Weight: 4.1000 lbs
• Width: 5.2500 in
• Cable Diameter: 2.00" to 2.49" (50.80 to 63.25 mm)
• Material: Galvanized Steel
