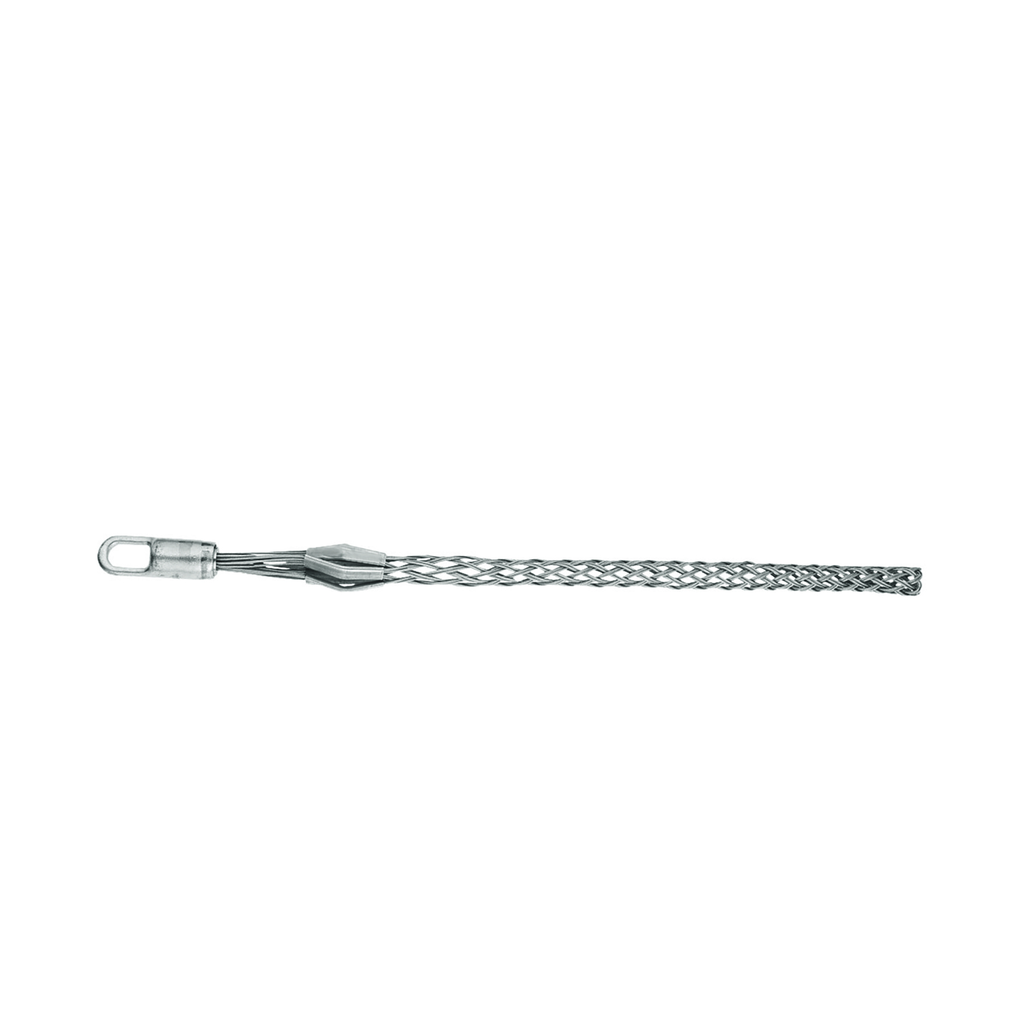

Pulling Grip 32-Inch Mesh, 3.5 to 4-Inch Diameter

These heavy duty, medium length closed-mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Do NOT use on live circuits.
• Always inspect equipment before use.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Always match proper size and type of grip to application.

Features

• KPS Heavy Duty - Medium Length
• 9600-Pound maximum safe load
• Made in USA to provide line workers with maximum strength and durability
• 3.50 to 3.99-Inch cable diameter (3-1/2 to 3-63/64-Inch or 76.20 to 88.50 mm)

Specifications

• Material: Galvanized Steel
• Depth: 32.0000 in
• Height: 4.5000 in
• Mesh Length: 81.3 cm (32 Inch)
• Width: 6.0000 in
• Maximum Safe Load: 4354.5 kg (9600 lb)
• Weight: 6.8000 lbs
• Cable Diameter: 3.5" to 3.99" (88.90 to 101.35 mm)
