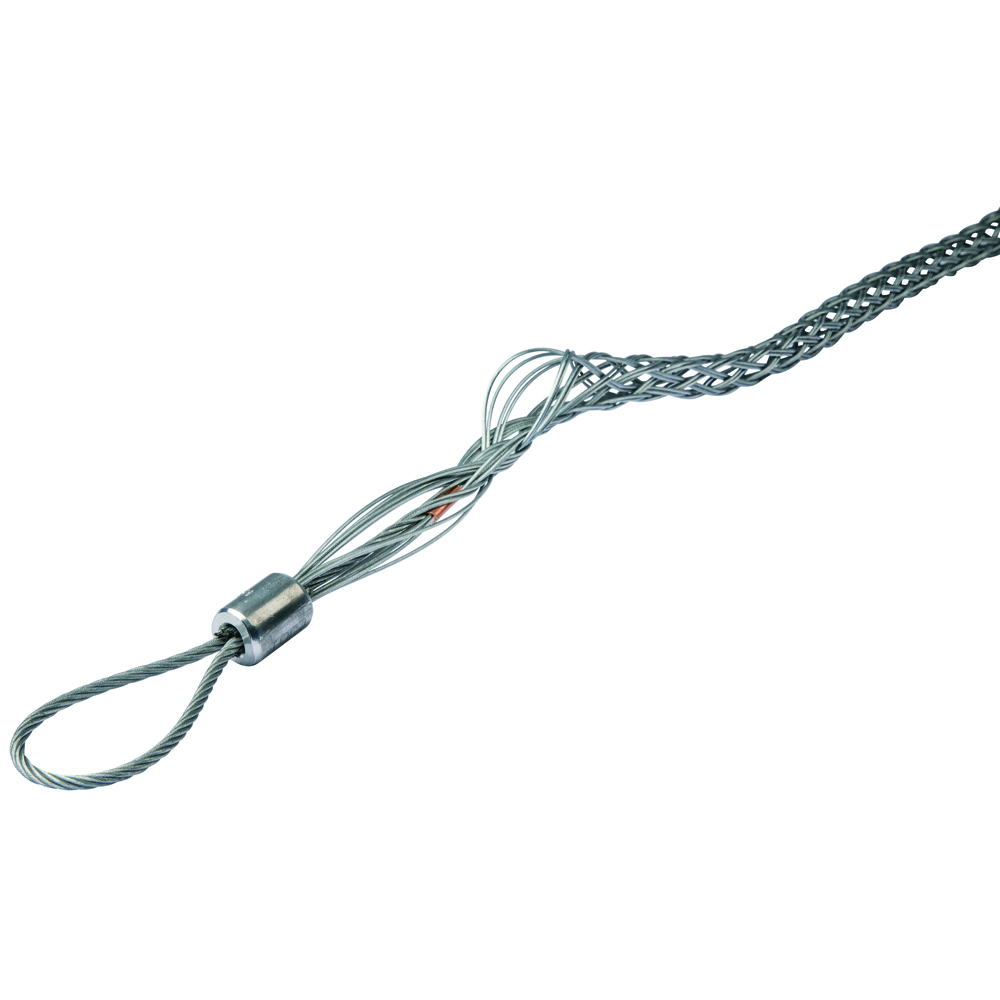

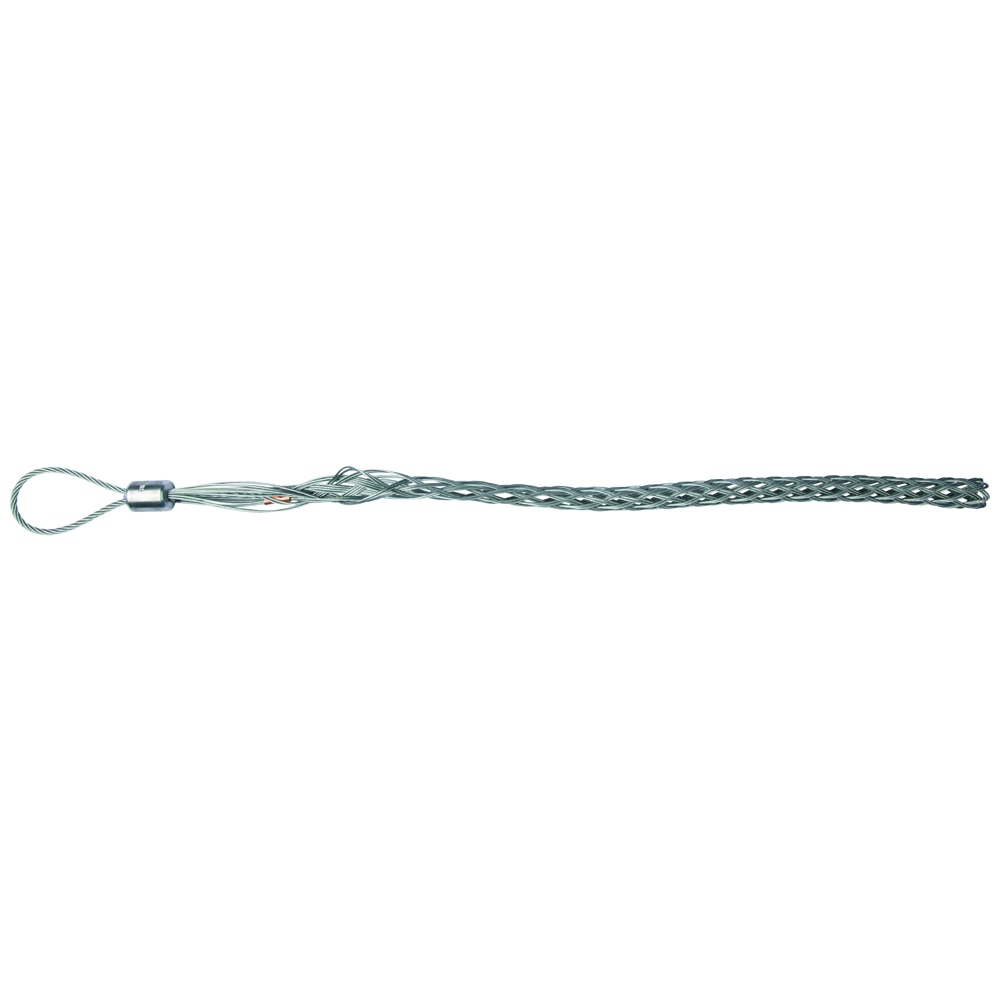

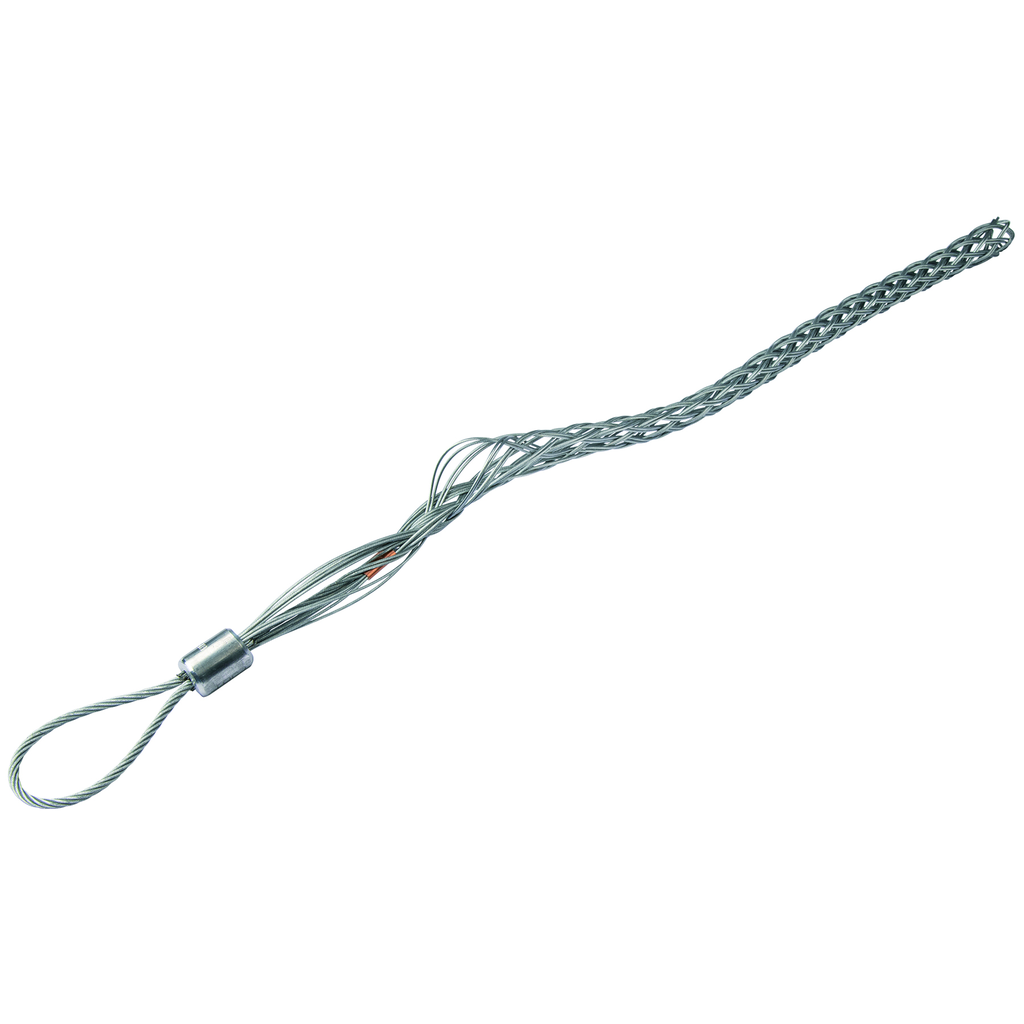

Offset Flexible Eye Pulling Grips 15-Inch

These medium-duty, standard length double-weave mesh wire pulling grips from Klein combine strength and durability to help linemen get the job done. Manufactured, inspected and tested in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Features

• 800-Pound maximum safe load
• Made in USA to provide line workers with maximum strength and durability
• KSCK Medium Duty - Standard Length
• 1.00 to 1.24-Inch cable diameter (1 to 1-15/64-Inch or 25.40 to 31.35 mm)

Warnings

• Always inspect equipment before use.
• Do NOT exceed maximum safe load as listed on the label attached to the product.
• Do NOT use on live circuits.
• Always match proper size and type of grip to application.

Specifications

• Width: 1.5000 in
• Depth: 15.0000 in
• Weight: 0.5000 lbs
• Cable Diameter: 1.00" to 1.24" (25.4 to 31.50 mm)
• Maximum Safe Load: 800 lb (363 kg)
• Material: Galvanized Steel
• Height: 1.0000 in
• Mesh Length: 15" (38.1 cm)
