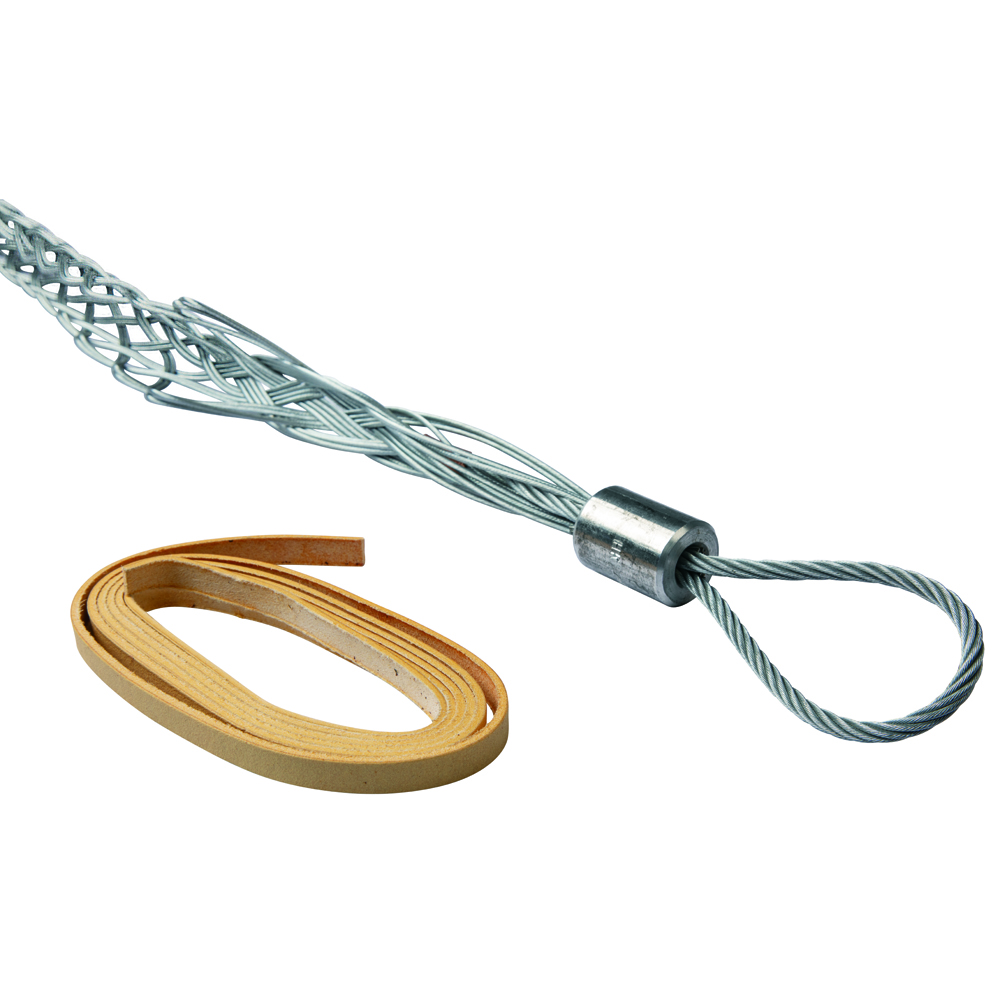

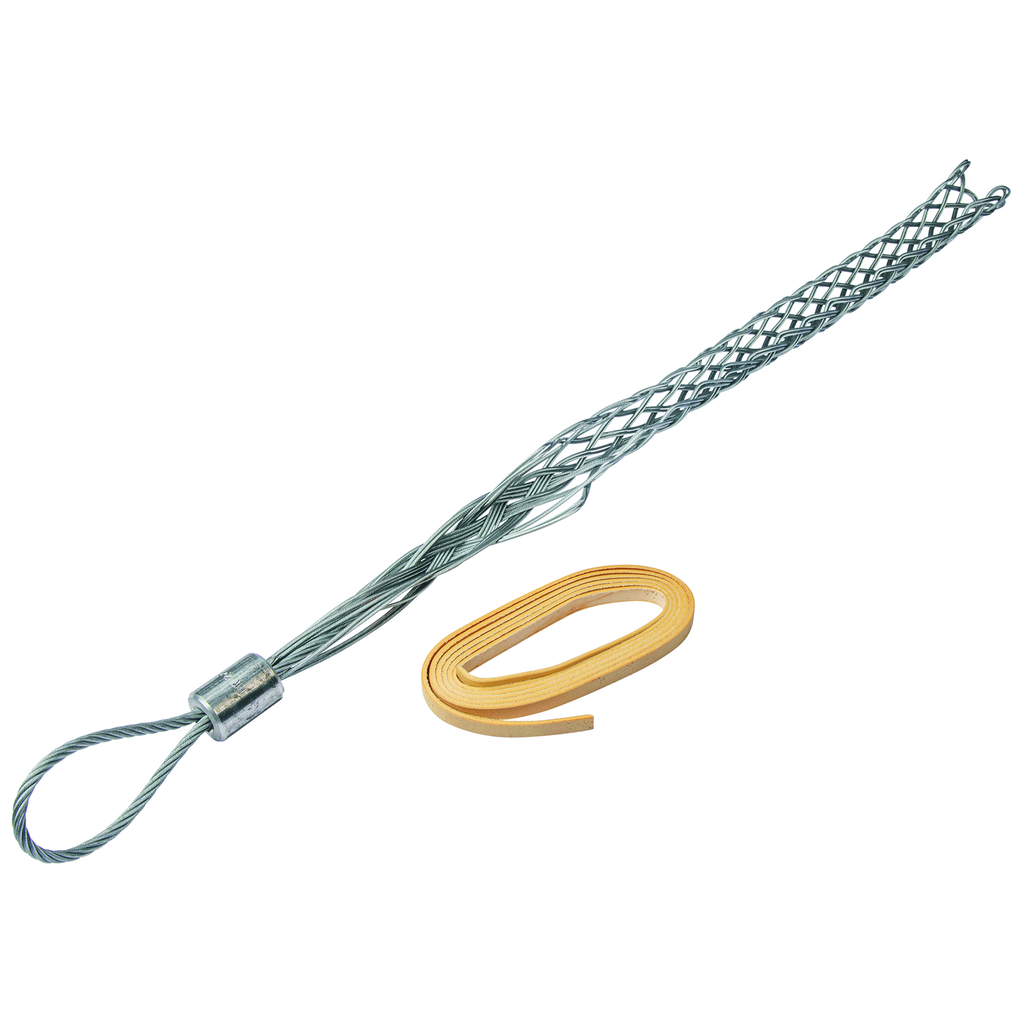

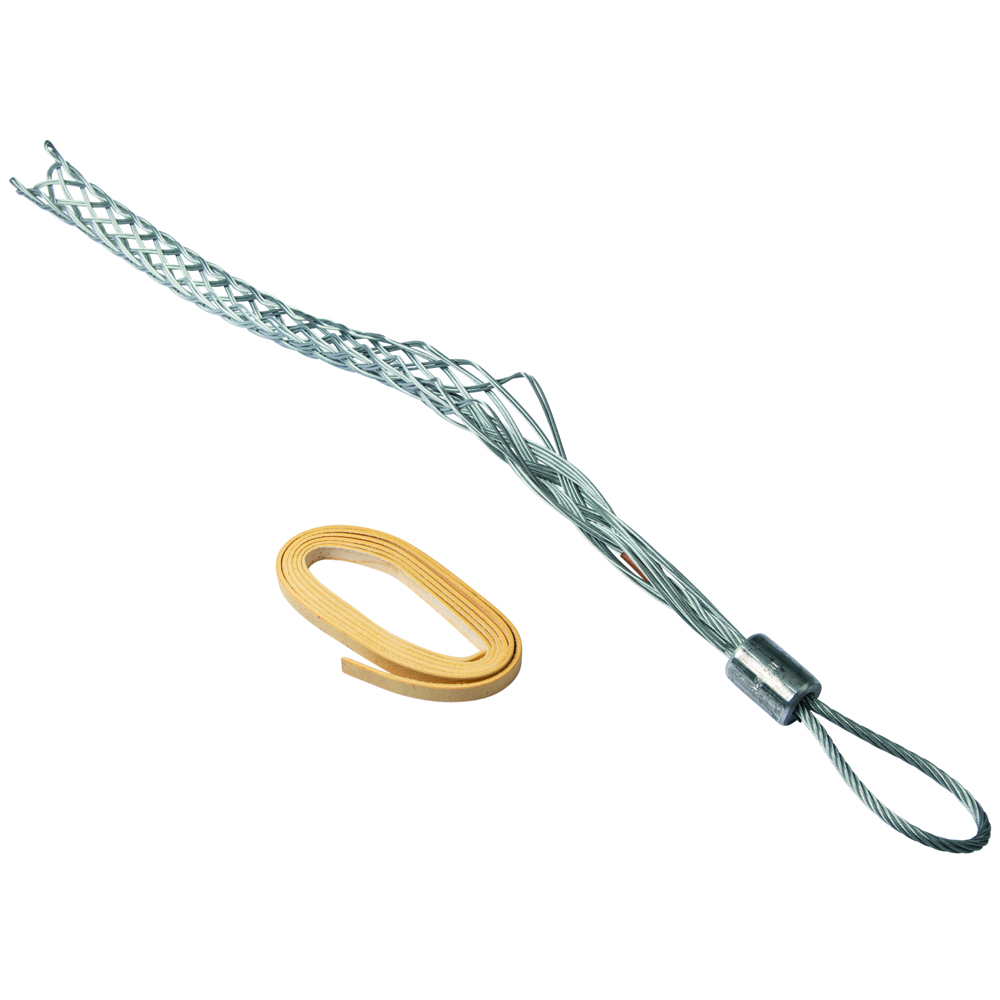

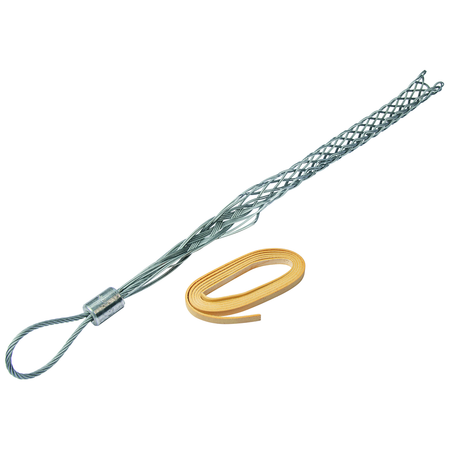

Slack-Pulling Grips, 16-Inch, Offset Flexible Eye

These medium-duty, standard length double-weave split mesh wire pulling grips from Klein combine strength and durability for to help linemen get the job done. Manufactured, inspected and test in the USA, these grips are made of drop-forged quality US steel. Grips are rigorously tested using the Magnaflux method and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Always match proper size and type of grip to application.
• Do NOT use on live circuits.
• Always inspect equipment before use.
• Do NOT exceed maximum safe load as listed on the label attached to the product.

Features

• Made in USA to provide line workers with maximum strength and durability
• KSSK Medium Duty - Standard Length
• 800-Pound maximum safe load
• 1.25 to 1.49-Inch cable diameter (1-1/4 to 1-31/64-Inch or 31.75 to 37.70 mm)

Specifications

• Mesh Length: 40.6 cm (16 Inch)
• Height: 1.0000 in
• Cable Diameter: 1.25" to 1.49" (31.75 to 37.85 mm)
• Maximum Safe Load: 362.9 kg (800 lb)
• Width: 2.0000 in
• Depth: 16.0000 in
• Weight: 0.2500 lbs
• Material: Galvanized Steel
