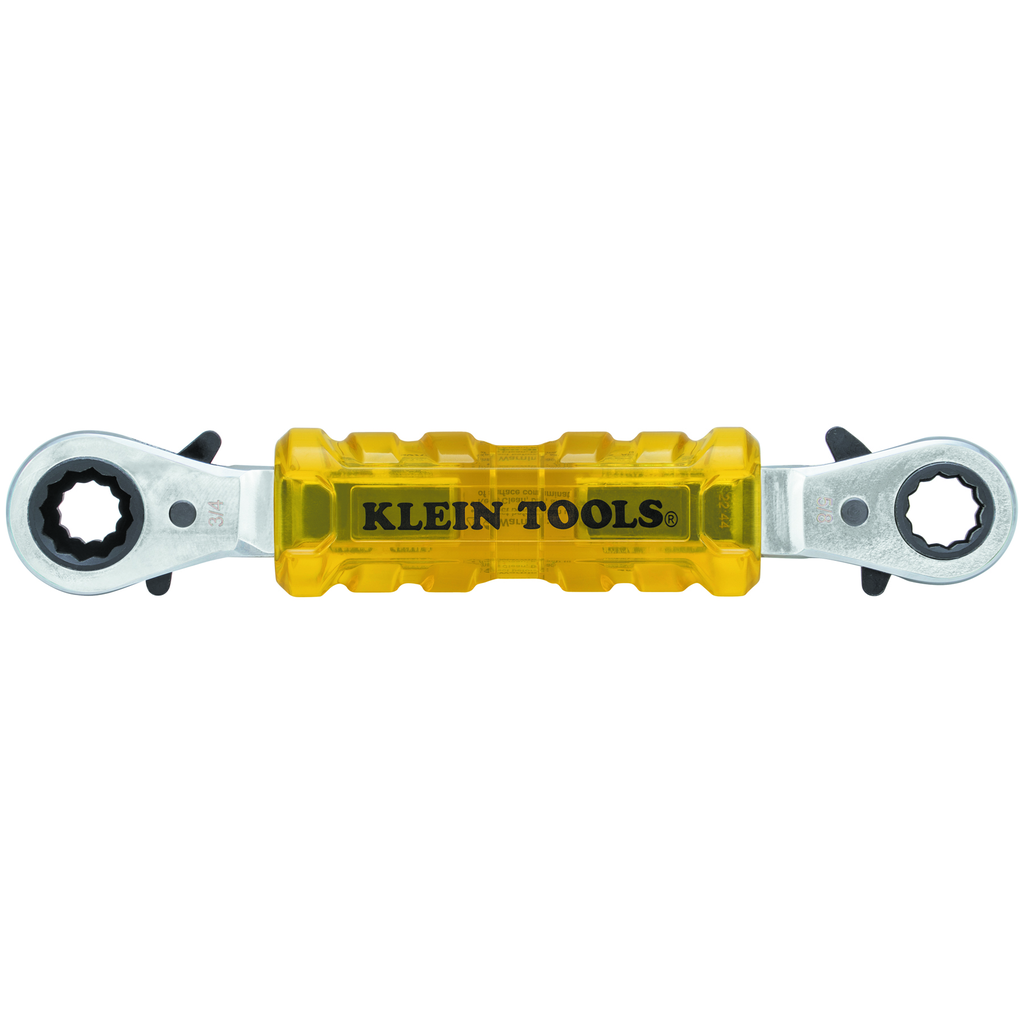

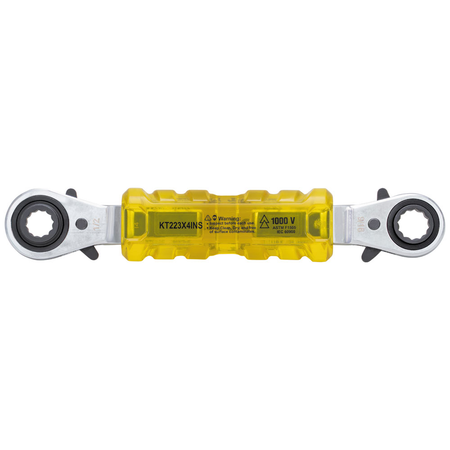

Lineman's Insulating 4-in-1 Box Wrench

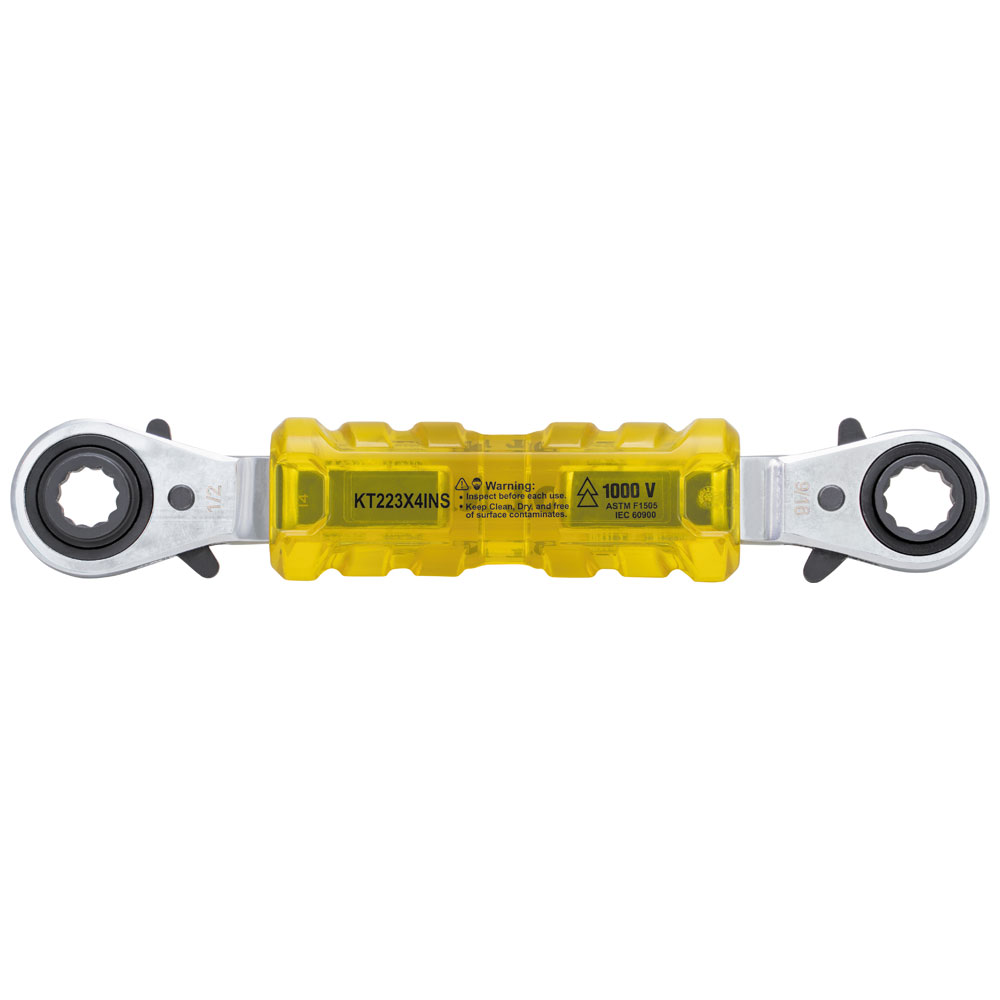

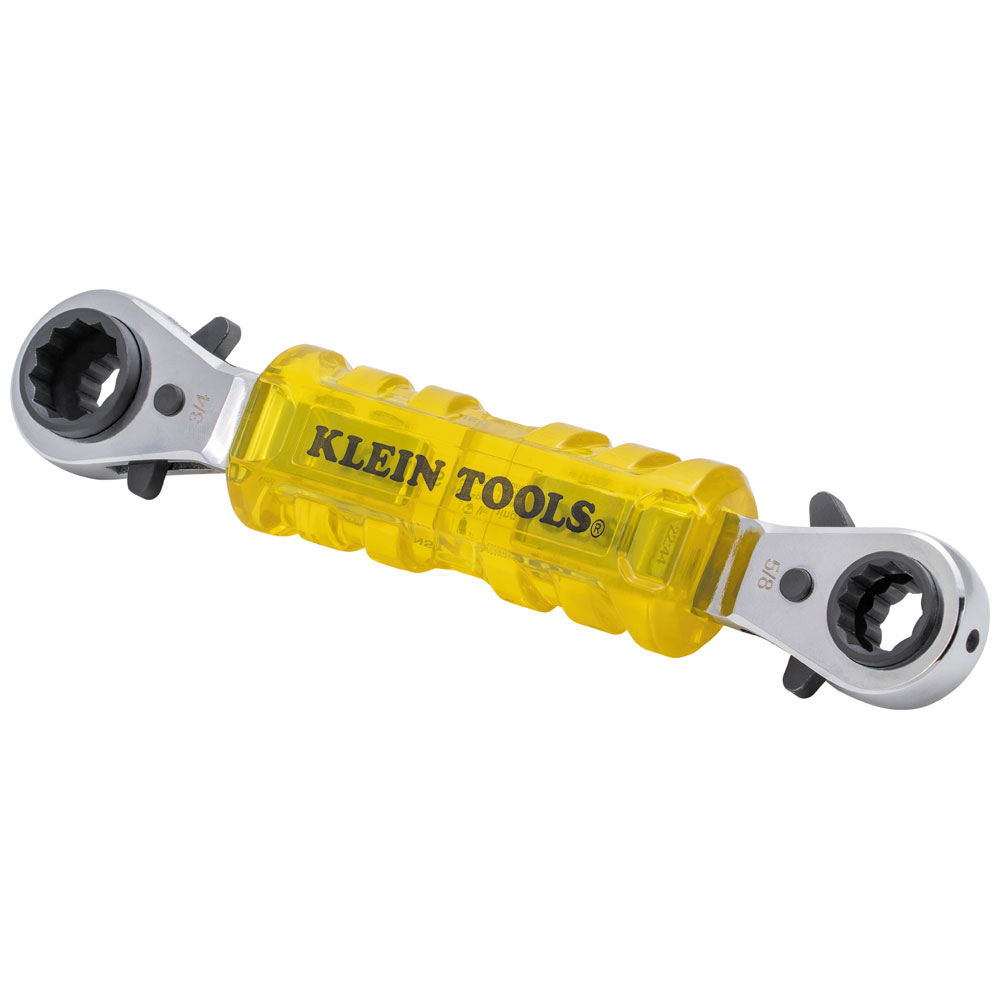

The Klein Tools Lineman's Insulating 4-in-1 Box Wrench is the only double ended 4-in-1 wrench on the market to meet the ASTM standard 1000V rating. It features a transparent handle that shows the metal ends of the wrench are not touching. The solid, durable wrench features four 12 point socket sizes: 1/2'', 9/16'', 5/8'', and 3/4''.

Features

• Larger pawl allows for easier direction change while wearing class 2 gloves

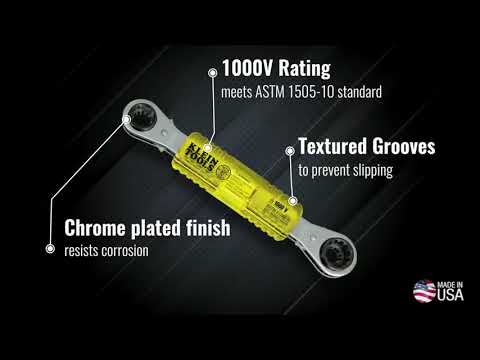

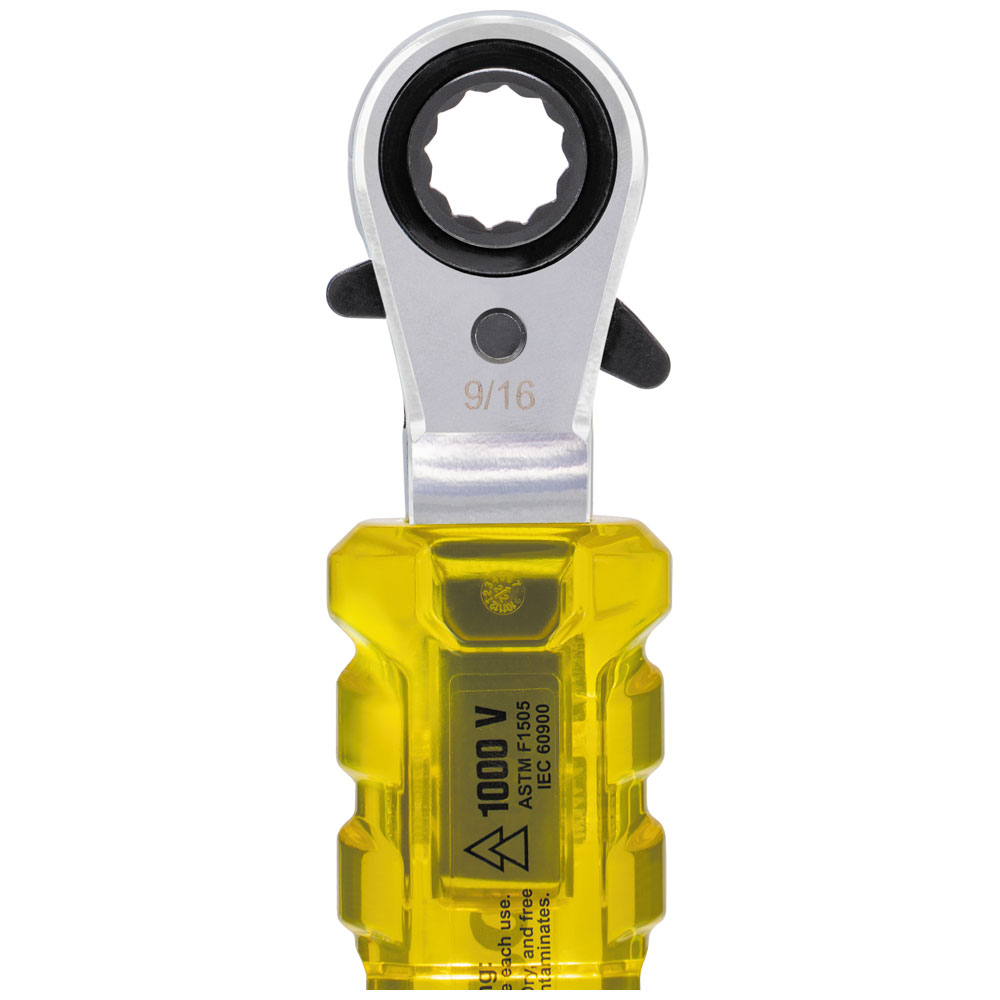

• Box Wrench meets the ASTM 1505-10 standard 1000V rating
• Oversized Pawl & Higher Tool Count
• Chrome plated finish resists corrosion
• Higher gear, 48 tooth count helps reduce the swing arc
• Textured grooves in handle prevent slipping
• See-through insulating handle confirms metal ends are not connected
• Reverse ratcheting action by reversing switches on each end of the wrench
• Covered gear mechanisms protect from dirt and debris

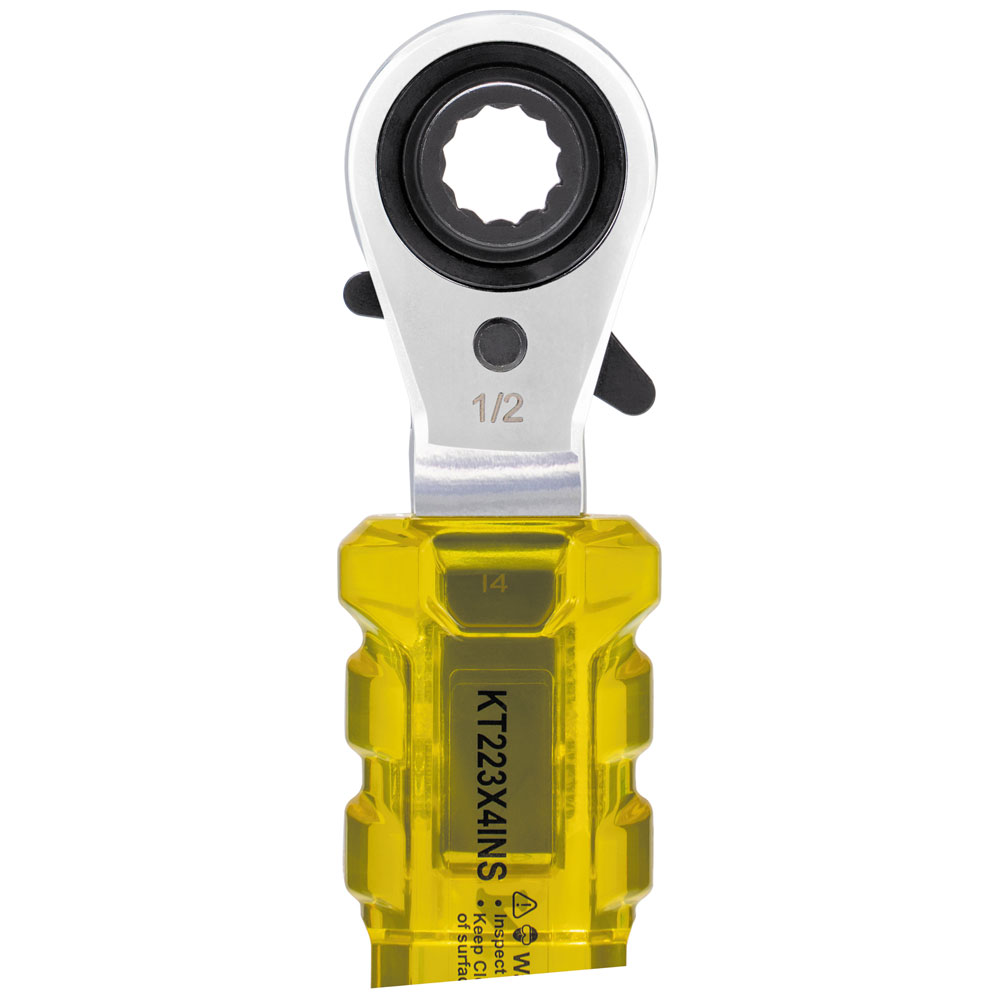

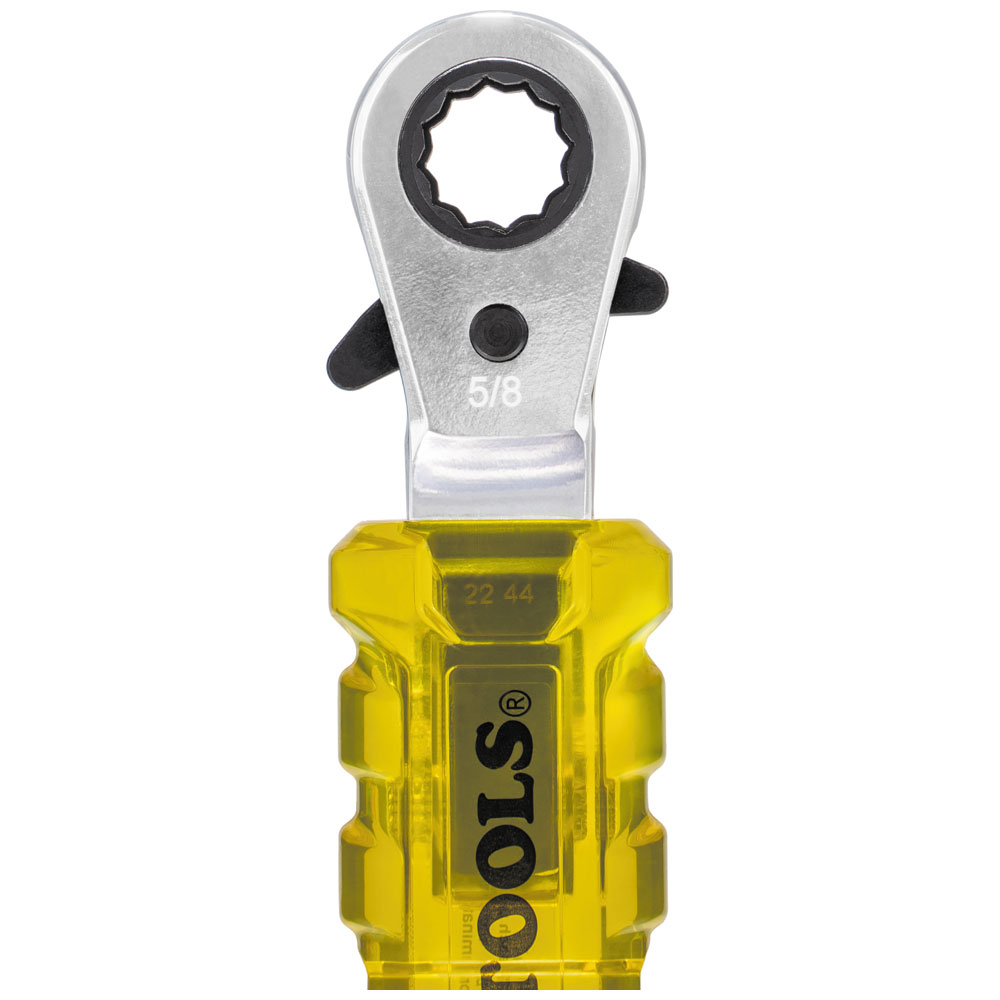

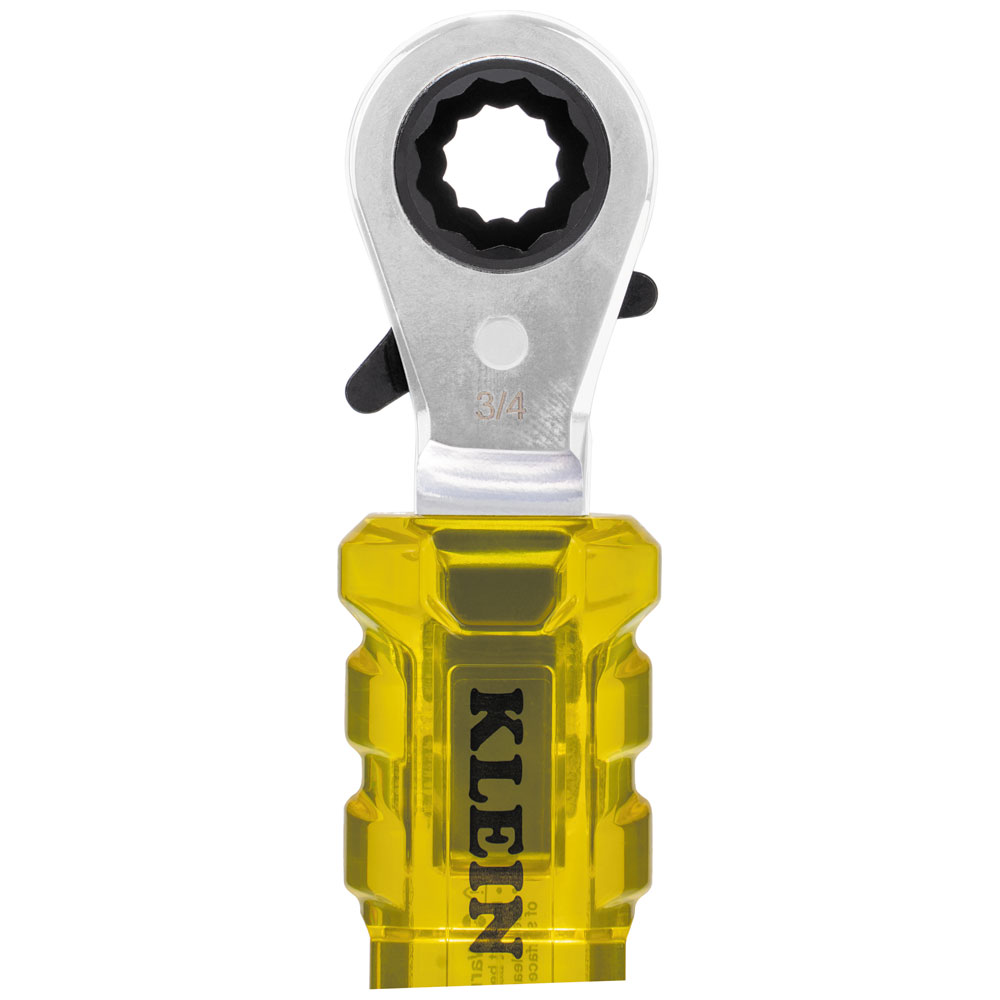

• 1/2-Inch, 9/16-Inch, 5/8-Inch and 3/4-Inch sizes in one tool; 12 point sockets

Warnings

• Always wear eye protection.
• Inspect before each use.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.
• Because moisture, films, or other surface contaminants are conductive, Klein insulating tools must be kept clean, dry and free of any surface contaminants.

• Number of Points: 12
• Number of Teeth: 48
• Swing Arc: 7.5 degrees
• Size: 1/2 in, 9/16 in, 5/8 in, 3/4 in
• Overall Length: 9.28 in (23.6 cm)
• Depth: 9.00 in
• Overall Height: 1.10 in (2.8 cm)
• Overall Width: 1.60 in (4.1 cm)
• Weight: 0.7 lbs (11.2 oz)
• Material: Steel
• Finish: Chrome Plated
• Head Type: Forged
• Type: Insulating
• Application: Pole Hardware Installation and Removal
• Country of Origin: United States
